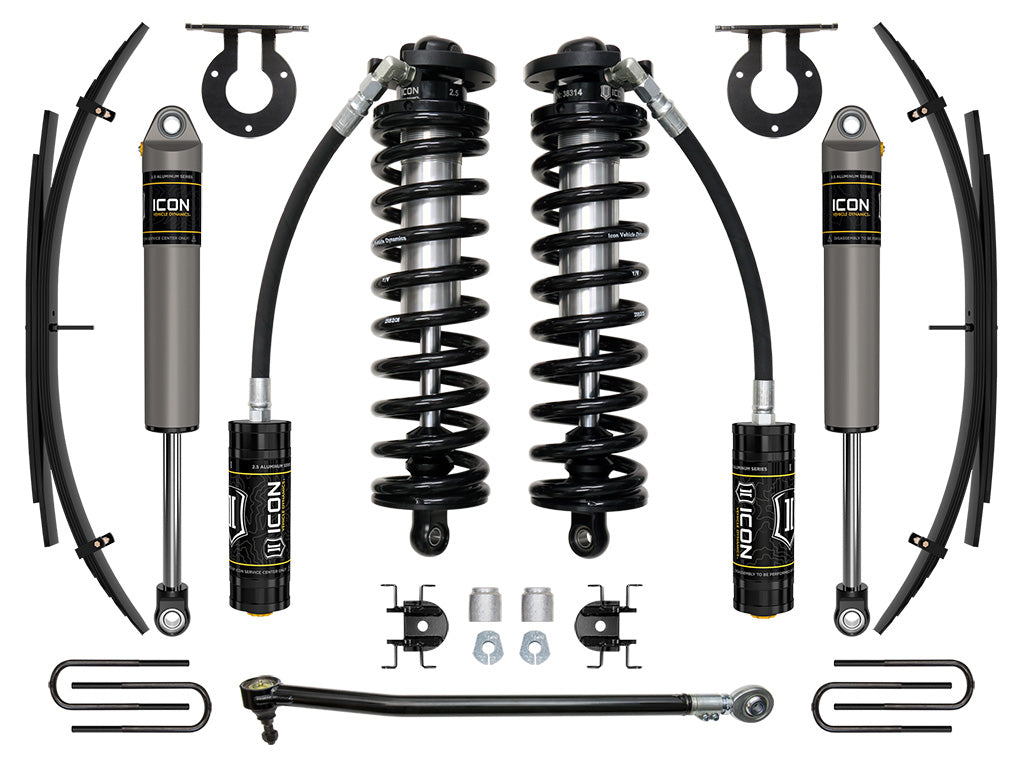

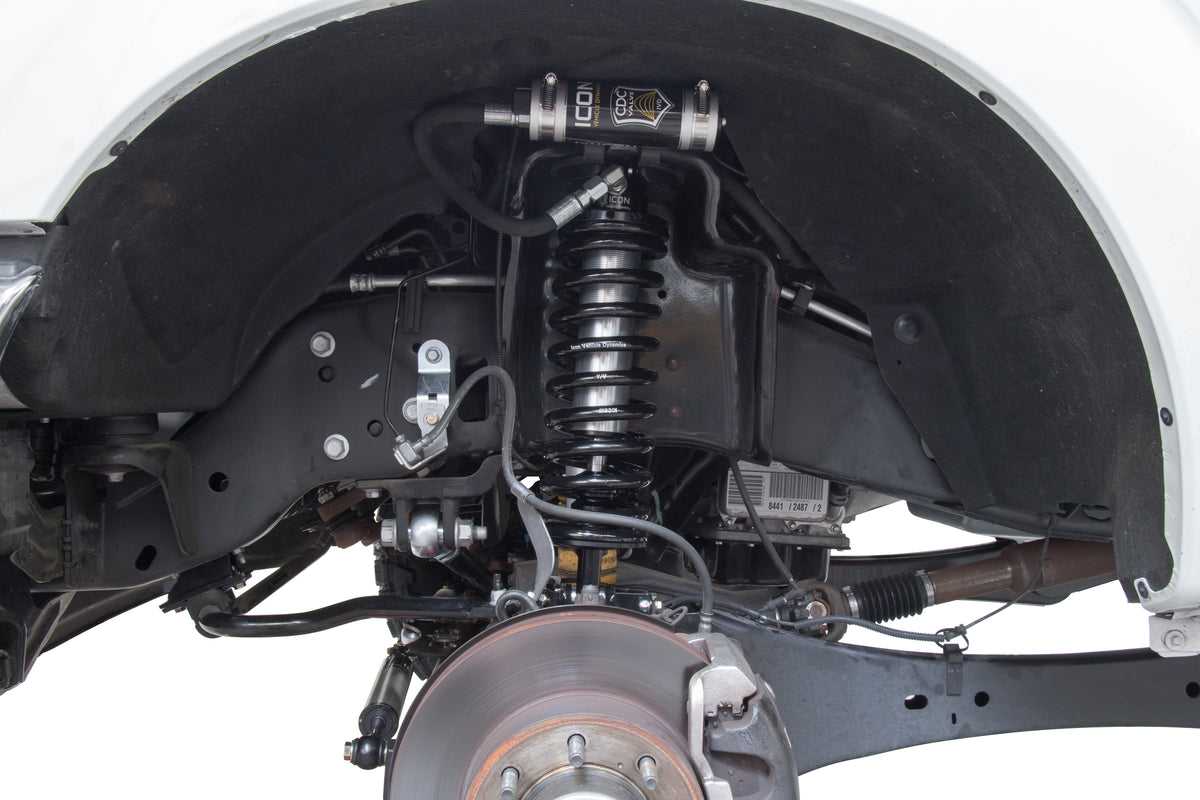

The ICON coilover conversion suspension system is a great way to lift your 4WD 2017-2023 Ford F-250/F-350 Super Duty while improving ride quality and performance. This upgraded Stage 2 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. ICON's Stage 2 System is comprised of 2.5 Series remote reservoir coilovers that are adjustable from 2.5-3” or 3.25-3.75 of front lift over stock (depending on year model and option package), adjustable front track bar with massive FK rod end, alignment cams for adding caster, rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap, and ICON 2.5 Aluminum Series internal reservoir rear shocks. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
Specifications:
- Lift height: 2.5-3"
- Position: Front and Rear
Note: some applications below require additional ICON parts (sold separately) — see the note on your vehicle.
Installation notes:
- Use Up To 35" x 12.50" Tires
- Up to 37x12.50" Tire with Minor Fender Trimming
- Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install
- Use with Track Bar Bracket Part Number 64039
- 6 (mm) Offset Aftermarket Wheels Recommended
Fits:
- 2023 Ford F-250 Super Duty: King Ranch, Platinum (6.7L DIESEL, Front and Rear) — Also Requires Part Number 611081; Raises Rear .5"; Raises Front 1.5" - 2"; with Tremor Package
- 2023 Ford F-250 Super Duty: King Ranch, Platinum (6.7L DIESEL, Front and Rear) — Also Requires Part Number 611081; Raises Rear .5"; Raises Front 2.5" - 3"; without Tremor Package
- 2023 Ford F-250 Super Duty: King Ranch, Platinum (7.3L GAS, Front and Rear) — Also Requires Part Number 611081; Raises Rear .5"; Raises Front 2" - 2.5"; with Tremor Package
- 2023 Ford F-250 Super Duty: King Ranch, Platinum (7.3L GAS, Front and Rear) — Also Requires Part Number 611081; Raises Rear .5"; Raises Front 3" - 3.5"; without Tremor Package
- 2020-2022 Ford F-250 Super Duty: King Ranch, Lariat (4WD, 6.7L DIESEL, Front and Rear) — Raises Rear .5"; Raises Front 2.25" - 2.75"; with Tremor Package
- 2017-2019 Ford F-250 Super Duty: King Ranch, Lariat, XLT (4WD, 6.7L DIESEL, Front and Rear) — Raises Rear .5"; Raises Front 2.5" - 3"
- 2020-2022 Ford F-250 Super Duty: King Ranch, Lariat (4WD, 6.7L DIESEL, Front and Rear) — Raises Rear .5"; Raises Front 3.25" - 3.75"; without Tremor Package
- 2023 Ford F-250 Super Duty: Lariat (6.7L DIESEL, Front and Rear) — Raises Rear .5"; without Onboard Scales System; Raises Front 1.5" - 2"; with Tremor Package
- 2023 Ford F-250 Super Duty: Lariat (6.7L DIESEL, Front and Rear) — Raises Rear .5"; without Onboard Scales System; Raises Front 2.5" - 3"; without Tremor Package
- 2023 Ford F-250 Super Duty: Lariat (6.7L DIESEL, Front and Rear) — with Onboard Scales System; Also Requires Part Number 611081; Raises Rear .5"; Raises Front 1.5" - 2"; with Tremor Package
- 2023 Ford F-250 Super Duty: Lariat (6.7L DIESEL, Front and Rear) — with Onboard Scales System; Also Requires Part Number 611081; Raises Rear .5"; Raises Front 2.5" - 3"; without Tremor Package
- 2023 Ford F-250 Super Duty: Lariat (7.3L GAS, Front and Rear) — Raises Rear .5"; without Onboard Scales System; Raises Front 2" - 2.5"; with Tremor Package
- 2023 Ford F-250 Super Duty: Lariat (7.3L GAS, Front and Rear) — Raises Rear .5"; without Onboard Scales System; Raises Front 3" - 3.5"; without Tremor Package
- 2023 Ford F-250 Super Duty: Lariat (7.3L GAS, Front and Rear) — with Onboard Scales System; Also Requires Part Number 611081; Raises Rear .5"; Raises Front 2" - 2.5"; with Tremor Package
- 2023 Ford F-250 Super Duty: Lariat (7.3L GAS, Front and Rear) — with Onboard Scales System; Also Requires Part Number 611081; Raises Rear .5"; Raises Front 3" - 3.5"; without Tremor Package
- 2023 Ford F-250 Super Duty: Limited (Front and Rear) — Also Requires Part Number 611081; Raises Rear .5"; Raises Front 2.5" - 3"
- 2018-2019 Ford F-250 Super Duty: Limited (Front and Rear) — Raises Rear .5"; Raises Front 2.5" - 3"
- 2020-2022 Ford F-250 Super Duty: Limited (Front and Rear) — Raises Rear .5"; Raises Front 3.25" - 3.75"
- 2020-2022 Ford F-250 Super Duty: Platinum (6.7L DIESEL, Front and Rear) — Raises Rear .5"; Raises Front 2.25" - 2.75"; with Tremor Package
- 2017-2019 Ford F-250 Super Duty: Platinum (6.7L DIESEL, Front and Rear) — Raises Rear .5"; Raises Front 2.5" - 3"
- 2020-2022 Ford F-250 Super Duty: Platinum (6.7L DIESEL, Front and Rear) — Raises Rear .5"; Raises Front 3.25" - 3.75"; without Tremor Package
- 2017-2019, 2023 Ford F-250 Super Duty: XL (4WD, 6.7L DIESEL, Front and Rear) — Raises Rear .5"; Raises Front 2.5" - 3"
- 2020-2022 Ford F-250 Super Duty: XL (4WD, 6.7L DIESEL, Front and Rear) — Raises Rear .5"; Raises Front 3.25" - 3.75"
- 2023 Ford F-250 Super Duty: XL (4WD, 6.8L GAS, Front and Rear) — Raises Rear .5"; Raises Front 3" - 3.5"
- 2023 Ford F-250 Super Duty: XL (4WD, 7.3L GAS, Front and Rear) — Raises Rear .5"; Raises Front 3" - 3.5"
- 2023 Ford F-250 Super Duty: XLT (6.7L DIESEL, Front and Rear) — Raises Rear .5"; Raises Front 2.5" - 3"
- 2023 Ford F-250 Super Duty: XLT (7.3L GAS, Front and Rear) — Raises Rear .5"; Raises Front 3" - 3.5"
- 2022 Ford F-250 Super Duty: XLT (4WD, 6.7L DIESEL, Front and Rear) — Raises Rear .5"; Raises Front 3.25" - 3.75"
- 2020-2021 Ford F-250 Super Duty: XLT (4WD, 6.7L DIESEL, Front and Rear) — Raises Rear .5"; Raises Front 3.25" - 3.75"; without Tremor Package
- 2023 Ford F-350 Super Duty: King Ranch, Platinum (6.7L DIESEL, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 1.5" - 2"; with Tremor Package
- 2023 Ford F-350 Super Duty: King Ranch, Platinum (6.7L DIESEL, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 2.5" - 3"; without Tremor Package
- 2023 Ford F-350 Super Duty: King Ranch, Platinum (7.3L GAS, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 2" - 2.5"; with Tremor Package
- 2023 Ford F-350 Super Duty: King Ranch, Platinum (7.3L GAS, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 3" - 3.5"; without Tremor Package
- 2020-2022 Ford F-350 Super Duty: King Ranch, Platinum (4WD, 6.7L DIESEL, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.25" - 2.75"; with Tremor Package
- 2017-2019 Ford F-350 Super Duty: King Ranch, Platinum (4WD, 6.7L DIESEL, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5" - 3"
- 2020-2022 Ford F-350 Super Duty: King Ranch, Platinum (4WD, 6.7L DIESEL, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 3.25" - 3.75"; without Tremor Package
- 2023 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 1.5" - 2"; with Tremor Package
- 2023 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 2.5" - 3"
- 2020-2022 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.25" - 2.75"; with Tremor Package
- 2017-2019 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5" - 3"
- 2020-2022 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 3.25" - 3.75"; without Tremor Package
- 2023 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); without Onboard Scales System; Raises Front 1.5" - 2"; with Tremor Package
- 2023 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); without Onboard Scales System; Raises Front 2.5" - 3"; without Tremor Package
- 2023 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 1.5" - 2"; with Tremor Package
- 2023 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 2.5" - 3"
- 2020-2022 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.25" - 2.75"; with Tremor Package
- 2017-2019 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5" - 3"
- 2020-2022 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 3.25" - 3.75"; without Tremor Package
- 2023 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); without Onboard Scales System; Raises Front 1.5" - 2"; with Tremor Package
- 2023 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); without Onboard Scales System; Raises Front 2.5" - 3"; without Tremor Package
- 2023 Ford F-350 Super Duty: Lariat (4WD, 7.3L GAS, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 2" - 2.5"; with Tremor Package
- 2023 Ford F-350 Super Duty: Lariat (4WD, 7.3L GAS, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 3" - 3.5"; without Tremor Package
- 2023 Ford F-350 Super Duty: Lariat (4WD, 7.3L GAS, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); without Onboard Scales System; Raises Front 2" - 2.5"; with Tremor Package
- 2023 Ford F-350 Super Duty: Lariat (4WD, 7.3L GAS, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); without Onboard Scales System; Raises Front 3" - 3.5"; without Tremor Package
- 2023 Ford F-350 Super Duty: Lariat (4WD, 7.3L GAS, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 2" - 2.5"; with Tremor Package
- 2023 Ford F-350 Super Duty: Lariat (4WD, 7.3L GAS, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 3" - 3.5"; without Tremor Package
- 2023 Ford F-350 Super Duty: Lariat (4WD, 7.3L GAS, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); without Onboard Scales System; Raises Front 2" - 2.5"; with Tremor Package
- 2023 Ford F-350 Super Duty: Lariat (4WD, 7.3L GAS, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); without Onboard Scales System; Raises Front 3" - 3.5"; without Tremor Package
- 2023 Ford F-350 Super Duty: Limited (Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 2.5" - 3"
- 2018-2019 Ford F-350 Super Duty: Limited (Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5" - 3"
- 2020-2022 Ford F-350 Super Duty: Limited (Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 3.25" - 3.75"
- 2017-2019, 2023 Ford F-350 Super Duty: XL, XLT (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5" - 3"
- 2020-2022 Ford F-350 Super Duty: XL (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 3.25" - 3.75"
- 2017-2019, 2023 Ford F-350 Super Duty: XL, XLT (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5" - 3"
- 2020-2022 Ford F-350 Super Duty: XL (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 3.25" - 3.75"
- 2017-2019, 2023 Ford F-350 Super Duty: XL, XLT (4WD, 6.7L DIESEL, Standard Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5" - 3"
- 2020-2022 Ford F-350 Super Duty: XL (4WD, 6.7L DIESEL, Standard Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 3.25" - 3.75"
- 2023 Ford F-350 Super Duty: XL (4WD, 6.8L GAS, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 3" - 3.5"
- 2023 Ford F-350 Super Duty: XL (4WD, 6.8L GAS, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 3" - 3.5"
- 2023 Ford F-350 Super Duty: XL (4WD, 6.8L GAS, Standard Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 3" - 3.5"
- 2023 Ford F-350 Super Duty: XL, XLT (4WD, 7.3L GAS, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 3" - 3.5"
- 2023 Ford F-350 Super Duty: XL, XLT (4WD, 7.3L GAS, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 3" - 3.5"
- 2023 Ford F-350 Super Duty: XL, XLT (4WD, 7.3L GAS, Standard Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 3" - 3.5"
- 2020-2021 Ford F-350 Super Duty: XLT (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.25" - 2.75"; with Tremor Package
- 2022 Ford F-350 Super Duty: XLT (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 3.25" - 3.75"
- 2020-2021 Ford F-350 Super Duty: XLT (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 3.25" - 3.75"; without Tremor Package
- 2020-2021 Ford F-350 Super Duty: XLT (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.25" - 2.75"; with Tremor Package
- 2022 Ford F-350 Super Duty: XLT (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 3.25" - 3.75"
- 2020-2021 Ford F-350 Super Duty: XLT (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 3.25" - 3.75"; without Tremor Package
- 2020-2021 Ford F-350 Super Duty: XLT (4WD, 6.7L DIESEL, Standard Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.25" - 2.75"; with Tremor Package
- 2022 Ford F-350 Super Duty: XLT (4WD, 6.7L DIESEL, Standard Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 3.25" - 3.75"
- 2020-2021 Ford F-350 Super Duty: XLT (4WD, 6.7L DIESEL, Standard Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 3.25" - 3.75"; without Tremor Package
Part #: K63142L
