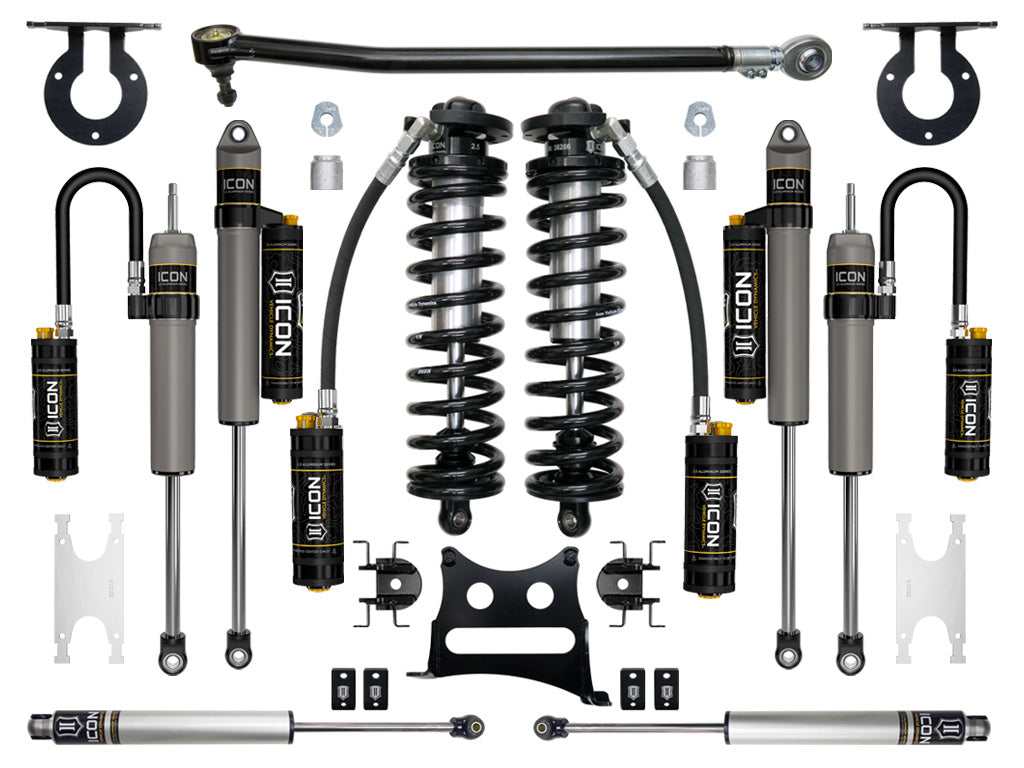

ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2017-2022 F-250 and F-350 trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 Series shock line - meaning that features like Eibach coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.
Specifications:
- Lift height: 2.5-3"
- Position: Front and Rear
Installation notes:
- Use Up To 35" x 12.50" Tires
- Up to 37x12.50" Tire with Minor Fender Trimming
- with 3" Maximum Lift Rear
- Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install
- Use with Track Bar Bracket Part Number 64039
Fits:
- 2020-2022 Ford F-250 Super Duty: King Ranch, Lariat (4WD, 6.7L DIESEL, Front and Rear) — Raises Front 2.25" - 2.75"; 6 (mm) Offset Aftermarket Wheels Recommended; with Tremor Package
- 2017-2019 Ford F-250 Super Duty: King Ranch, Lariat, XL, XLT (4WD, 6.7L DIESEL, Front and Rear) — Raises Front 2.5" - 3"; 6 (mm) Offset Aftermarket Wheels Recommended
- 2020-2022 Ford F-250 Super Duty: King Ranch, Lariat (4WD, 6.7L DIESEL, Front and Rear) — Raises Front 3.25" - 3.75"; 6 (mm) Offset Aftermarket Wheels Recommended; without Tremor Package
- 2018-2019 Ford F-250 Super Duty: Limited (Front and Rear) — Raises Front 2.5" - 3"; 6 (mm) Offset Aftermarket Wheels Recommended
- 2020-2022 Ford F-250 Super Duty: Limited (Front and Rear) — Raises Front 3.25" - 3.75"; 6 (mm) Offset Aftermarket Wheels Recommended
- 2020-2022 Ford F-250 Super Duty: Platinum (6.7L DIESEL, Front and Rear) — Raises Front 2.25" - 2.75"; 6 (mm) Offset Aftermarket Wheels Recommended; with Tremor Package
- 2017-2019 Ford F-250 Super Duty: Platinum (6.7L DIESEL, Front and Rear) — Raises Front 2.5" - 3"; 6 (mm) Offset Aftermarket Wheels Recommended
- 2020-2022 Ford F-250 Super Duty: Platinum (6.7L DIESEL, Front and Rear) — Raises Front 3.25" - 3.75"; 6 (mm) Offset Aftermarket Wheels Recommended; without Tremor Package
- 2020-2022 Ford F-250 Super Duty: XL (4WD, 6.7L DIESEL, Front and Rear) — Raises Front 3.25" - 3.75"; 6 (mm) Offset Aftermarket Wheels Recommended
- 2020-2021 Ford F-250 Super Duty: XLT (4WD, 6.7L DIESEL, Front and Rear) — Raises Front 2.25" - 2.75"; 6 (mm) Offset Aftermarket Wheels Recommended; with Tremor Package
- 2022 Ford F-250 Super Duty: XLT (4WD, 6.7L DIESEL, Front and Rear) — Raises Front 3.25" - 3.75"; 6 (mm) Offset Aftermarket Wheels Recommended
- 2020-2021 Ford F-250 Super Duty: XLT (4WD, 6.7L DIESEL, Front and Rear) — Raises Front 3.25" - 3.75"; 6 (mm) Offset Aftermarket Wheels Recommended; without Tremor Package
- 2017-2019 Ford F-350 Super Duty: King Ranch, Platinum (4WD, 6.7L DIESEL, Front and Rear) — with Dual Rear Wheels (DRW); Raises Front 2.5" - 3"
- 2020-2022 Ford F-350 Super Duty: King Ranch, Platinum (4WD, 6.7L DIESEL, Front and Rear) — with Dual Rear Wheels (DRW); Raises Front 3.25" - 3.75"
- 2020-2022 Ford F-350 Super Duty: King Ranch, Platinum (4WD, 6.7L DIESEL, Front and Rear) — with Single Rear Wheels (SRW); Raises Front 2.25" - 2.75"; 6 (mm) Offset Aftermarket Wheels Recommended; with Tremor Package
- 2017-2019 Ford F-350 Super Duty: King Ranch, Platinum (4WD, 6.7L DIESEL, Front and Rear) — with Single Rear Wheels (SRW); Raises Front 2.5" - 3"; 6 (mm) Offset Aftermarket Wheels Recommended
- 2020-2022 Ford F-350 Super Duty: King Ranch, Platinum (4WD, 6.7L DIESEL, Front and Rear) — with Single Rear Wheels (SRW); Raises Front 3.25" - 3.75"; 6 (mm) Offset Aftermarket Wheels Recommended; without Tremor Package
- 2017-2019 Ford F-350 Super Duty: Lariat, XL, XLT (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — with Dual Rear Wheels (DRW); Raises Front 2.5" - 3"
- 2020-2022 Ford F-350 Super Duty: Lariat, XL, XLT (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — with Dual Rear Wheels (DRW); Raises Front 3.25" - 3.75"
- 2020-2022 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — with Single Rear Wheels (SRW); Raises Front 2.25" - 2.75"; 6 (mm) Offset Aftermarket Wheels Recommended; with Tremor Package
- 2017-2019 Ford F-350 Super Duty: Lariat, XL, XLT (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — with Single Rear Wheels (SRW); Raises Front 2.5" - 3"; 6 (mm) Offset Aftermarket Wheels Recommended
- 2020-2022 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — with Single Rear Wheels (SRW); Raises Front 3.25" - 3.75"; 6 (mm) Offset Aftermarket Wheels Recommended; without Tremor Package
- 2017-2019 Ford F-350 Super Duty: Lariat, XL, XLT (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — with Dual Rear Wheels (DRW); Raises Front 2.5" - 3"
- 2020-2022 Ford F-350 Super Duty: Lariat, XL, XLT (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — with Dual Rear Wheels (DRW); Raises Front 3.25" - 3.75"
- 2020-2022 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — with Single Rear Wheels (SRW); Raises Front 2.25" - 2.75"; 6 (mm) Offset Aftermarket Wheels Recommended; with Tremor Package
- 2017-2019 Ford F-350 Super Duty: Lariat, XL, XLT (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — with Single Rear Wheels (SRW); Raises Front 2.5" - 3"; 6 (mm) Offset Aftermarket Wheels Recommended
- 2020-2022 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — with Single Rear Wheels (SRW); Raises Front 3.25" - 3.75"; 6 (mm) Offset Aftermarket Wheels Recommended; without Tremor Package
- 2018-2019 Ford F-350 Super Duty: Limited (Front and Rear) — with Dual Rear Wheels (DRW); Raises Front 2.5" - 3"
- 2020-2022 Ford F-350 Super Duty: Limited (Front and Rear) — with Dual Rear Wheels (DRW); Raises Front 3.25" - 3.75"
- 2018-2019 Ford F-350 Super Duty: Limited (Front and Rear) — with Single Rear Wheels (SRW); Raises Front 2.5" - 3"; 6 (mm) Offset Aftermarket Wheels Recommended
- 2020-2022 Ford F-350 Super Duty: Limited (Front and Rear) — with Single Rear Wheels (SRW); Raises Front 3.25" - 3.75"; 6 (mm) Offset Aftermarket Wheels Recommended
- 2020-2022 Ford F-350 Super Duty: XL (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — with Single Rear Wheels (SRW); Raises Front 3.25" - 3.75"; 6 (mm) Offset Aftermarket Wheels Recommended
- 2020-2022 Ford F-350 Super Duty: XL (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — with Single Rear Wheels (SRW); Raises Front 3.25" - 3.75"; 6 (mm) Offset Aftermarket Wheels Recommended
- 2017-2019 Ford F-350 Super Duty: XL, XLT (4WD, 6.7L DIESEL, Standard Cab Pickup, Front and Rear) — with Dual Rear Wheels (DRW); Raises Front 2.5" - 3"
- 2020-2022 Ford F-350 Super Duty: XL, XLT (4WD, 6.7L DIESEL, Standard Cab Pickup, Front and Rear) — with Dual Rear Wheels (DRW); Raises Front 3.25" - 3.75"
- 2017-2019 Ford F-350 Super Duty: XL, XLT (4WD, 6.7L DIESEL, Standard Cab Pickup, Front and Rear) — with Single Rear Wheels (SRW); Raises Front 2.5" - 3"; 6 (mm) Offset Aftermarket Wheels Recommended
- 2020-2022 Ford F-350 Super Duty: XL (4WD, 6.7L DIESEL, Standard Cab Pickup, Front and Rear) — with Single Rear Wheels (SRW); Raises Front 3.25" - 3.75"; 6 (mm) Offset Aftermarket Wheels Recommended
- 2020-2021 Ford F-350 Super Duty: XLT (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — with Single Rear Wheels (SRW); Raises Front 2.25" - 2.75"; 6 (mm) Offset Aftermarket Wheels Recommended; with Tremor Package
- 2022 Ford F-350 Super Duty: XLT (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — with Single Rear Wheels (SRW); Raises Front 3.25" - 3.75"; 6 (mm) Offset Aftermarket Wheels Recommended
- 2020-2021 Ford F-350 Super Duty: XLT (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — with Single Rear Wheels (SRW); Raises Front 3.25" - 3.75"; 6 (mm) Offset Aftermarket Wheels Recommended; without Tremor Package
- 2020-2021 Ford F-350 Super Duty: XLT (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — with Single Rear Wheels (SRW); Raises Front 2.25" - 2.75"; 6 (mm) Offset Aftermarket Wheels Recommended; with Tremor Package
- 2022 Ford F-350 Super Duty: XLT (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — with Single Rear Wheels (SRW); Raises Front 3.25" - 3.75"; 6 (mm) Offset Aftermarket Wheels Recommended
- 2020-2021 Ford F-350 Super Duty: XLT (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — with Single Rear Wheels (SRW); Raises Front 3.25" - 3.75"; 6 (mm) Offset Aftermarket Wheels Recommended; without Tremor Package
- 2020-2021 Ford F-350 Super Duty: XLT (4WD, 6.7L DIESEL, Standard Cab Pickup, Front and Rear) — with Single Rear Wheels (SRW); Raises Front 2.25" - 2.75"; 6 (mm) Offset Aftermarket Wheels Recommended; with Tremor Package
- 2022 Ford F-350 Super Duty: XLT (4WD, 6.7L DIESEL, Standard Cab Pickup, Front and Rear) — with Single Rear Wheels (SRW); Raises Front 3.25" - 3.75"; 6 (mm) Offset Aftermarket Wheels Recommended
- 2020-2021 Ford F-350 Super Duty: XLT (4WD, 6.7L DIESEL, Standard Cab Pickup, Front and Rear) — with Single Rear Wheels (SRW); Raises Front 3.25" - 3.75"; 6 (mm) Offset Aftermarket Wheels Recommended; without Tremor Package
Part #: K63145
