The ICON Vehicle Dynamics S2 Secondary Shock System redefines the off-road capability of the 2016-2023 Toyota Tacoma by allowing for the installation of a secondary shock to an existing ICON coilover setup. The addition of a secondary 2.5 Aluminum Series shock means rougher terrain and larger off-road obstacles can be overcome with confidence as the damping ability of the vehicle’s suspension is effectively doubled. As opposed to overly complicated and expensive long travel kits, the ICON S2 System is an affordable upgrade that drastically increases off-road performance, is easy to install, and has a modular design that allows 2016-2023 Toyota Tacoma owners to upgrade in steps or all at once.

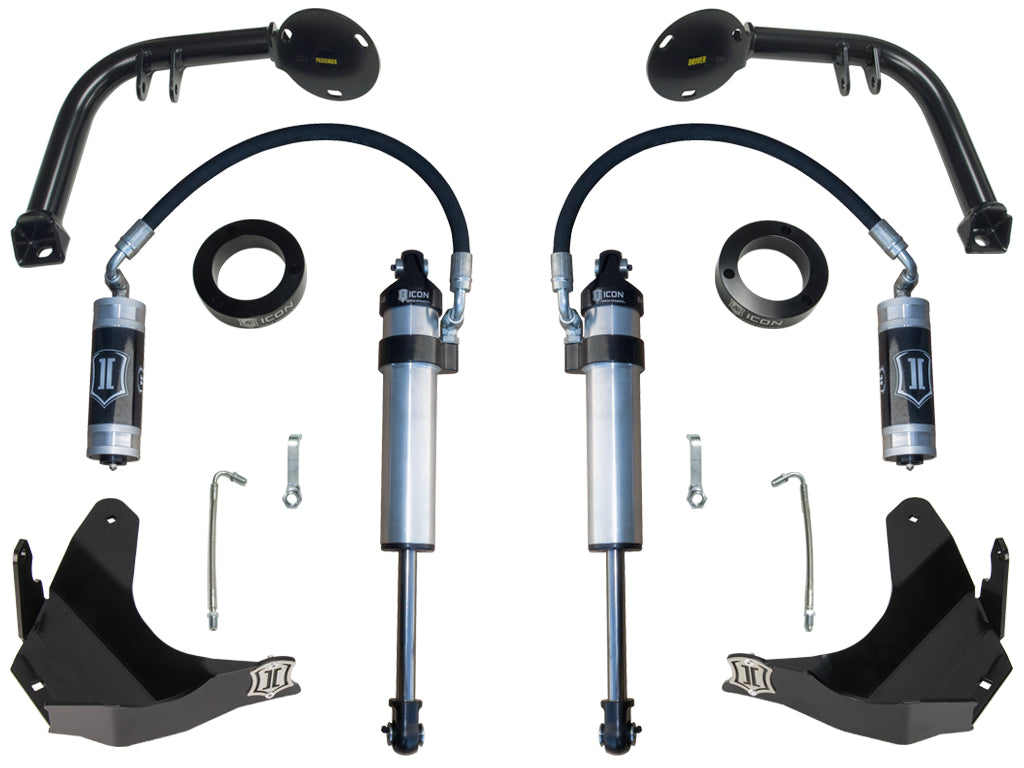

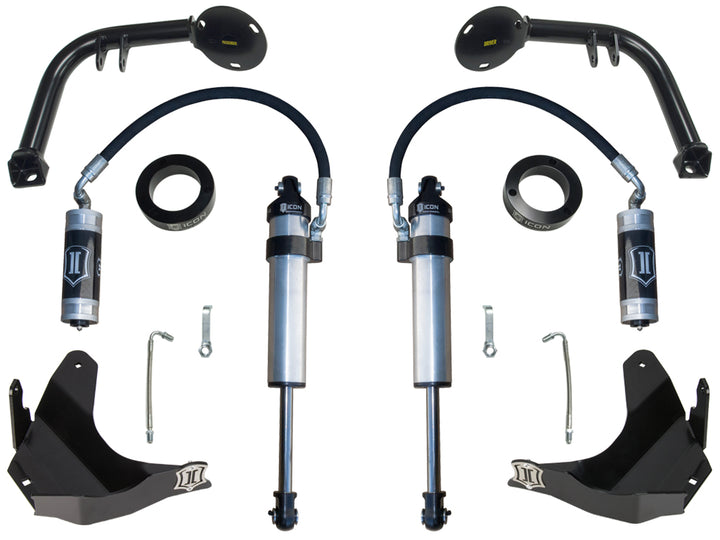

The S2 Secondary Shock System utilizes the factory lower control arms and maintains OE track width while a combination of a billet aluminum shock tower adapters, fabricated shock hoops, and steel skid plates (with incorporated shock mounts) make for a straightforward install with the exceptional build quality you would expect from an ICON Vehicle Dynamics product. The system was designed to eliminate the need for any major alteration of the vehicle’s frame or any other factory suspension components, and the components are 100% removable in case the system is to be installed on another vehicle. The modular design of the S2 kit also allows for standalone installation of the skid plates, which provides the added benefit of protecting the factory lower control arms from potential trail damage that can be experienced while off-road.
Specifications:
Installation notes:
- Limits Maximum Steering Angle
- Up to 33x11.50" Tire with Minor Fender Trimming
- with OE Front Lower Control Arms
- 0 (mm) Offset Wheels Recommended
Fits:
- 2022-2023 Toyota Tacoma: Base (Front) — with 0" - 2.75" Suspension Lift
- 2016-2023 Toyota Tacoma: Edicion Especial, Limited, SR, SR5, TRD Off-Road, TRD Sport (Front) — with 0" - 2.75" Suspension Lift
- 2021-2023 Toyota Tacoma: Nightshade (Front) — with 0" - 2.75" Suspension Lift
- 2017-2023 Toyota Tacoma: Sport (Front) — with 0" - 2.75" Suspension Lift
- 2021-2022 Toyota Tacoma: Trail (Front) — with 0" - 2.75" Suspension Lift
- 2023 Toyota Tacoma: Trail Special Edition (Front) — with 0" - 2.75" Suspension Lift
- 2017-2023 Toyota Tacoma: TRD Pro (Front) — with 0" - 1.25" Suspension Lift
Part #: K53125
