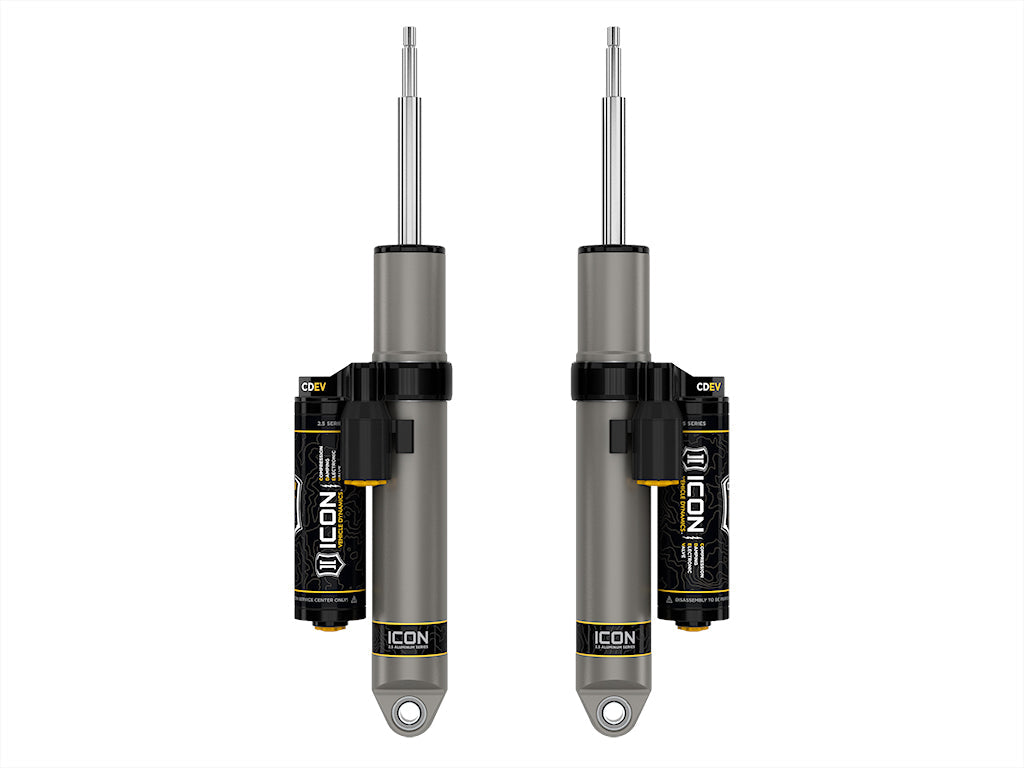

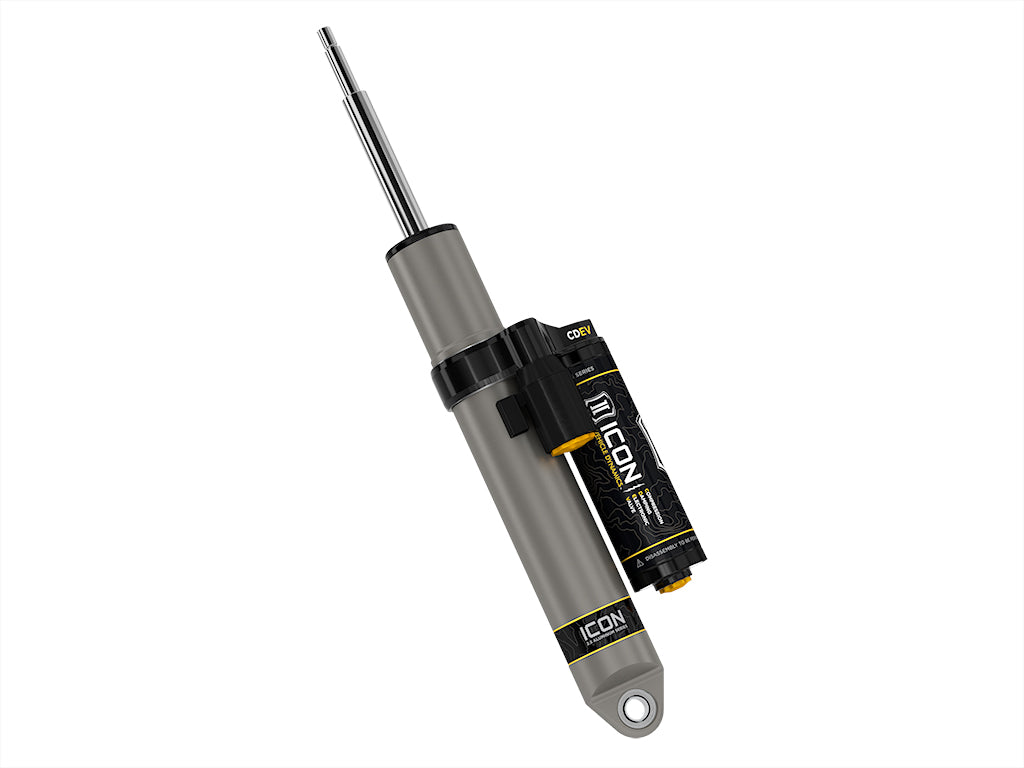

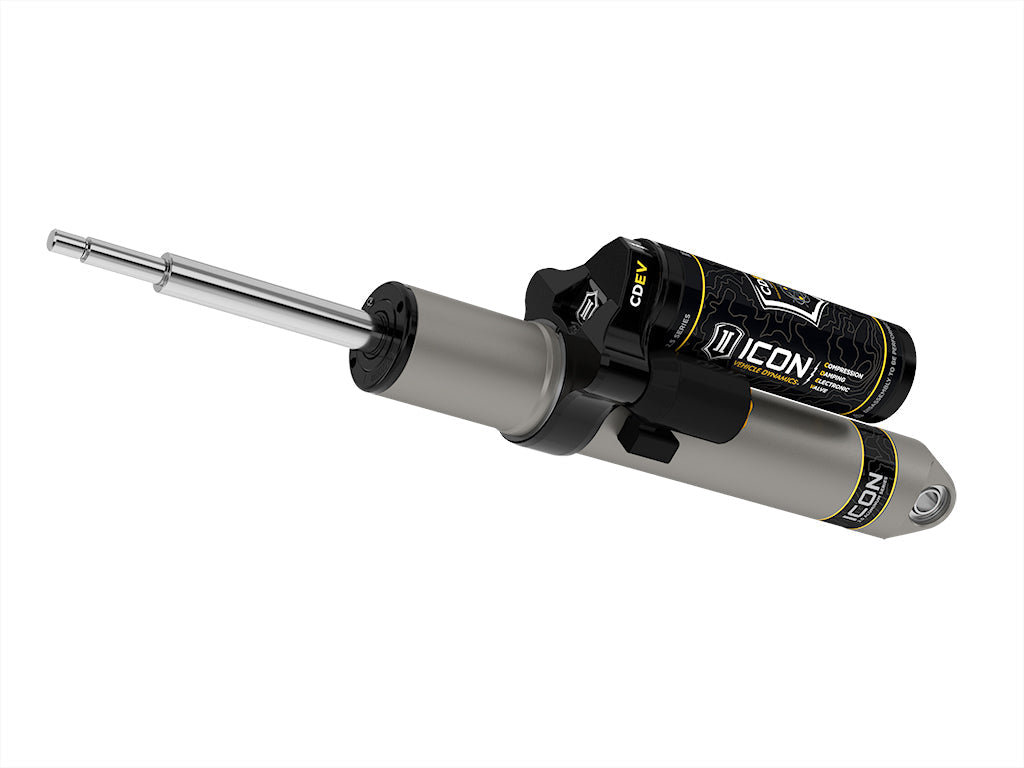

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks with CDEV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks with CDEV are fully rebuildable and re-tunable. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.
Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
Specifications:
- Lift height: .5"
- Position: Rear
- Shock series: 2.5 Series
- Travel: 11.00"
Required to install (sold separately):
- Also Requires Part Number 213500 , Number 217802EP and Number 214206
Installation notes:
- Requires iOS operated device to run ICON Intelligent Control App
Fits:
- 2014-2026 Ram 2500: Big Horn, Laramie, Tradesman (4WD, Coil rear springs)
- 2026 Ram 2500: Black Express (4WD, Coil rear springs)
- 2023 Ram 2500: HD Big Horn (Rear)
- 2023-2024 Ram 2500: HD Power Wagon (Rear)
- 2015-2016 Ram 2500: Hemi Sport (4WD, Rear)
- 2017 Ram 2500: Laramie HD (Rear)
- 2014-2020 Ram 2500: Laramie Limited (4WD, Coil rear springs)
- 2014-2021 Ram 2500: Laramie Longhorn (4WD, Coil rear springs)
- 2016-2026 Ram 2500: Limited (4WD, Coil rear springs)
- 2021-2026 Ram 2500: Limited Longhorn (4WD, Coil rear springs)
- 2014-2015, 2019-2026 Ram 2500: Lone Star (4WD, Coil rear springs)
- 2014-2018 Ram 2500: Outdoorsman (Coil rear springs)
- 2014-2026 Ram 2500: Power Wagon (Rear)
- 2014-2019 Ram 2500: R/T (4WD, Rear)
- 2025-2026 Ram 2500: Rebel (Rear)
- 2023-2024 Ram 2500: Rebel (Coil rear springs)
- 2014-2019 Ram 2500: SLT (4WD, Coil rear springs)
- 2017-2023 Ram 2500: SLT HD (Rear)
- 2024-2026 Ram 2500: Special Service (Coil rear springs)
- 2017-2019 Ram 2500: Sport (4WD, Rear)
- 2014-2018 Ram 2500: ST (4WD, Coil rear springs)
- 2026 Ram 2500: Warlock (Rear)
Part #: 217705EP
