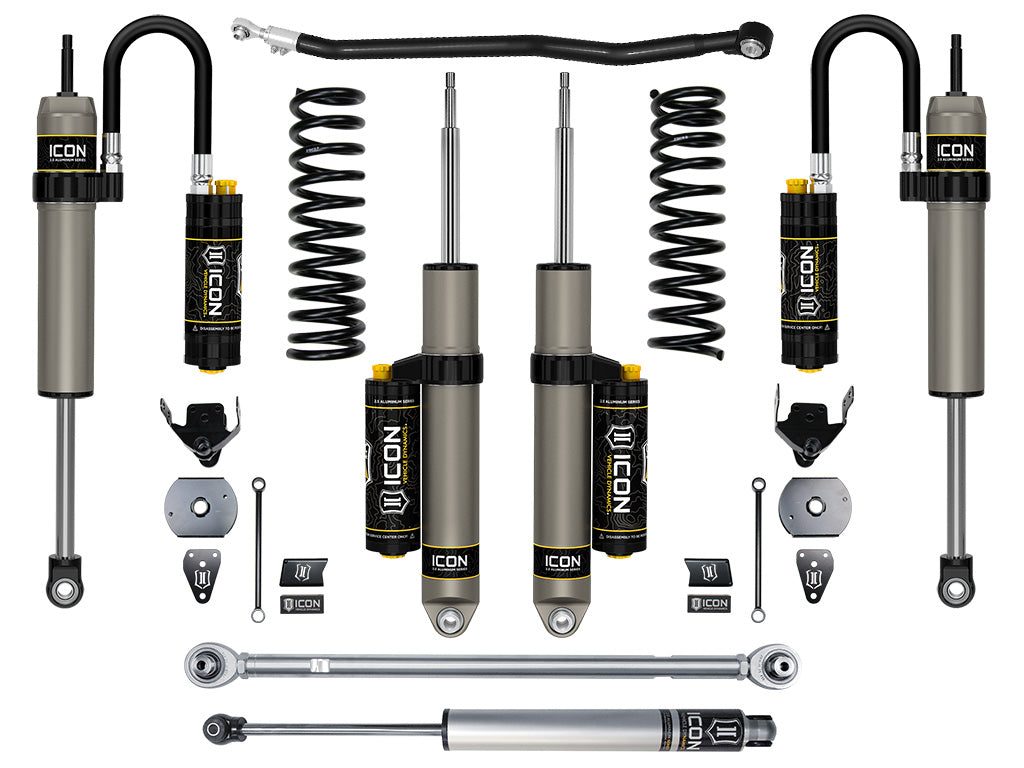

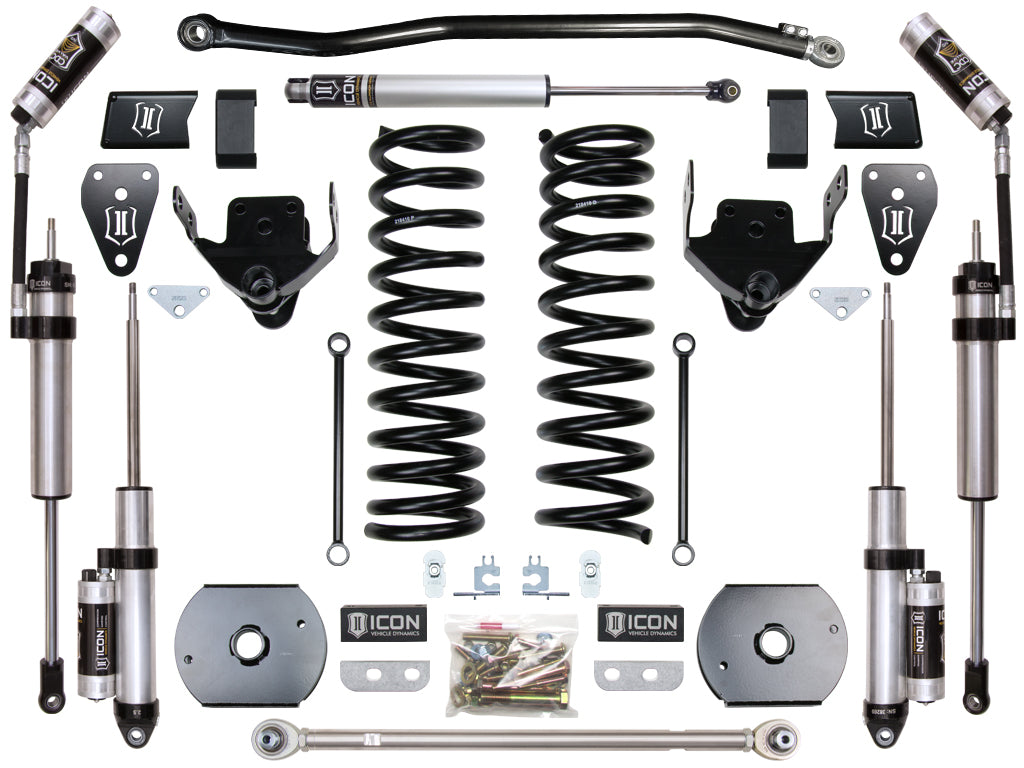

ICON Vehicle Dynamics suspension systems for the 2014-2026 Ram 2500 4WD were designed with exceptional performance and ride quality in mind. This Stage 4 system includes ICON-engineered 4.5” dual rate coil springs, high-strength laser cut bracketry, billet bump stop spacers, fabricated rear coil spacers, and all hardware necessary for a complete install. Vehicle-specific ICON 2.5 Aluminum Series remote reservoir shocks help deliver balanced performance front to rear, while CDC (Compression Damping Control) Valve technology allows the user to adjust compression characteristics of the shocks with the turn of a knob. These features make this Stage 4 system a huge upgrade for 2014-2026 Ram 2500 4WD trucks that are in need of a comfortable on-road ride, but also require the ability to be used to their full potential during spirited off-road driving.
Specifications:
- Lift height: 4.5"
- Rear lift: 2"
- Position: Front and Rear
Installation notes:
- Use Up To 37" x 12.50" Tires
- May Require Part Number 214211
- Raises Rear 2"
- 12 (mm) Offset Aftermarket Wheels Recommended
Fits:
- 2014-2018 Ram 2500: Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Outdoorsman, SLT, ST, Tradesman (4WD, 6.7L DIESEL, Coil rear springs, Front and Rear) — Raises Front 4.5"
- 2019-2024 Ram 2500: Big Horn, Laramie, Limited, Lone Star, Tradesman (4WD, 6.7L DIESEL, Coil rear springs, Front and Rear) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 4.5"; ICON recommends replacing front driveshaft with ICON part number 212511; Front Driveshaft Replacement Required.
- 2025-2026 Ram 2500: Big Horn, Laramie, Limited, Limited Longhorn, Lone Star, Tradesman (4WD, 6.7L DIESEL, Coil rear springs, Front and Rear) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 4.5"; ICON recommends replacing front driveshaft with ICON part number 212512; Front Driveshaft Replacement Required.
- 2026 Ram 2500: Black Express (4WD, 6.7L DIESEL, Coil rear springs, Front and Rear) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 4.5"; ICON recommends replacing front driveshaft with ICON part number 212512; Front Driveshaft Replacement Required.
- 2019-2020 Ram 2500: Laramie Limited (4WD, 6.7L DIESEL, Coil rear springs, Front and Rear) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 4.5"; ICON recommends replacing front driveshaft with ICON part number 212511; Front Driveshaft Replacement Required.
- 2019-2021 Ram 2500: Laramie Longhorn (4WD, 6.7L DIESEL, Coil rear springs, Front and Rear) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 4.5"; ICON recommends replacing front driveshaft with ICON part number 212511; Front Driveshaft Replacement Required.
- 2016-2017 Ram 2500: Limited (4WD, 6.7L DIESEL, Coil rear springs, Front and Rear) — Raises Front 4.5"
- 2021-2024 Ram 2500: Limited Longhorn (4WD, 6.7L DIESEL, Coil rear springs, Front and Rear) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 4.5"; ICON recommends replacing front driveshaft with ICON part number 212511; Front Driveshaft Replacement Required.
- 2014-2015 Ram 2500: Lone Star (4WD, 6.7L DIESEL, Coil rear springs, Front and Rear) — Raises Front 4.5"
- 2025-2026 Ram 2500: Rebel (6.7L DIESEL, Front and Rear) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 2.5"; ICON recommends replacing front driveshaft with ICON part number 212512; Front Driveshaft Replacement Required.
- 2023-2024 Ram 2500: Rebel (6.7L DIESEL, Coil rear springs, Front and Rear) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 2.5"; ICON recommends replacing front driveshaft with ICON part number 212511; Front Driveshaft Replacement Required.
- 2024 Ram 2500: Special Service (6.7L DIESEL, Coil rear springs, Front and Rear) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 4.5"; ICON recommends replacing front driveshaft with ICON part number 212511; Front Driveshaft Replacement Required.
- 2025-2026 Ram 2500: Special Service (6.7L DIESEL, Coil rear springs, Front and Rear) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 4.5"; ICON recommends replacing front driveshaft with ICON part number 212512; Front Driveshaft Replacement Required.
- 2026 Ram 2500: Warlock (6.7L DIESEL, Front and Rear) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 4.5"; ICON recommends replacing front driveshaft with ICON part number 212512; Front Driveshaft Replacement Required.
Part #: K214524
