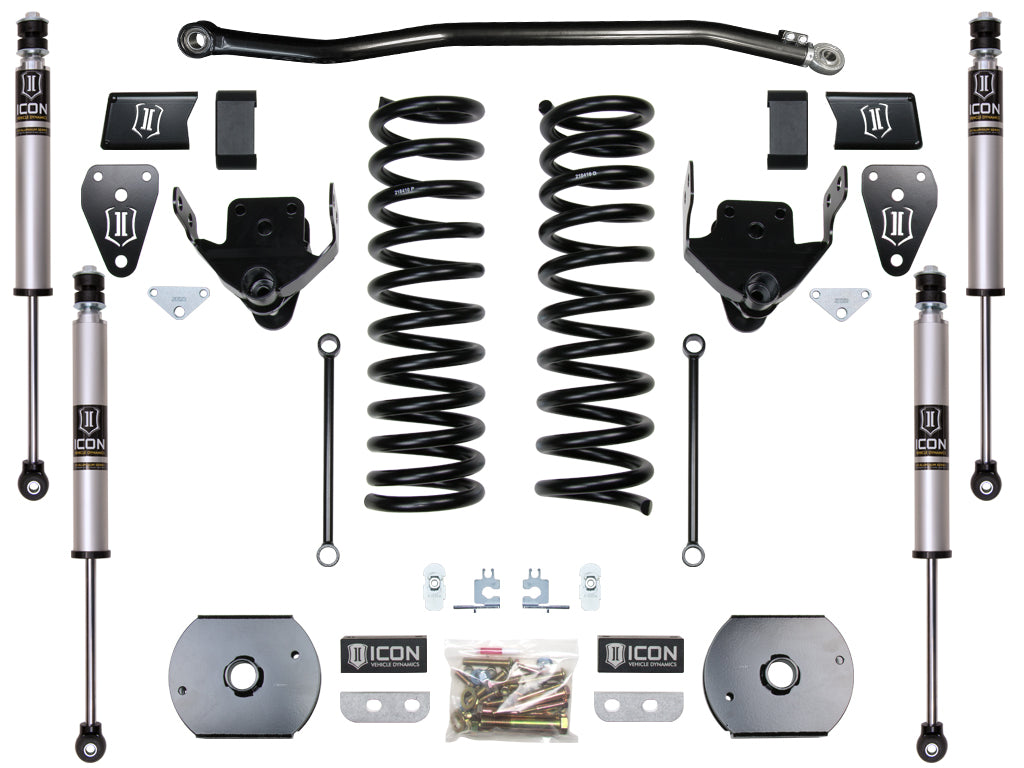

ICON Vehicle Dynamics suspension systems for the 2014-2026 Ram 2500 4WD were designed with exceptional performance and ride quality in mind. This Stage 1 system includes ICON-engineered 4.5” dual rate coil springs, high-strength laser cut bracketry, billet bump stop spacers, fabricated rear coil spacers, and all hardware necessary for a complete install. Vehicle-specific ICON 2.0 Aluminum Series shocks help deliver balanced performance front to rear, making it the perfect suspension system for any 2014-2026 Ram 2500 4WD that's tasked with daily driving, towing, and light off-road use.
Specifications:
- Lift height: 4.5"
- Rear lift: 2"
Installation notes:
- Use Up To 37" x 12.50" Tires
- May Require Part Number 214211
- Raises Rear 2"
- 12 (mm) Offset Aftermarket Wheels Recommended
Fits:
- 2014-2018 Ram 2500: Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Outdoorsman, SLT, ST, Tradesman (4WD, 6.7L DIESEL, Coil rear springs, Front and Rear) — Raises Front 4.5"
- 2019-2024 Ram 2500: Big Horn, Laramie, Limited, Lone Star, Tradesman (4WD, 6.7L DIESEL, Coil rear springs, Front and Rear) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 4.5"; ICON recommends replacing front driveshaft with ICON part number 212511; Front Driveshaft Replacement Required.
- 2025-2026 Ram 2500: Big Horn, Laramie, Limited, Limited Longhorn, Lone Star, Tradesman (4WD, 6.7L DIESEL, Coil rear springs, Front and Rear) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 4.5"; ICON recommends replacing front driveshaft with ICON part number 212512; Front Driveshaft Replacement Required.
- 2026 Ram 2500: Black Express (4WD, 6.7L DIESEL, Coil rear springs, Front and Rear) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 4.5"; ICON recommends replacing front driveshaft with ICON part number 212512; Front Driveshaft Replacement Required.
- 2019-2020 Ram 2500: Laramie Limited (4WD, 6.7L DIESEL, Coil rear springs, Front and Rear) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 4.5"; ICON recommends replacing front driveshaft with ICON part number 212511; Front Driveshaft Replacement Required.
- 2019-2021 Ram 2500: Laramie Longhorn (4WD, 6.7L DIESEL, Coil rear springs, Front and Rear) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 4.5"; ICON recommends replacing front driveshaft with ICON part number 212511; Front Driveshaft Replacement Required.
- 2016-2017 Ram 2500: Limited (4WD, 6.7L DIESEL, Coil rear springs, Front and Rear) — Raises Front 4.5"
- 2021-2024 Ram 2500: Limited Longhorn (4WD, 6.7L DIESEL, Coil rear springs, Front and Rear) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 4.5"; ICON recommends replacing front driveshaft with ICON part number 212511; Front Driveshaft Replacement Required.
- 2014-2015 Ram 2500: Lone Star (4WD, 6.7L DIESEL, Coil rear springs, Front and Rear) — Raises Front 4.5"
- 2025-2026 Ram 2500: Rebel (6.7L DIESEL, Front and Rear) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 2.5"; ICON recommends replacing front driveshaft with ICON part number 212512; Front Driveshaft Replacement Required.
- 2023-2024 Ram 2500: Rebel (6.7L DIESEL, Coil rear springs, Front and Rear) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 2.5"; ICON recommends replacing front driveshaft with ICON part number 212511; Front Driveshaft Replacement Required.
- 2024 Ram 2500: Special Service (6.7L DIESEL, Coil rear springs, Front and Rear) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 4.5"; ICON recommends replacing front driveshaft with ICON part number 212511; Front Driveshaft Replacement Required.
- 2025-2026 Ram 2500: Special Service (6.7L DIESEL, Coil rear springs, Front and Rear) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 4.5"; ICON recommends replacing front driveshaft with ICON part number 212512; Front Driveshaft Replacement Required.
- 2026 Ram 2500: Warlock (6.7L DIESEL, Front and Rear) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 4.5"; ICON recommends replacing front driveshaft with ICON part number 212512; Front Driveshaft Replacement Required.
Part #: K214521
