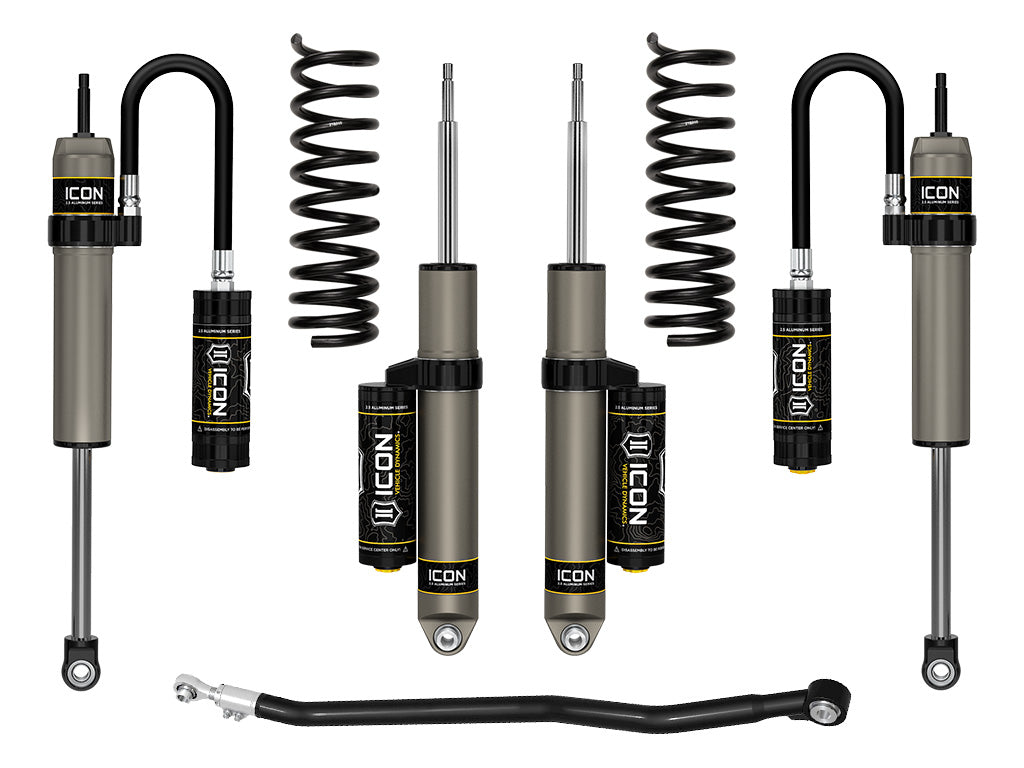

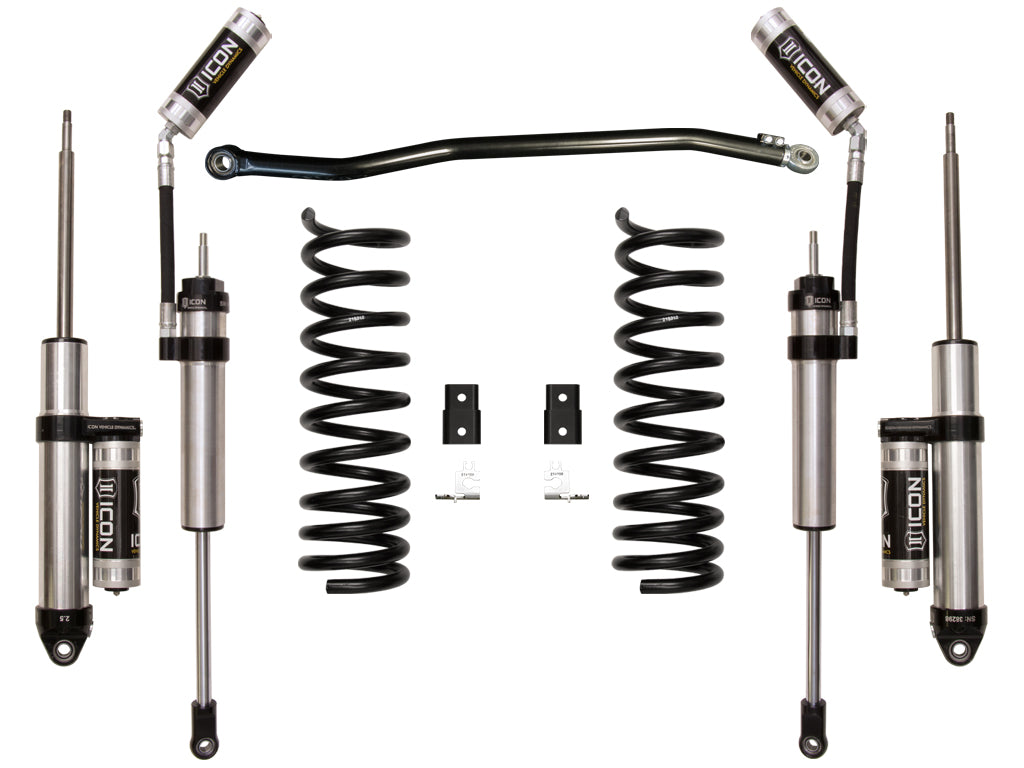

ICON's 2014-2026 Ram 2500 4WD 2.5” Stage 3 Suspension System is made up of dual rate front coil springs, necessary bracketry and hardware, front adjustable track bar as well as 2.5 Aluminum Series reservoir front and rear shocks. This system improves ride quality and performance both on and off road. The ICON stage 3 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. ICON 2.5 Aluminum Series reservoir shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The adjustable track bar with PTFE lined spherical bearings not only improves rigidity over flexible factory joints, but offers adjustability to center the front axle under the truck. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
Specifications:
- Lift height: 2.5"
- Position: Front and Rear
Installation notes:
- Use Up To 35" x 12.50" Tires
- Up to 37x12.50" Tire with Minor Fender Trimming
- with 1" Maximum Lift Rear
- 12 (mm) Offset Aftermarket Wheels Recommended
Fits:
- 2014-2018 Ram 2500: Big Horn, Laramie, Laramie Limited, SLT, ST, Tradesman (4WD, 6.7L DIESEL, Coil rear springs, Front and Rear) — Raises Front 2.5"
- 2019-2026 Ram 2500: Big Horn, Laramie, Limited, Lone Star, Tradesman (4WD, 6.7L DIESEL, Coil rear springs, Front and Rear) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 2.5"
- 2026 Ram 2500: Black Express (4WD, 6.7L DIESEL, Coil rear springs, Front and Rear) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 2.5"
- 2019-2020 Ram 2500: Laramie Limited (4WD, 6.7L DIESEL, Coil rear springs, Front and Rear) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 2.5"
- 2014-2016, 2018 Ram 2500: Laramie Longhorn (4WD, 6.7L DIESEL, Coil rear springs, Front and Rear) — Raises Front 2.5"
- 2019-2021 Ram 2500: Laramie Longhorn (4WD, 6.7L DIESEL, Coil rear springs, Front and Rear) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 2.5"
- 2016-2018 Ram 2500: Limited (4WD, 6.7L DIESEL, Coil rear springs, Front and Rear) — Raises Front 2.5"
- 2021-2026 Ram 2500: Limited Longhorn (4WD, 6.7L DIESEL, Coil rear springs, Front and Rear) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 2.5"
- 2014-2015 Ram 2500: Lone Star (4WD, 6.7L DIESEL, Coil rear springs, Front and Rear) — Raises Front 2.5"
- 2014-2018 Ram 2500: Outdoorsman (6.7L DIESEL, Coil rear springs, Front and Rear) — Raises Front 2.5"
- 2023-2026 Ram 2500: Rebel (6.7L DIESEL, Coil rear springs, Front and Rear) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front .5"
- 2024-2026 Ram 2500: Special Service (6.7L DIESEL, Coil rear springs, Front and Rear) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 2.5"
- 2026 Ram 2500: Warlock (6.7L DIESEL, Front and Rear) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 2.5"
Part #: K212543
