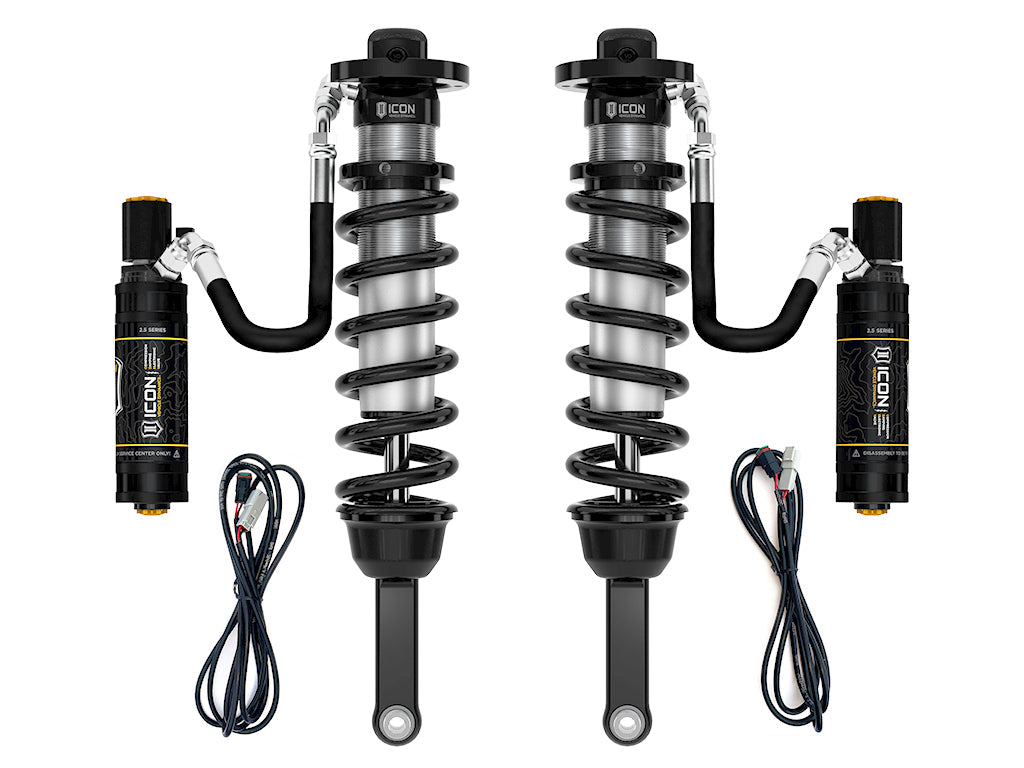

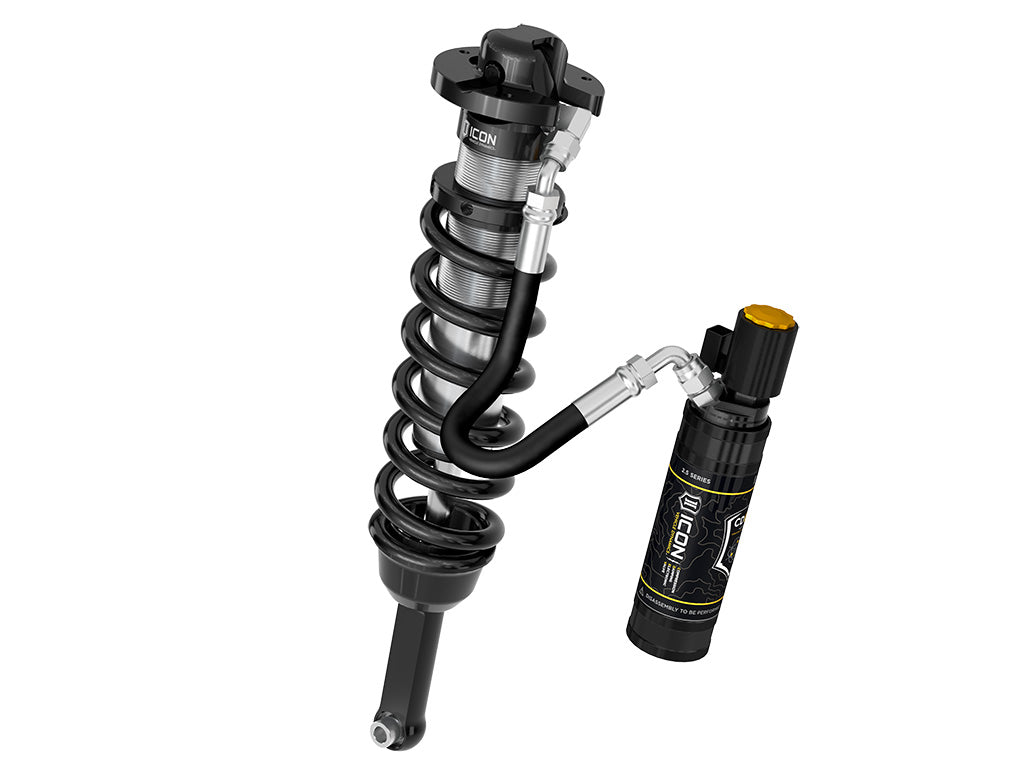

The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDEV are an incredible upgrade for the front end of the 2010-2024 Toyota 4runner. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3.5” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. Upgraded coil springs are included to better support added weight from accessories such as front bumpers and winches. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.

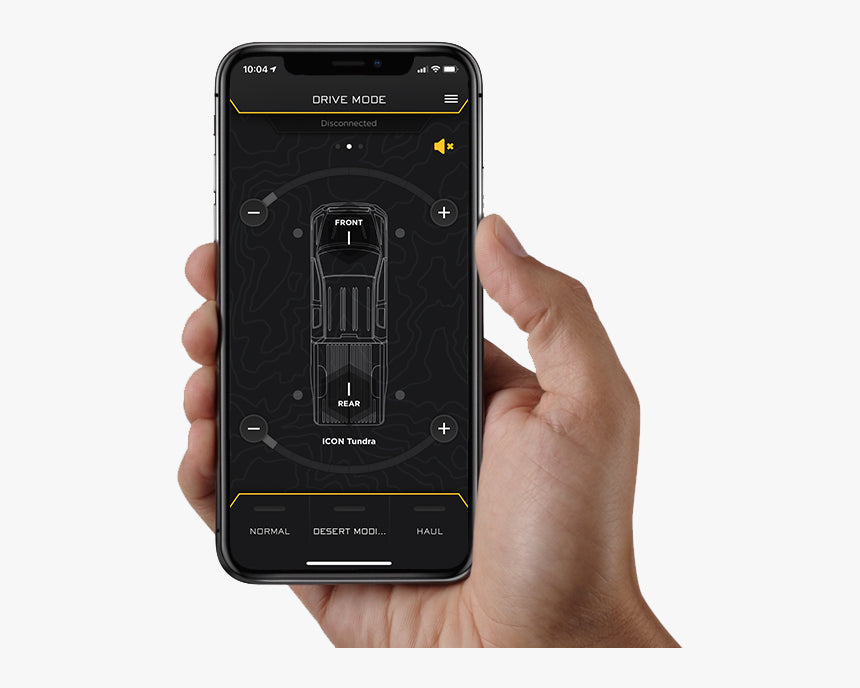

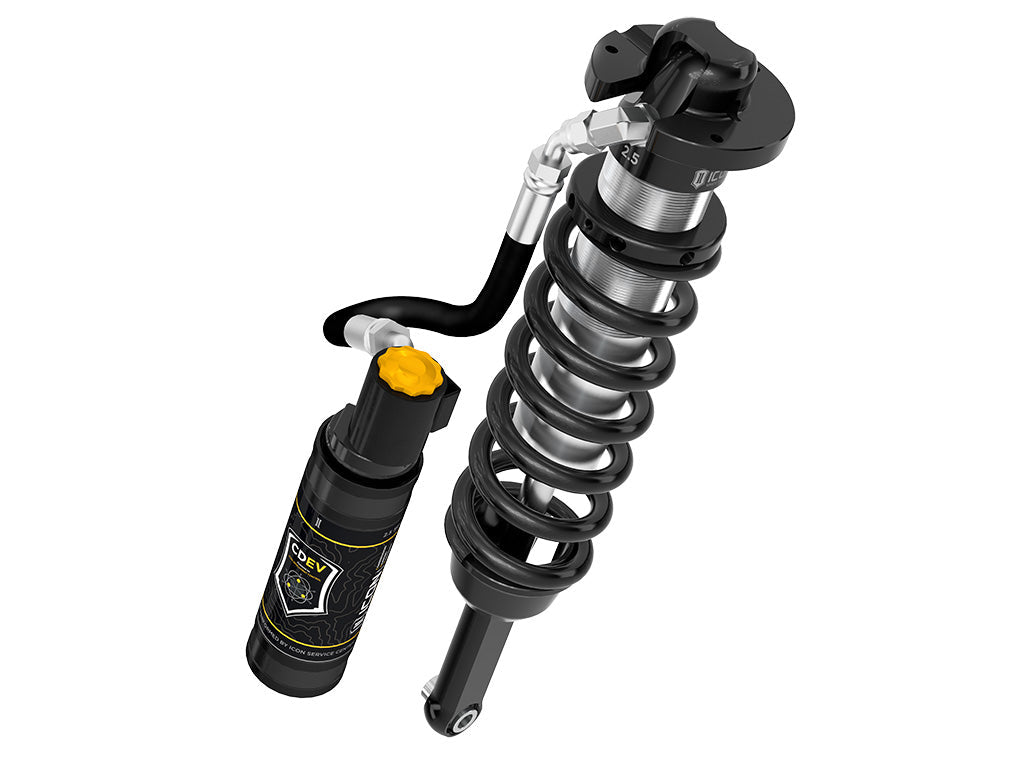

Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
Specifications:
- Lift height: 0-3.5"
- Front lift: 0" - 3.5"
- Position: Front
- Shock series: 2.5 Series
- Travel: 6.00"
- Extended length: 22.57"
- Material: Steel, Aluminum
Required to install (sold separately):
- Also Requires Part Number 53504 and Number 57810EP
Installation notes:
- Raises Front 0" - 3.5"
- Use Up To 33" x 11.50" Tires
- with Additional Weight Added to Front End
- Requires iOS operated device to run ICON Intelligent Control App
- 0 (mm) Offset Aftermarket Wheels Recommended
Fits:
- 2010-2024 Toyota 4Runner (Front)
Part #: 58747E-700
