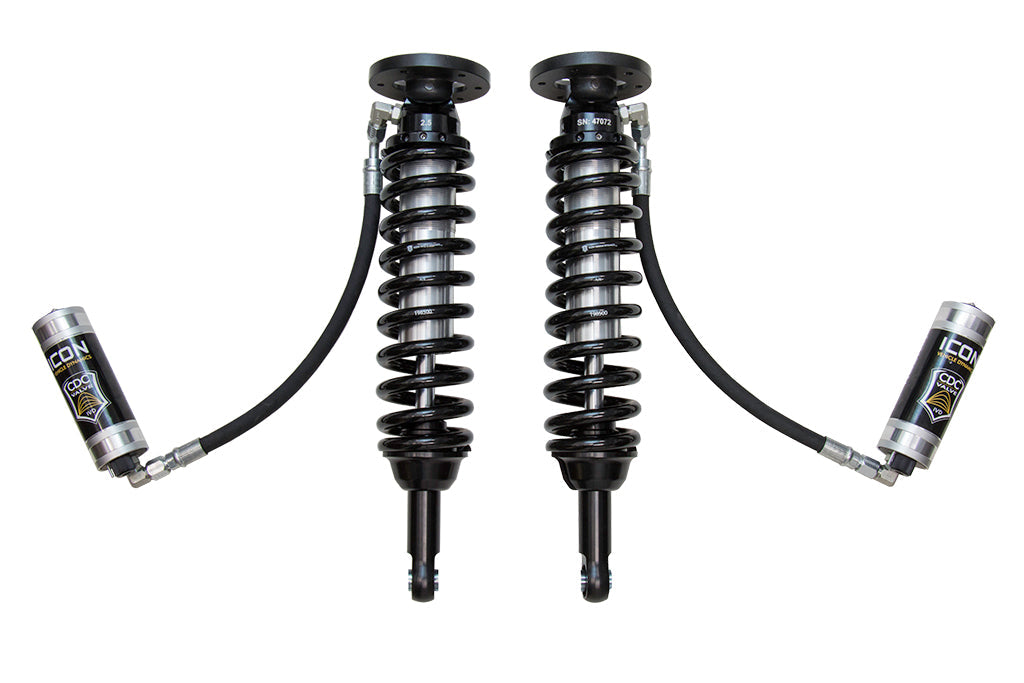

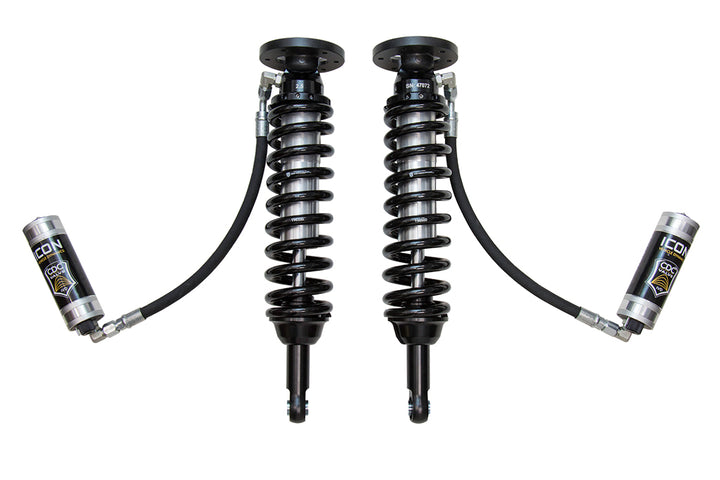

The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2009-2013 Ford F150 4WD truck. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1.75-2.63” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings of adjustment from soft to hard. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Ford F150 4WD.
Specifications:
- Lift height: 1.75-2.63"
- Front lift: 1.75" - 2.63"
- Position: Front
- Shock series: 2.5 Series
- Travel: 7.00"
- Extended length: 23.23"
- Material: Steel, Aluminum
Installation notes:
- Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment
- 1.75" - 2.63" Lift
- Use Up To 33" x 11.50" Tires
- Raises Front 1.75" - 2.63"
- 6 (mm) Offset Aftermarket Wheels Recommended
Fits:
- 2009-2013 Ford F-150: FX4 (Front)
- 2010-2012 Ford F-150: Harley-Davidson Edition (AWD, Front)
- 2009-2013 Ford F-150: King Ranch, Lariat, Platinum, STX, XL, XLT (4WD, Front)
- 2011 Ford F-150: Lariat Limited (4WD, Front)
Part #: 91800C
