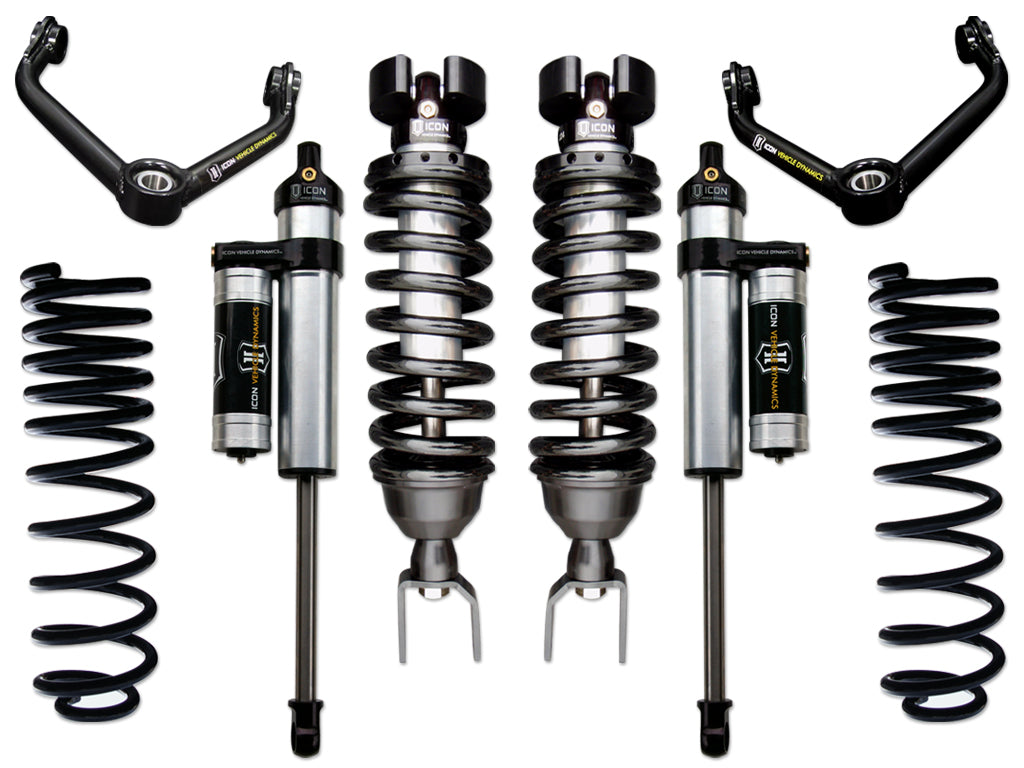

ICON Vehicle Dynamics Dodge Ram 1500 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This system includes vehicle-specific tuned 2.5” coilover shocks featuring internal reservoirs for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from .75-2.5” of lift over stock allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Aluminum Series rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2009-2018 Dodge Ram 1500 4WD Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
Specifications:
- Lift height: .75-2.5"
- Front lift: .75" - 2.5"
- Position: Front and Rear
Installation notes:
- Recommended Aftermarket Wheel Size: 17x8.5" with 5.75” Backspace / 25mm Offset
- Use Up To 33" x 11.50" Tires
- Rear Raise Height 1.5"
- Raises Front .75" - 2.5"
Fits:
- 2009-2010 Dodge Ram 1500: Laramie, SLT, Sport, ST (4WD, Front and Rear)
- 2009-2010 Dodge Ram 1500: TRX4 (Front and Rear)
- 2011-2018 Ram 1500: Big Horn, Laramie, Laramie Longhorn, Outdoorsman, SLT, Sport, ST, Tradesman (4WD, Coil front springs, Front and Rear)
- 2012-2018 Ram 1500: Express (4WD, Coil front springs, Front and Rear)
- 2014, 2018 Ram 1500: Laramie Limited (4WD, Coil front springs, Front and Rear)
- 2014-2018 Ram 1500: Lone Star (4WD, Coil front springs, Front and Rear)
- 2014-2018 Ram 1500: Special Service (Front and Rear)
- 2011, 2013, 2015-2018 Ram 1500: SXT (4WD, Coil front springs, Front and Rear)
- 2019 Ram 1500 Classic: Big Horn, Laramie, Lone Star, SXT Plus (4WD, Coil front springs, Front and Rear)
- 2019-2022 Ram 1500 Classic: Express, SLT, Tradesman, Warlock (4WD, Coil front springs, Front and Rear)
- 2021 Ram 1500 Classic: Night Edition (4WD, Coil front springs, Front and Rear)
- 2019-2022 Ram 1500 Classic: Special Service (Front and Rear)
- 2019-2020 Ram 1500 Classic: ST (4WD, Coil front springs, Front and Rear)
Part #: K213004
