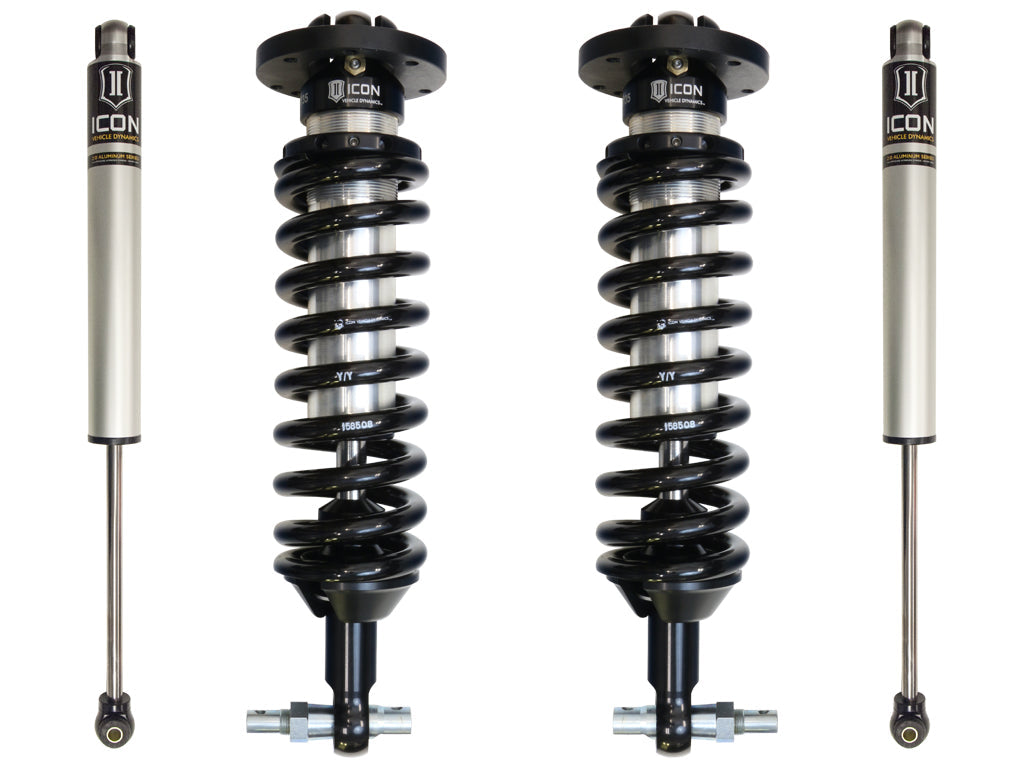

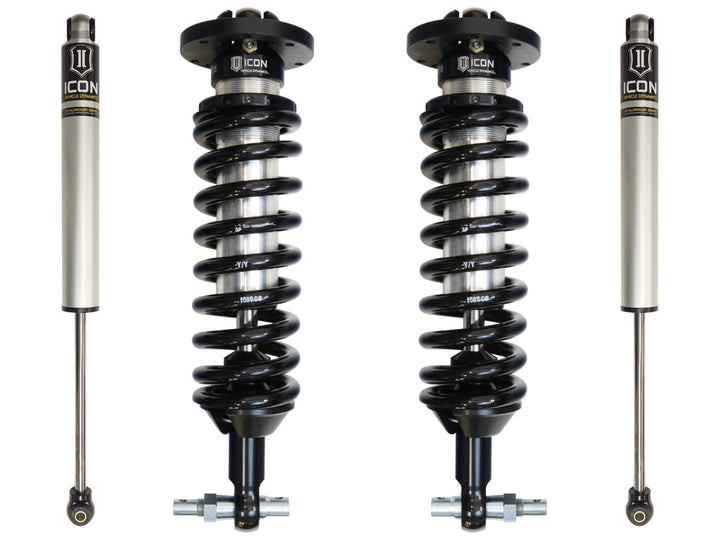

ICON Vehicle Dynamics 2007-2018 GM Silverado/Sierra 1500 suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the GM platform’s suspension and addressed any areas where performance could be extracted. The Stage 1 system includes vehicle-specific tuned 2.5 coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 1-3” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics GM Silverado/Sierra 1500 Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Specifications:
- Lift height: 1-3"
- Front lift: 1" - 3"
- Position: Front and Rear
Installation notes:
- Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset
- with 2" Maximum Lift Rear
- Raises Front 1" - 3"
- Use Up To 33" x 11.50" Tires
- Requires Aftermarket Front Upper Control Arms or Removal of Factory Droop Stop
- Requires Slight Modifications to Rear Shock Mounts
Fits:
- 2007-2012, 2014, 2016 Chevrolet Silverado 1500: Base (Front and Rear)
- 2016-2018 Chevrolet Silverado 1500: Custom (Front and Rear)
- 2014-2016 Chevrolet Silverado 1500: High Country (Front and Rear)
- 2017-2018 Chevrolet Silverado 1500: High Country (Front and Rear) — without Magnetic Ride Control
- 2007-2013, 2015-2018 Chevrolet Silverado 1500: LS (Front and Rear)
- 2007-2020 Chevrolet Silverado 1500: LT (Front and Rear)
- 2007-2018 Chevrolet Silverado 1500: LTZ, WT (Front and Rear)
- 2015-2018 Chevrolet Silverado 1500: SSV (Front and Rear)
- 2010-2013 Chevrolet Silverado 1500: XFE (Front and Rear)
- 2019 Chevrolet Silverado 1500 LD: Custom, LT, WT (Front and Rear)
- 2015-2020 Chevrolet Suburban: LS (Front and Rear)
- 2014-2020 Chevrolet Suburban: LT (Front and Rear)
- 2015-2016 Chevrolet Suburban: LTZ (Front and Rear) — without Magnetic Ride Control
- 2017-2020 Chevrolet Suburban: Premier (Front and Rear)
- 2010 Chevrolet Suburban 1500: 75 Aniversario Diamond Edition (Front and Rear)
- 2007-2012 Chevrolet Suburban 1500: Base (Front and Rear)
- 2007-2014 Chevrolet Suburban 1500: LS, LT, LTZ (Front and Rear)
- 2007-2009, 2011-2012 Chevrolet Tahoe: Base (Front and Rear)
- 2007-2020 Chevrolet Tahoe: LS, LT (Front and Rear)
- 2007-2014 Chevrolet Tahoe: LTZ (Front and Rear)
- 2015-2016 Chevrolet Tahoe: LTZ (Front and Rear) — without Magnetic Ride Control
- 2018 Chevrolet Tahoe: Midnight Edition (Front and Rear)
- 2014, 2017-2018 Chevrolet Tahoe: Police (Front and Rear)
- 2012-2020 Chevrolet Tahoe: PPV, SSV (Front and Rear)
- 2017-2020 Chevrolet Tahoe: Premier (Front and Rear)
- 2008-2010, 2016-2017 Chevrolet Tahoe: Z71 (Front and Rear)
- 2014-2018 GMC Sierra 1500: Base (Front and Rear)
- 2007-2014 GMC Sierra 1500: Denali (Front and Rear)
- 2007-2013 GMC Sierra 1500: SL, WT (Front and Rear)
- 2007-2018 GMC Sierra 1500: SLE, SLT (Front and Rear)
- 2010-2013 GMC Sierra 1500: XFE (Front and Rear)
- 2019 GMC Sierra 1500 Limited: Base, SLE (Front and Rear)
- 2007-2009, 2011-2012 GMC Yukon: Base (Front and Rear)
- 2007-2014 GMC Yukon: Denali (Front and Rear)
- 2007-2020 GMC Yukon: SLE, SLT (Front and Rear)
- 2015-2020 GMC Yukon XL: SLE, SLT (Front and Rear)
- 2007-2014 GMC Yukon XL 1500: Denali, SLE, SLT (Front and Rear)
Part #: K73001
