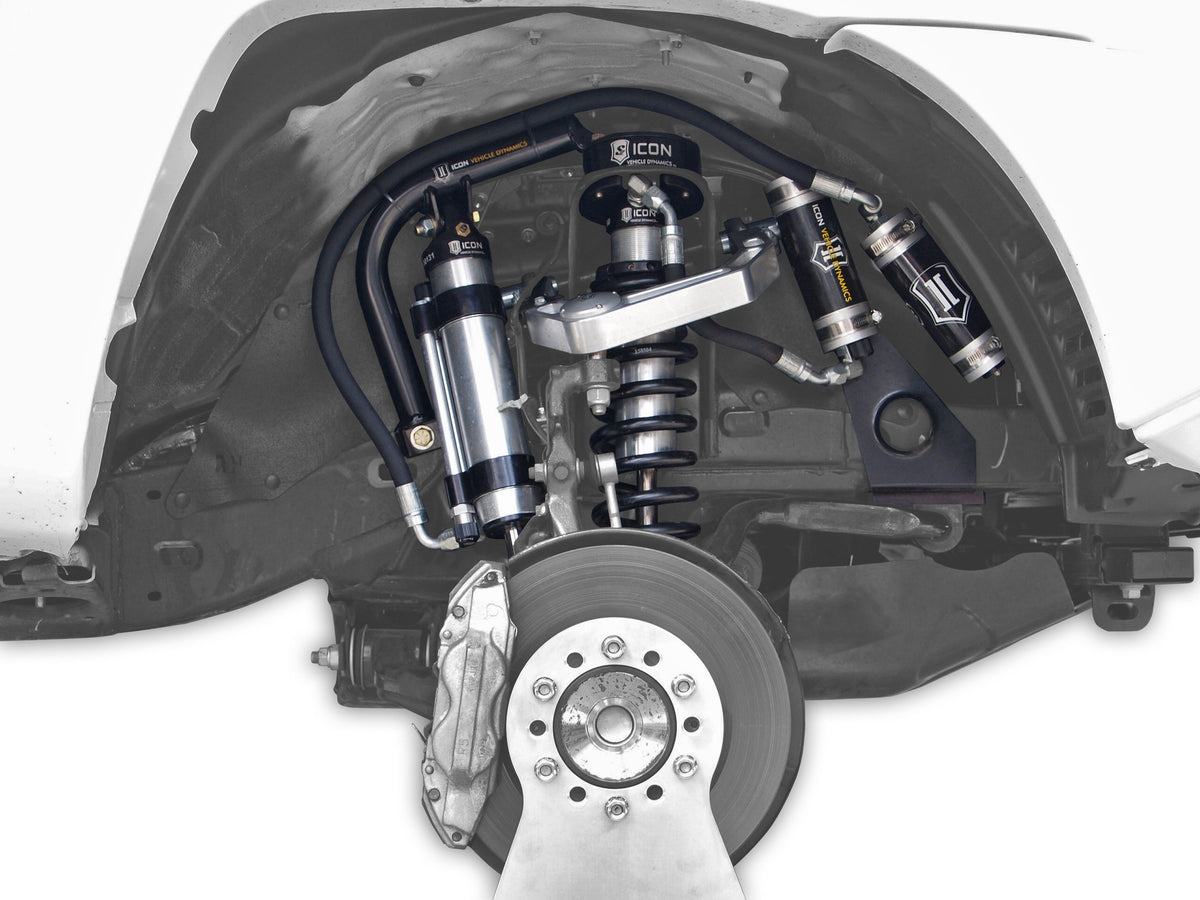

The ICON Vehicle Dynamics S2 Modular Performance shock system redefines the offroad capability of the Toyota vehicles by enhancing the front suspension with the addition of a secondary shock to an existing ICON coilover setup. A common misconception is that overly-complicated and expensive long-travel kits are necessary to achieve the ultimate in offroad performance. This has been put to rest with the development of the ICON S2 system. The S2 Modular Performance shock system utilizes the factory lower control arm and maintains OE track width while providing excellent suspension damping capabilities and an exceptional build quality you would expect from any ICON Vehicle Dynamics product. All of these features come at a fraction of the cost of a long-travel setup.

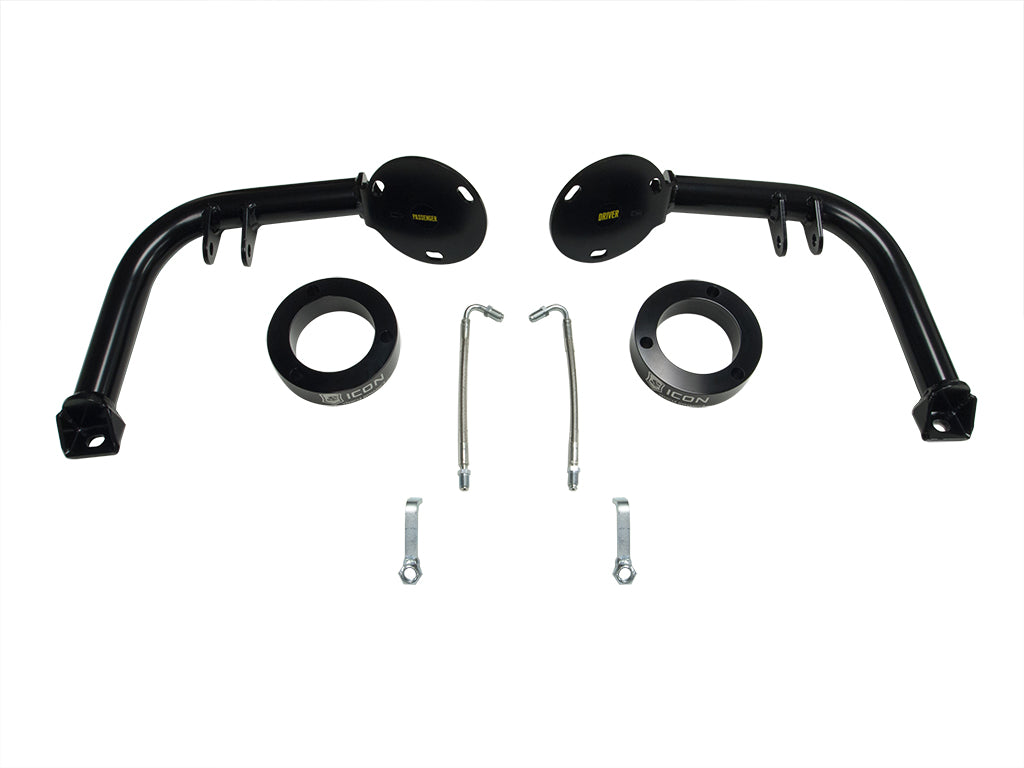

This bolt-on system was developed to significantly enhance the drivability in extreme offroad conditions while at the same time eliminating the need for any major alteration of the frame or any other factory suspension components. The combination of a billet aluminum shock tower adapter, fabricated secondary shock hoop, and a steel skidplate with incorporated shock mount make for a straightforward and durable installed product.
The modular aspect of this system allows for modifications to the vehicle to be achieved in stages, so the user can build their vehicle as desired rather than all at once. Multiple secondary shock options provides even further tuneabity of the system as a whole, as ICON 2.5” Remote Reservoir Shocks, 2.5” Remote Reservoir CDC Valve Shocks, or 2.5” Two-Tube Bypasses may be used to attain any level of performance desired.
Specifications:
- Position: Front
- Material: Dom Steel
Required to install (sold separately):
- Also Requires Part Number 59706P, 59706CP, 59706XP, 59706EP, 59906P, or 59906EP
Installation notes:
- Limits Maximum Steering Angle
- Use Up To 33" x 11.50" Tires
- 0 (mm) Offset Wheels Recommended
Fits:
- 2003-2009 Toyota 4Runner (Front) — Used with 0" to 3.5" Lift; Also Requires Part Number 56101
- 2010-2024 Toyota 4Runner (Front) — Used with 0" to 3.5" Lift; Also Requires Part Number 56106; without Dynamic Stabilizer Bar
- 2007-2009 Toyota FJ Cruiser (Front) — Used with 0" to 3.5" Lift; Also Requires Part Number 56101
- 2010-2014 Toyota FJ Cruiser (Front) — Used with 0" to 3.5" Lift; Also Requires Part Number 56106
- 2022-2023 Toyota Tacoma: Base (Front) — Used with 0" to 2.75" Lift; Also Requires Part Number 56107 or 54300
- 2005-2015 Toyota Tacoma: Base (4WD, Front) — Used with 0" to 3.5" Lift; Also Requires Part Number 56101 or 54300
- 2006 Toyota Tacoma: Base Prerunner (Front) — Used with 0" to 3.5" Lift; Also Requires Part Number 56101 or 54300
- 2016-2023 Toyota Tacoma: Edicion Especial, Limited, SR, SR5, TRD Off-Road, TRD Sport (Front) — Used with 0" to 2.75" Lift; Also Requires Part Number 56107 or 54300
- 2021-2023 Toyota Tacoma: Nightshade (Front) — Used with 0" to 2.75" Lift; Also Requires Part Number 56107 or 54300
- 2005 Toyota Tacoma: Pre Runner (Front) — Used with 0" to 3.5" Lift; Also Requires Part Number 56101 or 54300
- 2017-2023 Toyota Tacoma: Sport (Front) — Used with 0" to 2.75" Lift; Also Requires Part Number 56107 or 54300
- 2006-2009 Toyota Tacoma: SR5 Prerunner, TRD Sport Prerunner (Front) — Used with 0" to 3.5" Lift; Also Requires Part Number 56101 or 54300
- 2021-2022 Toyota Tacoma: Trail (Front) — Used with 0" to 2.75" Lift; Also Requires Part Number 56107 or 54300
- 2023 Toyota Tacoma: Trail Special Edition (Front) — Used with 0" to 2.75" Lift; Also Requires Part Number 56107 or 54300
- 2017-2023 Toyota Tacoma: TRD Pro (Front) — Used with 0" to 1.25" Lift; Also Requires Part Number 56107 or 54300
- 2015 Toyota Tacoma: TRD Pro (Front) — Used with 0" to 1.75" Lift; Also Requires Part Number 56101 or 54300
- 2010-2015 Toyota Tacoma: TRD Sport (Front) — Used with 0" to 3.5" Lift; Also Requires Part Number 56101 or 54300
Part #: 56102
