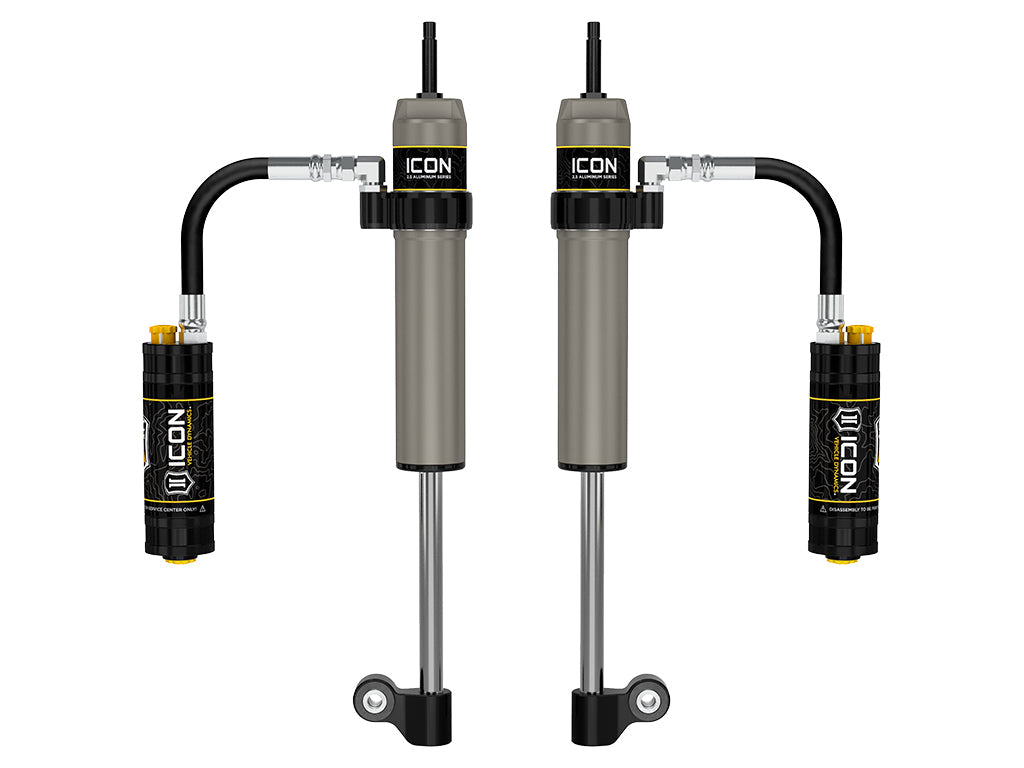

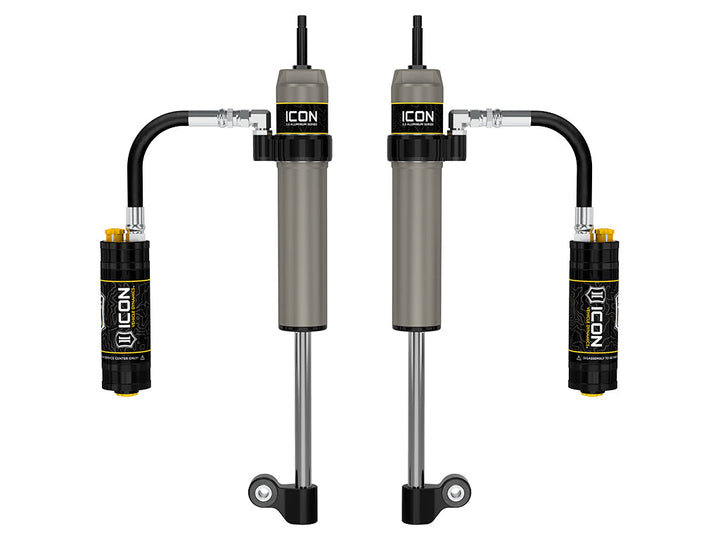

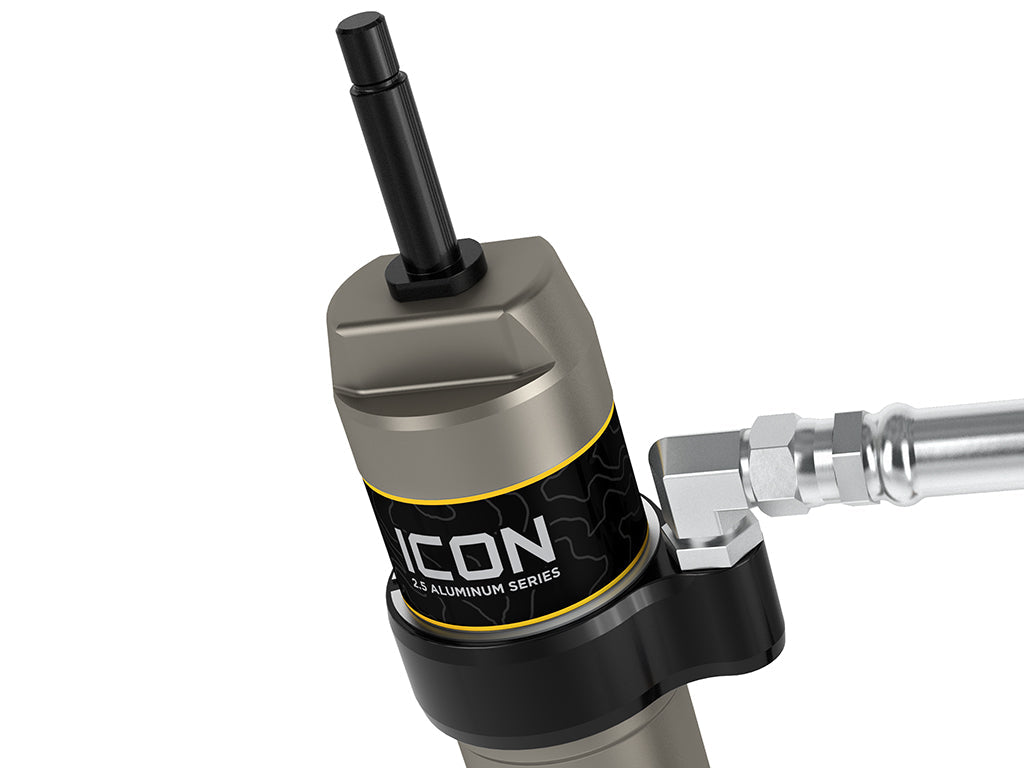

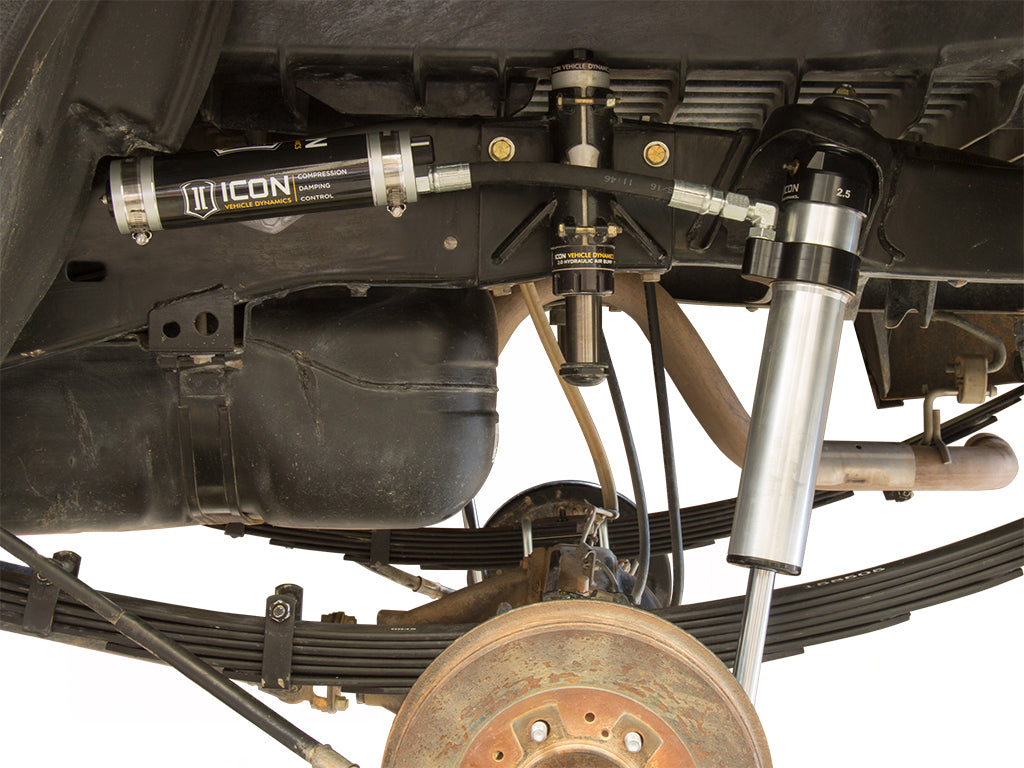

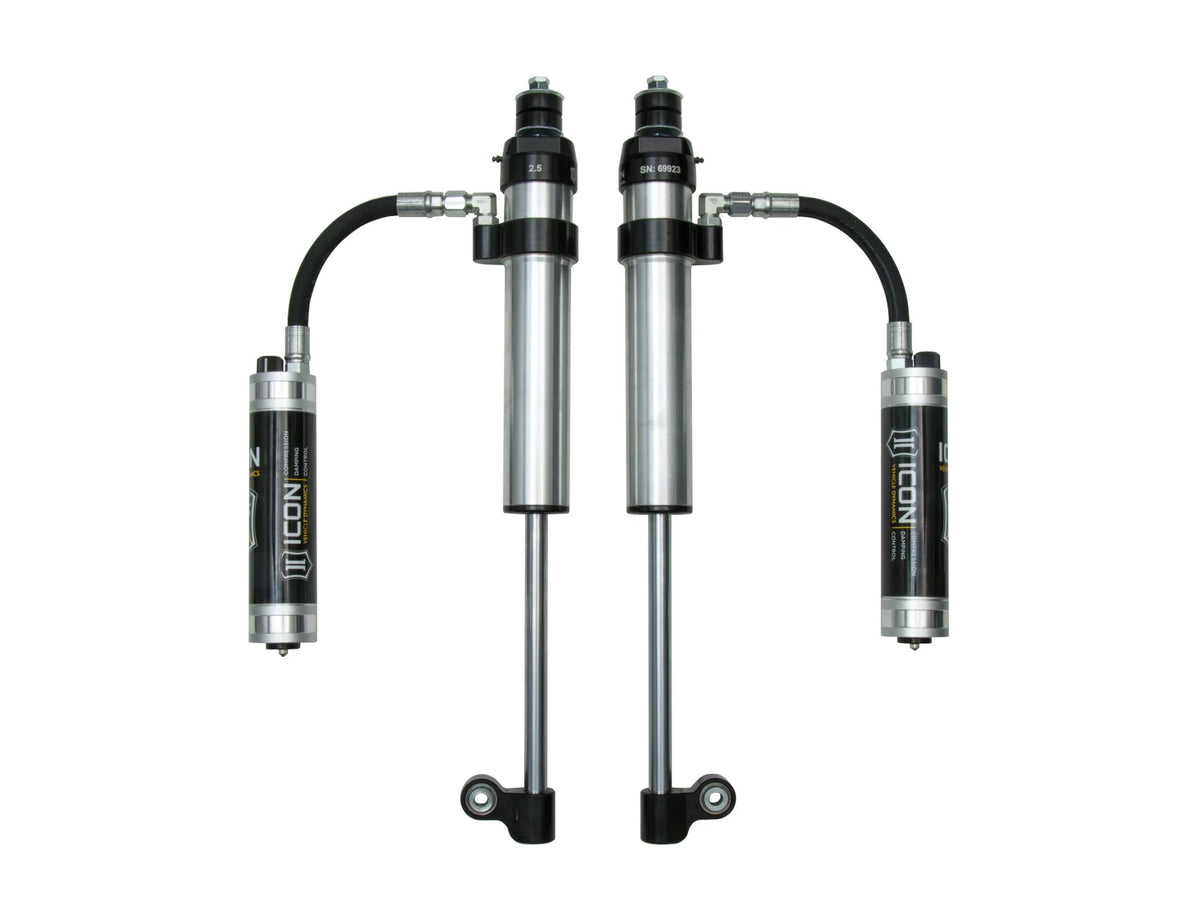

ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. With a truly vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune. Featuring ICON exclusive rod ends with side mounted eyelets, these "RXT" shocks maximize the capabilities of the suspension platform by allowing for increased shaft travel compared to traditional shock absorbers while remaining fully bolt on into the vehicle's factory shock mounts. One-piece impact extruded aluminum cylinders offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON shock absorbers, these 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’s unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom-out conditions and controls the suspension effectively when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
Specifications:
- Position: Rear
- Shock series: 2.5 Series
- Travel: 11.00"
Required to install (sold separately):
- Also Requires Part Number 158505
Installation notes:
- with 2.625" Maximum Lift Rear
Fits:
- 2022-2023 Toyota Tacoma: Base (Rear)
- 2005-2015 Toyota Tacoma: Base (4WD, Rear)
- 2006 Toyota Tacoma: Base Prerunner (Rear)
- 2016-2023 Toyota Tacoma: Edicion Especial, Limited, SR, SR5, TRD Off-Road (Rear)
- 2021-2023 Toyota Tacoma: Nightshade (Rear)
- 2005-2015 Toyota Tacoma: Pre Runner (Rear)
- 2017-2023 Toyota Tacoma: Sport (Rear)
- 2006-2009 Toyota Tacoma: SR5 Prerunner, TRD Sport Prerunner (Rear)
- 2021-2022 Toyota Tacoma: Trail (Rear)
- 2023 Toyota Tacoma: Trail Special Edition (Rear)
- 2015, 2017-2023 Toyota Tacoma: TRD Pro (Rear)
- 2010-2023 Toyota Tacoma: TRD Sport (Rear)
Part #: 57826CP
