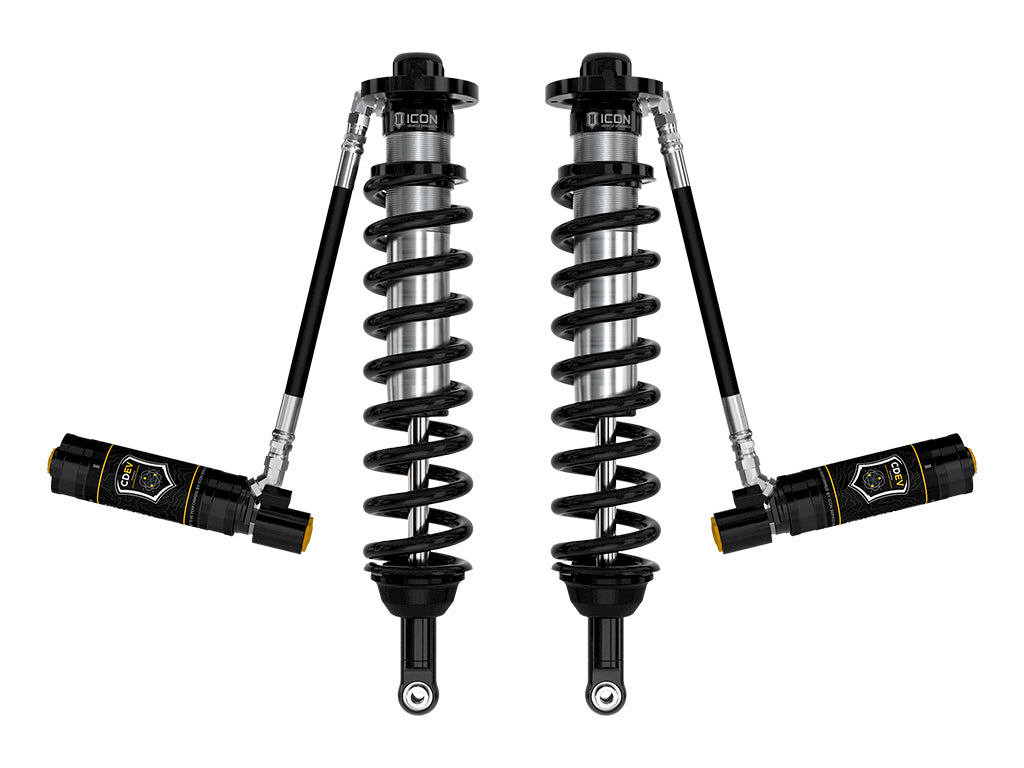

The ICON Vehicle Dynamics V.S. Series 2.5” CDCV remote reservoir coilover shocks an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma or 2010-2024 4Runner equipped with long travel front suspension. ICON’s Vehicle-specific valving and custom, long travel length provide a sport tuned feel on and off-road while offering 0-3.5" of lift height adjustability on most models or 0-2.75” of front lift height adjustment on 2016-2023 Tacomas. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDE Valve upgrade is also included for those desiring an easy way to tune the ride electronically from inside the vehicle.

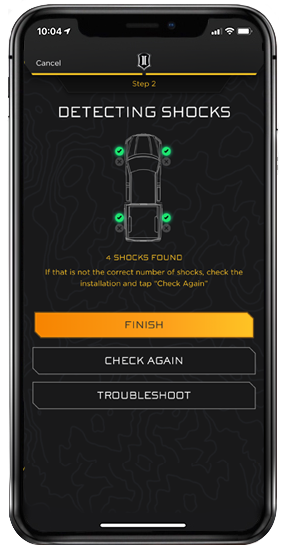

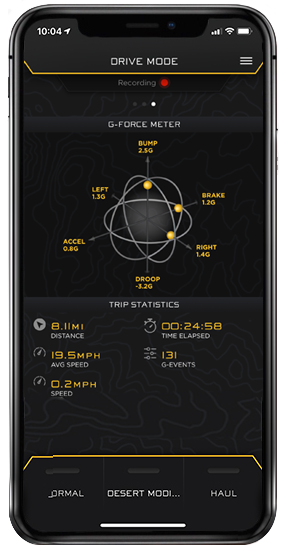

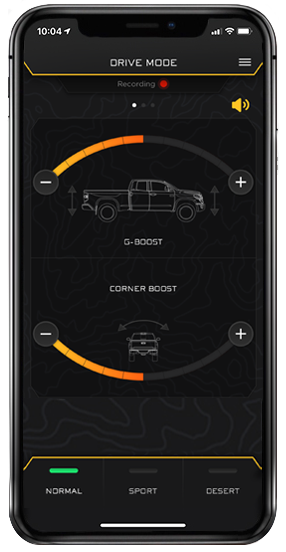

Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
Specifications:
- Position: Front
- Shock series: 2.5 Series
- Travel: 10.50"
- Extended length: 24.65"
- Material: Steel, Aluminum
Note: some applications below require additional ICON parts (sold separately) — see the note on your vehicle.
Installation notes:
- with Compatible Long Travel Front Upper and Lower Control Arms
- Requires iOS operated device to run ICON Intelligent Control App
Fits:
- 2023 Toyota 4Runner: 40th Anniversary Edition (Front) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Also Requires Part Number 53504 and Number 57810EP or 59910EP; Raises Front 0" - 3.5"
- 2017-2018 Toyota 4Runner: Base (Front) — Also Requires Part Number 53504 and Number 57810EP or 59910EP; Raises Front 0" - 3.5"
- 2020-2021 Toyota 4Runner: Base (Front) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Also Requires Part Number 53504 and Number 57810EP or 59910EP; Raises Front 0" - 3.5"
- 2010-2019 Toyota 4Runner: Limited, SR5 (Front) — Also Requires Part Number 53504 and Number 57810EP or 59910EP; Raises Front 0" - 3.5"
- 2020-2024 Toyota 4Runner: Limited, SR5, TRD Off-Road, TRD Off-Road Premium, TRD Pro (Front) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Also Requires Part Number 53504 and Number 57810EP or 59910EP; Raises Front 0" - 3.5"
- 2020-2022 Toyota 4Runner: Nightshade, Venture (Front) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Also Requires Part Number 53504 and Number 57810EP or 59910EP; Raises Front 0" - 3.5"
- 2018-2024 Toyota 4Runner: SR5 Premium (Front) — Also Requires Part Number 53504 and Number 57810EP or 59910EP; Raises Front 0" - 3.5"
- 2010-2016 Toyota 4Runner: Trail (Front) — Also Requires Part Number 53504 and Number 57810EP or 59910EP; Raises Front 0" - 3.5"
- 2021-2022 Toyota 4Runner: Trail (Front) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Also Requires Part Number 53504 and Number 57810EP or 59910EP; Raises Front 0" - 3.5"
- 2017-2019 Toyota 4Runner: TRD Off-Road (Front) — Also Requires Part Number 53504 and Number 57810EP or 59910EP; Raises Front 0" - 3.5"
- 2018-2019 Toyota 4Runner: TRD Off-Road Premium (Front) — Also Requires Part Number 53504 and Number 57810EP or 59910EP; Raises Front 0" - 3.5"
- 2015-2019 Toyota 4Runner: TRD Pro (Front) — Also Requires Part Number 53504 and Number 57810EP or 59910EP; Raises Front 0" - 3.5"
- 2022-2024 Toyota 4Runner: TRD Sport (Front) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Also Requires Part Number 53504 and Number 57810EP or 59910EP; Raises Front 0" - 3.5"
- 2022-2023 Toyota Tacoma: Base (Front) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Also Requires Part Number 53502 and Number 57826EP or 59926EP; Raises Front 0" - 2.75"
- 2005-2015 Toyota Tacoma: Base (4WD, Front) — Also Requires Part Number 53507 and Number 57826EP or 59926EP; Raises Front 0" - 3.5"
- 2006 Toyota Tacoma: Base Prerunner (Front) — Also Requires Part Number 53507 and Number 57826EP or 59926EP; Raises Front 0" - 3.5"
- 2016-2017 Toyota Tacoma: Edicion Especial, Limited, SR, SR5, TRD Off-Road, TRD Sport (Front) — Also Requires Part Number 53502 and Number 57826EP or 59926EP; Raises Front 0" - 2.75"
- 2018-2023 Toyota Tacoma: Edicion Especial, Limited, Sport, SR, SR5, TRD Off-Road, TRD Sport (Front) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Also Requires Part Number 53502 and Number 57826EP or 59926EP; Raises Front 0" - 2.75"
- 2021-2023 Toyota Tacoma: Nightshade (Front) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Also Requires Part Number 53502 and Number 57826EP or 59926EP; Raises Front 0" - 2.75"
- 2005-2015 Toyota Tacoma: Pre Runner (Front) — Also Requires Part Number 53507 and Number 57826EP or 59926EP; Raises Front 0" - 3.5"
- 2017 Toyota Tacoma: Sport (Front) — Also Requires Part Number 53502 and Number 57826EP or 59926EP; Raises Front 0" - 2.75"
- 2006-2009 Toyota Tacoma: SR5 Prerunner, TRD Sport Prerunner (Front) — Also Requires Part Number 53507 and Number 57826EP or 59926EP; Raises Front 0" - 3.5"
- 2021-2022 Toyota Tacoma: Trail (Front) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Also Requires Part Number 53502 and Number 57826EP or 59926EP; Raises Front 0" - 2.75"
- 2017 Toyota Tacoma: TRD Pro (Front) — Also Requires Part Number 53502 and Number 57826EP or 59926EP; Raises Front 0" - 1.25"
- 2015 Toyota Tacoma: TRD Pro (Front) — Also Requires Part Number 53507 and Number 57826EP or 59926EP; Raises Front 0" - 3.5"
- 2018-2023 Toyota Tacoma: TRD Pro (Front) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Also Requires Part Number 53502 and Number 57826EP or 59926EP; Raises Front 0" - 1.25"
- 2010-2015 Toyota Tacoma: TRD Sport (Front) — Also Requires Part Number 53507 and Number 57826EP or 59926EP; Raises Front 0" - 3.5"
Part #: 59730E-CB
