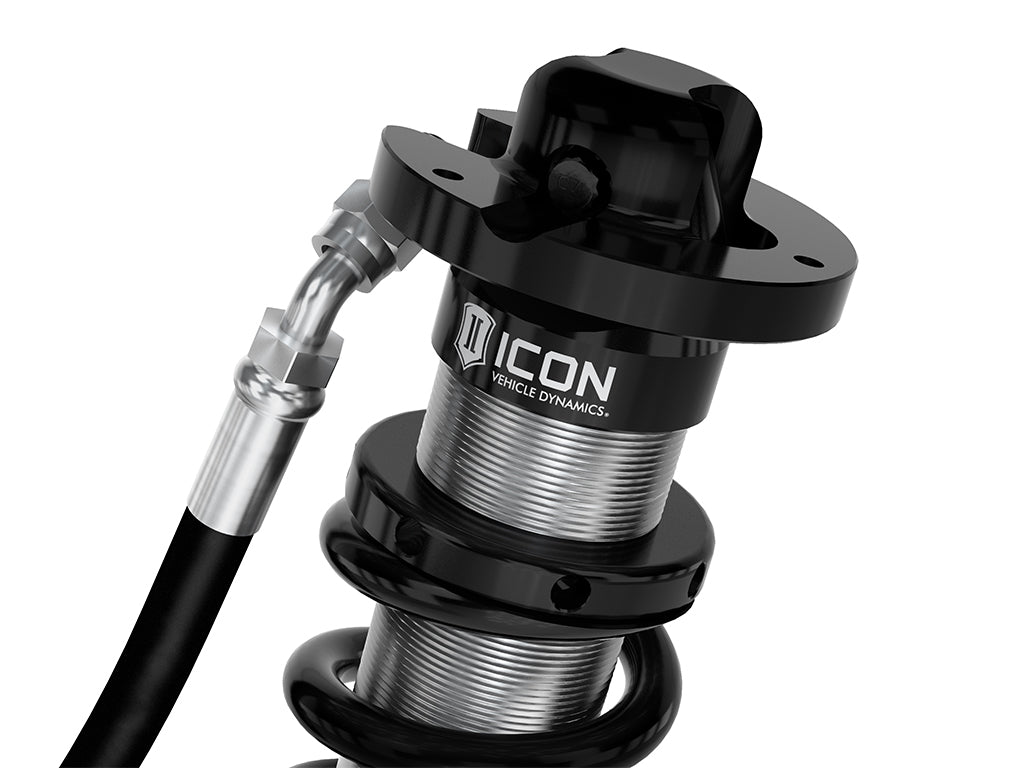

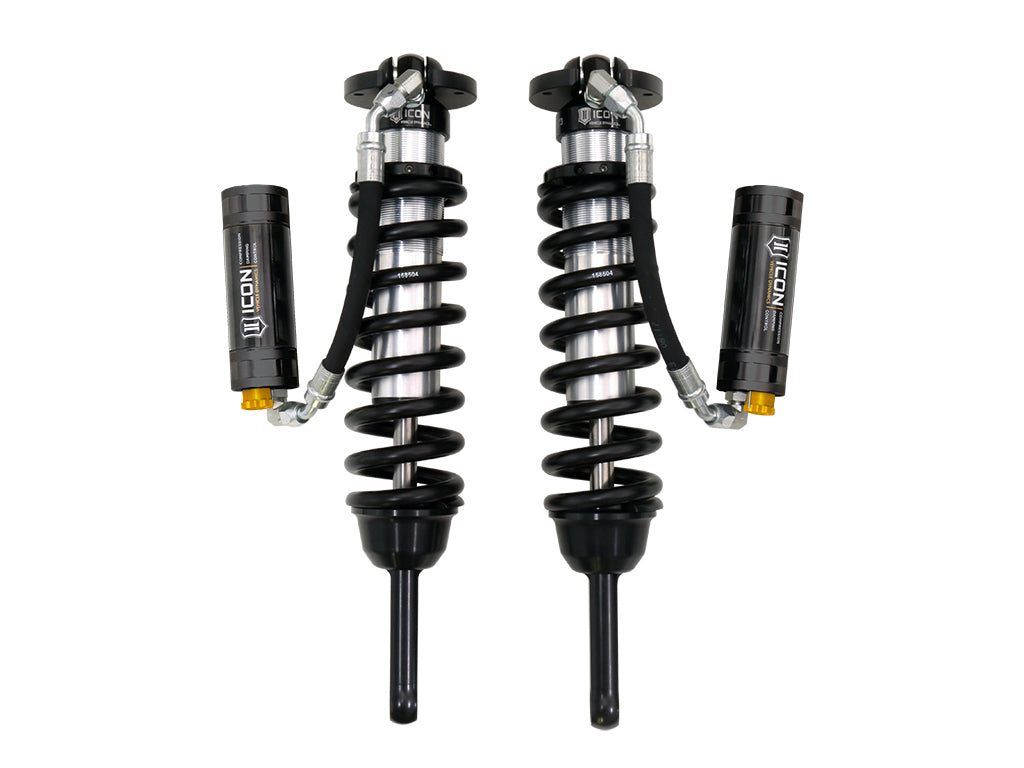

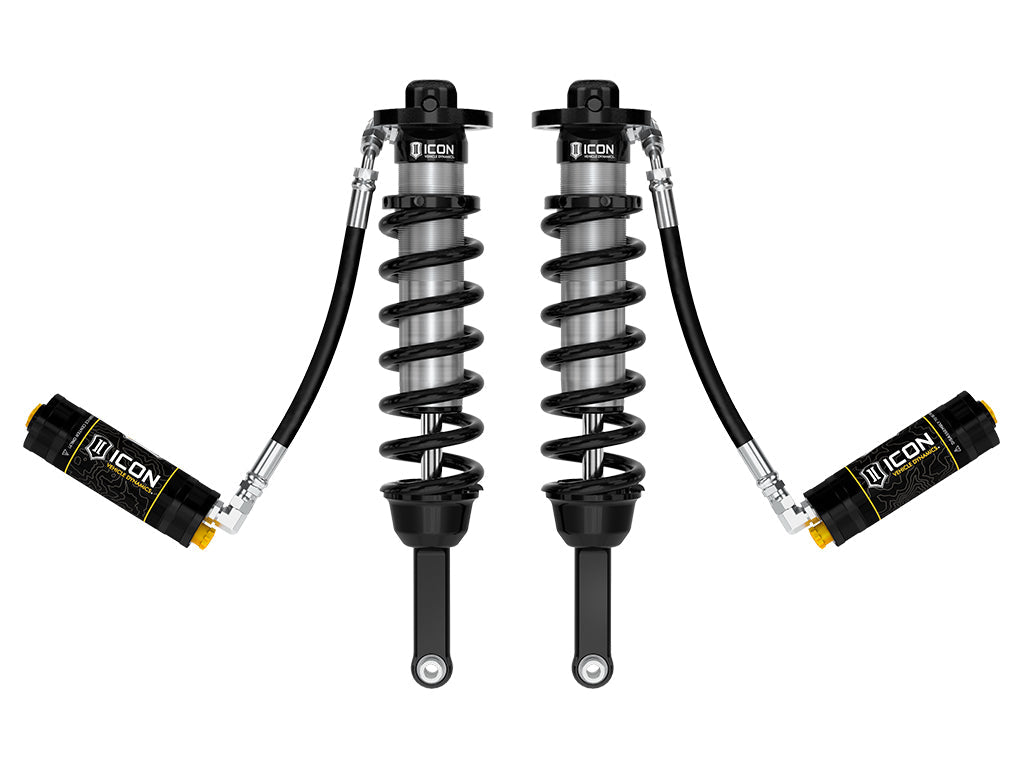

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.
Specifications:
- Lift height: 0-2.75"
- Position: Front
- Shock series: 2.5 Series
- Travel: 6.00"
- Extended length: 22.57"
- Material: Steel, Aluminum
Installation notes:
- Up to 33x11.50" Tire with Minor Fender Trimming
- 0 (mm) Offset Aftermarket Wheels Recommended
- Designed for use with Aftermarket Upper Control Arms Only
Fits:
- 2022-2023 Toyota Tacoma: Base (Front) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 0" - 2.75"
- 2005-2015 Toyota Tacoma: Base (4WD, Front) — Raises Front 0" - 3.5"
- 2006 Toyota Tacoma: Base Prerunner (Front) — Raises Front 0" - 3.5"
- 2016-2017 Toyota Tacoma: Edicion Especial, Limited, SR, SR5, TRD Off-Road, TRD Sport (Front) — Raises Front 0" - 2.75"
- 2018-2023 Toyota Tacoma: Edicion Especial, Limited, Sport, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport (Front) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 0" - 2.75"
- 2021-2023 Toyota Tacoma: Nightshade (Front) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 0" - 2.75"
- 2005-2015 Toyota Tacoma: Pre Runner (Front) — Raises Front 0" - 3.5"
- 2017 Toyota Tacoma: Sport (Front) — Raises Front 0" - 2.75"
- 2006-2009 Toyota Tacoma: SR5 Prerunner, TRD Sport Prerunner (Front) — Raises Front 0" - 3.5"
- 2021-2022 Toyota Tacoma: Trail (Front) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 0" - 2.75"
- 2023 Toyota Tacoma: Trail Special Edition (Front) — Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 0" - 2.75"
- 2017 Toyota Tacoma: TRD Pro (Front) — Raises Front 0" - 1.25"
- 2015 Toyota Tacoma: TRD Pro (Front) — Raises Front 0" - 1.75"
- 2010-2015 Toyota Tacoma: TRD Sport (Front) — Raises Front 0" - 3.5"
Part #: 58735C
