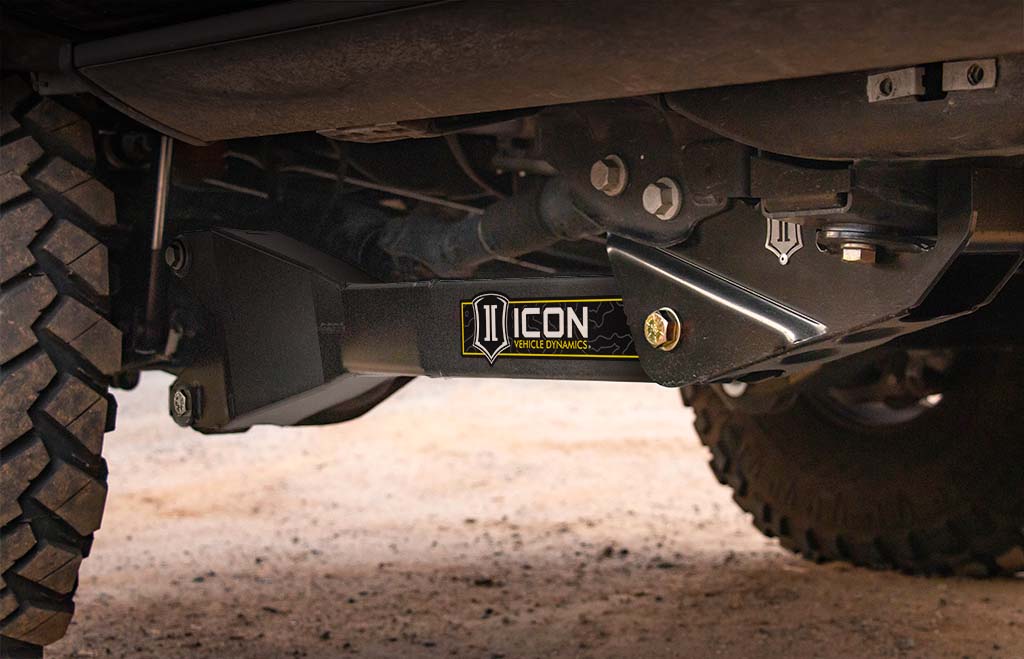

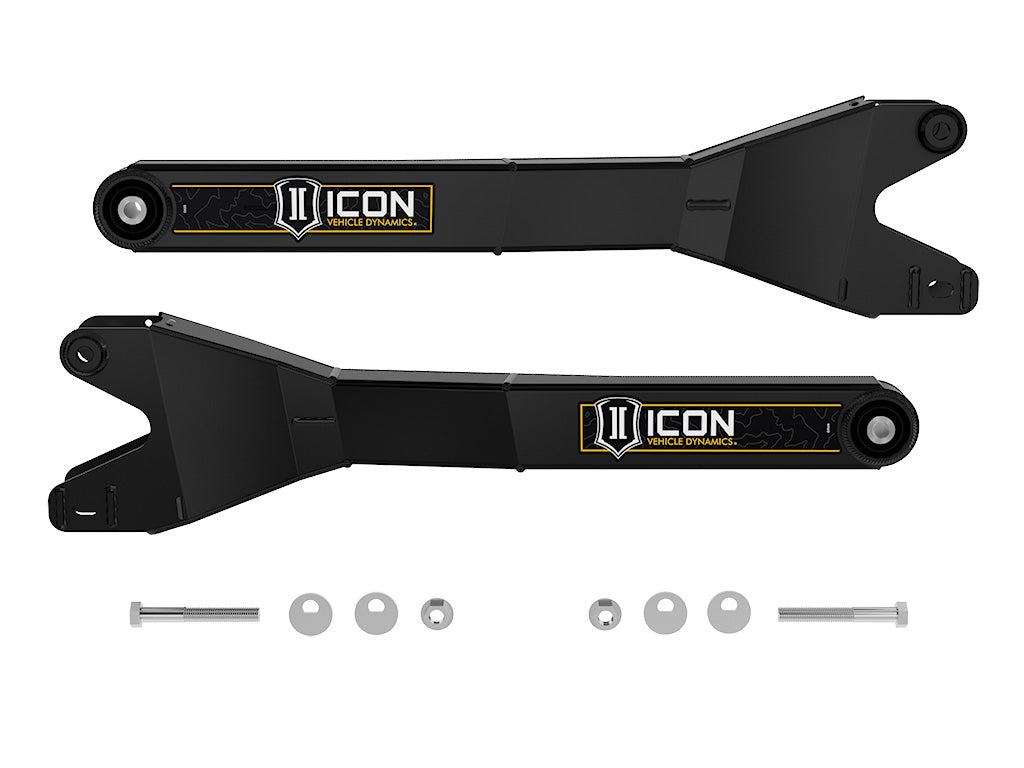

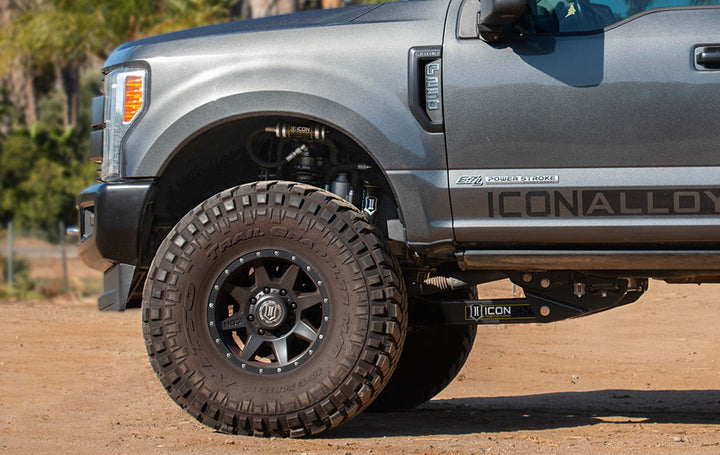

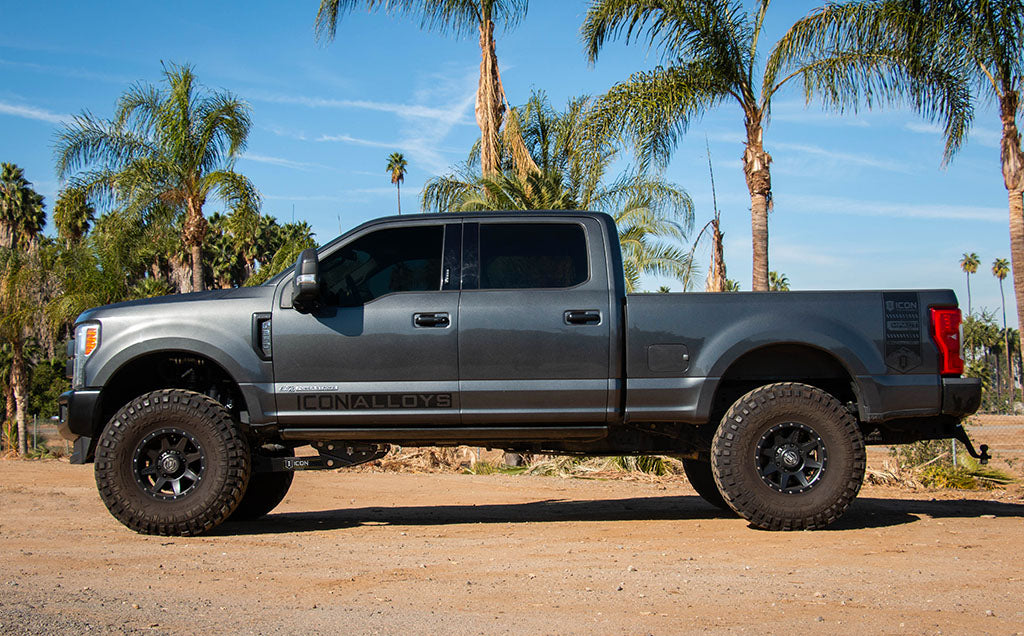

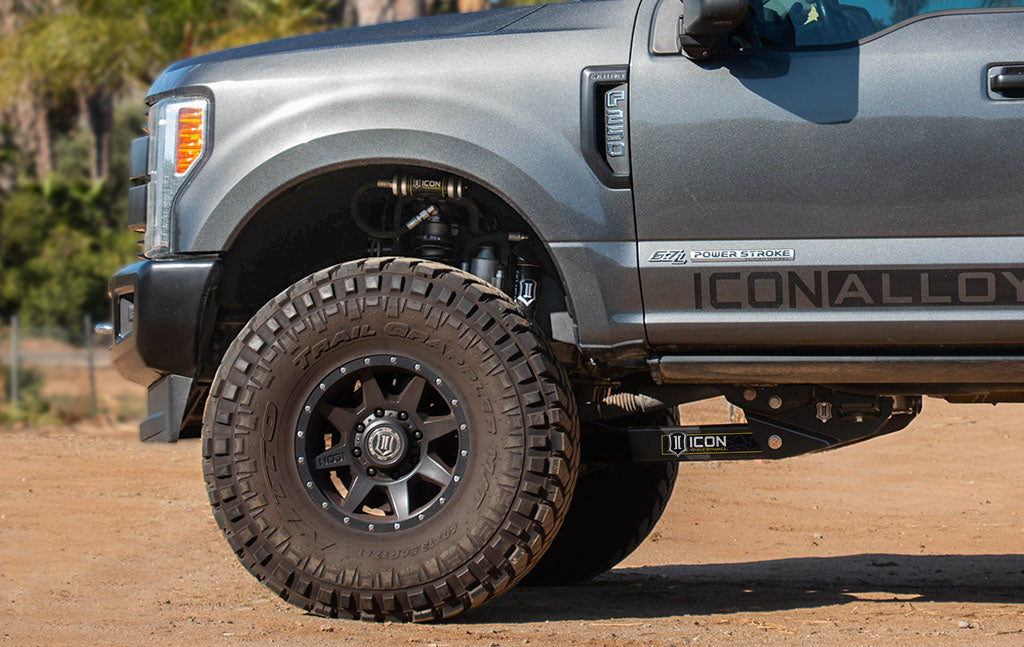

The ICON Vehicle Dynamics Ford 2005-2022 F-250, F-350, and F-450 Super Duty Radius Arm System is designed with adjustable caster cams for use with stock height trucks up to 3” of front lift with the radius arm installed in the factory pivot. When used in conjunction with an ICON radius arm drop bracket system, proper caster can also be maintained for 4” to 7" lifts, including coilover conversion systems. They feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.
Specifications:
- Position: Front
- Material: Steel
Note: some applications below require additional ICON parts (sold separately) — see the note on your vehicle.
Fits:
- 2017-2022 Ford F-250 Super Duty (Front) — with 4" - 7" Lift Kit; Also Requires Part Number 64055
- 2005-2022 Ford F-250 Super Duty (4WD, Front) — with 0" - 3" Suspension Lift
- 2005-2010 Ford F-250 Super Duty (4WD, Front) — with 4" - 7" Lift Kit; Also Requires Part Number 64040
- 2011-2016 Ford F-250 Super Duty (4WD, Front) — with 4" - 7" Lift Kit; Also Requires Part Number 64045
- 2005-2022 Ford F-350 Super Duty (4WD, Front) — with 0" - 3" Suspension Lift
- 2005-2010 Ford F-350 Super Duty (4WD, Front) — with 4" - 7" Lift Kit; Also Requires Part Number 64040
- 2011-2016 Ford F-350 Super Duty (4WD, Front) — with 4" - 7" Lift Kit; Also Requires Part Number 64045
- 2017-2022 Ford F-350 Super Duty (4WD, Front) — with 4" - 7" Lift Kit; Also Requires Part Number 64055
- 2005-2022 Ford F-450 Super Duty (4 X 4, Front) — with 0" - 3" Suspension Lift
Part #: 64041
