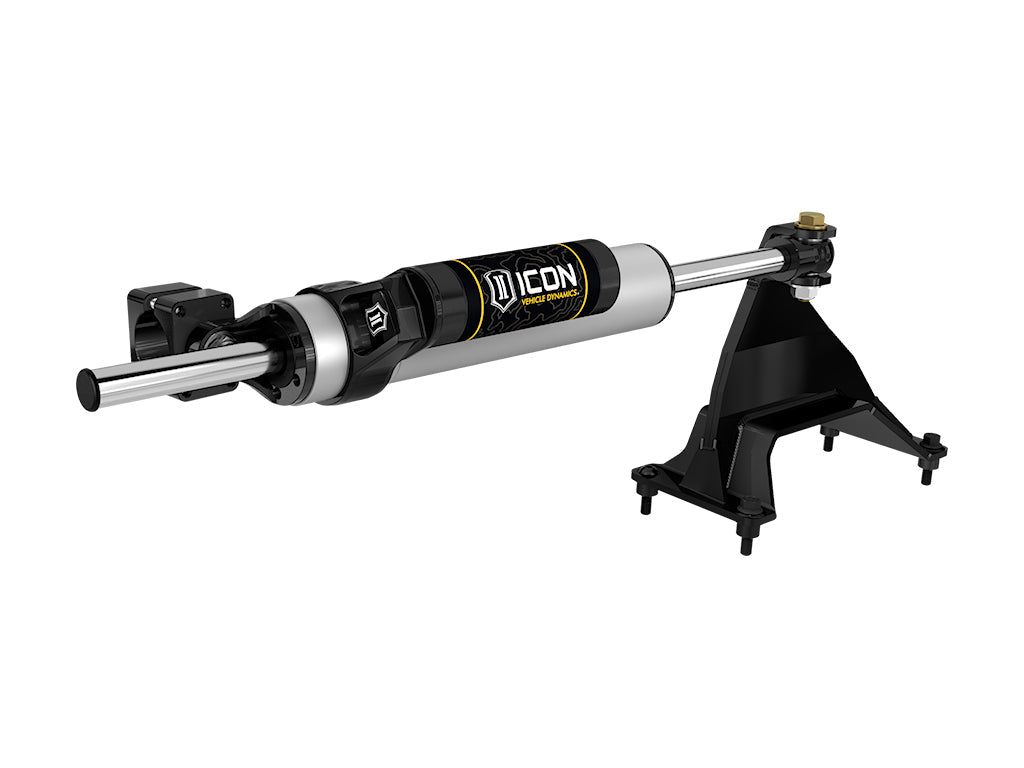

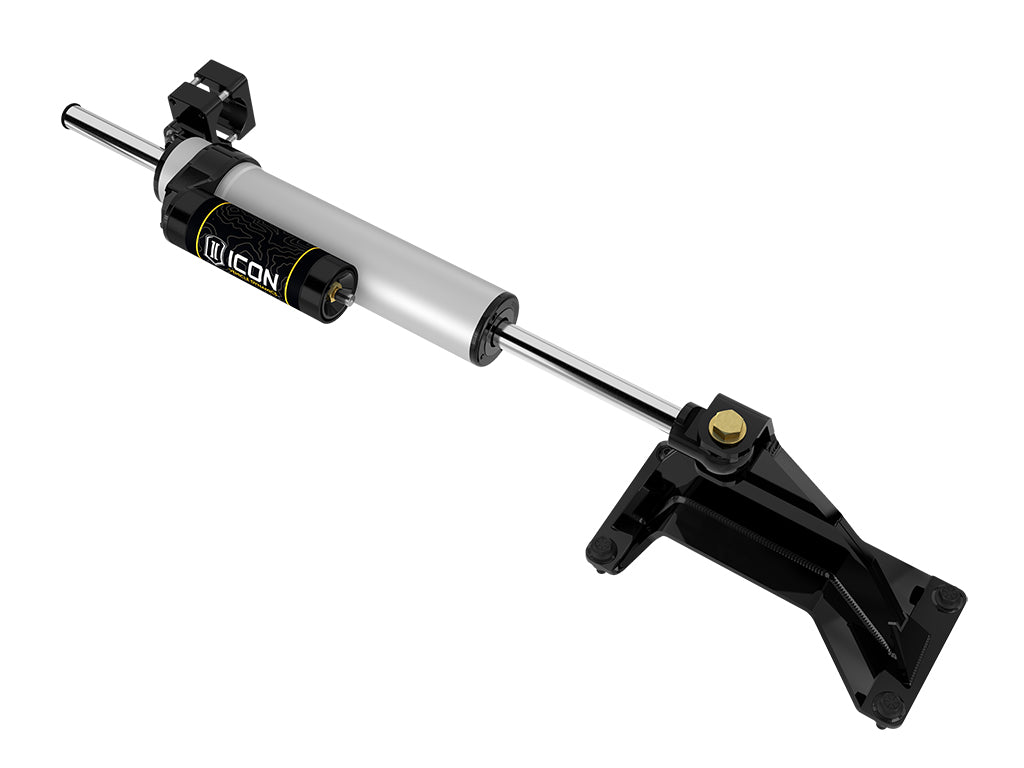

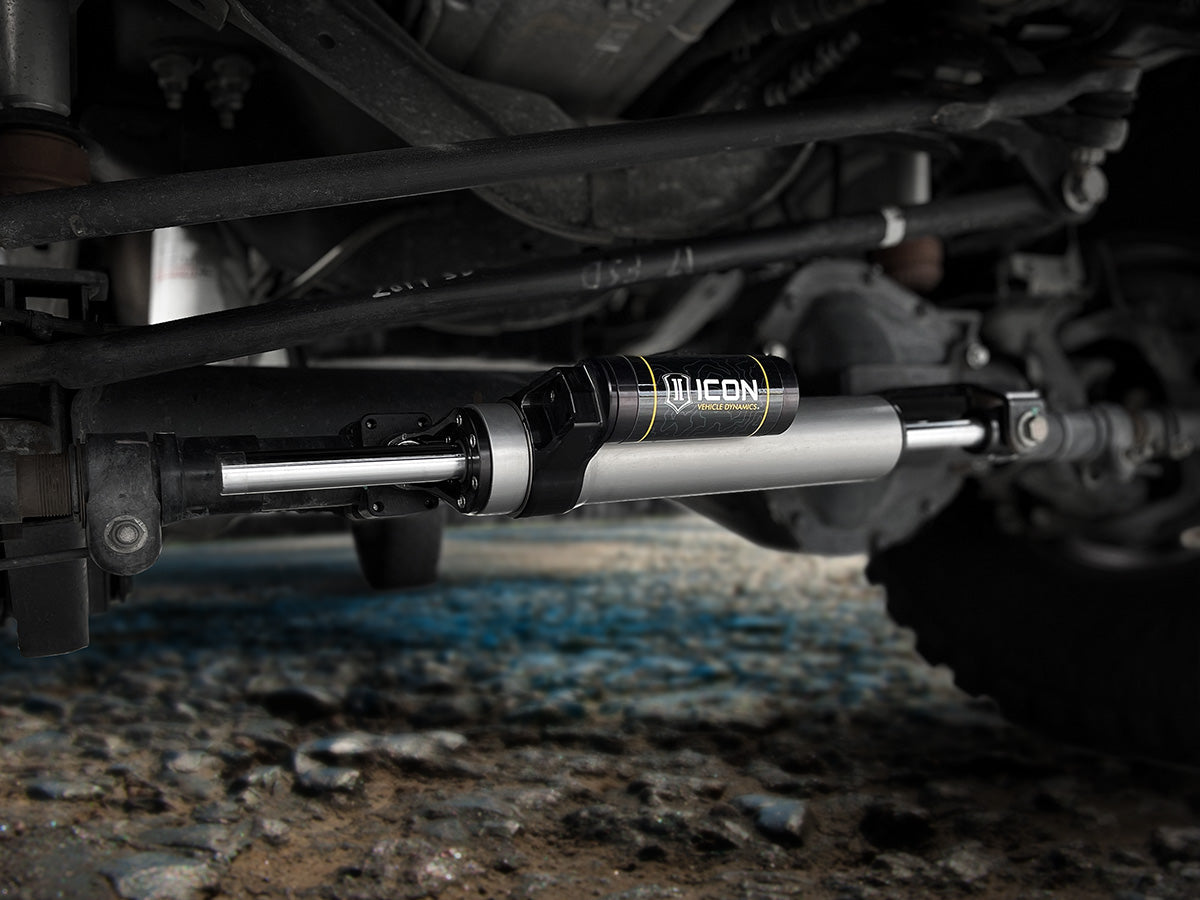

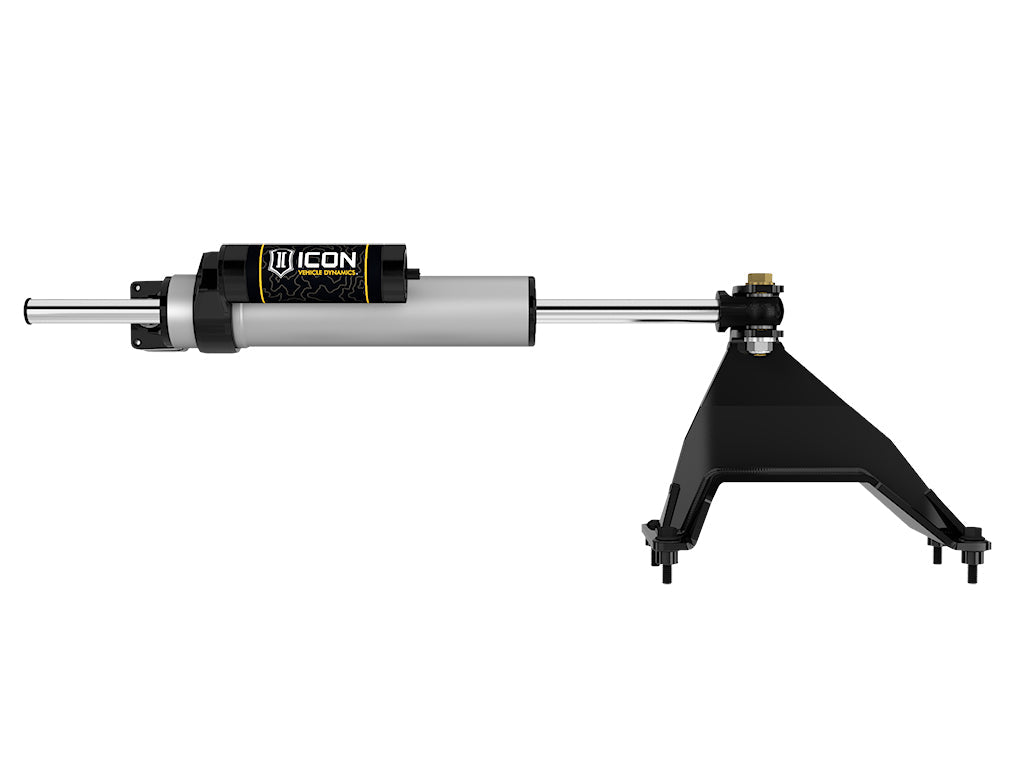

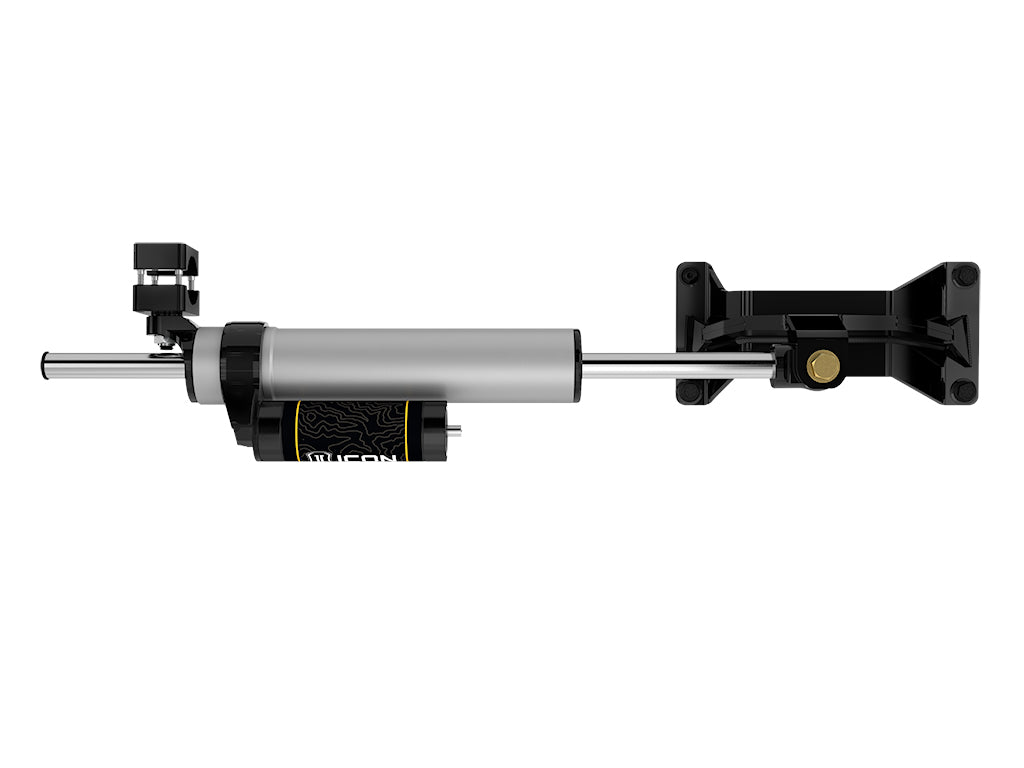

The ICON Centerline Steering Stabilizer features a through-shaft design to eliminate the push/pull sensation associated with traditional steering stabilizers, resulting in more consistent damping and symmetrical steering feel throughout the input range. The large 2.5-inch diameter stabilizer body and piggyback reservoir increases fluid volume to prevent performance fade due to heat and cavitation. This unit provides a significant increase in steering damping compared to the stock equipment, for an improved driving experience with both stock size and oversize aftermarket wheels and tires. The kit also allows for increased steering travel compared to other aftermarket steering stabilizers. The stabilizer body shares components with ICON's proven 2.5 Series shock absorbers, meaning the unit is fully rebuildable. 2.5 Series features a 6061 hard anodized aluminum shock body for excellent corrosion resistance and a beefy 7/8” chrome plated induction-hardened steel shaft. FK Rod End bearings provide precise function & feel throughout steering range. Installation is 100% bolt-on using common hand tools and should be an easy job for both professional mechanics and experienced DIY'ers.
Specifications:
Installation notes:
- with OE Front Differential Cover
- with OE Tie Rod
- Requires at least 1" tall front bump stop spacers
Fits:
- 2015-2016 Ford F-250 Super Duty: Base (Front)
- 2009-2010 Ford F-250 Super Duty: Cabela's (Front)
- 2008-2014 Ford F-250 Super Duty: FX4 (Front)
- 2005-2010 Ford F-250 Super Duty: Harley-Davidson Edition (Front)
- 2005-2022 Ford F-250 Super Duty: King Ranch, Lariat, XL, XLT (4WD, Front)
- 2018-2022 Ford F-250 Super Duty: Limited (Front)
- 2013-2022 Ford F-250 Super Duty: Platinum (Front)
- 2009-2010 Ford F-350 Super Duty: Cabela's (Front) — with Dual Rear Wheels (DRW); without Wide Track Front Axle
- 2009-2010 Ford F-350 Super Duty: Cabela's (Front) — with Single Rear Wheels (SRW)
- 2008-2009 Ford F-350 Super Duty: FX4 (Front) — with Dual Rear Wheels (DRW); without Wide Track Front Axle
- 2008-2009 Ford F-350 Super Duty: FX4 (Front) — with Single Rear Wheels (SRW)
- 2008-2010 Ford F-350 Super Duty: Harley-Davidson Edition (Front) — with Dual Rear Wheels (DRW); without Wide Track Front Axle
- 2005-2007 Ford F-350 Super Duty: Harley-Davidson Edition (Front)
- 2008-2010 Ford F-350 Super Duty: Harley-Davidson Edition (Front) — with Single Rear Wheels (SRW)
- 2008-2010, 2015-2016 Ford F-350 Super Duty: King Ranch, Lariat, XL, XLT (4WD, Front) — with Dual Rear Wheels (DRW); without Wide Track Front Axle
- 2005-2007, 2011-2014, 2017-2022 Ford F-350 Super Duty: King Ranch, Lariat, XL, XLT (4WD, Front)
- 2008-2010, 2015-2016 Ford F-350 Super Duty: King Ranch, Lariat, XL, XLT (4WD, Front) — with Single Rear Wheels (SRW)
- 2018-2022 Ford F-350 Super Duty: Limited (Front)
- 2015-2016 Ford F-350 Super Duty: Platinum (4WD, Front) — with Dual Rear Wheels (DRW); without Wide Track Front Axle
- 2013-2014, 2017-2022 Ford F-350 Super Duty: Platinum (4WD, Front)
- 2015-2016 Ford F-350 Super Duty: Platinum (4WD, Front) — with Single Rear Wheels (SRW)
Part #: 65052
