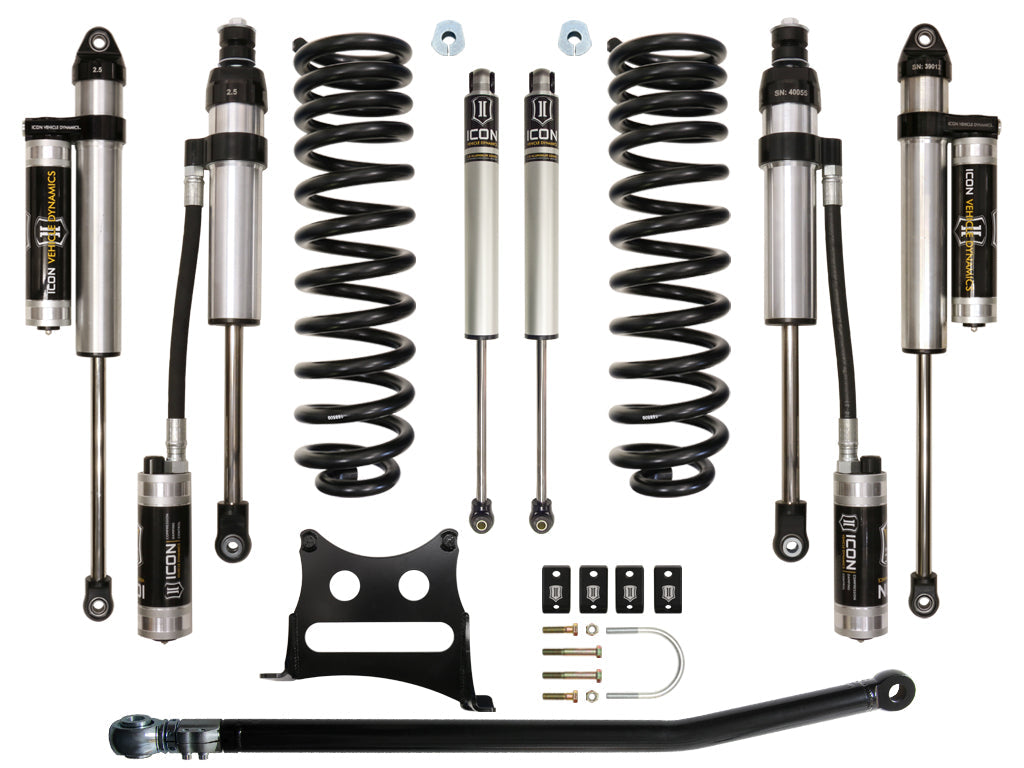

The ICON 2.5” suspension system is a great way to level your 4WD 2005-2016 Ford F250/350 Super Duty while improving ride quality and performance. This Stage 5 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. Also included in this stage is ICON's CDC Valve front to back for those desiring an easy way to tune the ride externally with 10 settings from soft to hard. ICON's Stage 5 System is comprised of dual rate coil springs, alignment cams for adding caster, adjustable track bar w/ bearing, dual steering stabilizer kit with ICON 2.0 Aluminum Series stabilizers, and ICON 2.5 Aluminum Series remote reservoir shocks front and rear w/ CDCV. ICON 2.5" reservoir shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
For F-250 applications, a 4" block can be used in place of your factory 2" block, in turn leveling the truck from front to rear, allowing use of ICON rear shocks.
Specifications:
- Lift height: 2.5"
- Front lift: 2.5"
- Position: Front and Rear
Note: some applications below require additional ICON parts (sold separately) — see the note on your vehicle.
Installation notes:
- Use Up To 35" x 12.50" Tires
- with 3" Maximum Lift Rear
- Raises Front 2.5"
Fits:
- 2005-2007 Ford F-250 Super Duty (4WD, 6.0L DIESEL, Front and Rear) — Also Requires Part Number 194275 and Number 37003; 6 (mm) Offset Aftermarket Wheels Recommended
- 2008-2010 Ford F-250 Super Duty (4WD, 6.4L DIESEL, Front and Rear) — Also Requires Part Number 194275 and Number 37003; Use with Track Bar Bracket Part Number 64039; 6 (mm) Offset Aftermarket Wheels Recommended
- 2011-2016 Ford F-250 Super Duty (4WD, 6.7L DIESEL, Front and Rear) — Also Requires Part Number 194275 and Number 67003; Use with Track Bar Bracket Part Number 64039; 6 (mm) Offset Aftermarket Wheels Recommended
- 2005-2007 Ford F-350 Super Duty (4WD, 6.0L DIESEL, Crew Cab Pickup, Front and Rear) — with Dual Rear Wheels (DRW)
- 2005-2007 Ford F-350 Super Duty (4WD, 6.0L DIESEL, Crew Cab Pickup, Front and Rear) — with Single Rear Wheels (SRW); 6 (mm) Offset Aftermarket Wheels Recommended
- 2005-2007 Ford F-350 Super Duty (4WD, 6.0L DIESEL, Extended Cab Pickup, Front and Rear) — with Dual Rear Wheels (DRW)
- 2005-2007 Ford F-350 Super Duty (4WD, 6.0L DIESEL, Extended Cab Pickup, Front and Rear) — with Single Rear Wheels (SRW); 6 (mm) Offset Aftermarket Wheels Recommended
- 2005-2007 Ford F-350 Super Duty (4WD, 6.0L DIESEL, Standard Cab Pickup, Front and Rear) — with Dual Rear Wheels (DRW)
- 2005-2007 Ford F-350 Super Duty (4WD, 6.0L DIESEL, Standard Cab Pickup, Front and Rear) — with Single Rear Wheels (SRW); 6 (mm) Offset Aftermarket Wheels Recommended
- 2008-2010 Ford F-350 Super Duty (4WD, 6.4L DIESEL, Crew Cab Pickup, Front and Rear) — with Dual Rear Wheels (DRW); without Wide Track Front Axle; Use with Track Bar Bracket Part Number 64039
- 2008-2010 Ford F-350 Super Duty (4WD, 6.4L DIESEL, Crew Cab Pickup, Front and Rear) — with Single Rear Wheels (SRW); Use with Track Bar Bracket Part Number 64039; 6 (mm) Offset Aftermarket Wheels Recommended
- 2008-2010 Ford F-350 Super Duty (4WD, 6.4L DIESEL, Extended Cab Pickup, Front and Rear) — with Dual Rear Wheels (DRW); without Wide Track Front Axle; Use with Track Bar Bracket Part Number 64039
- 2008-2010 Ford F-350 Super Duty (4WD, 6.4L DIESEL, Extended Cab Pickup, Front and Rear) — with Single Rear Wheels (SRW); Use with Track Bar Bracket Part Number 64039; 6 (mm) Offset Aftermarket Wheels Recommended
- 2008-2010 Ford F-350 Super Duty (4WD, 6.4L DIESEL, Standard Cab Pickup, Front and Rear) — with Dual Rear Wheels (DRW); without Wide Track Front Axle; Use with Track Bar Bracket Part Number 64039
- 2008-2010 Ford F-350 Super Duty (4WD, 6.4L DIESEL, Standard Cab Pickup, Front and Rear) — with Single Rear Wheels (SRW); Use with Track Bar Bracket Part Number 64039; 6 (mm) Offset Aftermarket Wheels Recommended
- 2011-2014 Ford F-350 Super Duty (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — with Dual Rear Wheels (DRW); Use with Track Bar Bracket Part Number 64039
- 2015-2016 Ford F-350 Super Duty (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — with Dual Rear Wheels (DRW); without Wide Track Front Axle; Use with Track Bar Bracket Part Number 64039
- 2011-2016 Ford F-350 Super Duty (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — with Single Rear Wheels (SRW); Use with Track Bar Bracket Part Number 64039; 6 (mm) Offset Aftermarket Wheels Recommended
- 2011-2014 Ford F-350 Super Duty (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — with Dual Rear Wheels (DRW); Use with Track Bar Bracket Part Number 64039
- 2015-2016 Ford F-350 Super Duty (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — with Dual Rear Wheels (DRW); without Wide Track Front Axle; Use with Track Bar Bracket Part Number 64039
- 2011-2016 Ford F-350 Super Duty (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — with Single Rear Wheels (SRW); Use with Track Bar Bracket Part Number 64039; 6 (mm) Offset Aftermarket Wheels Recommended
- 2011-2014 Ford F-350 Super Duty (4WD, 6.7L DIESEL, Standard Cab Pickup, Front and Rear) — with Dual Rear Wheels (DRW); Use with Track Bar Bracket Part Number 64039
- 2015-2016 Ford F-350 Super Duty (4WD, 6.7L DIESEL, Standard Cab Pickup, Front and Rear) — with Dual Rear Wheels (DRW); without Wide Track Front Axle; Use with Track Bar Bracket Part Number 64039
- 2011-2016 Ford F-350 Super Duty (4WD, 6.7L DIESEL, Standard Cab Pickup, Front and Rear) — with Single Rear Wheels (SRW); Use with Track Bar Bracket Part Number 64039; 6 (mm) Offset Aftermarket Wheels Recommended
Part #: K62504
