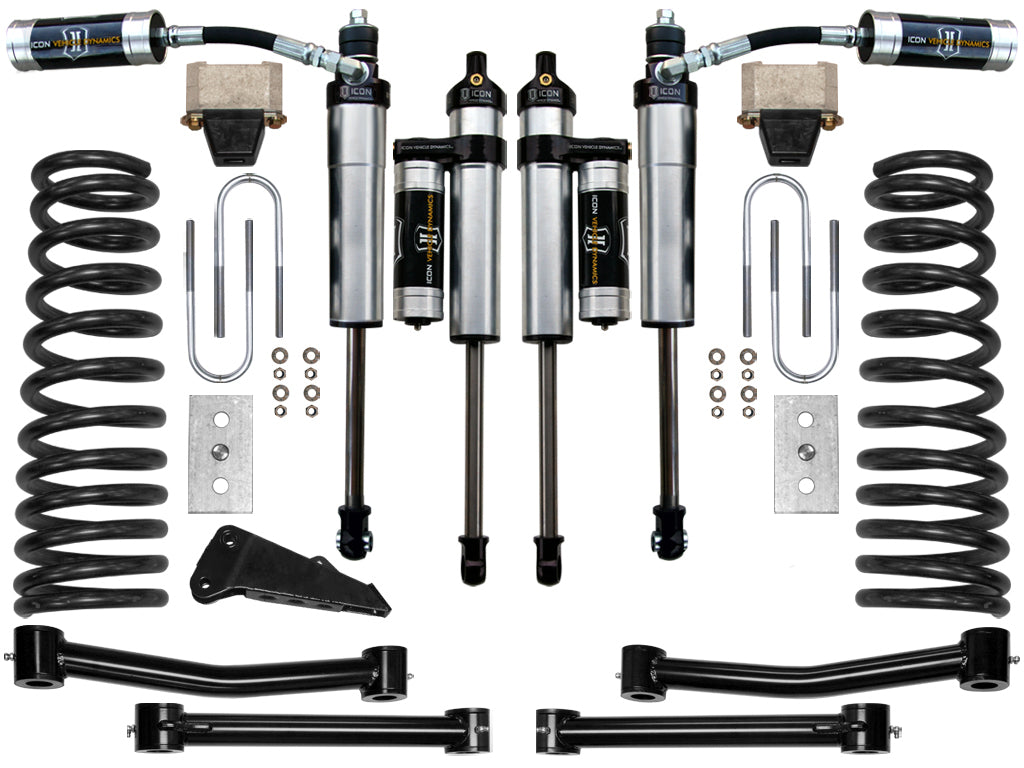

2003-2008 Ram 2500/3500 4.5“ Stage 3 Suspension System utilizes the same technology as the 2.5 inch systems while adding lift height and ground clearance. Additional engineered front-end components are added to ensure proper steering geometry with improved function throughout the entire travel range whether on or off road. ICON 2.5 Aluminum Series shocks extend the performance of the kit by increasing the duration of consistent damping regardless of situation. These shocks include FK bearings, billet top cap and rod ends, and 7/8" inch shafts for strength. ICON steel upper and lower links increase performance, strength, and range of alignment. These link arms decrease the bind found in the factory link bushings. This mid-level performance system with billet link arms is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. Installing this kit allows proper clearance for 35" tall tires with no modifications, and some 37" tires with minor fender well trimming for clearance. With the endless hours ICON has spent testing and tuning our suspension components and shocks together, you can rest assured you have the best suspension solution on the market.
Specifications:
- Lift height: 4.5"
- Position: Front and Rear
Installation notes:
- Trucks equipped with 03-06 style steering will require 4” drop pitman arm (NOT INCLUDED) or upgrade to 07-12 steering setup. Trucks equipped with 07-12 style steering will need ICON pitman arm part number 214101.
- Universal
Fits:
- 2003-2008 Dodge Ram 2500 (4WD, 5.9L DIESEL, Front and Rear)
- 2007-2008 Dodge Ram 2500 (4WD, 6.7L DIESEL, Front and Rear)
- 2003-2008 Dodge Ram 3500 (4WD, 5.9L DIESEL, Front and Rear)
- 2007-2008 Dodge Ram 3500 (4WD, 6.7L DIESEL, Front and Rear)
Part #: K214502T
