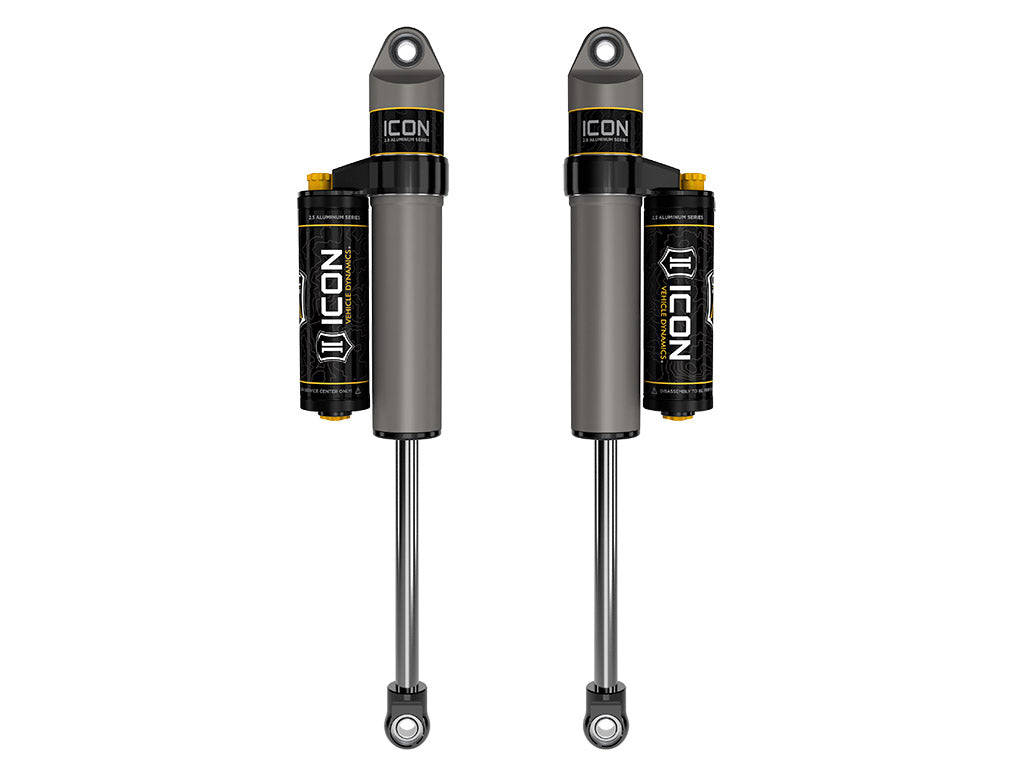

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
Specifications:
- Lift height: 3-6"
- Position: Front
- Shock series: 2.5 Series
- Travel: 10.00"
Note: some applications below require additional ICON parts (sold separately) — see the note on your vehicle.
Installation notes:
- with 3" - 6" Suspension Lift
Fits:
- 2000-2005 Ford Excursion (4WD, Leaf front springs) — with OE Stock Mounts
- 2000-2005 Ford Excursion (4WD, Leaf front springs) — For Use with Dual Type Multiple Shocks; Also Requires Part Number 39010 and Number 257164 (Qty 4)
- 1999-2004 Ford F-250 Super Duty (4WD, Leaf front springs) — with OE Stock Mounts
- 1999-2004 Ford F-250 Super Duty (4WD, Leaf front springs) — For Use with Dual Type Multiple Shocks; Also Requires Part Number 39010 and Number 257164 (Qty 4)
- 1999-2004 Ford F-350 Super Duty (4WD, Leaf front springs) — with OE Stock Mounts
- 1999-2004 Ford F-350 Super Duty (4WD, Leaf front springs) — For Use with Dual Type Multiple Shocks; Also Requires Part Number 39010 and Number 257164 (Qty 4)
Part #: 37710CP
