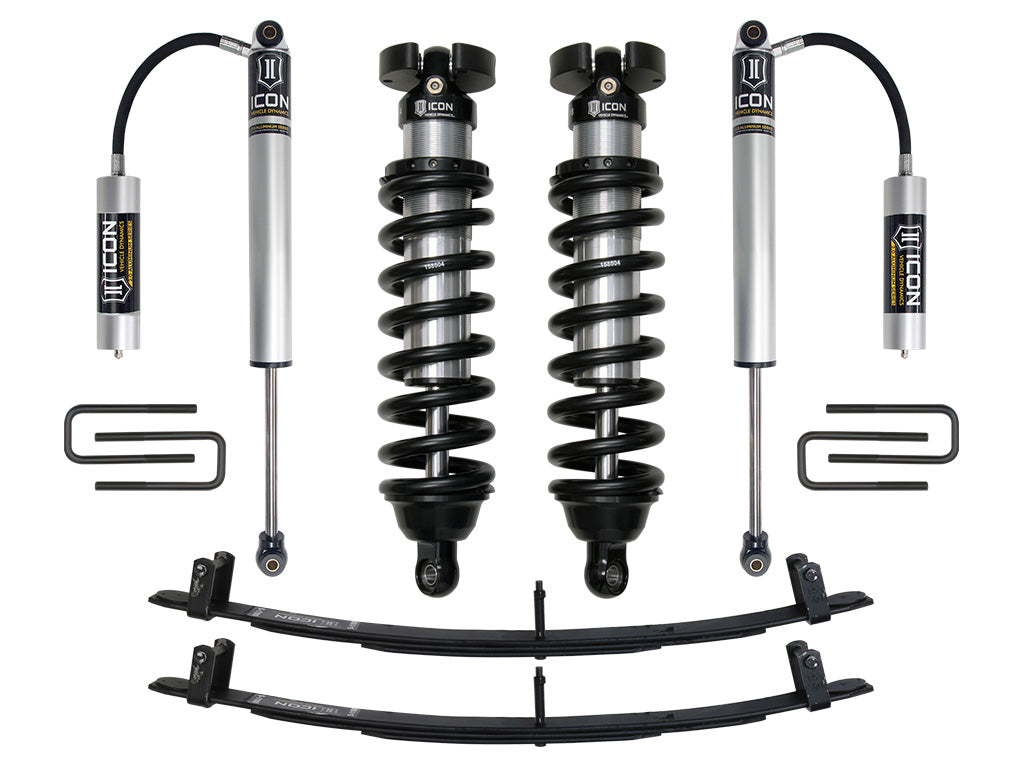

ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 2 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series remote reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 96-04 Toyota Tacoma 4WD/PreRunner Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Specifications:
- Lift height: 0-3"
- Front lift: 0" - 3"
- Rear lift: 1.5"
- Position: Front and Rear
Installation notes:
- Use Up To 33" x 11.50" Tires
- Requires Removal of OE Leaf Spring Overload Leaves
- Raises Rear 1.5"
- Raises Front 0" - 3"
- 0 (mm) Offset Aftermarket Wheels Recommended
Fits:
- 1995-2004 Toyota Tacoma: Base (4WD, Front and Rear)
- 1995-2003 Toyota Tacoma: DLX (4WD, Front and Rear)
- 1998-2000 Toyota Tacoma: Limited (Front and Rear)
- 1998-2004 Toyota Tacoma: Pre Runner (Front and Rear)
- 1995-2000 Toyota Tacoma: SR5 (4WD, Front and Rear)
Part #: K53012
