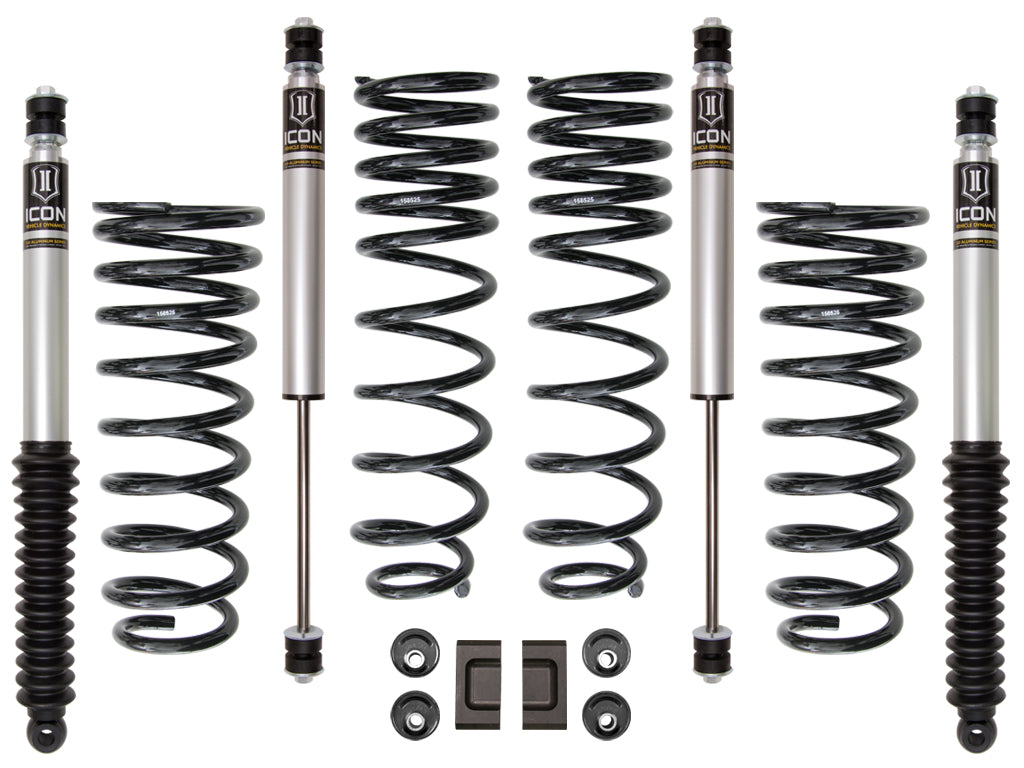

After an in-depth R&D process, ICON engineers have developed a 3” suspension system for the 80 Series that is aimed to improve on-road handling characteristics while also maximizing the Land Cruiser’s off-road potential. This Stage 1 system includes ICON-designed dual rate coil springs, caster correction bushings, sway bar relocation components, all bracketry and hardware required for install, and ICON Vehicle Dynamics 2.0 Aluminum Series shocks that feature a vehicle specific valving for optimized ride quality and balanced damping front to rear. This ICON Stage 1 System is the perfect entry level suspension system for drivers seeking a quality on-road ride with exceptional off-road characteristics as well.
Specifications:
Installation notes:
- Recommended Aftermarket Wheel Size: 17x8.5" with 4.63” Backspace
- Lift heights based around a typical 80 Series build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher if installed on a stock weighted vehicle.
- Use Up To 33" x 11.50" Tires
- Front Raise Height 3"
- Rear Raise Height 3"
Fits:
- 1991-1992 Toyota Land Cruiser (4.0L GAS, Front and Rear)
- 1993-1997 Toyota Land Cruiser (4.5L GAS, Front and Rear)
Part #: K53091
