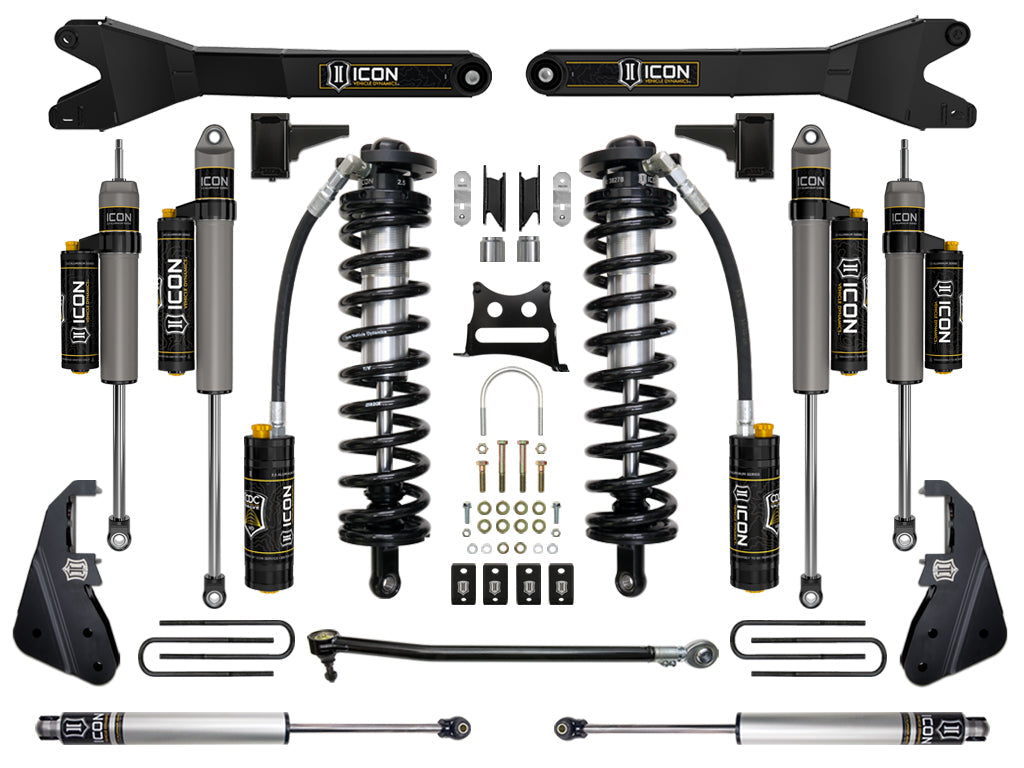

Designed to provide a height-adjustable option to the extremely popular ICON Vehicle Dynamics 4.5” Ford Super Duty Suspension Systems, these coilover conversions provide excellent on-road ride quality and off-road performance while at the same time allowing for end-user ride height adjustability.

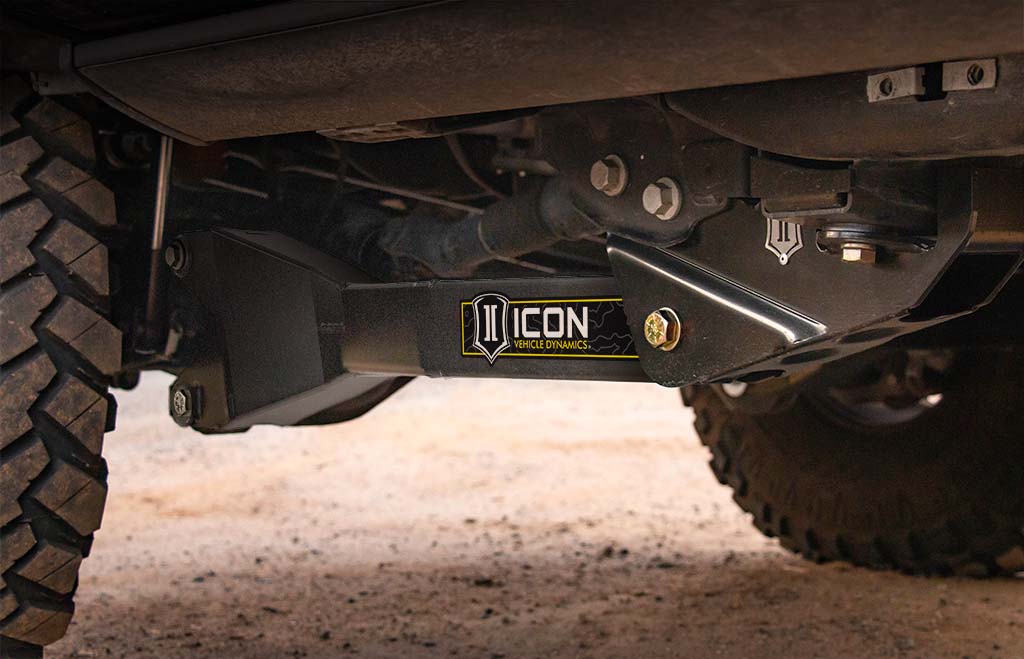

This Stage 6 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.
Specifications:
- Lift height: 4-5.5"
- Position: Front and Rear
Installation notes:
- Recommended Aftermarket Wheel Size: 17x8.5" with 5.00” Backspace / 6mm Offset
- Use with Extended Brake Line Kit Part Number 61110
- Use Up To 37" x 12.50" Tires
- Rear Raise Height 3"
- Requires removal of the coil centering cup in factory coil bucket
- Use with Track Bar Bracket Part Number 64039
Fits:
- 2017-2019 Ford F-250 Super Duty: King Ranch, Lariat, XL, XLT (4WD, 6.7L DIESEL, Front and Rear) — Raises Front 4" - 5.5"
- 2020-2022 Ford F-250 Super Duty: King Ranch, Lariat (4WD, 6.7L DIESEL, Front and Rear) — with Tremor Package; Raises Front 3.75" - 5.25"
- 2020-2022 Ford F-250 Super Duty: King Ranch, Lariat (4WD, 6.7L DIESEL, Front and Rear) — without Tremor Package; Raises Front 4.75" - 6.25"
- 2018-2019 Ford F-250 Super Duty: Limited (Front and Rear) — Raises Front 4" - 5.5"
- 2020-2022 Ford F-250 Super Duty: Limited (Front and Rear) — Raises Front 4.75" - 6.25"
- 2017-2019 Ford F-250 Super Duty: Platinum (6.7L DIESEL, Front and Rear) — Raises Front 4" - 5.5"
- 2020-2022 Ford F-250 Super Duty: Platinum (6.7L DIESEL, Front and Rear) — with Tremor Package; Raises Front 3.75" - 5.25"
- 2020-2022 Ford F-250 Super Duty: Platinum (6.7L DIESEL, Front and Rear) — without Tremor Package; Raises Front 4.75" - 6.25"
- 2020-2022 Ford F-250 Super Duty: XL (4WD, 6.7L DIESEL, Front and Rear) — Raises Front 4.75" - 6.25"
- 2022 Ford F-250 Super Duty: XLT (4WD, 6.7L DIESEL, Front and Rear) — Raises Front 4.75" - 6.25"
- 2020-2021 Ford F-250 Super Duty: XLT (4WD, 6.7L DIESEL, Front and Rear) — with Tremor Package; Raises Front 3.75" - 5.25"
- 2020-2021 Ford F-250 Super Duty: XLT (4WD, 6.7L DIESEL, Front and Rear) — without Tremor Package; Raises Front 4.75" - 6.25"
- 2017-2019 Ford F-350 Super Duty: King Ranch, Lariat, Platinum, XL, XLT (4WD, 6.7L DIESEL, Front and Rear) — Raises Front 4" - 5.5"
- 2020-2022 Ford F-350 Super Duty: King Ranch, Lariat, Platinum (4WD, 6.7L DIESEL, Front and Rear) — with Tremor Package; Raises Front 3.75" - 5.25"
- 2020-2022 Ford F-350 Super Duty: King Ranch, Lariat, Platinum (4WD, 6.7L DIESEL, Front and Rear) — without Tremor Package; Raises Front 4.75" - 6.25"
- 2018-2019 Ford F-350 Super Duty: Limited (Front and Rear) — Raises Front 4" - 5.5"
- 2020-2022 Ford F-350 Super Duty: Limited (Front and Rear) — Raises Front 4.75" - 6.25"
- 2020-2022 Ford F-350 Super Duty: XL (4WD, 6.7L DIESEL, Front and Rear) — Raises Front 4.75" - 6.25"
- 2022 Ford F-350 Super Duty: XLT (4WD, 6.7L DIESEL, Front and Rear) — Raises Front 4.75" - 6.25"
- 2020-2021 Ford F-350 Super Duty: XLT (4WD, 6.7L DIESEL, Front and Rear) — with Tremor Package; Raises Front 3.75" - 5.25"
- 2020-2021 Ford F-350 Super Duty: XLT (4WD, 6.7L DIESEL, Front and Rear) — without Tremor Package; Raises Front 4.75" - 6.25"
Part #: K63156R
