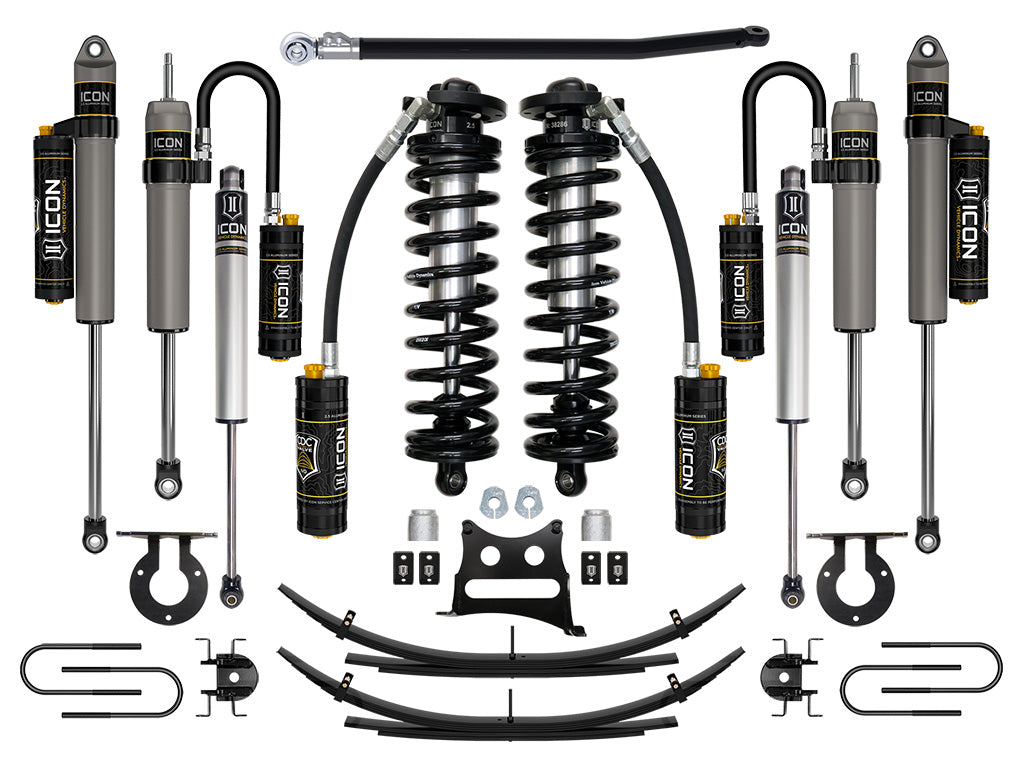

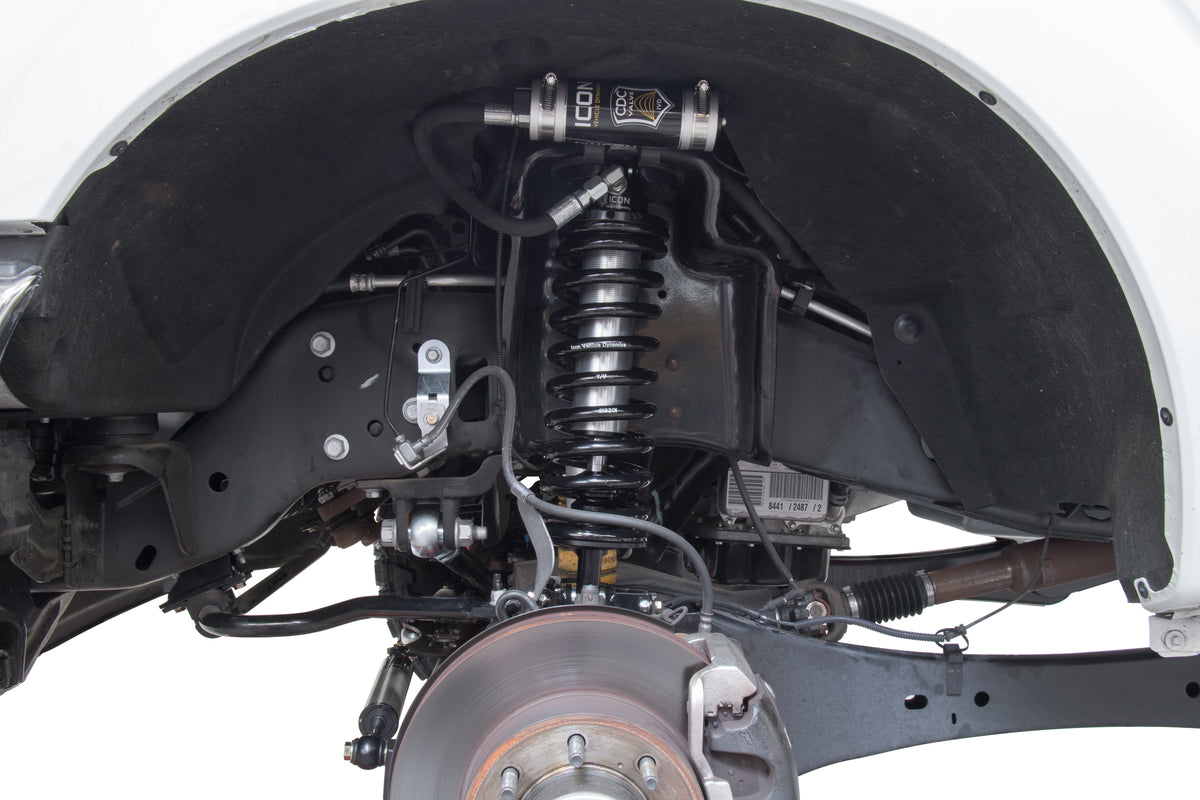

The ICON 2.5-3” coilover conversion suspension system is a great way to lift your 4WD 2008-2010 Ford F-250/F-350 Super Duty while improving ride quality and performance. This upgraded Stage 5 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. Also included in this stage are ICON's CDC Valve front, front secondary, and rear shocks, for those desiring an easy way to tune the ride externally with 10 settings, from soft to hard. ICON's Stage 5 System is comprised of 2.5 Series CDCV remote reservoir coilovers that are adjustable from 2.5-3” of front lift over stock, CDCV 2.5 Aluminum Series remote reservoir front secondary shocks for maximum front damping ability, adjustable front track bar with massive FK rod end, dual steering stabilizer kit with ICON 2.0 Aluminum Series stabilizers, alignment cams for adding caster, rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap, and ICON 2.5 Aluminum Series CDCV piggyback reservoir rear shocks. ICON 2.5 Series remote and piggyback reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
Specifications:
- Lift height: 2.5-3"
- Front lift: 2.5" - 3"
- Position: Front and Rear
Installation notes:
- Recommended Aftermarket Wheel Size: 17x8.5" with 5” Backspace / 6mm Offset
- Use Up To 35" x 12.50" Tires
- Raises Front 2.5" - 3"
- Use with Track Bar Bracket Part Number 64039
Fits:
- 2008-2010 Ford F-250 Super Duty (4WD, 6.4L DIESEL, Front and Rear) — Raises Rear .5"
- 2008-2010 Ford F-350 Super Duty (4WD, 6.4L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW)
- 2008-2010 Ford F-350 Super Duty (4WD, 6.4L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW)
- 2008-2010 Ford F-350 Super Duty (4WD, 6.4L DIESEL, Standard Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW)
Part #: K63185
