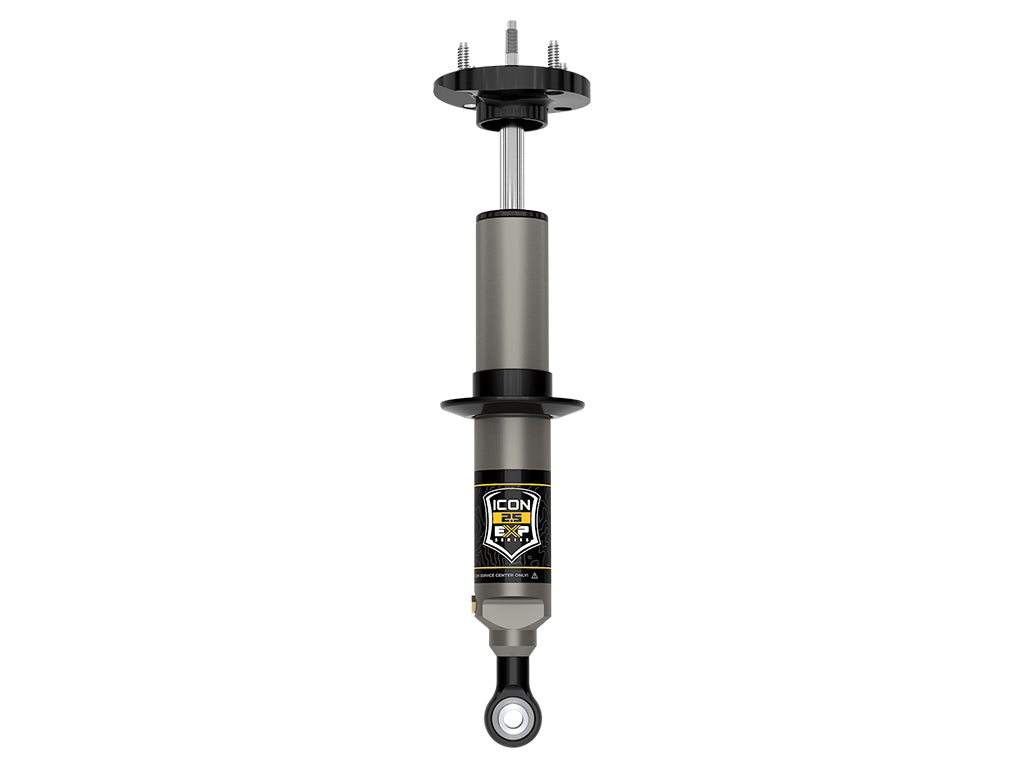

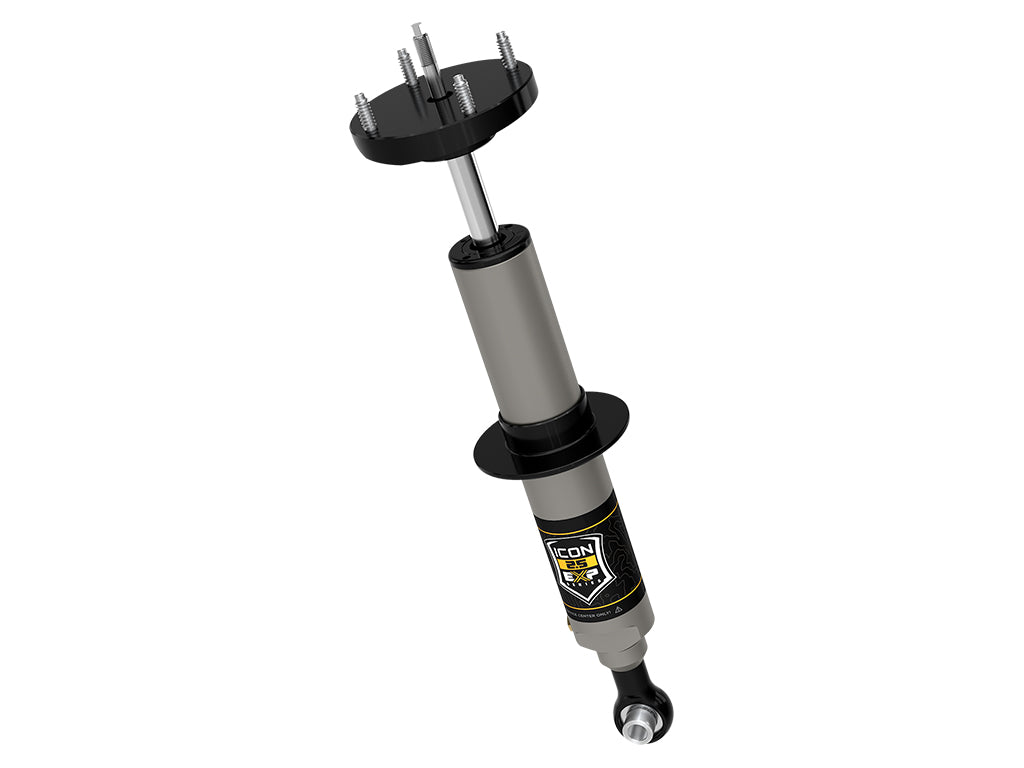

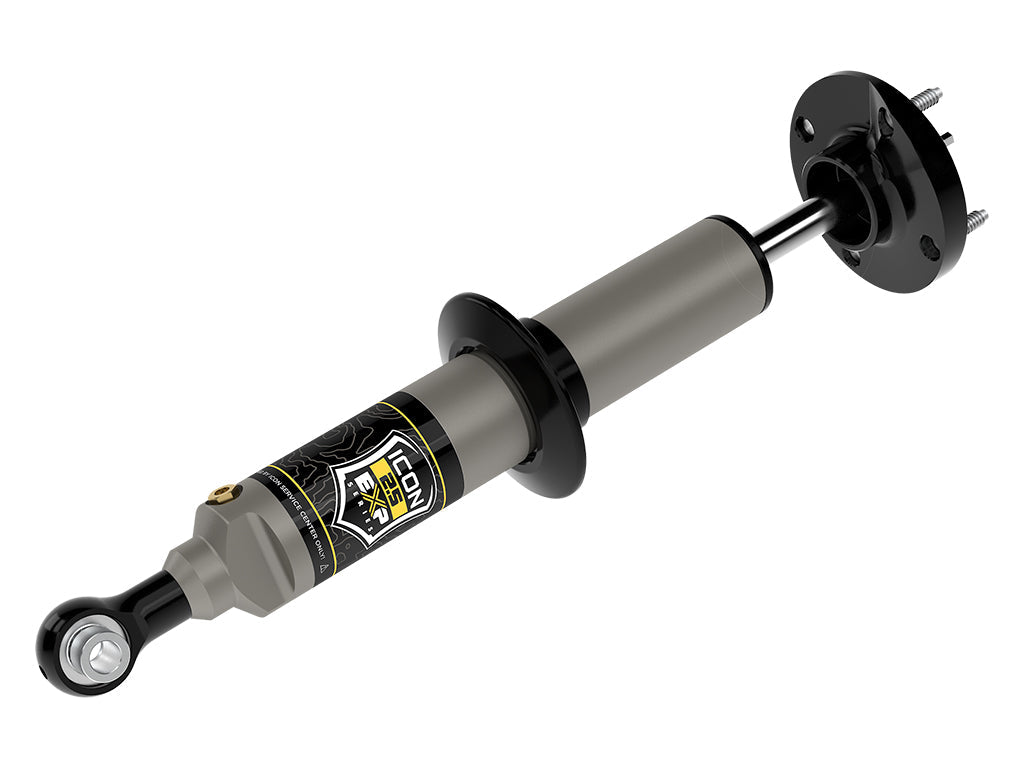

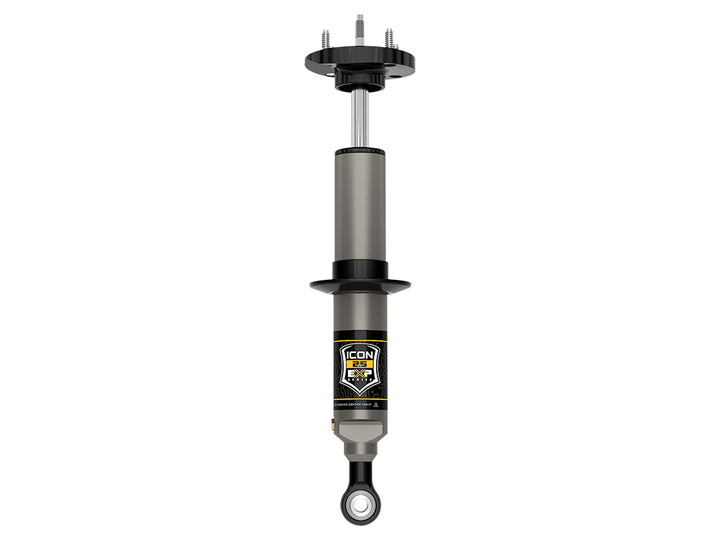

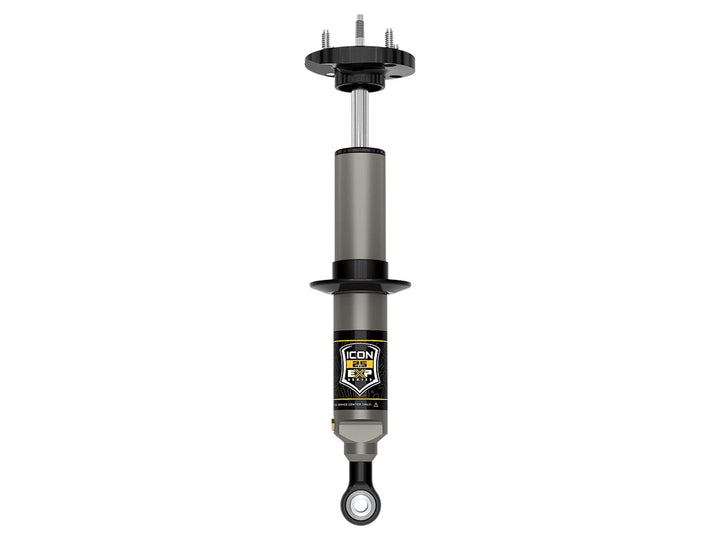

EXP Series is based on ICON’s proven 2.5-inch diameter Aluminum Series shock absorber, featuring a one-piece impact-extruded aluminum shock body. Hard anodizing provides a great-looking, consistent finish with superior resistance to abrasion and corrosion. The massive 7/8-inch diameter shaft is induction hardened and chrome plated. 2007-2021 Toyota Tundra EXP shocks mount in a shaft-up orientation and include the upper shock mount and spring seat.
The 6061-billet aluminum coil spring seat is CNC machined to fit the Tundra's OE coil springs. A series of snap-ring grooves machined into the shock body provide easily-selectable front-end ride height adjustment from 0" to 2.25” of lift over stock.
EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the Tundra in conjunction with their stock front coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.
Specifications:
- Front lift: 0" - 2.25"
- Position: Front
- Extended length: 24.15"
- Material: Aluminum, Steel
Installation notes:
- Recommended Aftermarket Wheel Size: 17x8.5" with 5.75” Backspace / 25mm Offset
- Up to 35x12.50" Tire with Minor Fender Trimming
- Raises Front 0" - 2.25"
Fits:
- 2018-2021 Toyota Tundra: 1794 (Front)
- 2014-2021 Toyota Tundra: 1794 Edition, SR (Front)
- 2007-2013, 2020-2021 Toyota Tundra: Base (Front)
- 2007-2021 Toyota Tundra: Limited, SR5 (Front)
- 2021 Toyota Tundra: Nightshade, Trail, TRD Off-Road Premium, TRD Sport Premium (Front)
- 2010, 2013-2021 Toyota Tundra: Platinum (Front)
- 2020-2021 Toyota Tundra: TRD Off-Road (Front)
- 2020 Toyota Tundra: TRD Sport (Front)
Part #: 58655
