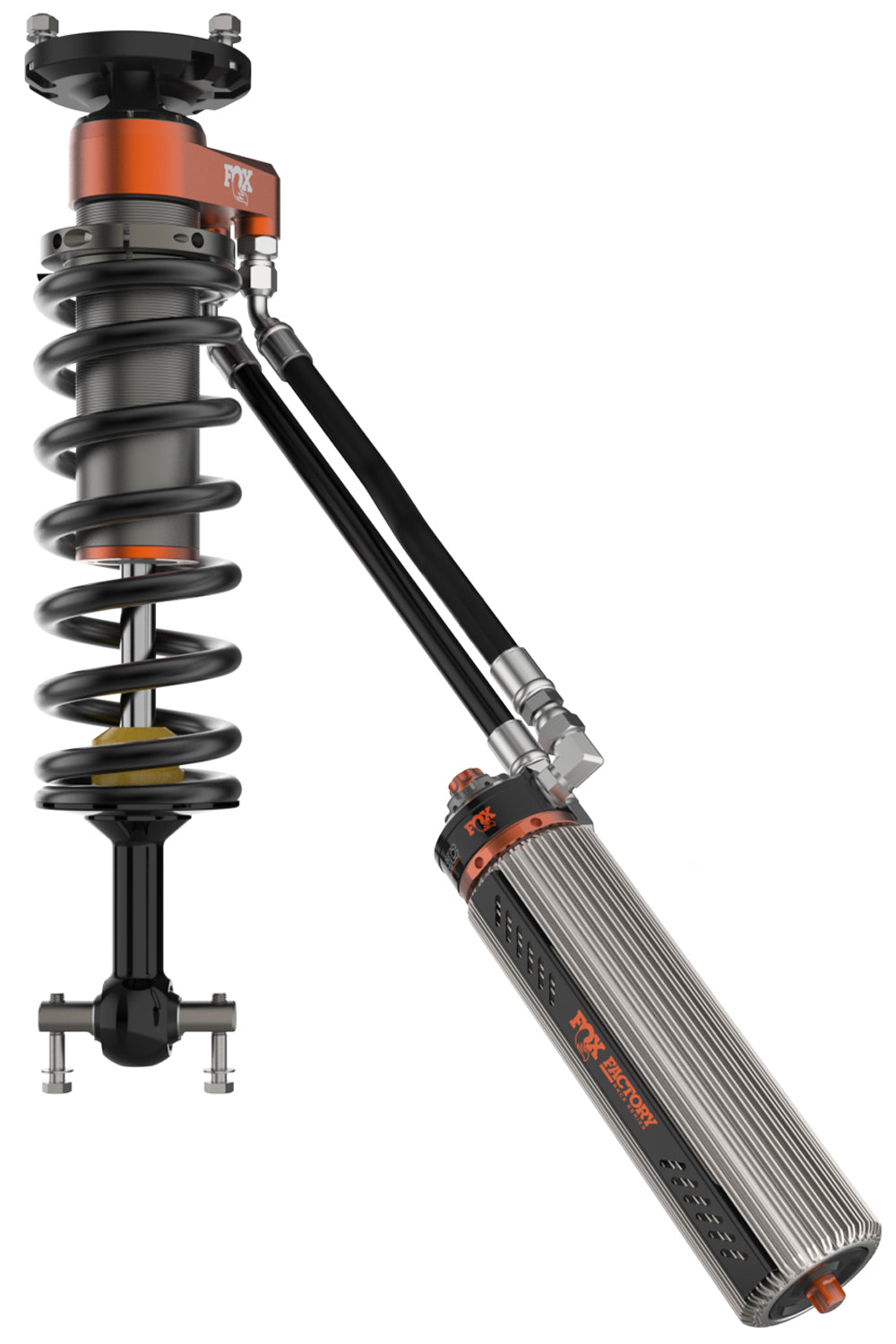

Fox Factory 2019+ GM 1500 Front Coilover Internal Bypass 3.0 Series Recirc Remote Reservoir Dual Speed Compression Non-Tb/Non-At4 3 Inch Lift Tb/At4 1 Inch Lift Kit

Developed from our off-road race shocks, FOX Factory Race Series combines race-proven technology with new, cutting-edge features to provide enhanced ride-quality and winning damping performance you can bolt onto your truck or SUV.

Features and Benefits:

• Finned External Reservoir System Dissipates Heat Fast
• Quick Switch Compression And Rebound Adjusters
• Black Anodized CNC Machined Aluminum Components

Details:

• Lift Height: 3 Inch Lift
• Diameter: 3.0 Inch
• Location: Front
• Series: Factory Race
• Top: OEM
• Travel Length: 5.34 Inch
• Bottom: Bar Pin
• Extended Length: 22.74 Inch
• Collapsed Length: 17.15 Inch
• Reservoir Type: Recirculating Remote
• Shock Type: Coil-Over Internal Bypass
• Material: Aluminum
• Warranty: 1 Year
• Sold As: Kit

Uncompromised performance through FOX's patented internal bypass technology delivers the feel of near-endless suspension travel. Exclusive internal bypass technology allows oil to flow around the piston at some points of the stroke - while creating humongous pressure at other points - supporting the vehicle like no other product can.

Part #: 883-06-175
