BDS Suspension Recoil Traction Bar Kit Ford F150 2021-2026
-
Free shipping on orders over $100
-
Secure payments
- Available
Improve traction on your 2021-2024 Ford F150 4WD without limiting wheel travel with a BDS Recoil Traction Bar Mounting Kit, made with heavy wall construction and internal compression springs that can be loaded or unloaded while installed on the vehicle to control axle wrap.
Full float design for bind-free performance and can be installed with a range of lift heights.
Fabricated from 2-inch OD x 3/16-inch wall steel tubing with a threaded bung welded in toward the axle and a CNC-machined end at the frame. Axle mount uses BDS's ultra-durable large-forged flex end and jam nut.
Using a forged housing with large 1-1/4-nch x 12 threaded shank, a single sided snap ring and 1-piece flex ball, the flex ends are capable of up to 15 degrees of misalignment in either direction.
At the frame end the bar uses a durometer specific polyurethane bushing and free floats in the traction bar utilizing a pair of dual stage internal compression springs and UHMW polyurethane bearings.
Install Time:

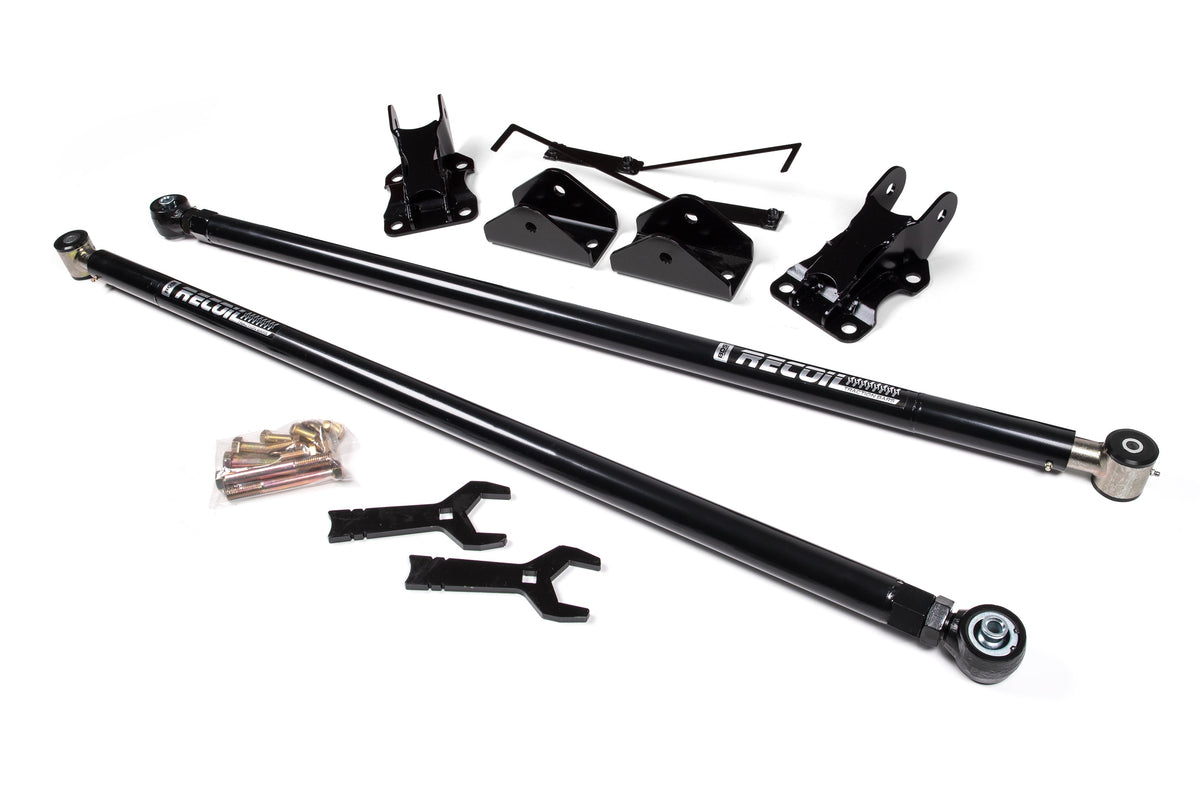

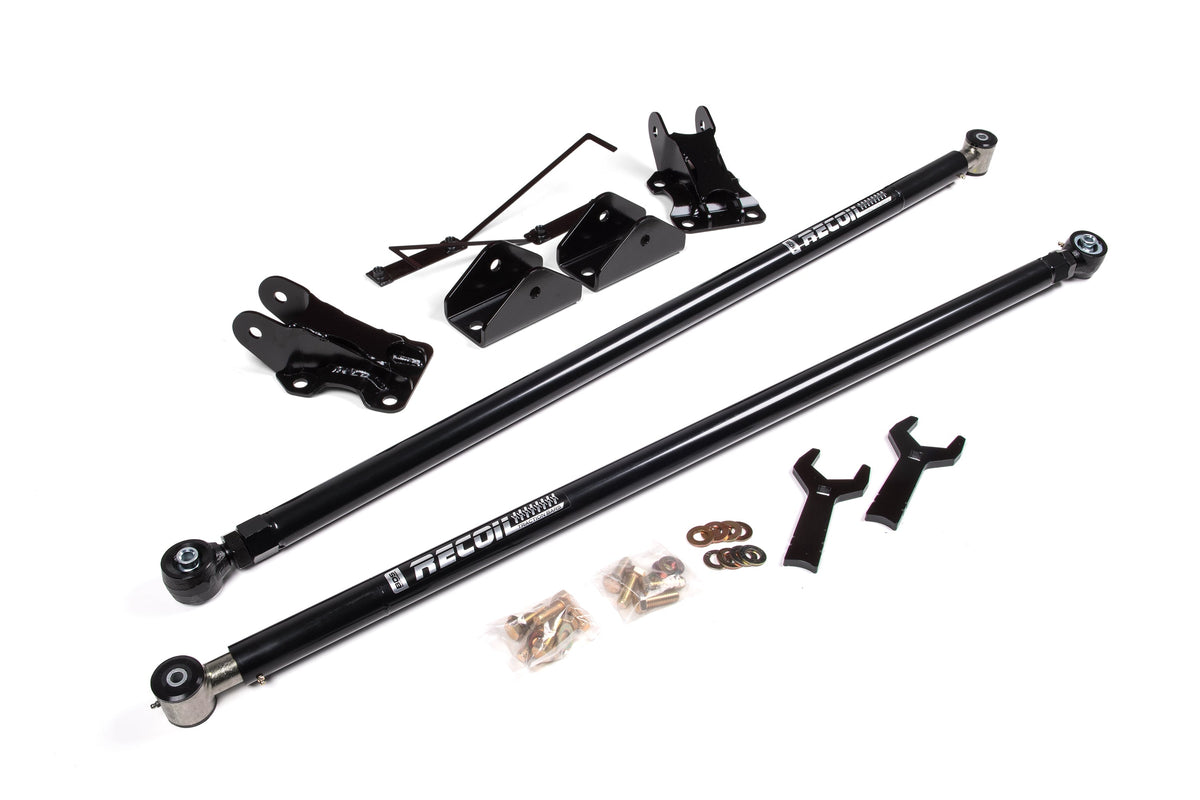

Includes one BDS123409, Recoil Traction Bar Box Kit, UPC Code 711745604230Includes one BDS123427, 2021-2024 Ford F150 Recoil Mounting Kit, UPC Code 711745604322
Features:
Specifications:
Options & Part Numbers:
| Option | Part # | What's in the Box |
|---|---|---|
| ā | BDS2307 | one BDS123409, Recoil Traction Bar Box Kit one BDS123427, 2021-2024 Ford F150 Recoil Mounting Kit |
Fits:
Part #: BDS2307
