BDS Suspension 9 Inch (Gas) 8 Inch (Diesel) Lift Kit w/ 4-Link Ford F250/F350 Super Duty 2020-2022 4WD

Take your Ford F250 and F350 Super Duty gas truck to the next level with this 9-inch 4-Link lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 40" tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, 4-Link control arm conversion, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, bump stop extensions, stainless steel braided brake lines, NX2 steering stabilizer, and custom-tuned nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes full replacement Glideride leaf springs to provide full lift height and increased capacity with a built in overload spring, u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

4-Link ConversionConvert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil SpringsA pair of full-length, gas-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

T-Case IndexingAt this height, driveline adjustments are necessary to allow the use of the factory driveshafts so a precision-built transfer-case indexing ring featuring ARP-studs can clock the transfer case and improve the front driveline operating angle. Additionally, a high clearance transmission crossmember supplied to allow sufficient clearance.

Features:

• Easy, 100 percent Bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear

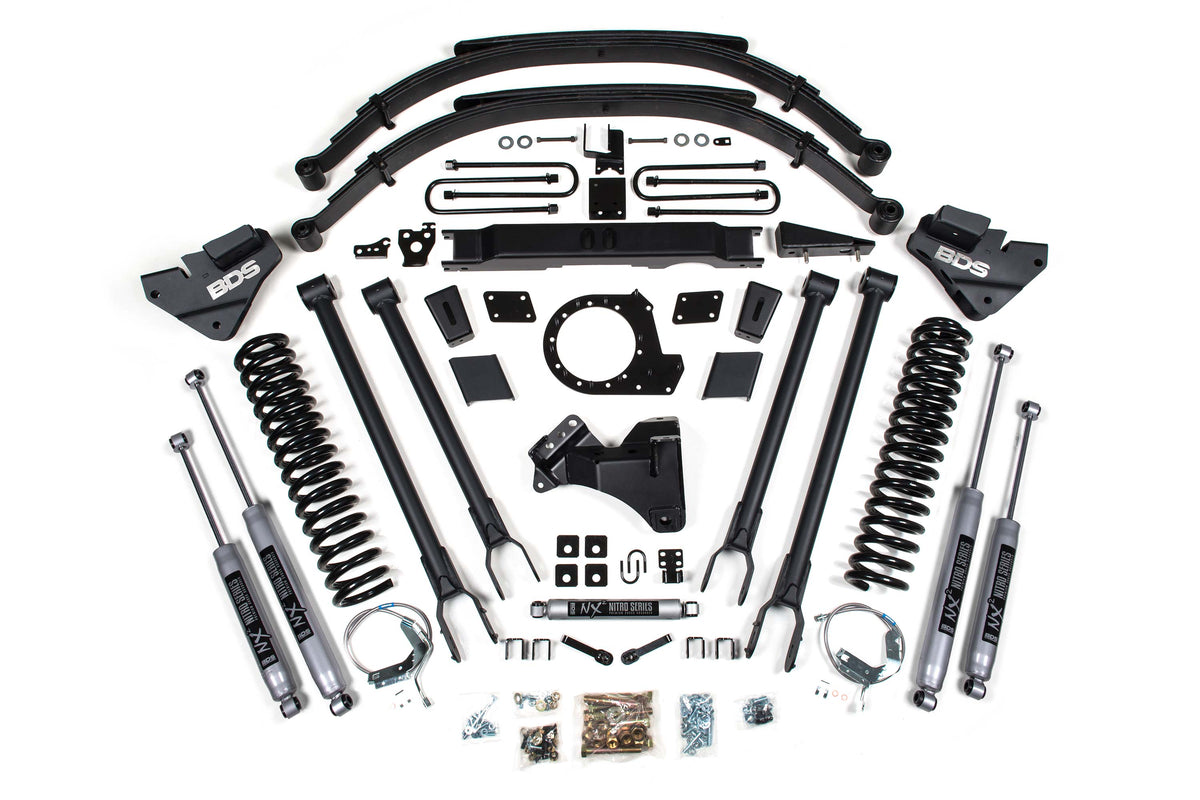

• Standard NX2 Nitro shocks with vehicle-specific valving for better control

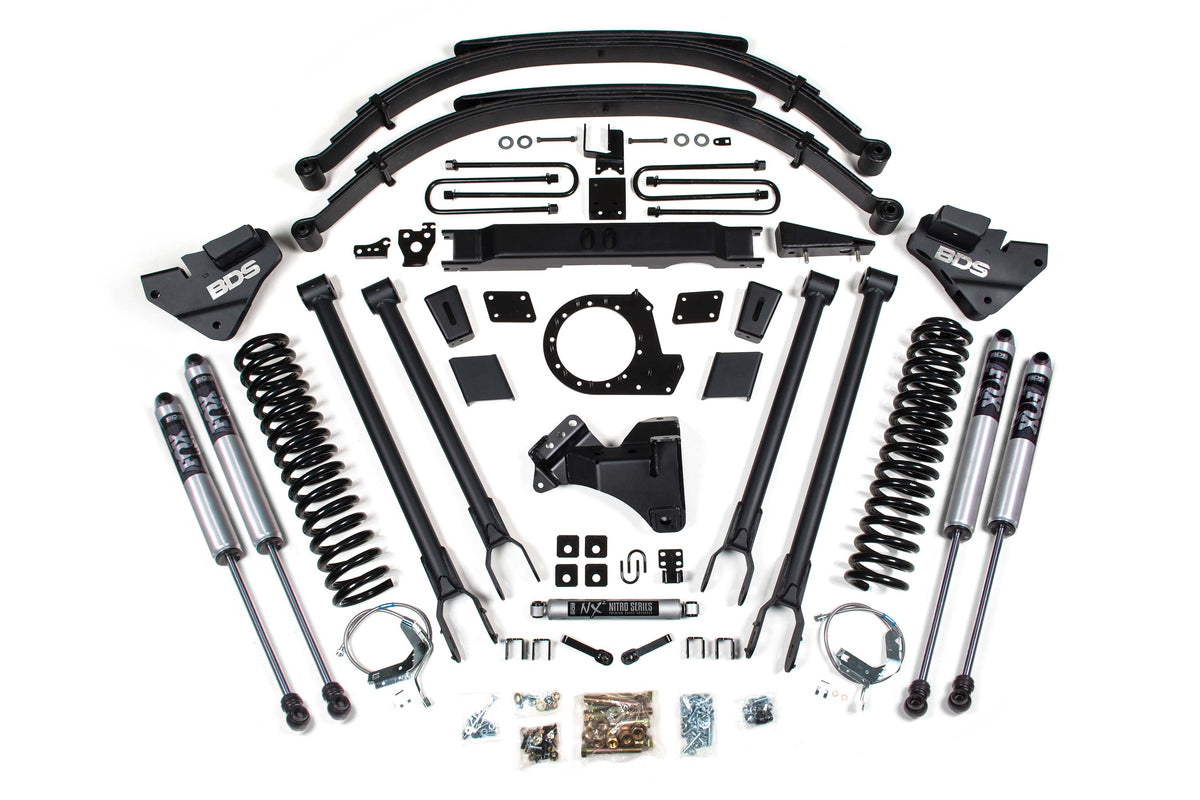

• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Fitment Notes (from BDS):

• If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
• 40 x 13.50 Tires WILL require trimming.
• Transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
• If your truck is equipped with a factory rear sway bar add: 123009
• Indexing ring has not been designed to work on manual shift transfer case models. Modification to the shift cable mount will be required.
• Gas models will require exhaust modification due to driveshaft interference.

Specifications:

• Lift Height: 9.0 Inch
• Front Lift Height: 9.0 Inch
• Rear Lift Height: 8.0 Inch
• Drive: 4WD
• Fuel Type: Gas
• Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts

Options & Part Numbers:

Fits:

• 2020-2022 Ford F-250 Super Duty
• 2020-2022 Ford F-350 Super Duty

Part #: BDS1960FS, BDS1960H
