BDS Suspension 8 Inch Lift Kit Chevy/GMC 3/4 Ton Truck/Suburban 1973-1976 4WD

Go big with your 1973-1976 Chevy and GMC 3/4 ton truck or SUV to raise the bar to new heights with this 8-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability of the K20 and K25, this kit includes everything necessary to set your truck up right with clearance for up to 38 inch Tires.

Up front the lift kit includes Glide-Ride leaf springs, 4 inch steering arm and 3 inch steering block for steering correction, brake line brackets, sway bar drop brackets and precision tuned NX2 nitrogen charged shocks. In the rear this kit utilizes a set of Glide-Ride leaf springs for the ultimate performance on and off road, new u-bolts and a matching set of NX2 Nitro shocks.

Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

Features:

• Easy, 100 percent Bolt-on installation
• Glideride leaf springs to provide full lift height and increased capacity
• New steering arm maintains proper steering angles for improved handling
• Cast steel blocks and add-a-leaf provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

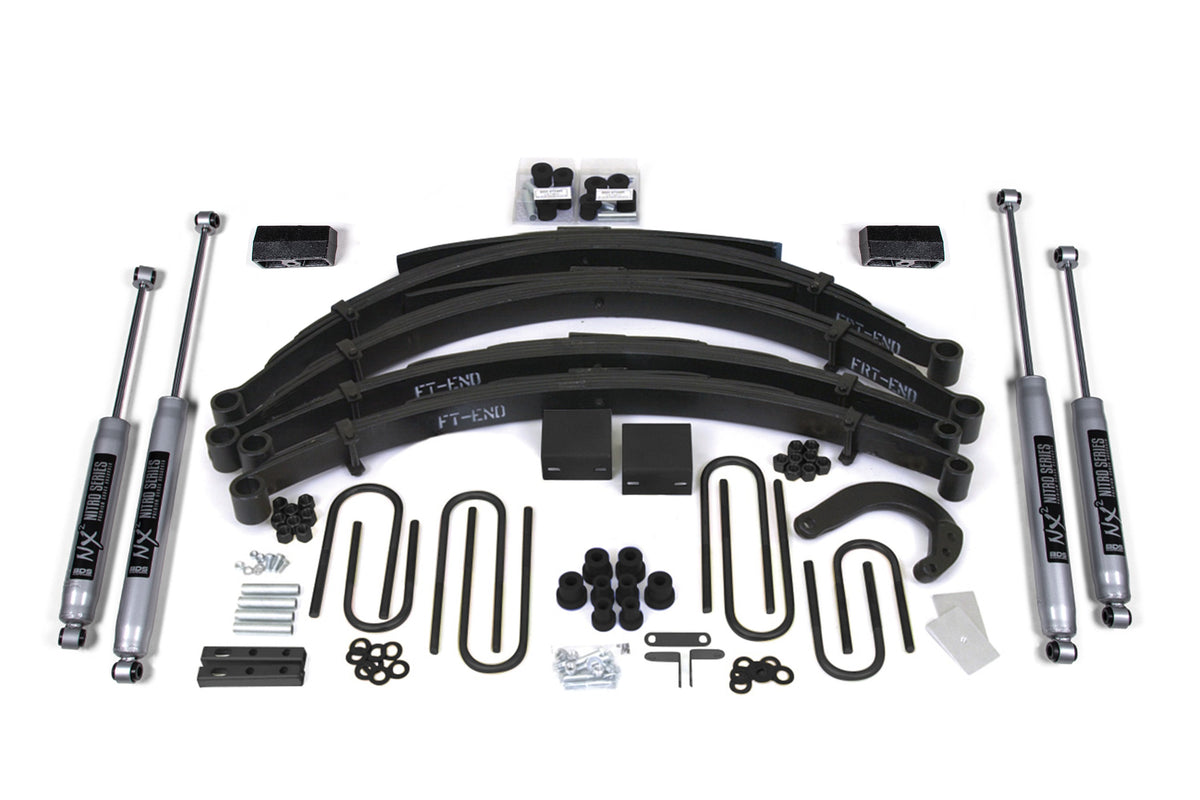

• Kit Components:
• Includes two BDS001608, GM 3/4 ton 6 Inch Rear Spring-52 eye-to-eye, UPC Code 658848611232
• Includes two BDS001801, 73-91 GM 8in Front Spring, UPC Code 658848611256
• Includes one BDS011002, 69-76 GM Front Box Kit (2.75 dia. front), UPC Code 658848611638
• Includes one BDS011208, GM 3/4 ton 2 Inch Rear Box Kit, UPC Code 658848611683
• Includes one BDS081401, 69-91 GM 4 Steering Arm, UPC Code 658848618064
• Includes one BDS082501, 3in Steering Block w/Studs& Nuts- Dana44, UPC Code 658848618187
• Includes one BDS121000, 73-87 GM Transfer Case Lowering Kit, UPC Code 658848618804
• Includes one BDS121451, Front Sway Bar Drop Kit, UPC Code 658848619061
• Includes two BDS85639, Shock- 29.70 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609440
• Includes two BDS85650, Shock- 26.20 x 15.80 x 2-3/8 - EB1/EB1, UPC Code 711745609457

Fitment Notes (from BDS):

• The 3/4 ton commonly came with a factory 56 inch eye to eye rear leaf spring. However, some were produced with a 52 inch rear spring. This kit will not work with 52 inch rear springs. If ordering rear leaf springs, be sure to measure your factory rear spring before ordering.
• Both driveshafts may need to be lengthened.
• Aftermarket extended brake lines are required for installation.
• Exhaust modification may be required to clear the front driveshaft.
• If your vehicle is equipped with a front anti-sway bar, order the anti-sway bar shackle link kit listed in the accessories.
• 001608 come with OE style rubber bushings installed.

Specifications:

• Lift Height: 8.0 Inch
• Front Lift Height: 8.0 Inch
• Rear Lift Height: 6.0 Inch
• Drive: 4WD
• Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts

Options & Part Numbers:

Fits:

• 1975-1976 Chevrolet K20
• 1973-1974 Chevrolet K20 Pickup
• 1975-1976 Chevrolet K20 Suburban
• 1975-1976 Chevrolet K5 Blazer
• 1973-1976 GMC Jimmy
• 1975-1976 GMC K25
• 1975-1976 GMC K25 Suburban
• 1973-1974 GMC K25/K2500 Pickup
• 1973-1974 GMC K25/K2500 Suburban

Part #: BDS120H
