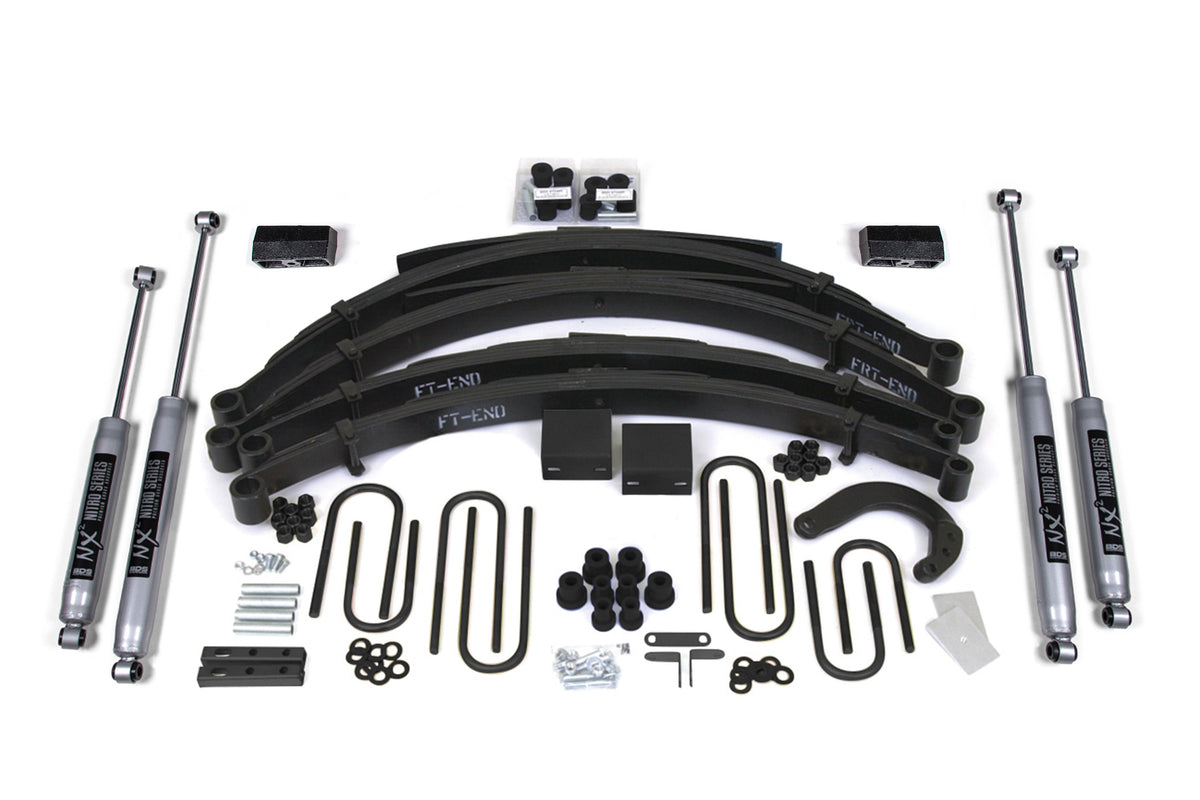

Go big with your 1988-1991 Chevy and GMC 3/4 ton Suburban to raise the bar to new heights with this 8-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 38 inch Tires.
Up front the lift kit includes Glide-Ride leaf springs, 4 inch steering arm and 3 inch steering block for steering correction, brake line brackets, sway bar drop brackets and precision tuned NX2 nitrogen charged shocks. In the rear this kit utilizes a set of Glide-Ride leaf springs for the ultimate performance on and off road, new u-bolts and a matching set of NX2 Nitro shocks.
Glide-Ride Leaf Springs
Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.
Features:
- Easy, 100 percent Bolt-on installation
- Glideride leaf springs to provide full lift height and increased capacity
- New steering arm maintains proper steering angles for improved handling
- Cast steel blocks and add-a-leaf provide level stance from front to rear
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Fitment Notes (from BDS):
- Both driveshafts may need to be lengthened.
- Aftermarket extended brake lines are required for installation.
- Exhaust modification may be required to clear the front driveshaft.
- Emergency brake cable extension kit may be required.
- #001608 come with OE style rubber bushings installed.
- The 3/4 ton commonly came with a factory 56 inch eye to eye rear leaf spring. However, some were produced with a 52 inch rear spring. This kit will not work with 52 inch rear springs. If ordering rear leaf springs, be sure to measure your factory rear spring before ordering.
- If equipped with a factory front sway bar, order the front sway bar shackle link kit listed in the accessories section.
- Some vehicle came with factory front dual shocks. If you wish to replace the factory duals, you must order the additional two auxiliary shocks in the options.
Specifications:
- Lift Height: 8.0 Inch
- Front Lift Height: 8.0 Inch
- Rear Lift Height: 8.0 Inch
- Drive: 4WD
- Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
Options & Part Numbers:
| Option |
Part # |
Shocks Included |
What's in the Box |
| ā |
BDS148H |
Yes |
two BDS001608, GM 3/4 ton 6in Rear Spring-52 eye-to-eye
two BDS001801, 73-91 GM 8in Front Spring
one BDS011003, 88-91 GM Blazer/Suburban Front Box Kit
one BDS011208, GM 3/4 ton 2 Inch Rear Box Kit
one BDS081401, 69-91 GM 4 Steering Arm
one BDS082501, 3in Steering Block w/Studs& Nuts- Dana44
one BDS121000, 73-87 GM Transfer Case Lowering Kit
one BDS121451, Front Sway Bar Drop Kit
two BDS85639, Shock- 29.70 x 17.60 x 2-3/8 - EB1/EB1
two BDS85650, Shock- 26.20 x 15.80 x 2-3/8 - EB1/EB1 |
Fits:
- 1988-1991 Chevrolet Blazer
- 1988 Chevrolet V20 Suburban
- 1989-1991 Chevrolet V2500 Suburban
- 1988-1991 GMC Jimmy
Part #: BDS148H
