BDS Suspension 6 Inch Lift Kit w/ Radius Arm Ford F250/F350 Super Duty 2011-2016 4WD Gas
-
Free shipping on orders over $100
-
Secure payments
- Available

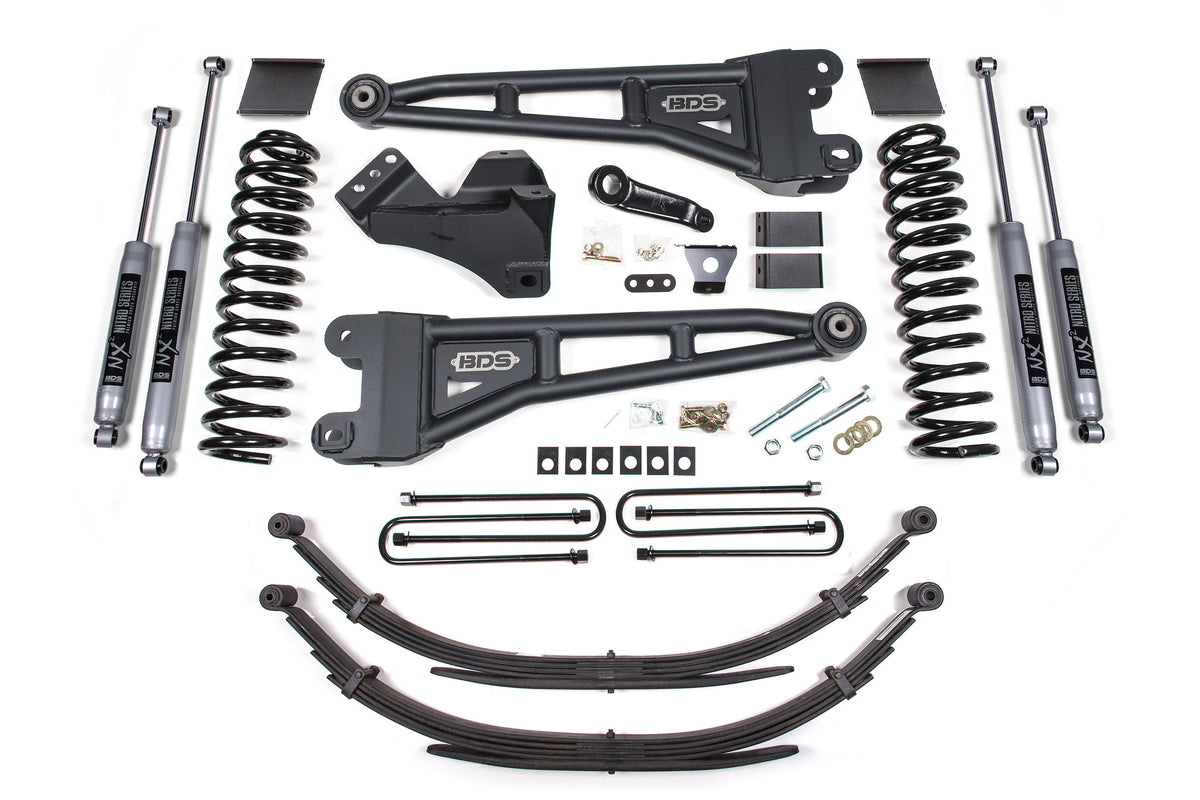

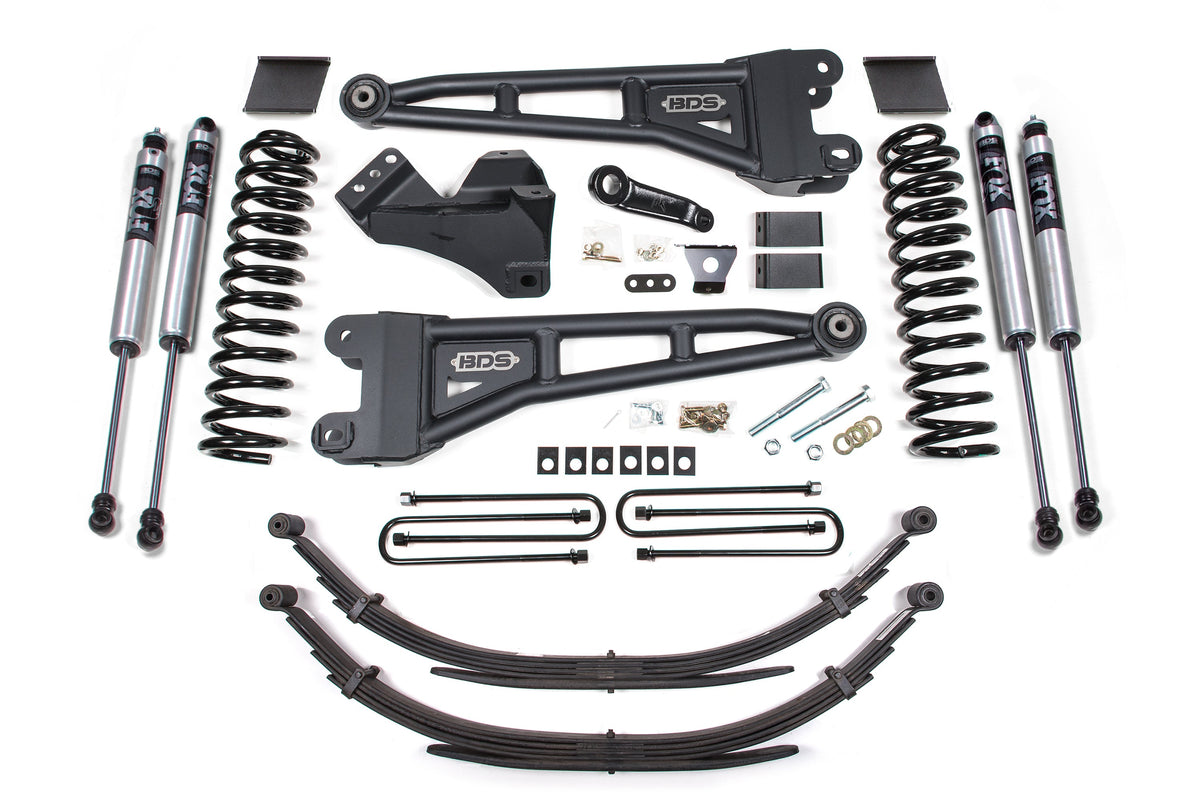

Take your 2011-2016 Ford Super Duty F250 and F350 gas truck to the next level with this 6-inch radius arm lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 Inch Tires.
Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks.
In the rear this kit utilizes a replacement GlideRide leaf springs with integrated overload leaf, u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.
Pro-Ride Coil Springs
A pair of full-length, gas-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
BDS Glide-Ride Leaf Springs
Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design where the main leaf pack is broken into two stages:
Upgrading to BDS Glide-Ride leaf springs will reduce axle wrap and provide flexibility throughout the suspension cycle.
Rear Lift Option - Factory 2 Inch Rear Blocks
This lift system retains the factory rear blocks with the addition of the new BDS leaf springs to achieve a level stance.
Shock Option NX2 Nitro Series
Fox 2.0 Performance Shocks
Features:
Fitment Notes (from BDS):
Specifications:
Options & Part Numbers:
| Option | Part # | Shocks Included | What's in the Box |
|---|---|---|---|
| Factory 2 Inch Rear Blocks / FOX 2.0 Performance Series | BDS1594FS | Yes | two BDS003629, Ford F250/350 6in Rear Spring one BDS013608, 2011-2016 Ford F250/F350 Rear Box Kit -- 2 inch Factory Block one BDS013614, 2011-2016 Ford F250/F350 6 inch Radius Arm Front Box Kit one BDS033612, 2005-2016 Ford F250/F350 6in (Gas) Coil Kit one BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair two FOX98224750, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1 two FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1 |
| Factory 2 Inch Rear Blocks / NX2 Nitro Series | BDS1594H | Yes | two BDS003629, Ford F250/350 6in Rear Spring one BDS013608, 2011-2016 Ford F250/F350 Rear Box Kit -- 2 inch Factory Block one BDS013614, 2011-2016 Ford F250/F350 6 inch Radius Arm Front Box Kit one BDS033612, 2005-2016 Ford F250/F350 6in (Gas) Coil Kit one BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair two BDS85750, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2 two BDS85760, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1 |
| Factory 3 Inch Rear Blocks / FOX 2.0 Performance Series | BDS1595FS | Yes | two BDS003629, Ford F250/350 6in Rear Spring one BDS013609, 2011-2016 Ford F250/F350 Rear Box Kit -- 3-1/2 inch Factory Block one BDS013614, 2011-2016 Ford F250/F350 6 inch Radius Arm Front Box Kit one BDS033612, 2005-2016 Ford F250/F350 6in (Gas) Coil Kit one BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair two FOX98224750, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1 two FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1 |
| Factory 3 Inch Rear Blocks / NX2 Nitro Series | BDS1595H | Yes | two BDS003629, Ford F250/350 6in Rear Spring one BDS013609, 2011-2016 Ford F250/F350 Rear Box Kit -- 3-1/2 inch Factory Block one BDS013614, 2011-2016 Ford F250/F350 6 inch Radius Arm Front Box Kit one BDS033612, 2005-2016 Ford F250/F350 6in (Gas) Coil Kit one BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair two BDS85750, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2 two BDS85760, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1 |
Fits:
Part #: BDS1594FS, BDS1594H, BDS1595FS, BDS1595H
