Built to outperform, take your Ford 1980-1983 F100 and 1980-1996 F150 4WD truck to the next level with a 6-inch suspension lift kit with extended radius arms by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.
Up front the lift kit includes Pro-Ride coil springs, axle pivot relocation brackets, extended radius arms, radius arm drop mounts, forged pitman arm for steering correction and precision tuned NX2 nitrogen charged shocks.
In the rear the base kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.
Pro-Ride Coil Springs
A pair of full-length, vehicle-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
Extended Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. The extended radius arm system will reduce caster change through wheel travel creating a more capable and controlled feeling in the steering wheel both on and off road.
Rear Lift Option 4 Inch Block Kit
Features:
- Easy, Bolt-on installation
- Pro-Ride dual rate coil springs ride smooth through any terrain
- Heavy duty steel drop brackets for proper suspension geometry
- Cast steel blocks provide level stance from front to rear
- NX2 Nitro shocks with vehicle-specific valving for better control
- Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.
- Blocks made of steel for high strength.
- Designed to provide correct pinion angles.
- Eliminates any need for a lift block.
- Reduces axle wrap and creates a more controlled and stable feel.
- Multi-leaf progressive design for a smooth ride.
- Maintains factory payload weight ratings.
Fitment Notes (from BDS):
- Front end alignment required. Alignment cams may be required.
- 123401 recommended if equipped with a front anti-sway bar. Ford produced 3 different styles of sway bar systems between 1980 and 1996. In extremely rare cases, modification may be required.
- Extended lines required for all 4-6 inch lifts.
- Does not fit F150 models without power steering.
Specifications:
- Lift Height: 6.0 Inch
- Front Lift Height: 6.0 Inch
- Drive: 4WD
- Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
Options & Part Numbers:
| Option |
Part # |
Shocks Included |
What's in the Box |

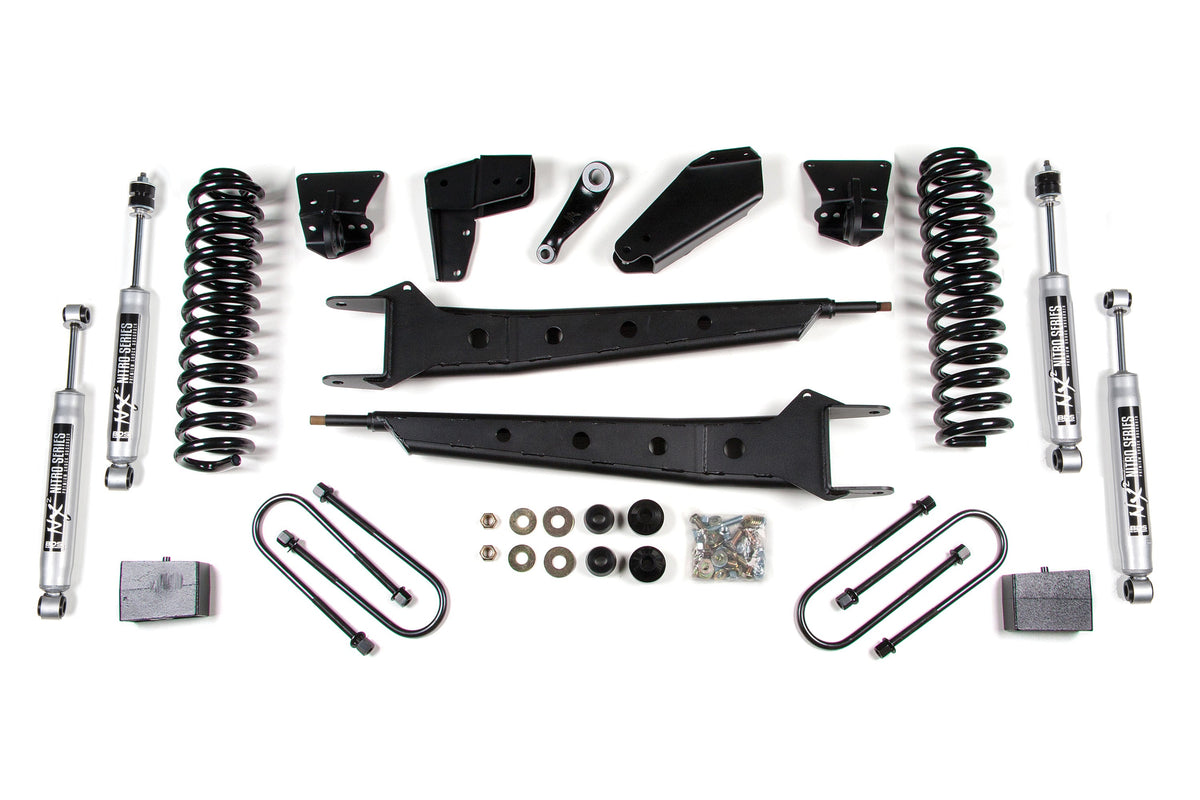

| 4 Inch Block Kit |
BDS508H |
Yes |
one BDS013003, 80-96 Ford F150 Ext Radius Arm Front Box
one BDS033601, 80-96 Ford F150/Bronco 6in Coil Kit
one BDS063409, Ford F150 4in Block & U-bolt Kit
two BDS85660, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1
two BDS85820, Shock- 22.90 x 13.90 x 2-3/8 - S1/EB1 |
| 4 Inch Block Kit with Add-A-Leaf |
BDS510H |
Yes |
one BDS013003, 80-96 Ford F150 Ext Radius Arm Front Box
one BDS033601, 80-96 Ford F150/Bronco 6in Coil Kit
one BDS063209, Ford F150 2 Inch Block & U-bolt Kit
one BDS113209, Ford 3in wide Rear Dual Add-a-leaf
two BDS85660, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1
two BDS85820, Shock- 22.90 x 13.90 x 2-3/8 - S1/EB1 |
| 6 Inch Leaf Springs |
BDS512H |
Yes |
two BDS003608, 73-96 Ford F150 6in Rear Spring
one BDS013003, 80-96 Ford F150 Ext Radius Arm Front Box
one BDS033601, 80-96 Ford F150/Bronco 6in Coil Kit
two BDS85660, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1
two BDS85820, Shock- 22.90 x 13.90 x 2-3/8 - S1/EB1
four UBT4051, 9/16 x 3-1/4 x 10 Round U-bolt |
Fits:
- 1980-1983 Ford F-100
- 1980-1996 Ford F-150
Part #: BDS508H, BDS510H, BDS512H
