BDS Suspension 6 Inch Lift Kit FOX Performance Elite Coilover Chevy Silverado or GMC Sierra 1500 2007-2013 4WD

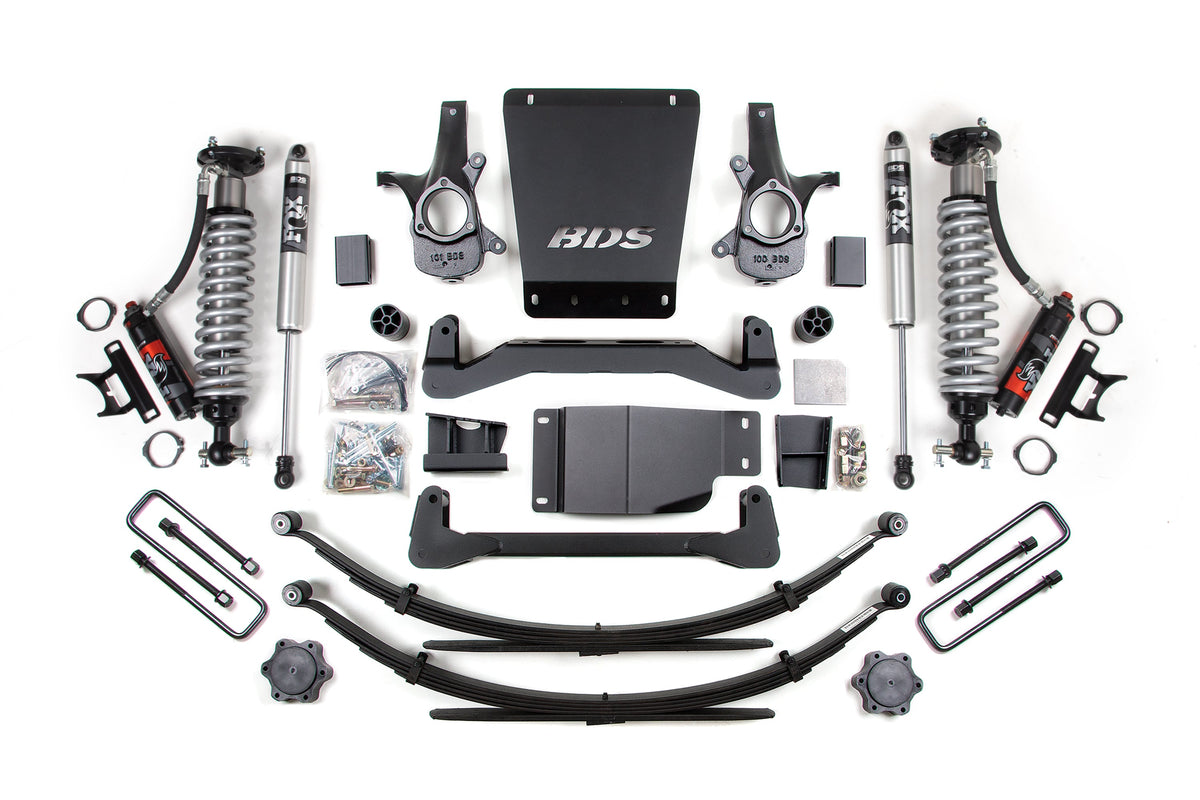

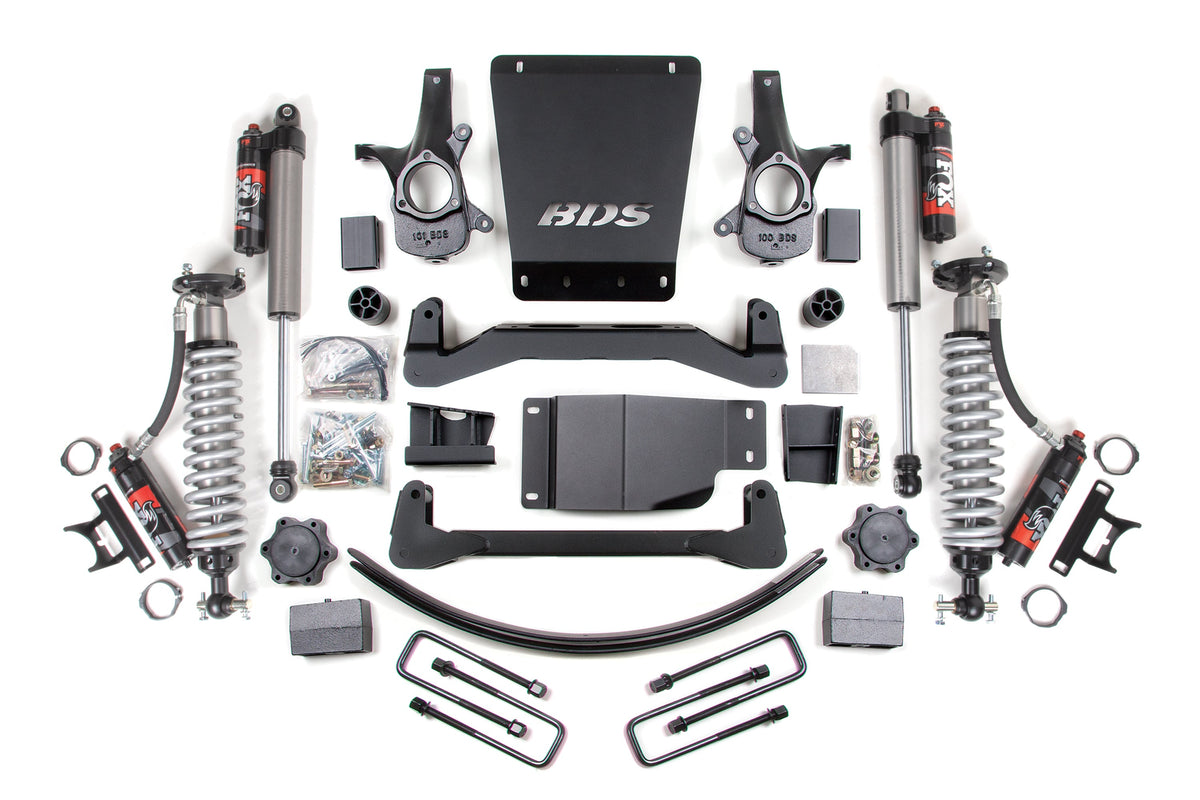

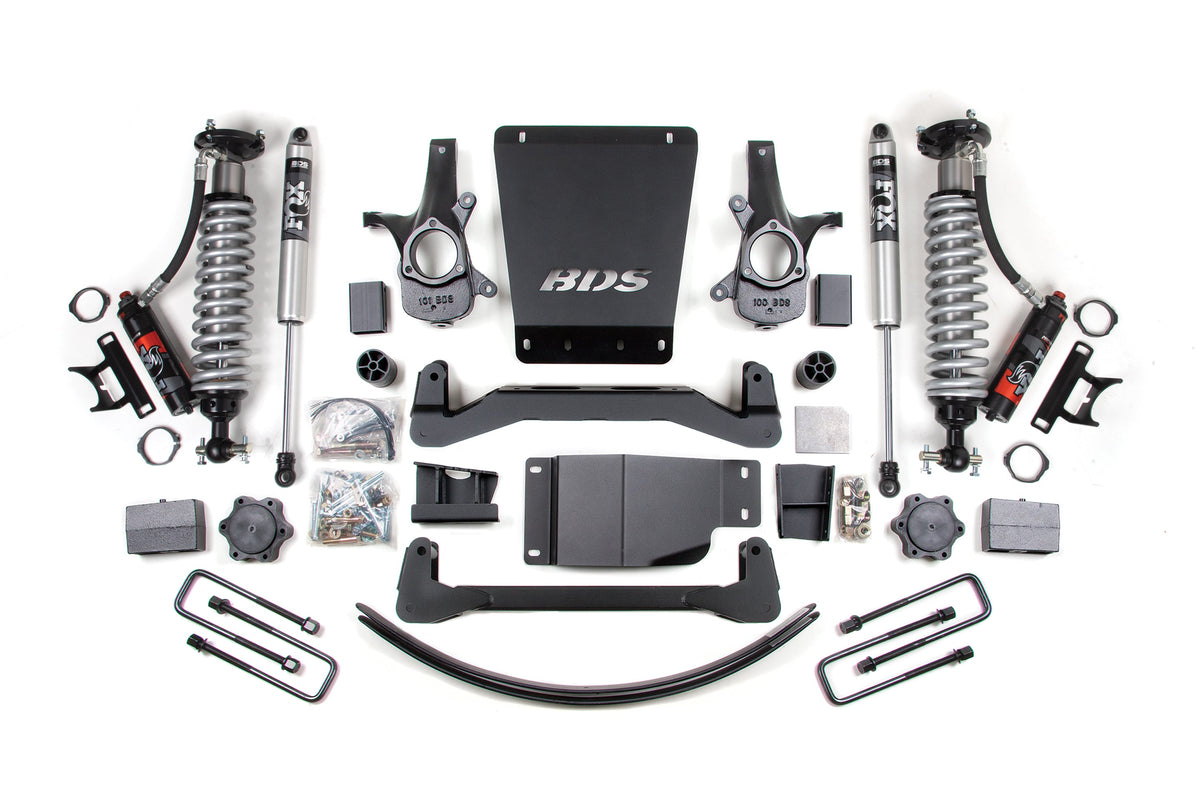

Take your 2007-2013 Chevy Silverado and GMC Sierra 1500 to new heights with a BDS 6-inch lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.

Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers both replacement lift block and full Glide-Ride leaf spring options to lift and level that stance.

The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.High Clearance CrossmembersBDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.Heavy Duty Steering KnucklesBDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.Features and Benefits

(Trimming may be required)

33 x 12.5 with 17 x 9 and 4.5 in. Backspace35 x 12.5 with 18 x 9 and 5 in. Backspace35 x 12.5 with 20 x 9 and 5.75 in. BackspaceRear Lift OptionBlock and Add-A-Leaf Kit

Rear Shock Option

FOX 2.5 Performance Elite Series

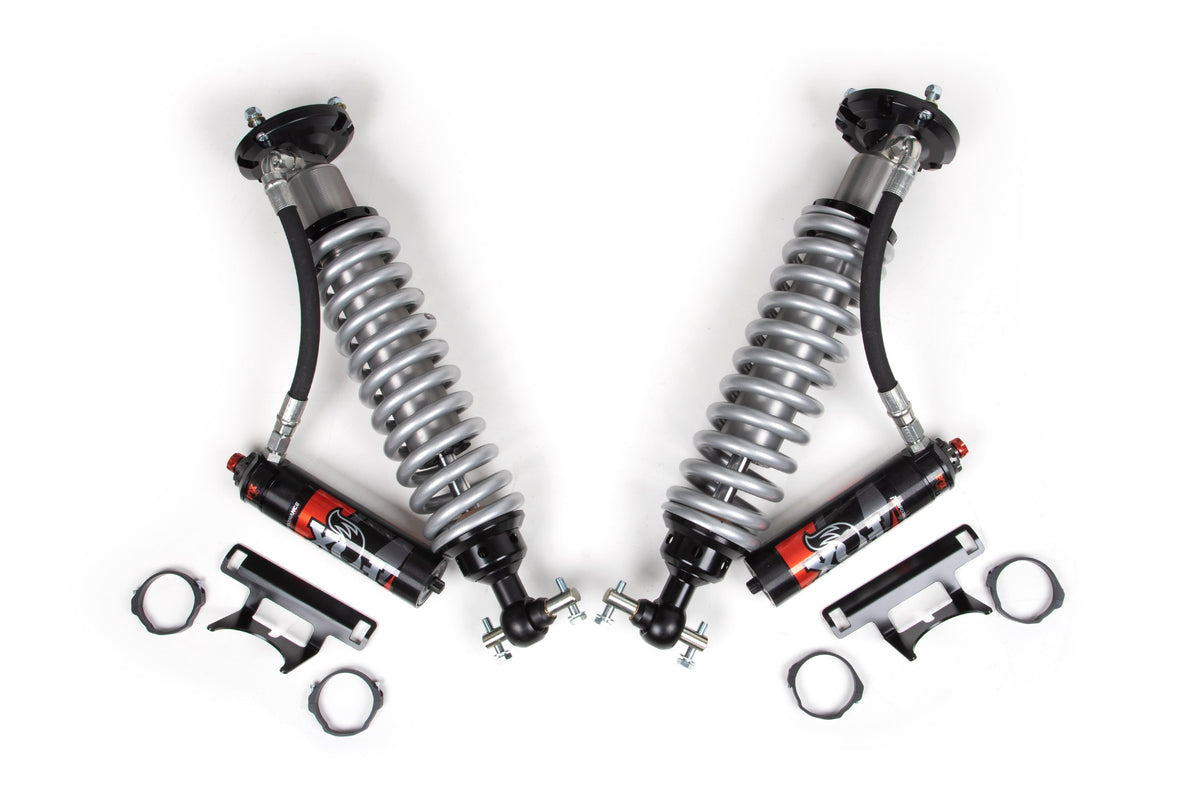

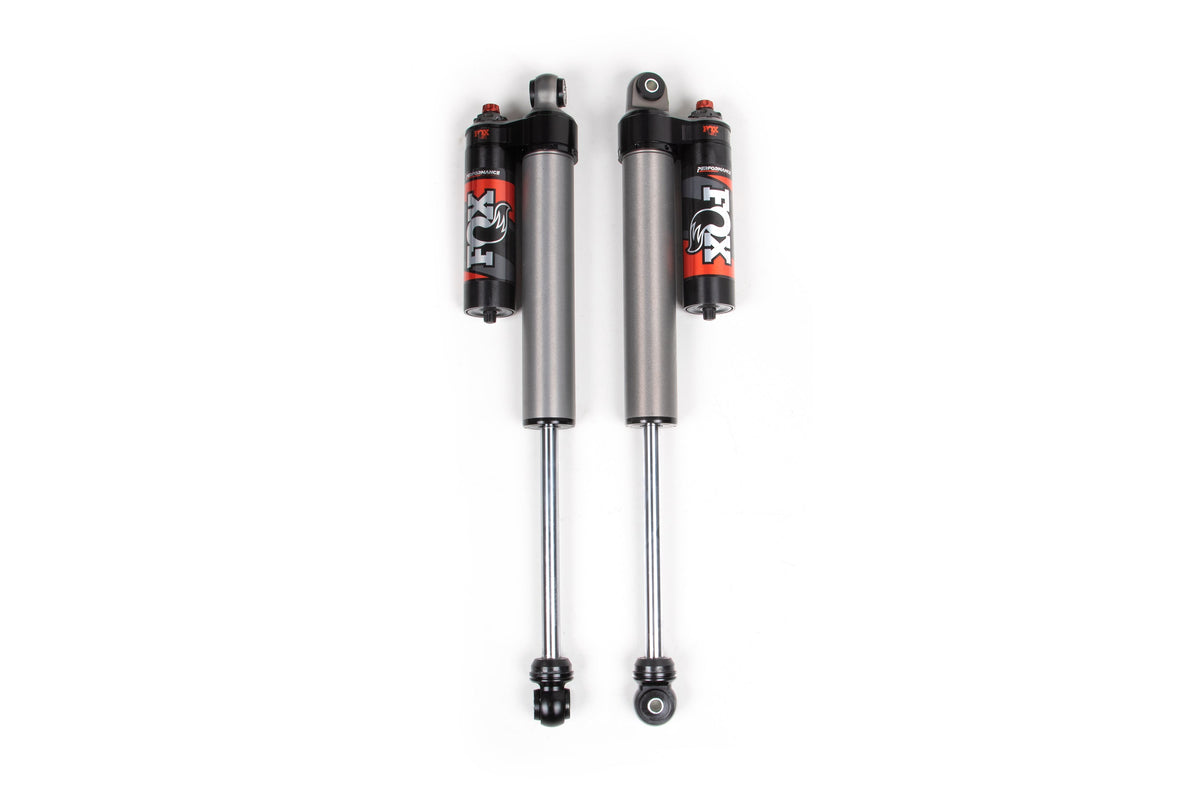

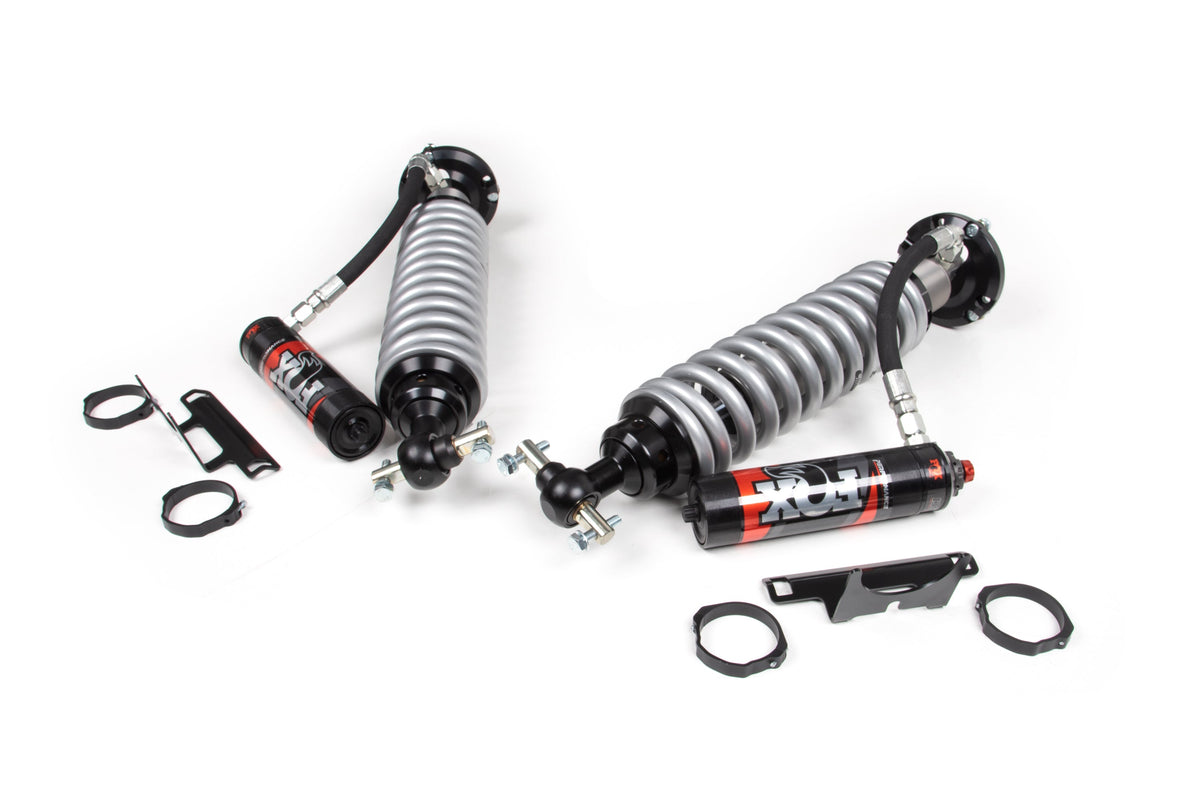

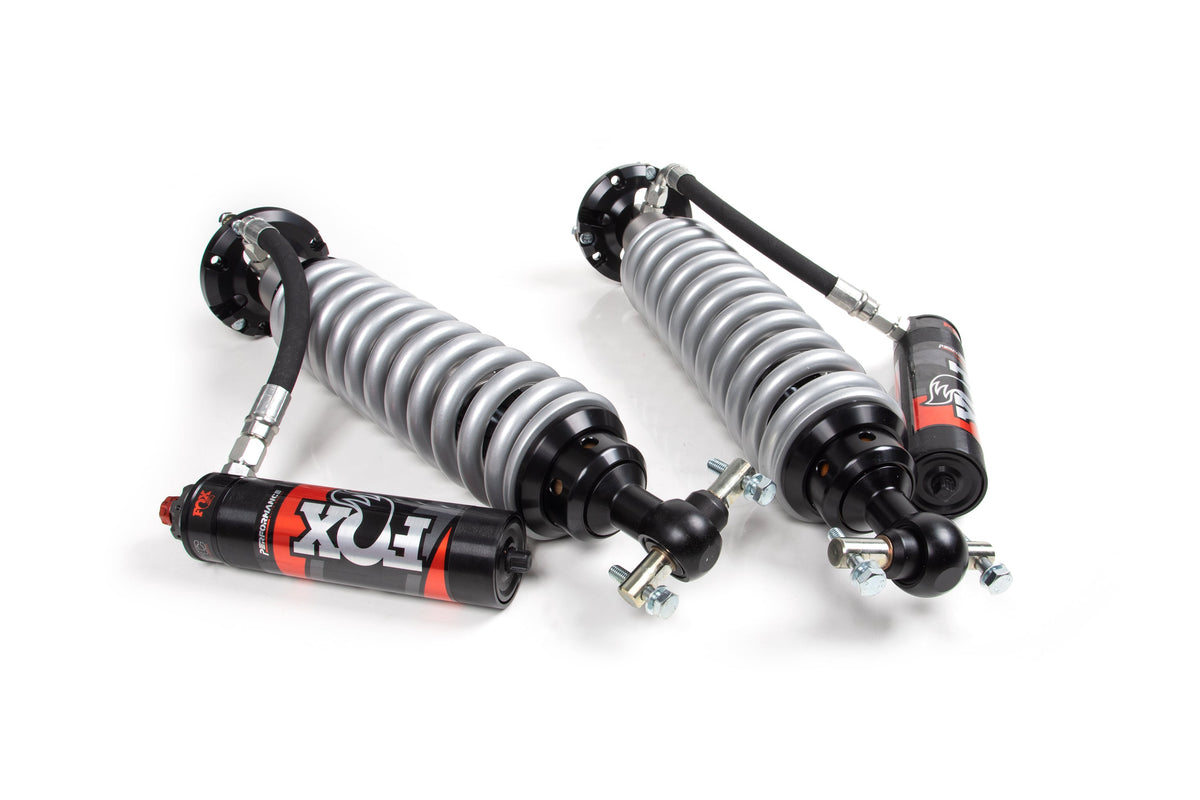

BDS011559 1 1999-2013 GM 1500 - 5.5 inch Rear Block & AAL Box KitBDS021640 1 2007-2013 GM 1500, 2007-2014 GM SUV - 4 inch-6 inch Front Box Kit (1of2)BDS021644 1 2007-2013 GM 1500, 2007-2014 GM SUV - 4 inch-6 inch Front Box Kit (2of2)BDS121613 1 2007-2013 GM 1500, 2007-2014 GM SUV - Front Skid Plate Box KitFOX88406534 1 Kit: BDS 07-18 GM 1500, Front Coil over, 2.5 Truck PES, R/R, 6 inch Lift, DSCFOX88426042 1 Kit: BDS 07-18 GM 1500, Rear, 2.5 Truck PES, P/B, 4-6 inch Lift, DSC

Features:

• Fox 2.5 Shocks designed specifically for increased travel and the abilty to soak up the roughest terrain.

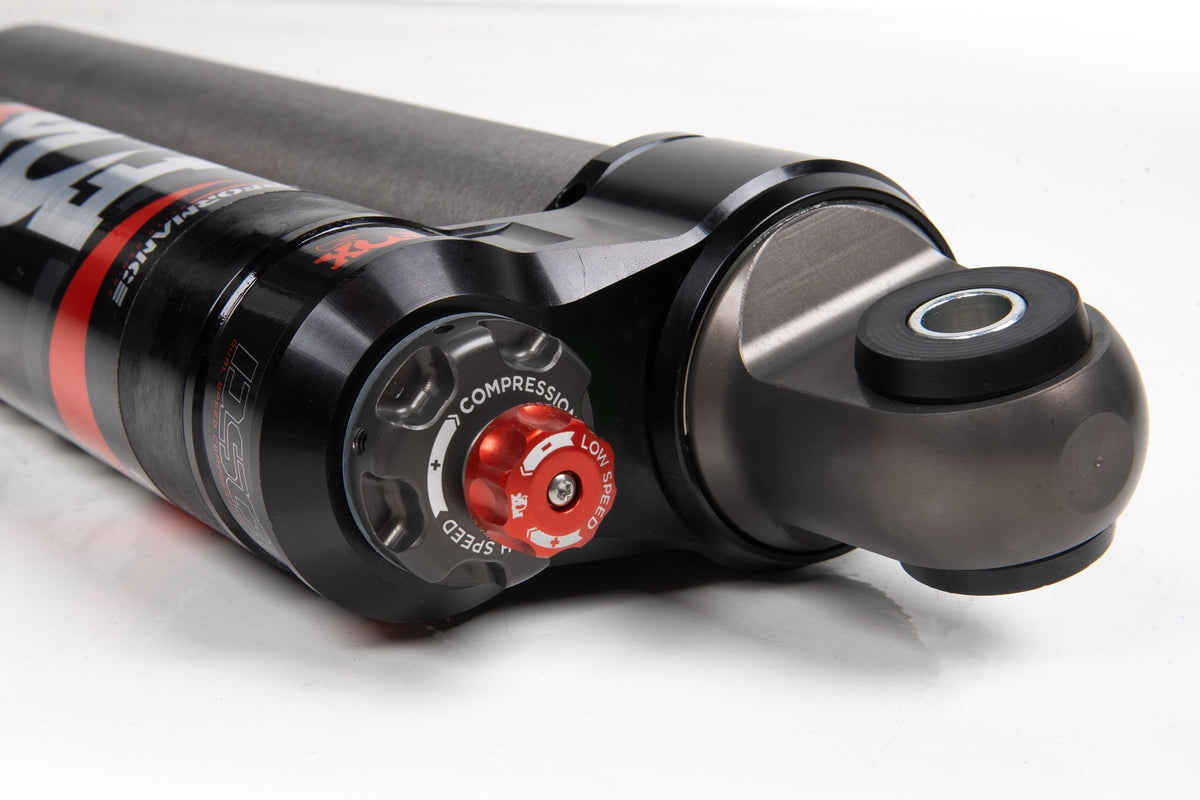

• The DSC (dual speed compression) adjuster adds remarkable versatilty and precise tuning with a simple twist of one or both knobs.
• High clearance crossmember design maximizes ground clearance Robust steering knuckles maintain ESC system compliance
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• FOX performance series IFP gas rear shocks to improved ride and offroad performance
• Factory Protection Plus drivetrain warranty included
• The 4 inch rear block replaces the factory 1-1/4 inch block
• Nets 4.5 inch of rear lift to level the vehicle.
• Made of cast iron for high strength.
• Designed to provide correct pinion angles.
• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen

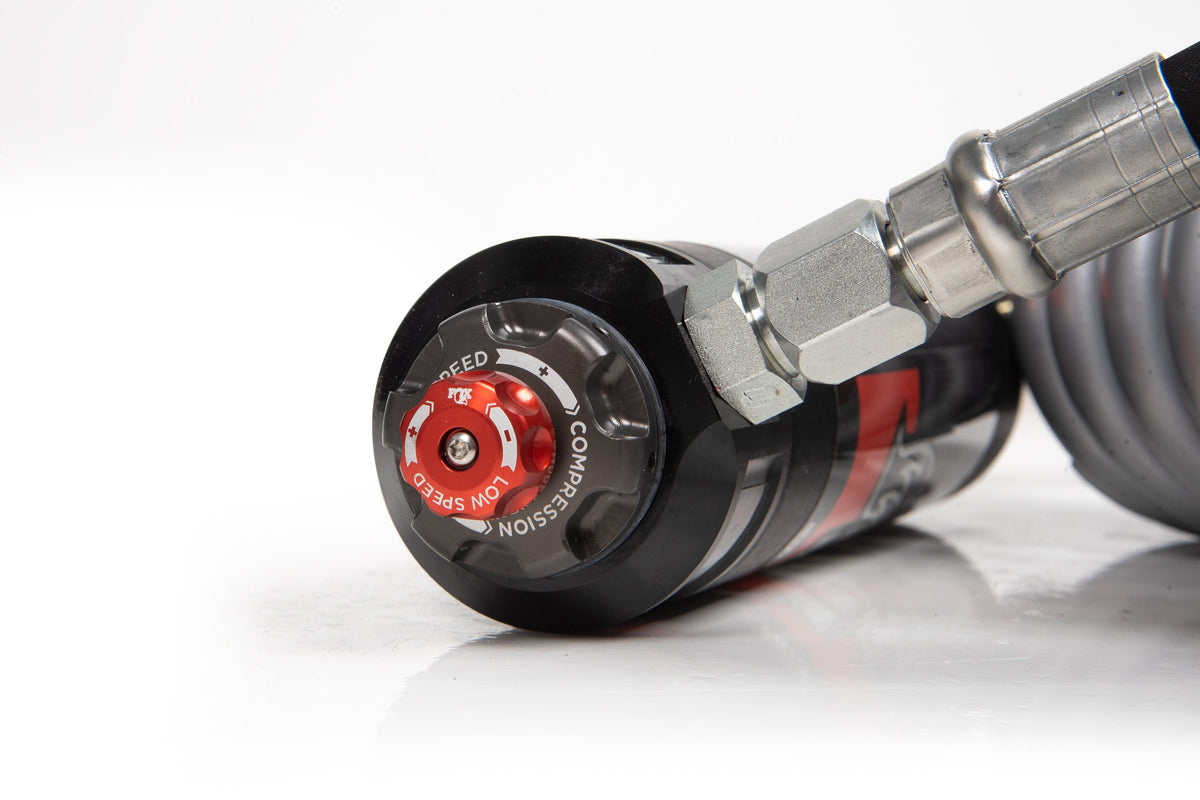

• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty
• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish
• (Trimming may be required)
• 33 x 12.5 with 17 x 9 and 4.5 in. Backspace
• 35 x 12.5 with 18 x 9 and 5 in. Backspace
• 35 x 12.5 with 20 x 9 and 5.75 in. Backspace
• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

Specifications:

• Lift Height: 6.0 Inch
• Drive: 4WD
• Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts

Options & Part Numbers:

Fits:

• 2007-2013 Chevrolet Silverado 1500
• 2007-2013 GMC Sierra 1500

Part #: BDS176PES, BDS176PSS, BDS177PES, BDS177PSS
