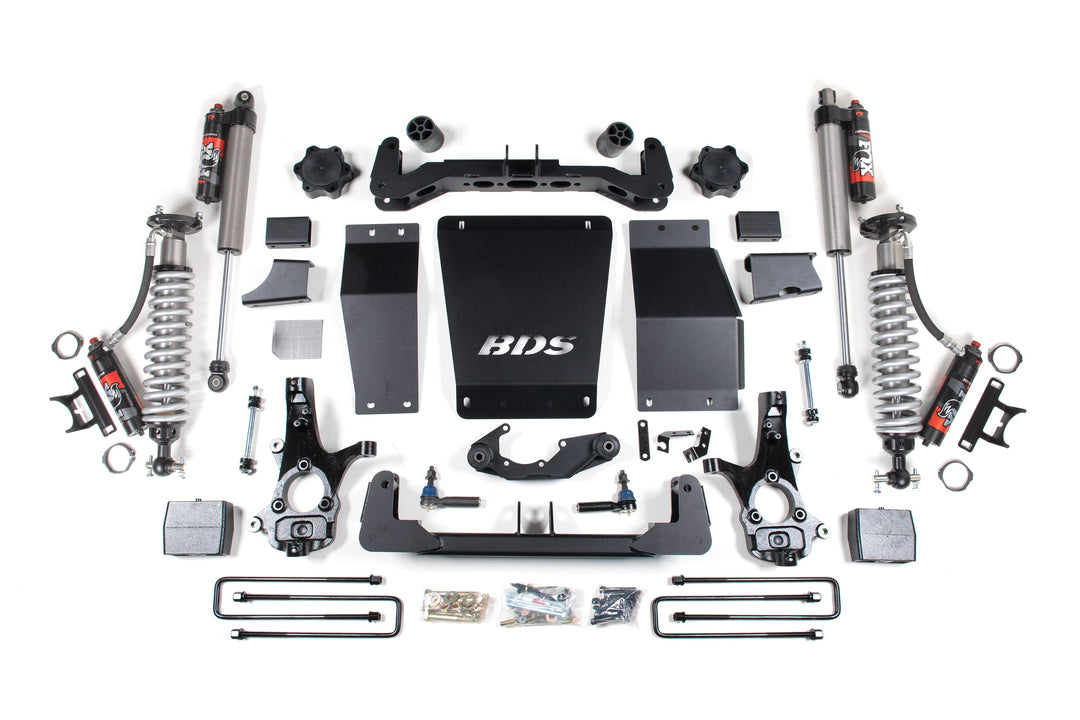

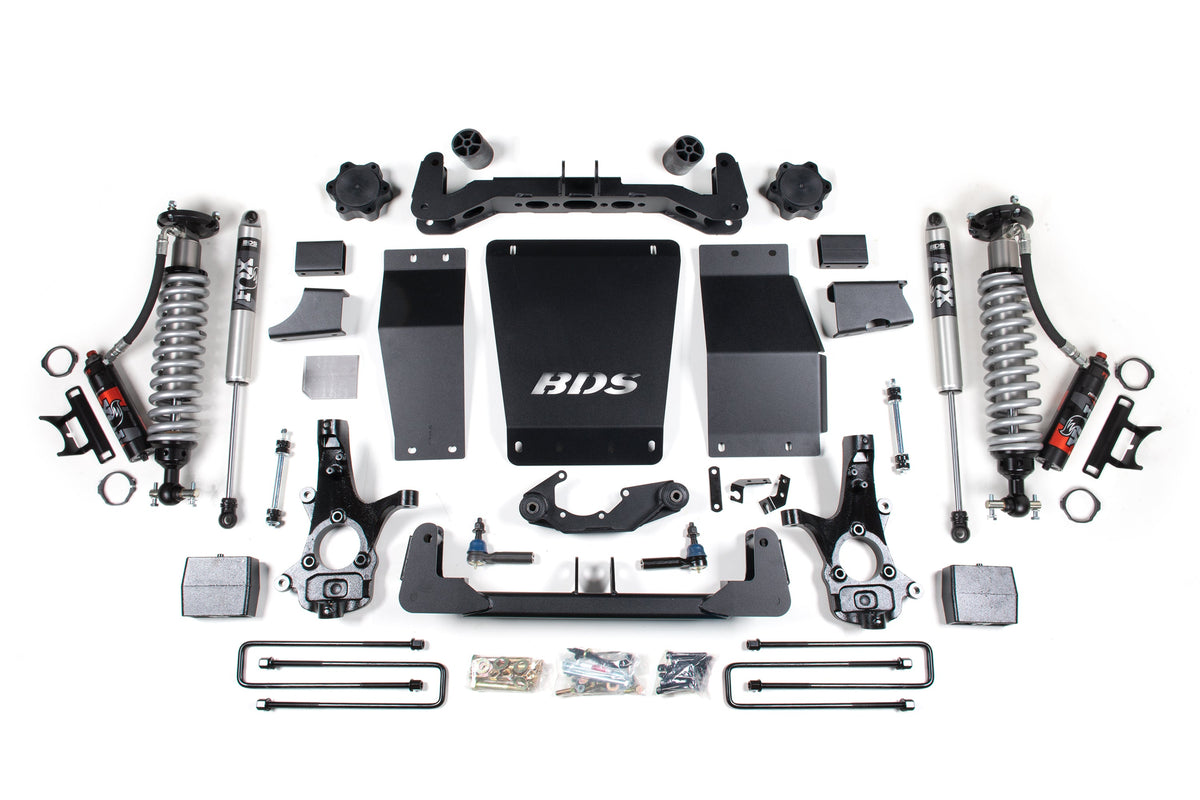

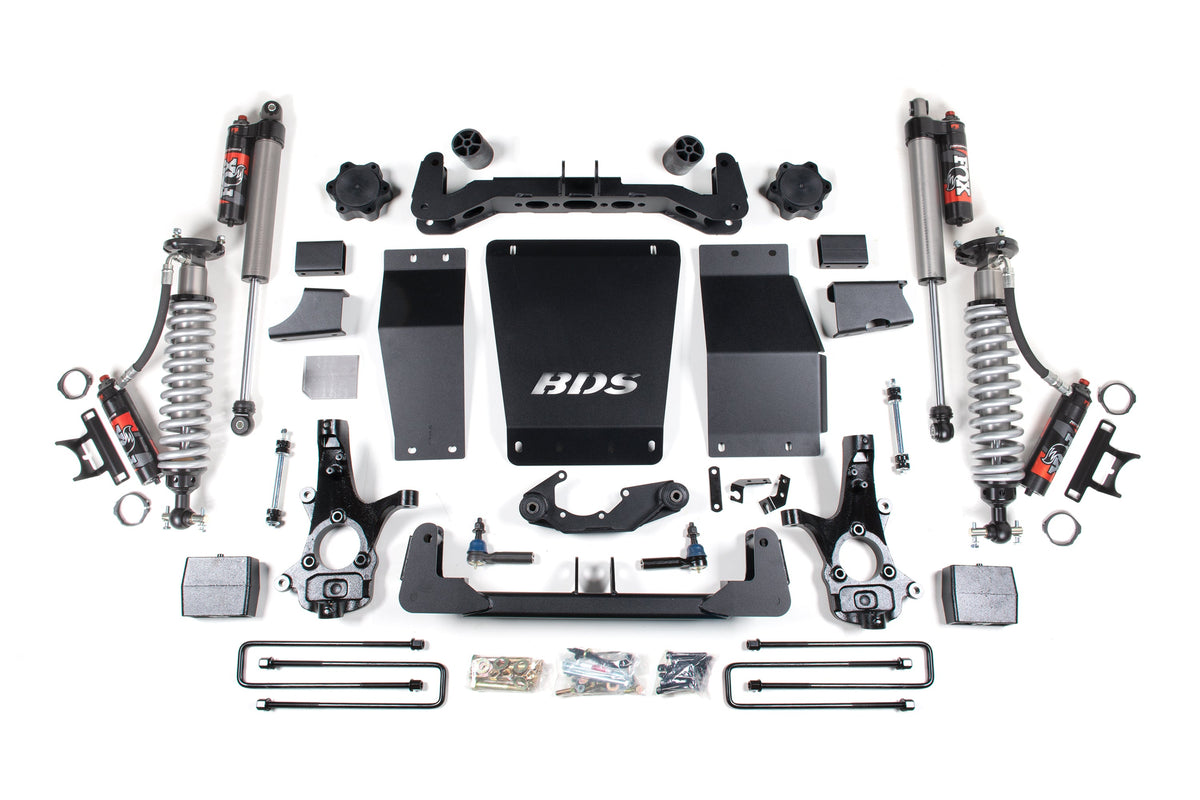

BDS Suspension 6 Inch Lift Kit FOX 2.5 Performance Elite Coilover Chevy Silverado or GMC Sierra 1500 2014-2018 4WD

The BDS 6-inch lift kit is an amazing upgrade for your 2014-2018 Chevy Silverado and GMC Sierra 1500 that will leave others in envy. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.

Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

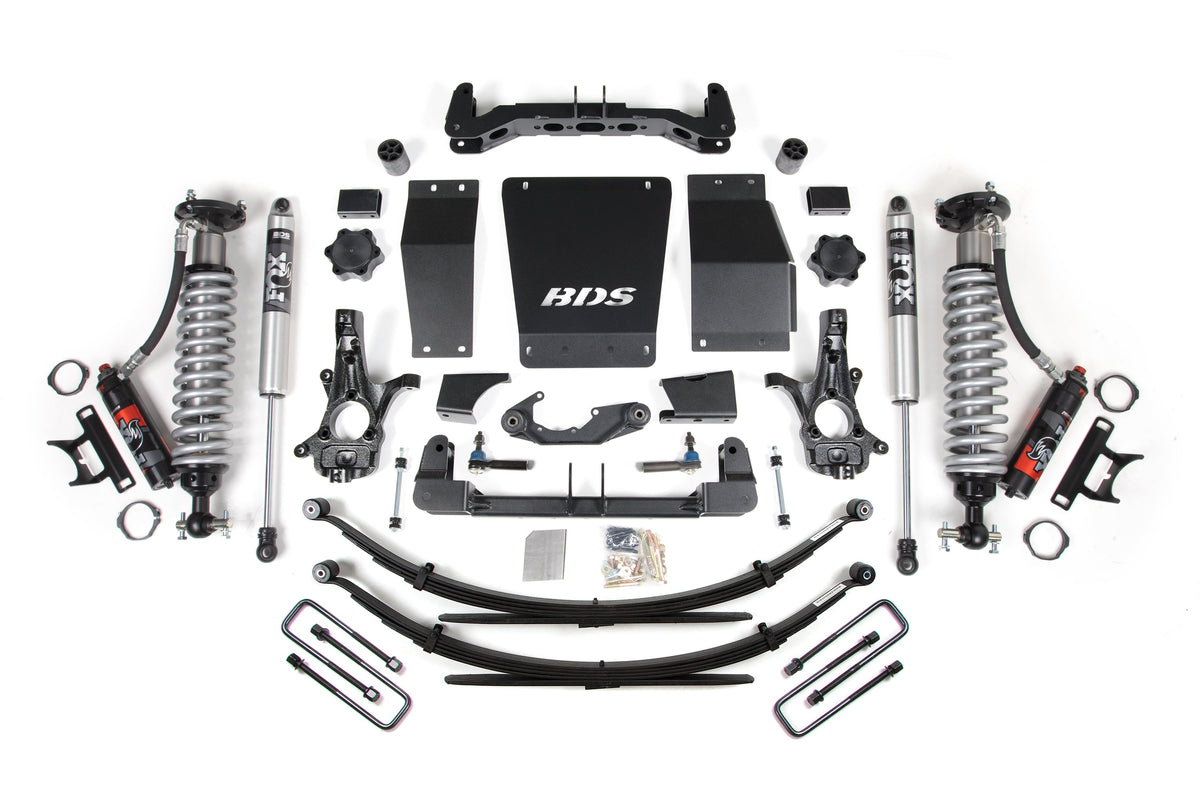

In the rear BDS offers both replacement lift block and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity.

Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.

High Clearance CrossmembersBDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.Heavy Duty Steering KnucklesBDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.Features and Benefits

Recommended Tires and Wheels

Rear Lift Option

5 Inch Block Kit

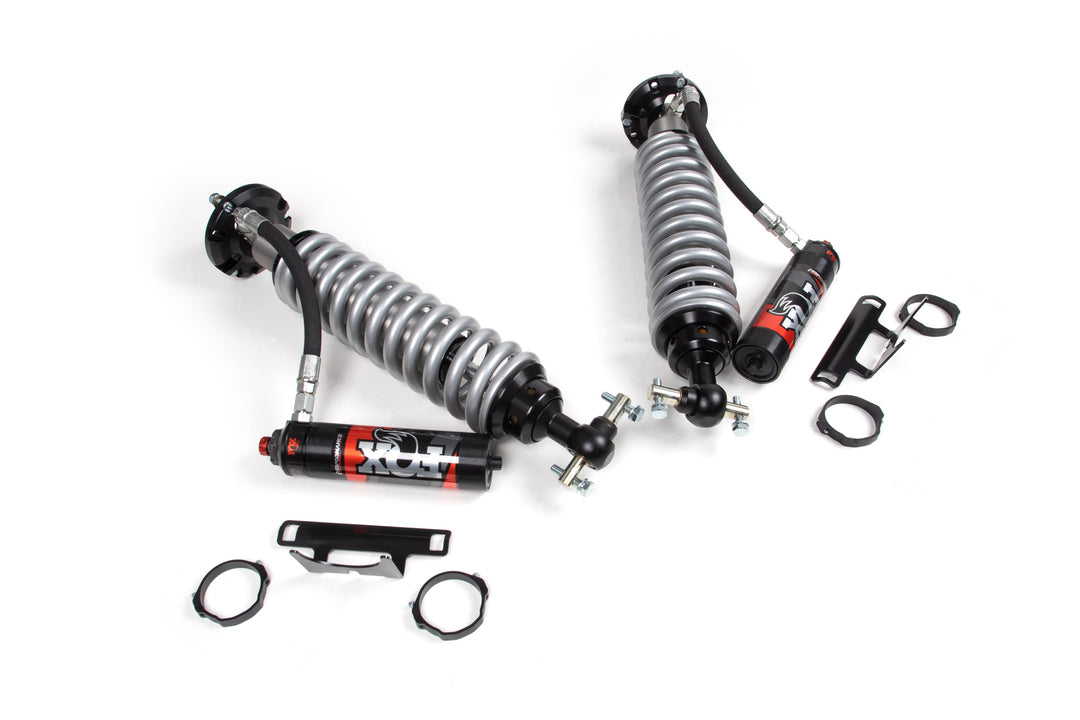

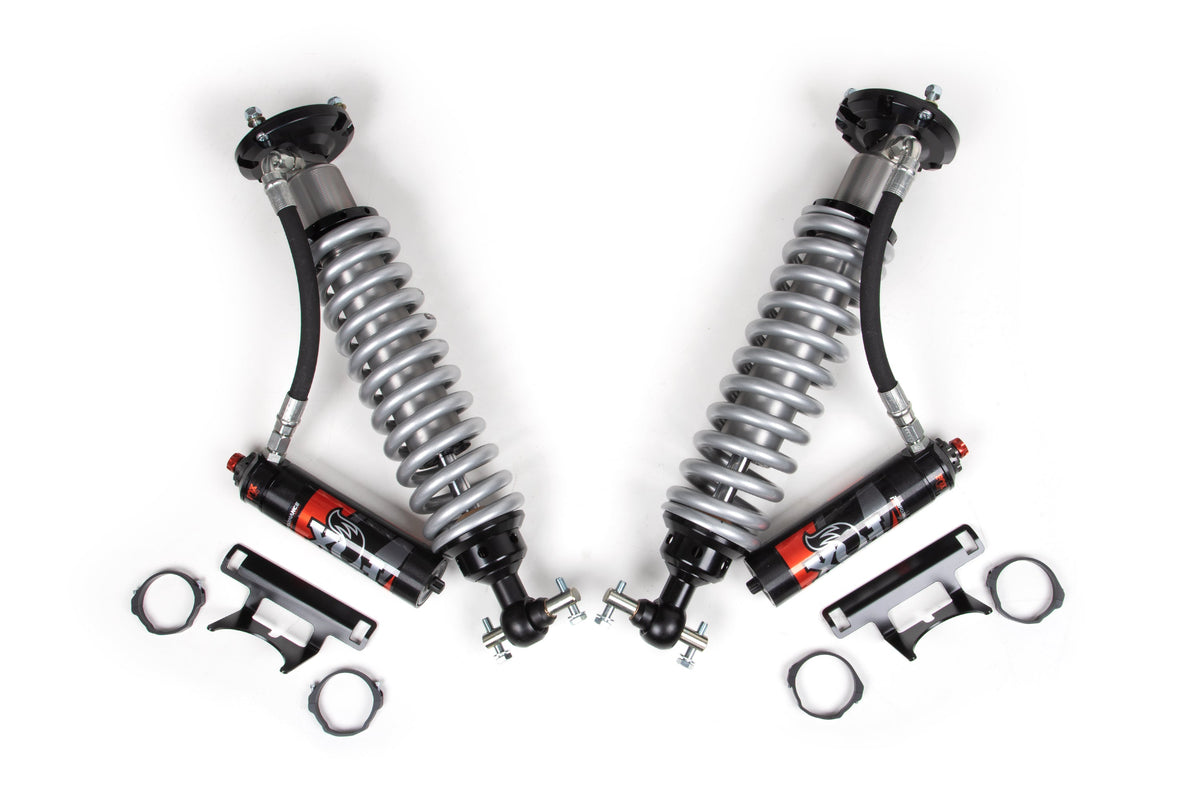

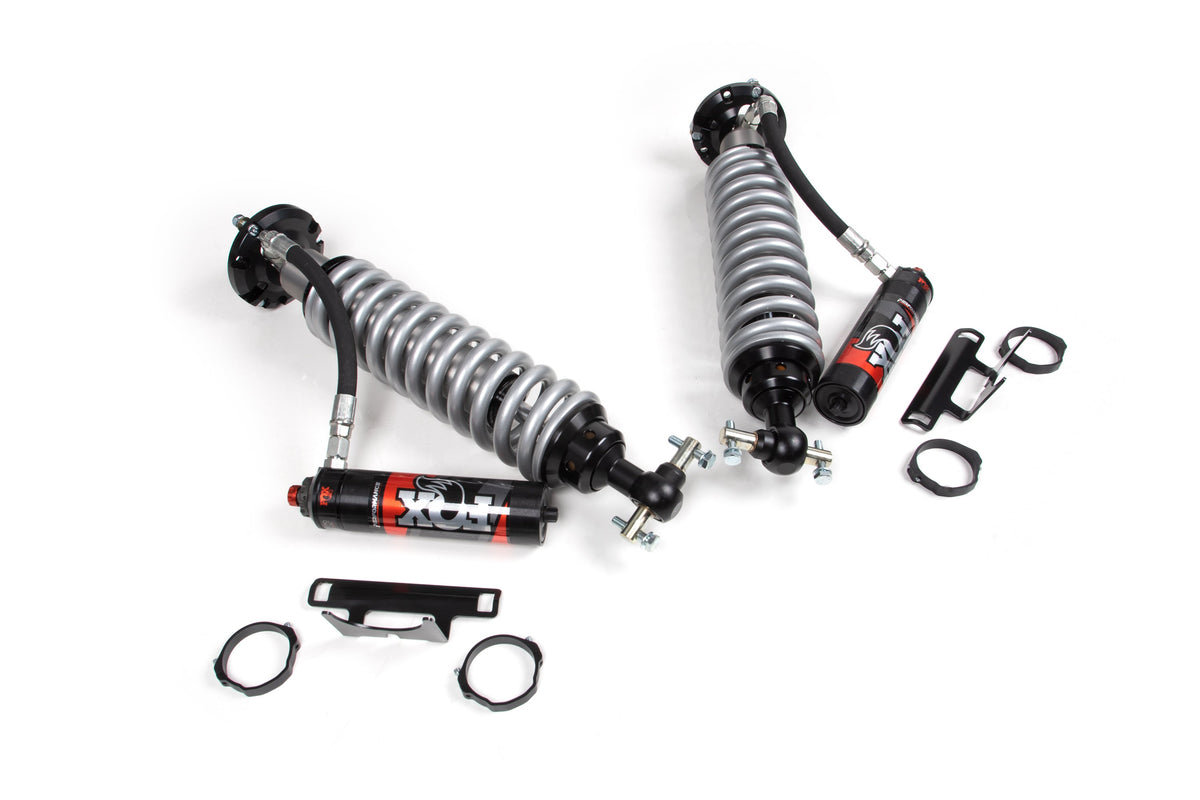

FOX 2.5 Performance Elite Series

Important Notes: GM is producing several knuckle/control arm configurations in 2014-2017 models trucks. Cast Steel control arm equipped models will require the Cast Steel Control Arm kit.

All wheel drive models require drive line modification.

Features:

• Fox 2.5 Shocks designed specifically for increased travel and the abilty to soak up the roughest terrain.

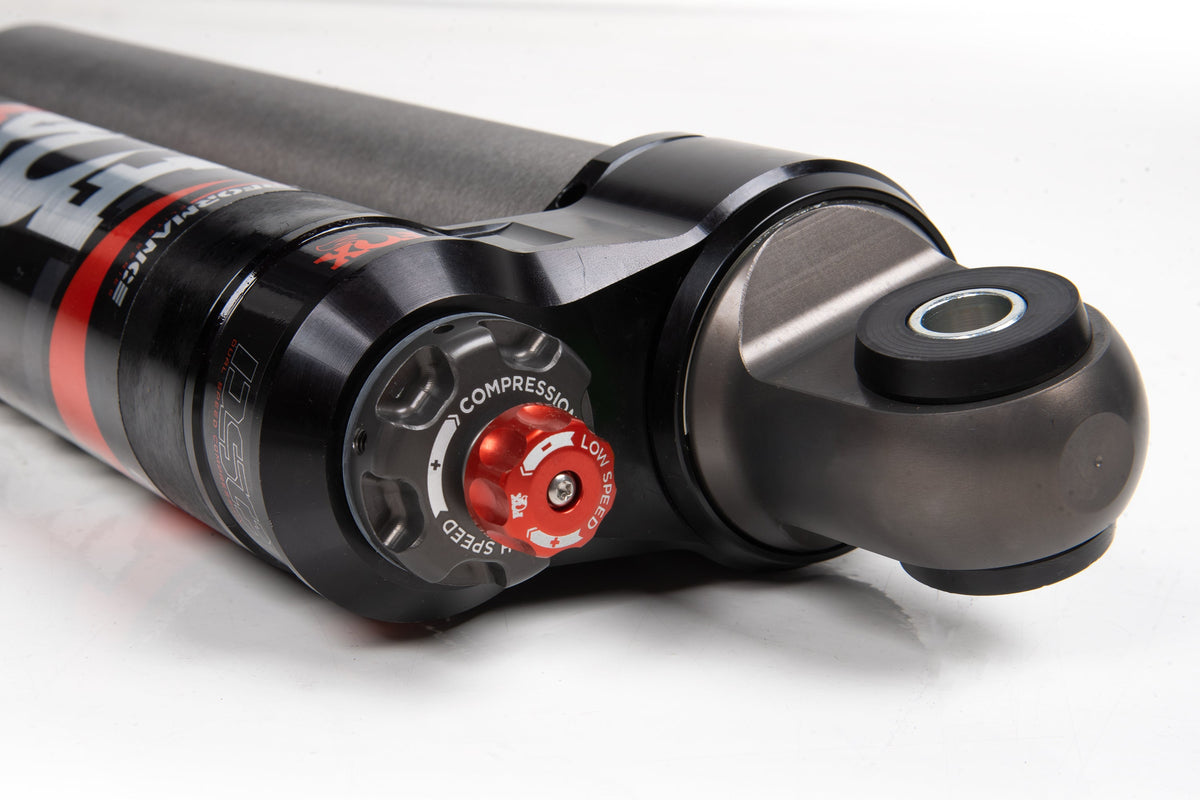

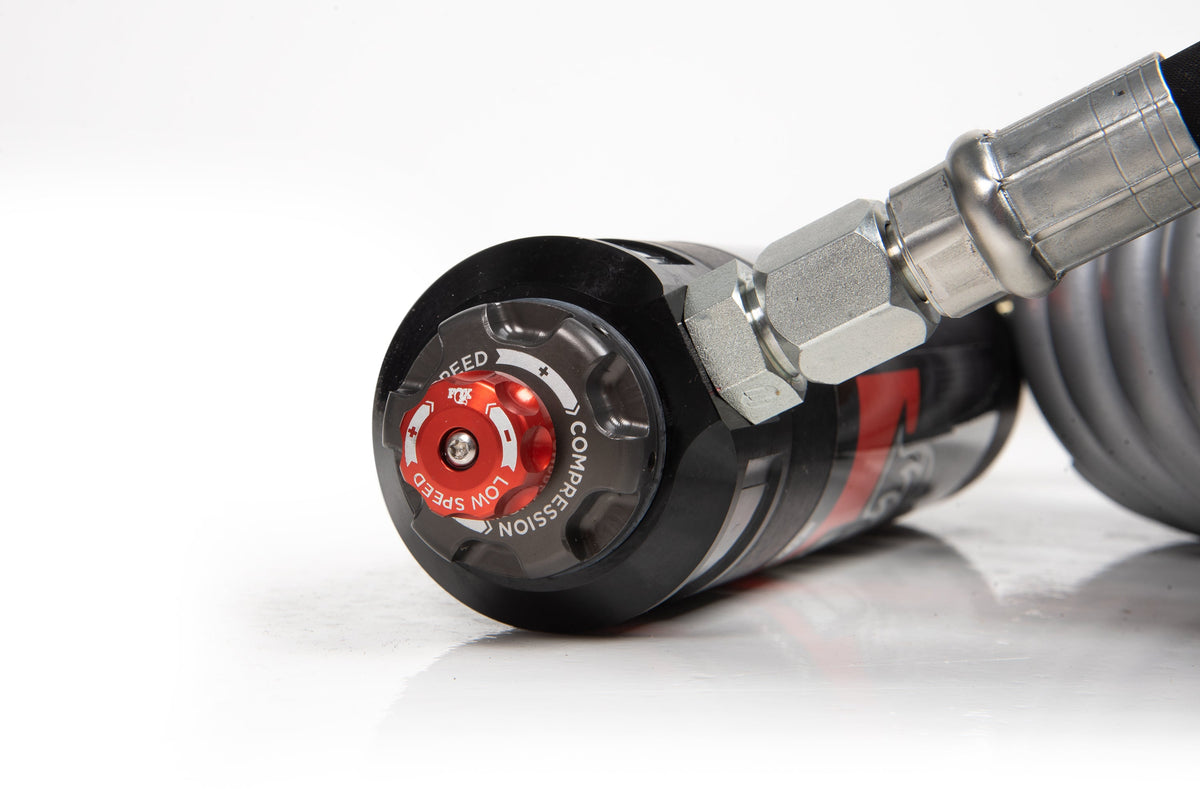

• The DSC (dual speed compression) adjuster adds remarkable versatilty and precise tuning with a simple twist of one or both knobs.
• High clearance crossmember design maximizes ground clearance Robust steering knuckles maintain ESC system compliance
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• FOX performance series IFP gas rear shocks to improved ride and offroad performance
• Factory Protection Plus drivetrain warranty included
• (Trimming may be required)
• 33 x 12.5 with 17 x 9 and 4.5 in. Backspace
• 34 x 12.5 with 18 x 9 and 5 in. Backspace
• 35 x 12.5 with 20 x 9 and 5.75 in. Backspace
• Factory Control Arm Type
• The 5 inch rear block replaces the factory block
• Nets 4 inch of rear lift to level the vehicle.
• Made of cast iron for high strength.
• Designed to provide correct pinion angles.
• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty
• Stamped Steel and Aluminum control arm equipped models will require the Aluminum Control Arm kit. Be sure to verify which factory control arms your truck has before ordering by referecing our help images when customizing your kit.
• Requires frame bracket modification.
• Requires differential modification to clear electric power steering
• Factory 17 inch and 18 inch wheels cannot be reinstalled due to tie rod end interference If choosing the 5 inch rear block option, add-a-leaf 111209 is recommended for a more level/tail high stance on crew cab models.
• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

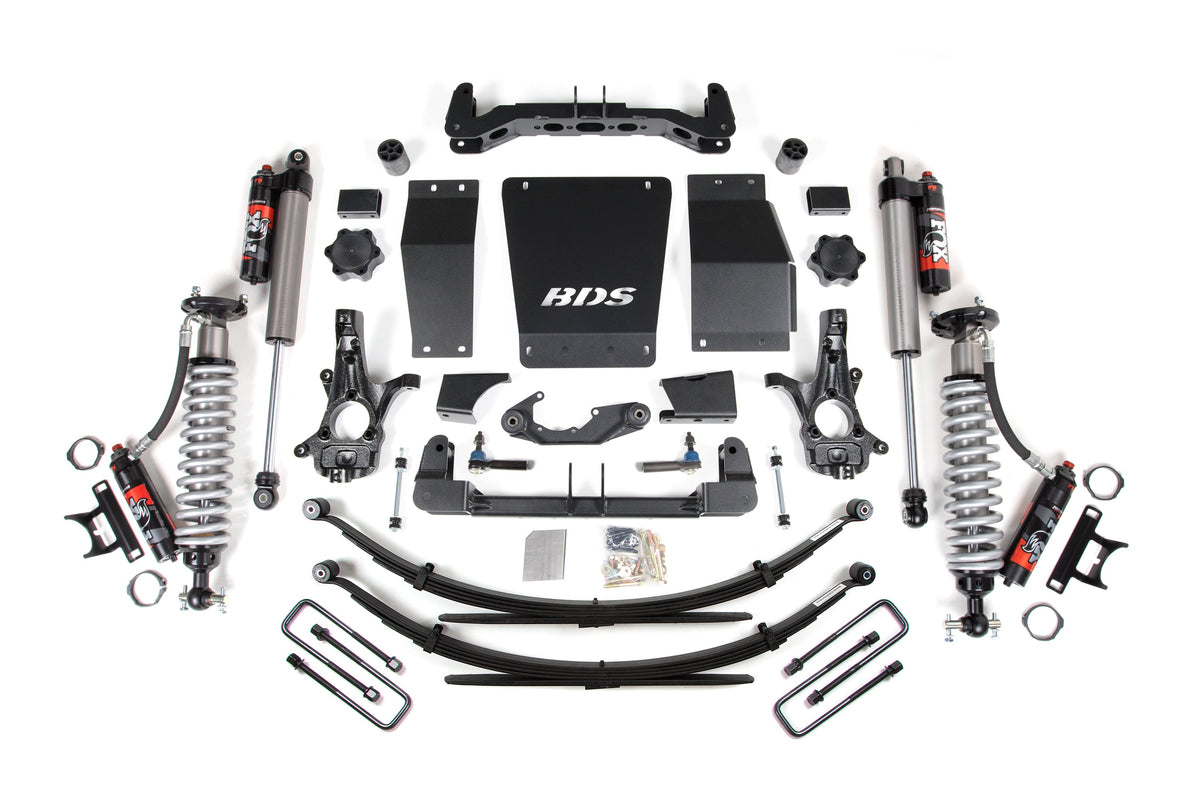

• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

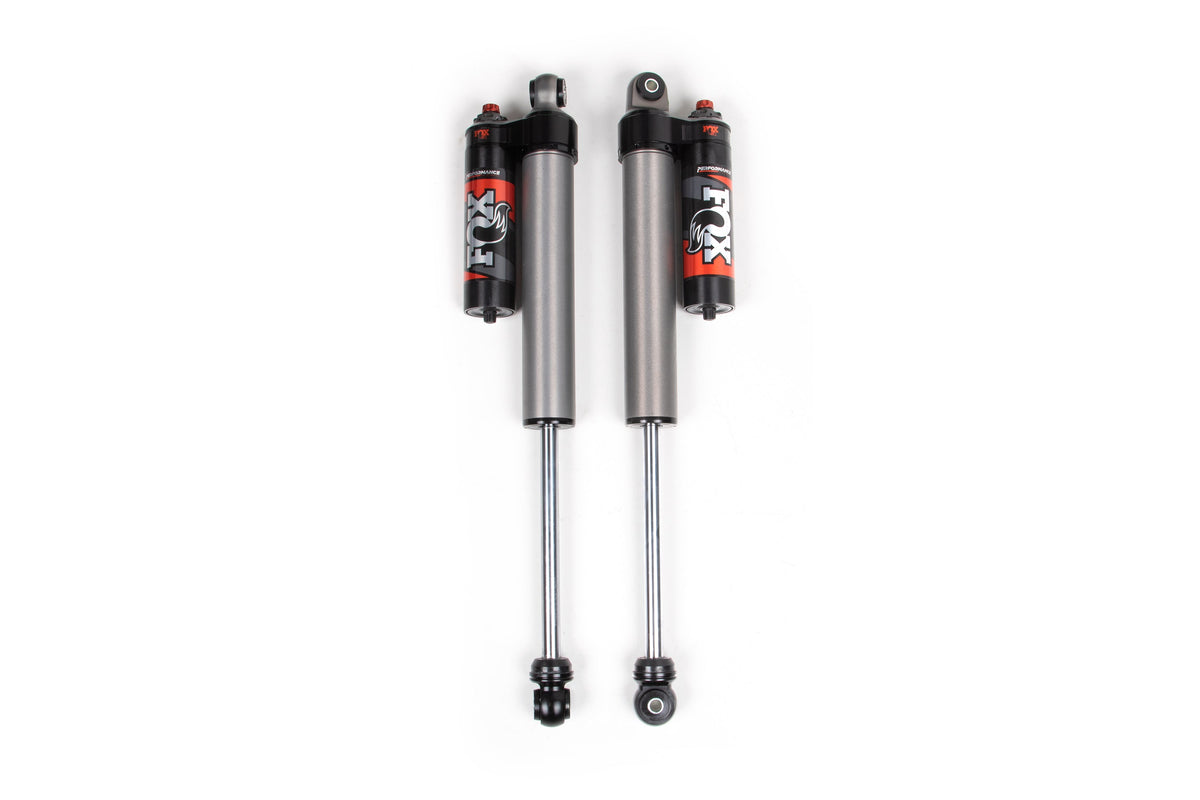

• Rear Shock Option

Specifications:

• Lift Height: 6.0 Inch
• Drive: 4WD
• Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts

Options & Part Numbers:

Fits:

• 2014-2018 Chevrolet Silverado 1500
• 2014-2018 GMC Sierra 1500

Part #: BDS710PES, BDS710PSS, BDS711PES, BDS711PSS, BDS717PES, BDS717PSS, BDS718PES, BDS718PSS
