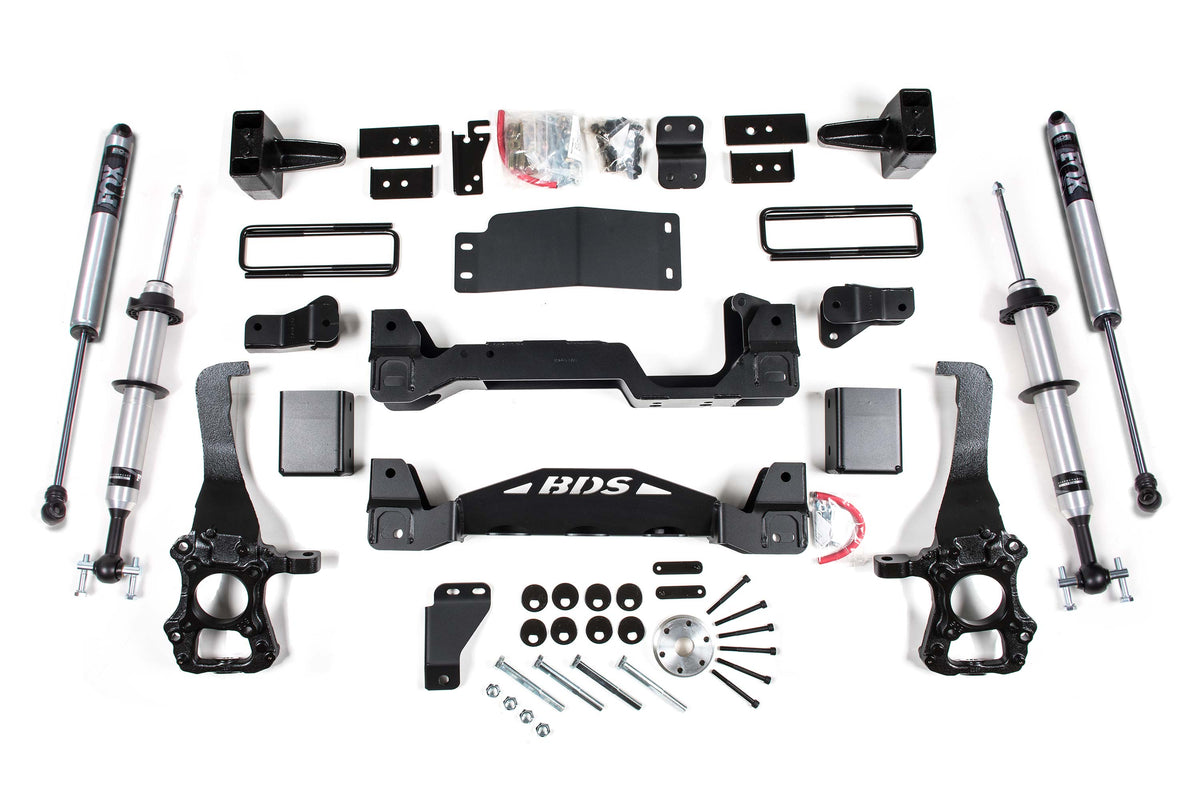

BDS Suspension 6 Inch Lift Kit FOX 2.0 IFP Strut Ford F150 2015-2020 4WD

Prepare to get your 2015-2020 Ford F150 4WD truck dirty after installing a 6-inch lift kit with FOX 2.0 struts by BDS Suspension. Designed to improve stance the BDS 6 inch lift kit with FOX 2.0 front struts give more capability off-road. This kit includes everything necessary to set your F150 truck up right with clearance for up to 37 inch Tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front the kit utilizes FOX 2.0 strut shocks, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles.

These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.

In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.

FOX 2.0 Struts

These FOX 2.0 Performance Series coil-over struts bring impressive damper performance for great ride on and offroad capability designed as a direct bolt-in replacement for the factory strut assemblies while retaining the OE coil spring and top plate.

They feature a 2.0 inch inch extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (Internal Floating Piston) to eliminate oil aeration, FOX's proprietary internals, 5/8 inch inch hard chrome plated heat-treated alloy shaft.

High Clearance Crossmemebers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Rear Lift Option

4 Inch Block Kit

Features:

• FOX 2.0 Performance Internal Floating Piston shocks eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving
• High clearance crossmembers improve strength and offroad capability
• Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
• Top mounted strut spacers to provide lift and install easily
• Differential skid plate for improved offroad protection
• Rear lift blocks and u-bolts to lift and level the stance
• Tail low to level stance
• Level To Tail high appearance

Fitment Notes (from BDS):

• 18 inch wheels with 5-5.5 inch total backspacing should be test fir prior to mounting Tire to ensure proper clearance to BDS steering knuckle.
• 18 inch or larger diameter wheels required. Stock 17 inch and 18 inch wheels cannot be reinstalled. Stock 20 inch wheels can be used with up to a 305/60-20 Tires.
• E-brake bracket required for factory powersteps (123018)
• Block kits replace factory 1-1/4 inch block.
• Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit 122406
• Will not fit HD models (7 lug).

Specifications:

• Lift Height: 6.0 Inch
• Front Lift Height: 6.0 Inch
• Drive: 4WD
• Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
• Tire Size: 37 x 12.5 Wheel Diameter: 20 x 9 Back Spacing: 5

Options & Part Numbers:

Fits:

• 2015-2020 Ford F-150

Part #: BDS1305FSR, BDS1532FSR
