Update the look of your 1977-1979 Ford F100 and F150 4WD truck by raising it to new heights with a 6-inch suspension lift kit by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.
Up front the lift kit includes Pro-Ride coil springs, radius arm drop brackets, track bar relocation bracket for steering correction, bump stop brackets and precision tuned NX2 nitrogen charged shocks.
In the rear the base kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.
Pro-Ride Coil Springs
A pair of full-length, truck-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
Rear Lift Option Block Kit with Add-A-Leaf
Features:
- Easy, Bolt-on installation
- Pro-Ride dual rate coil springs ride smooth through any terrain
- Heavy duty steel drop brackets for proper suspension geometry
- Cast steel blocks provide level stance from front to rear
- NX2 Nitro shocks with vehicle-specific valving for better control
- Add-a-leaf helps freshen up old worn-out factory leaf springs.
- Blocks are made from cast iron for max strength.
- Includes new center pins.
- Eliminates any need for a lift block.
- Reduces axle wrap and creates a more controlled and stable feel.
- Multi-leaf progressive design for a smooth ride.
- Maintains factory payload weight ratings.
Fitment Notes (from BDS):
- Alignment inchC inch bushings may be required.
- #003408 (4 inch) Leaf Springs and #003608 (6 inch) Leaf Springs come with OE style bushings installed.
- Add two front auxiliary shocks if the vehicle is equipped with factory dual mounts.
Specifications:
- Lift Height: 6.0 Inch
- Front Lift Height: 6.0 Inch
- Rear Lift Height: 5.5 Inch
- Drive: 4WD
- Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
Options & Part Numbers:
| Option |
Part # |
Shocks Included |
What's in the Box |
| Block Kit and Add-A-Leaf |
BDS377H |
Yes |
one BDS013002, 73-79 Ford Radius Arm Drop Kit
one BDS033603, Ford F150(73-79)/Bronco(78-79) 6in Coil
one BDS063409, Ford F150 4in Block & U-bolt Kit
one BDS113208, Ford 3in wide Rear Single Add-a-leaf
one BDS123001, 73-79 Ford Track Bar Ext Bracket
two BDS85850, Shock- 26.15 x 15.55 x 2-3/8 - S1/EB1
two BDS85860, Shock - 29.80 x 17.57 x 2-3/8 -S1/EB1 |

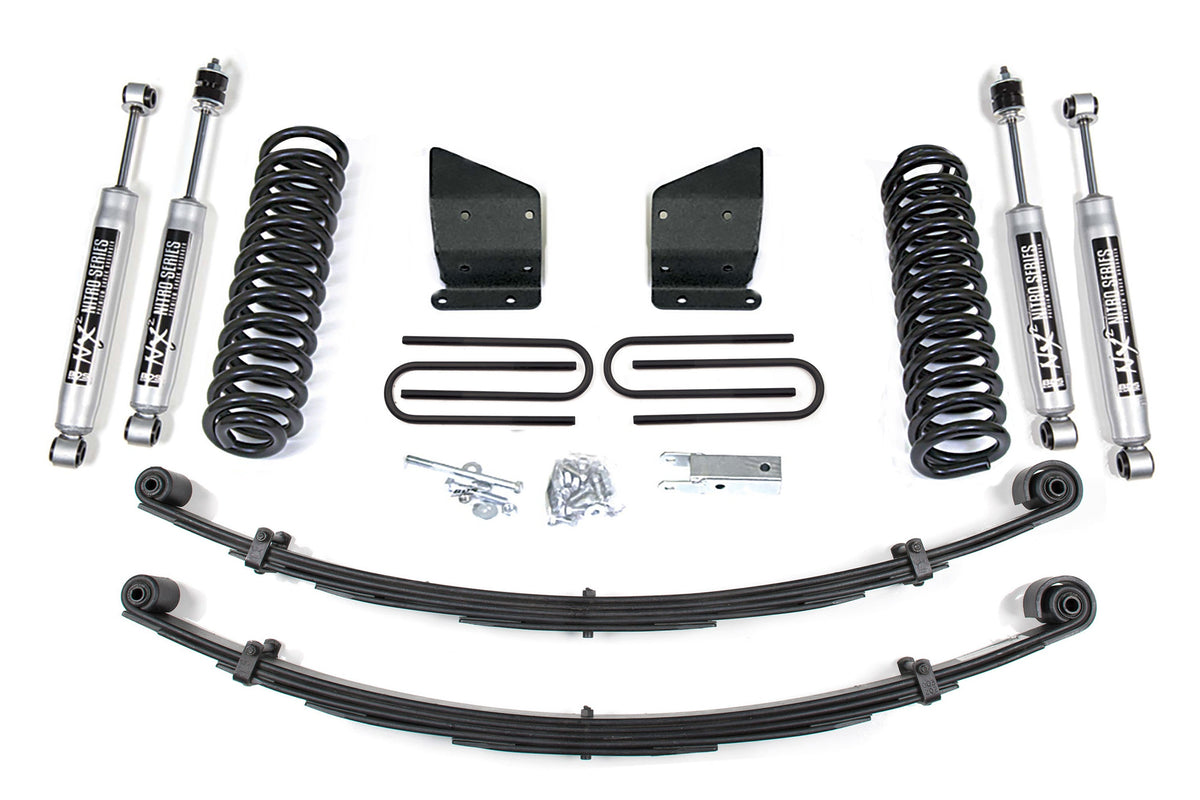

| Leaf Springs |
BDS379H |
Yes |
two BDS003608, 73-96 Ford F150 6in Rear Spring
one BDS013002, 73-79 Ford Radius Arm Drop Kit
one BDS033603, Ford F150(73-79)/Bronco(78-79) 6in Coil
one BDS123001, 73-79 Ford Track Bar Ext Bracket
two BDS85850, Shock- 26.15 x 15.55 x 2-3/8 - S1/EB1
two BDS85860, Shock - 29.80 x 17.57 x 2-3/8 -S1/EB1
four UBT4051, 9/16 x 3-1/4 x 10 Round U-bolt |
Fits:
- 1977-1979 Ford F-100
- 1977-1979 Ford F-150
Part #: BDS377H, BDS379H
