Take your 1980-1996 Ford Bronco 4WD truck to new heights with a 6-inch suspension lift kit by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

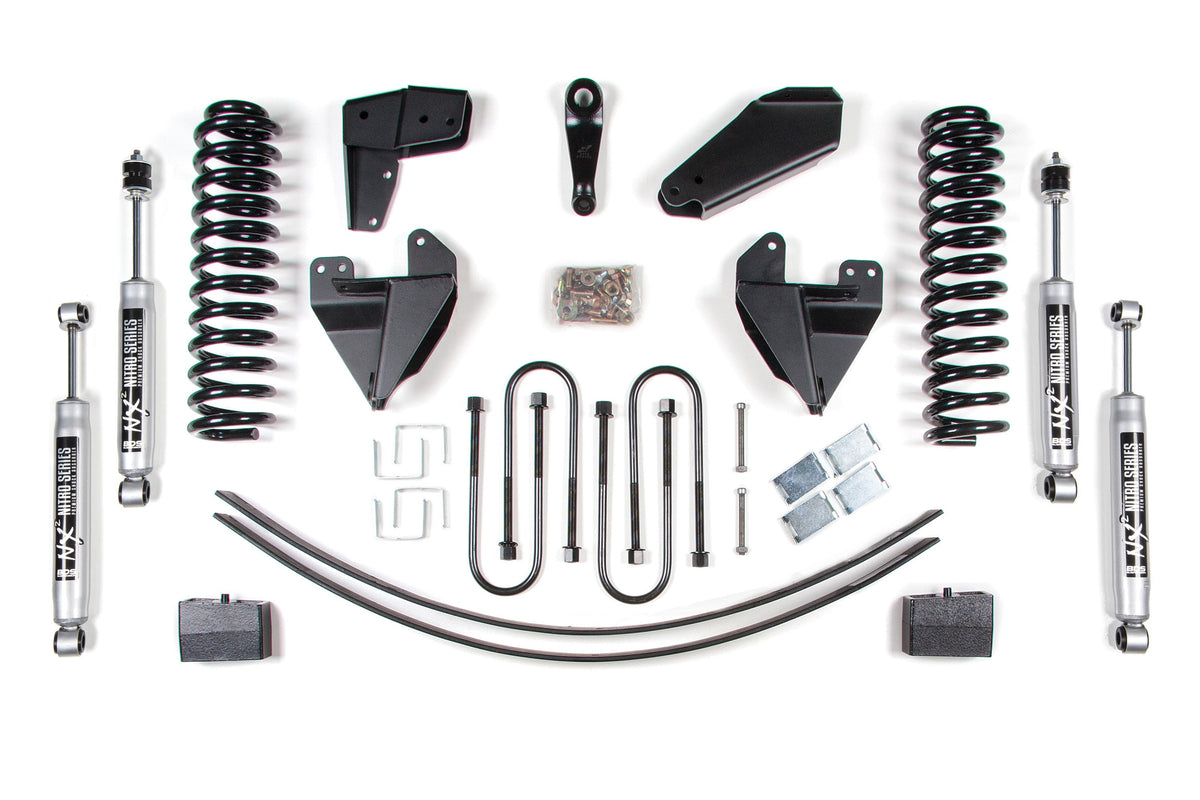

Up front the lift kit includes Pro-Ride coil springs, axle pivot relocation brackets, radius arm drop brackets, forged pitman arm for steering correction and precision tuned NX2 nitrogen charged shocks.
In the rear the base kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.
Pro-Ride Coil Springs
A pair of full-length, vehicle-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
Rear Lift Option Block Kit with Add-A-Leaf
Features:
- Easy, Bolt-on installation
- Pro-Ride dual rate coil springs ride smooth through any terrain
- Heavy duty steel drop brackets for proper suspension geometry
- Cast steel blocks provide level stance from front to rear
- NX2 Nitro shocks with vehicle-specific valving for better control
- Add-a-leaf helps freshen up old worn-out factory leaf springs.
- Blocks are made from cast iron for max strength.
- Includes new center pins.
- Eliminates any need for a lift block.
- Reduces axle wrap and creates a more controlled and stable feel.
- Multi-leaf progressive design for a smooth ride.
- Maintains factory payload weight ratings.
Fitment Notes (from BDS):
- Front end alignment required. Alignment cams may be required.
- #123401 recommended if equipped with a front anti-sway bar. Ford produced 3 different styles of sway bar systemsbetween 1980 and 1996. In extremely rare cases, modification may be required.
- #003208, #003408 and #003608 come with OE style bushings installed.
- Add two front auxiliary shocks if the vehicle is equipped with factory dual mounts.
- Extended brake lines required.
Specifications:
- Lift Height: 6.0 Inch
- Front Lift Height: 6.0 Inch
- Rear Lift Height: 4.5 Inch
- Drive: 4WD
- Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
Options & Part Numbers:
| Option |
Part # |
Shocks Included |
What's in the Box |
| Block Kit and Add-A-Leaf |
BDS366H |
Yes |
one BDS013001, 80-96 Ford F150 Front Box Kit
one BDS033601, 80-96 Ford F150/Bronco 6in Coil Kit
one BDS063309, Ford F150 3in Block & U-bolt Kit
one BDS113209, Ford 3in wide Rear Dual Add-a-leaf
two BDS85650, Shock- 26.20 x 15.80 x 2-3/8 - EB1/EB1
two BDS85820, Shock- 22.90 x 13.90 x 2-3/8 - S1/EB1 |
| Leaf Springs |
BDS368H |
Yes |
two BDS003408, 73-96 Ford F150 4in Rear Spring 3in wide
one BDS013001, 80-96 Ford F150 Front Box Kit
one BDS033601, 80-96 Ford F150/Bronco 6in Coil Kit
two BDS85650, Shock- 26.20 x 15.80 x 2-3/8 - EB1/EB1
two BDS85820, Shock- 22.90 x 13.90 x 2-3/8 - S1/EB1
four UBT4051, 9/16 x 3-1/4 x 10 Round U-bolt |
Fits:
- 1980-1996 Ford Bronco
- 1980-1996 Ford F-150
Part #: BDS366H, BDS368H
