Take your 2007-2013 Chevy Silverado and GMC Sierra 1500 to new heights with a BDS 6-inch lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes strut spacers, and high-arched 1/4-inch thick steel crossmembers and heavy duty skid plates built for offroad protection.
Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear BDS offers both replacement lift block and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity.
Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.
High Clearance Crossmembers:
Heavy Duty Steering Knuckles:
Details:
Features:
- BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers.
- BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.
Specifications:
- Lift Height: 6.0 Inch
- Front Lift Height: 6.0 Inch
- Drive: 2WD
- Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
Options & Part Numbers:
| Option |
Part # |
Shocks Included |
What's in the Box |

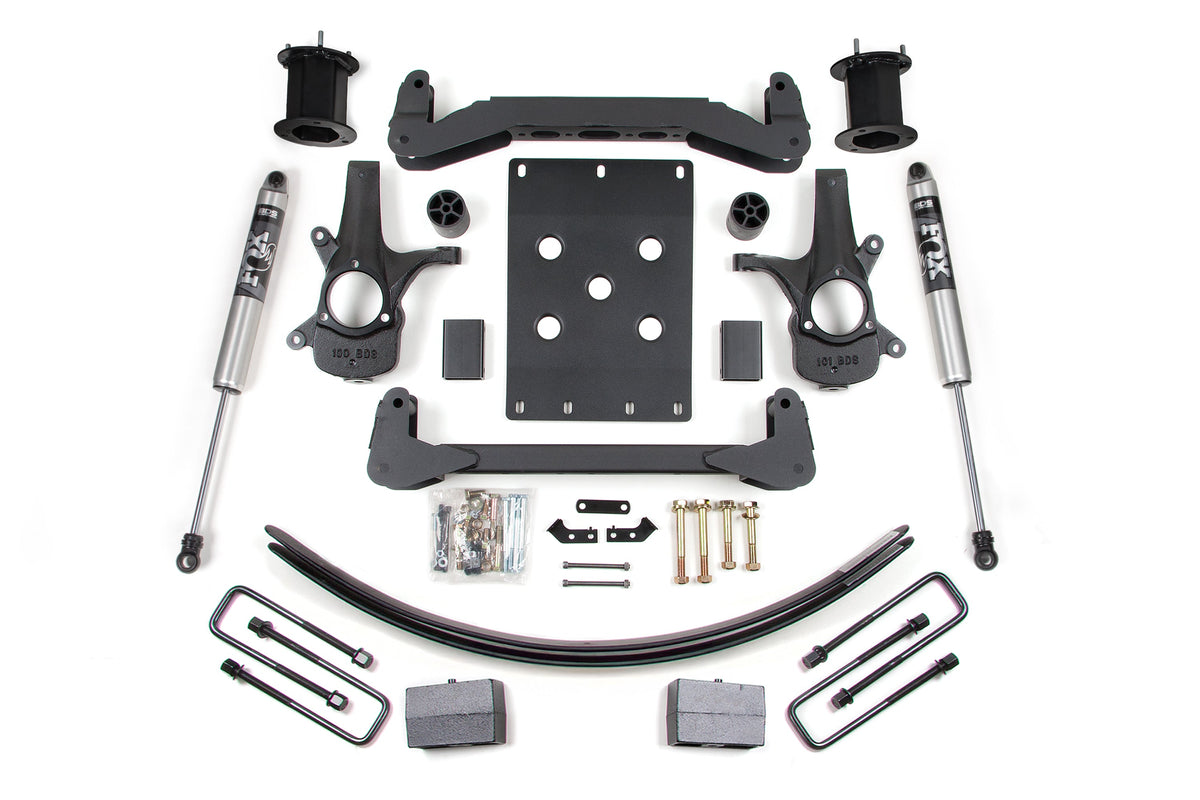

| Block Kit and Add-A-Leaf / FOX 2.0 Performance Series |
BDS797FS |
Yes |
BDS011559, BDS021601, BDS021640, BDS021643, FOX98224759 (x2) |

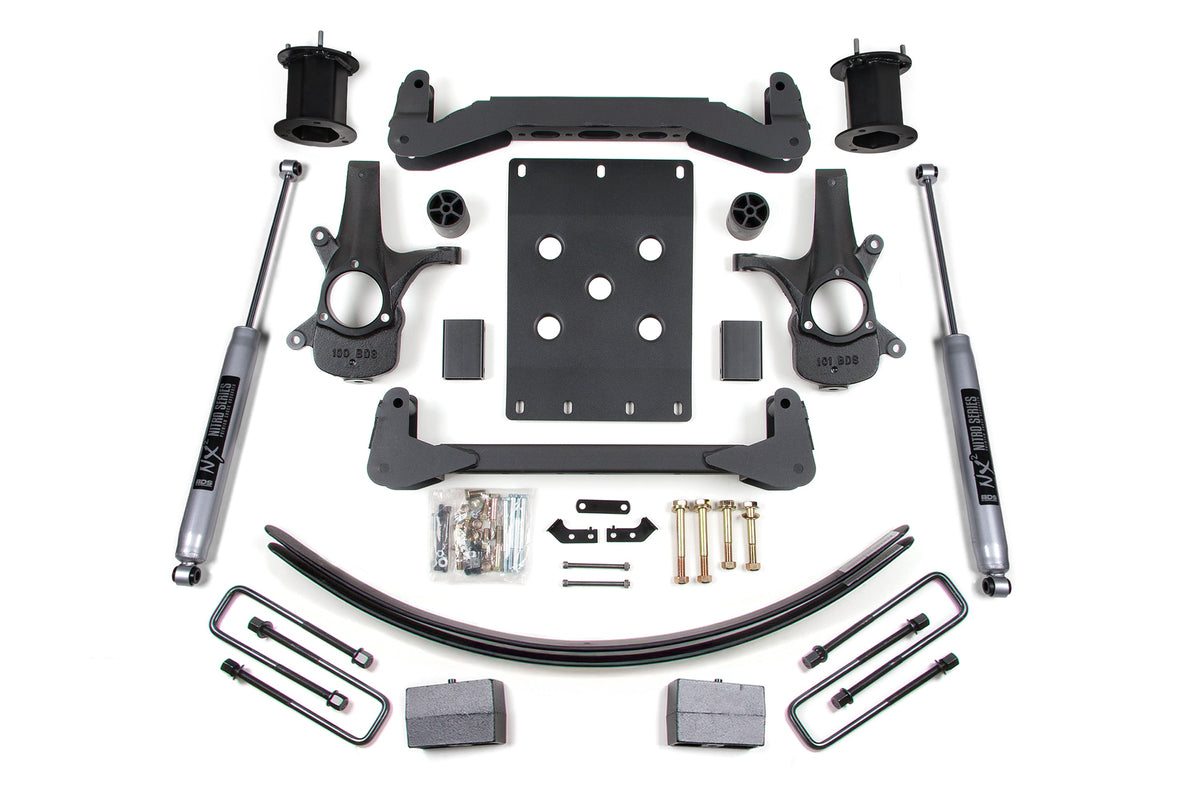

| Block Kit and Add-A-Leaf / NX2 Nitro Series |
BDS797H |
Yes |
BDS011559, BDS021601, BDS021640, BDS021643, BDS85759 (x2) |

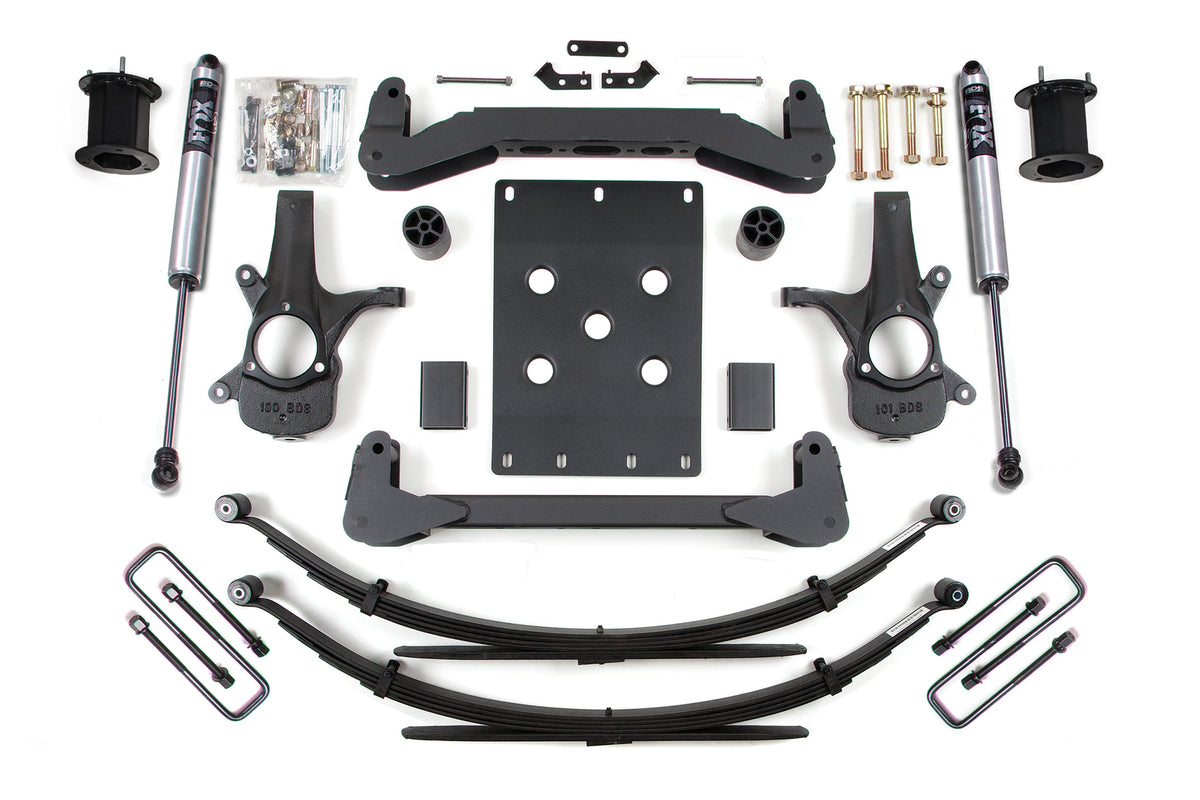

| Leaf Springs / FOX 2.0 Performance Series |
BDS798FS |
Yes |
BDS001559 (x2), BDS011558, BDS021601, BDS021640, BDS021643, FOX98224759 (x2) |

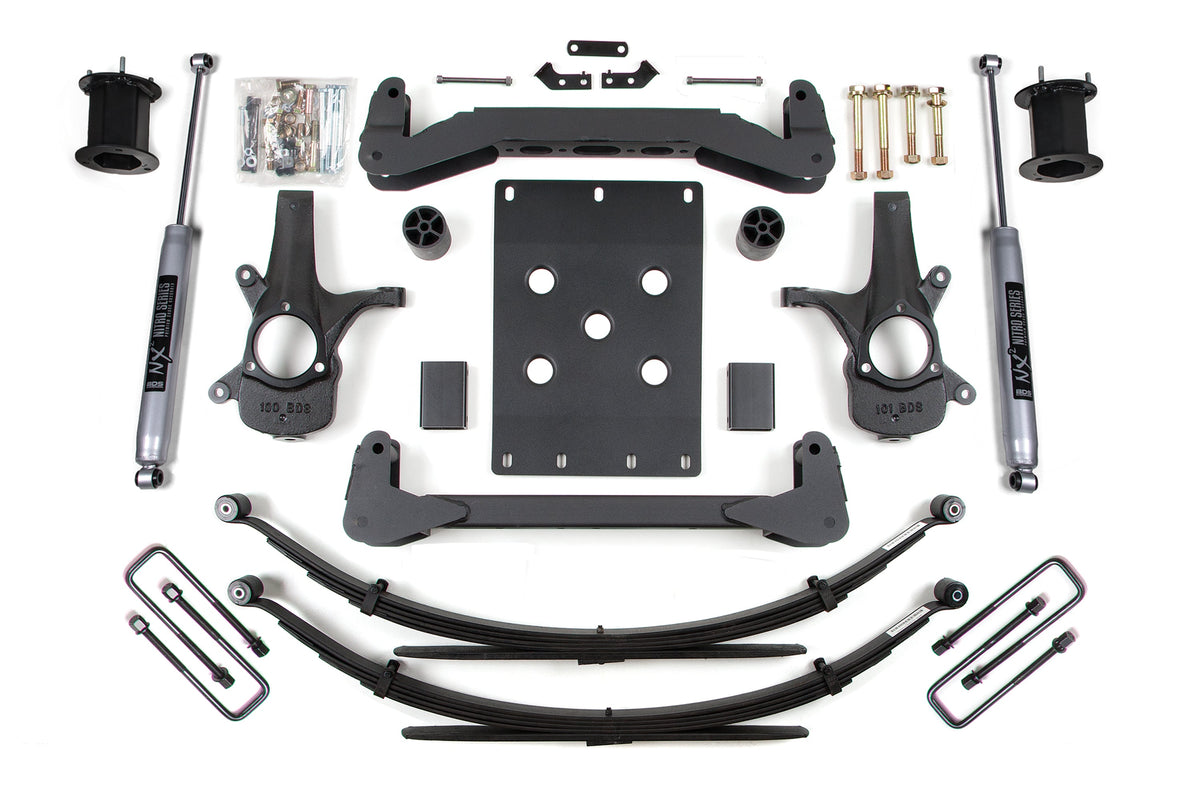

| Leaf Springs / NX2 Nitro Series |
BDS798H |
Yes |
BDS001559 (x2), BDS011558, BDS021601, BDS021640, BDS021643, BDS85759 (x2) |
Fits:
- 2007-2013 Chevrolet Silverado 1500
- 2007-2013 GMC Sierra 1500
Part #: BDS797FS, BDS797H, BDS798FS, BDS798H
