Take your 2015-2019 Chevy Suburban, or Tahoe and GMC Yukon 1500 to new heights with a BDS 6-inch lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.
Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles.
These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear BDS offers new Pro-Ride coil springs for on-road ride quality as well as serious off road performance, anti-sway bar links, track bar relocation system, and adjustable upper control arms allowing you to properly adjust pinion angle.
Also for the rear are precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks.
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.
Important: GM is producing several knuckle/control arm configurations in 2015-2016 model trucks. Cast Steel control arm equipped models will require theCast Steel Control Arm kit.
Stamped Steel and Aluminum control arm equipped models will require the inchAluminum Control Arm inch kit.
Factory Control Arm Type Cast Steel
Rear Shock Option
FOX 2.0 Performance Series
Features:
- High clearance crossmember design maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- High-strength replacement upper control arms provide durability and serviceability
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- Factory Protection Plus drivetrain warranty included
- 2-inch Impact extruded aluminum body
- Internal floating piston (Internal Floating Piston) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
Fitment Notes (from BDS):
- Frame bracket modification and welding are required.
- 20 inch wheels with 5 inch to 5-3/4 inch backspacing are recommended to reduce trimming.
- AWD models may require front driveline modification
- Factory 17 inch and 18 inch wheels cannot be reinstalled due to tie rod interference.
- Will not work with auto-ride or Magna-ride equipped vehicles.
Specifications:
- Lift Height: 6.0 Inch
- Front Lift Height: 6.0 Inch
- Rear Lift Height: 5.0 Inch
- Drive: 4WD
- Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
- Tire Size: 34 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5.75
Options & Part Numbers:
| Option |
Part # |
Shocks Included |
What's in the Box |

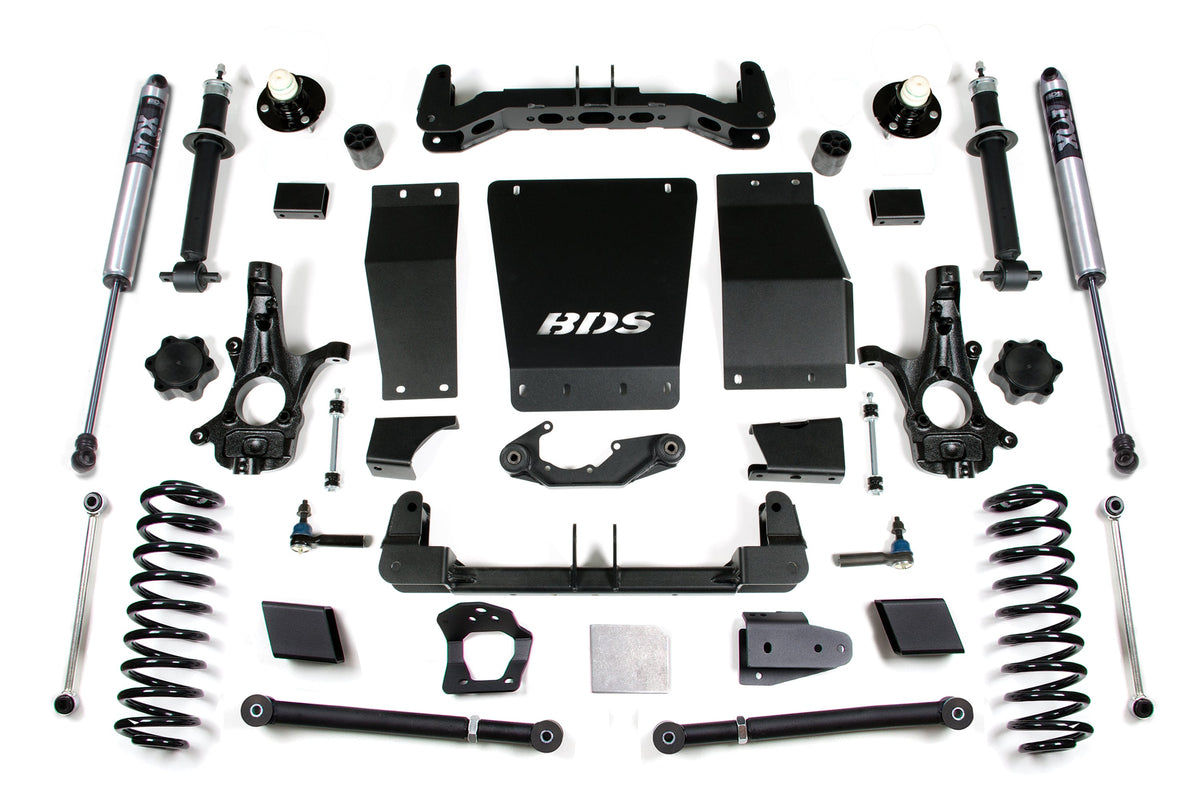

| FOX 2.0 Performance Series / Cast Steel |
BDS731FS |
Yes |
one BDS021507, 2015+ GM SUV Rear 5in Box Kit
one BDS021660, 14-18 GM 1500 - 15-19 GM SUV Knuckle Box - Cast
one BDS021662, 14-18 GM 1500 - 15-19 GM SUV 1500 6 inch Frt Box Kit (1of2)
one BDS021663, 14-18 GM 1500 15-19 GM SUV 6 inch Frt Box Kit (2of2)
one BDS98166, 2014-2018 Chevy 1500 6 inch NX2 Strut Box Kit
two FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1 |

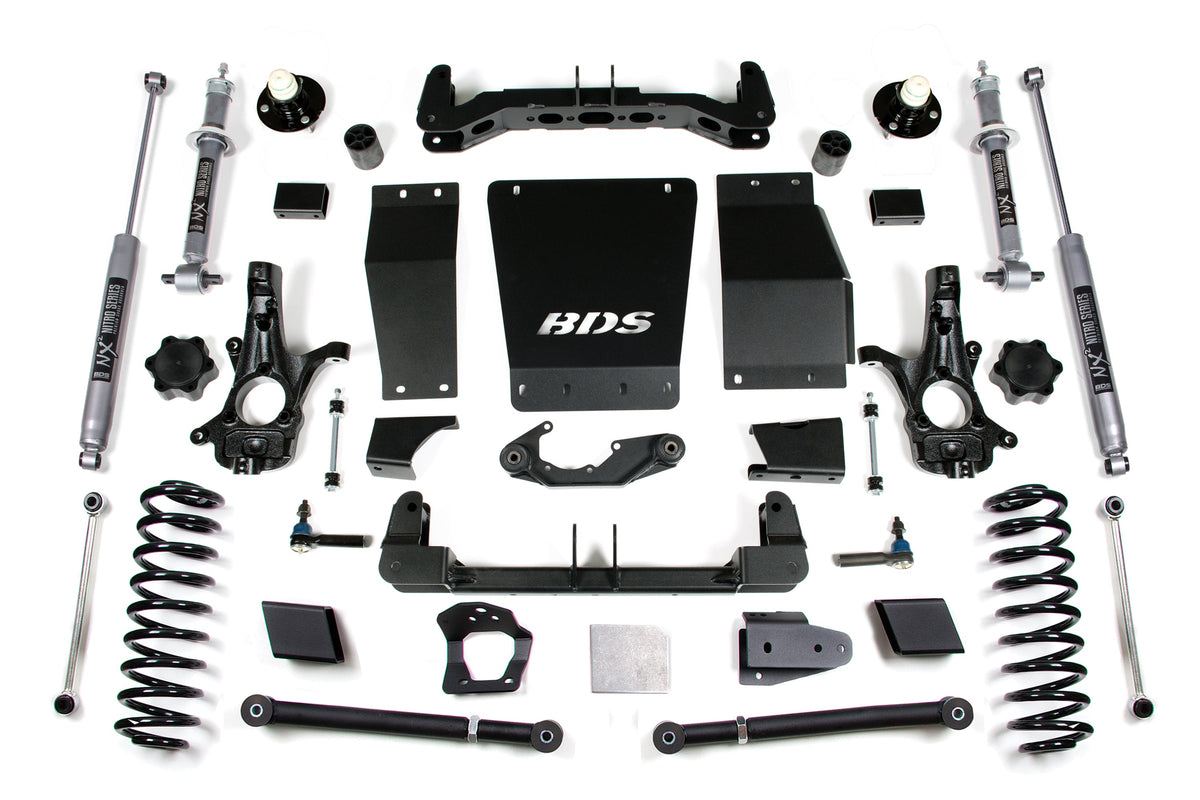

| NX2 Nitro Series / Cast Steel |
BDS731H |
Yes |
one BDS021507, 2015+ GM SUV Rear 5in Box Kit
one BDS021660, 14-18 GM 1500 - 15-19 GM SUV Knuckle Box - Cast
one BDS021662, 14-18 GM 1500 - 15-19 GM SUV 1500 6 inch Frt Box Kit (1of2)
one BDS021663, 14-18 GM 1500 15-19 GM SUV 6 inch Frt Box Kit (2of2)
two BDS85759, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1
one BDS98165, 2014-17 Chevy 1500 6 inch Strut Kit |
| FOX 2.0 Performance Series / Aluminum / Stamped Steel |
BDS732FS |
Yes |
one BDS021507, 2015+ GM SUV Rear 5in Box Kit
one BDS021661, 14-18 GM 1500 - 15-19 GM SUV Knuckle Box - Alum/Stamped
one BDS021662, 14-18 GM 1500 - 15-19 GM SUV 1500 6 inch Frt Box Kit (1of2)
one BDS021663, 14-18 GM 1500 15-19 GM SUV 6 inch Frt Box Kit (2of2)
one BDS98166, 2014-2018 Chevy 1500 6 inch NX2 Strut Box Kit
two FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1 |
| NX2 Nitro Series / Aluminum / Stamped Steel |
BDS732H |
Yes |
one BDS021507, 2015+ GM SUV Rear 5in Box Kit
one BDS021661, 14-18 GM 1500 - 15-19 GM SUV Knuckle Box - Alum/Stamped
one BDS021662, 14-18 GM 1500 - 15-19 GM SUV 1500 6 inch Frt Box Kit (1of2)
one BDS021663, 14-18 GM 1500 15-19 GM SUV 6 inch Frt Box Kit (2of2)
two BDS85759, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1
one BDS98166, 2014-2018 Chevy 1500 6 inch NX2 Strut Box Kit |
Fits:
- 2015-2019 Chevrolet Suburban
- 2015-2019 Chevrolet Tahoe
- 2015-2019 GMC Yukon
- 2015-2019 GMC Yukon XL
Part #: BDS731FS, BDS731H, BDS732FS, BDS732H
