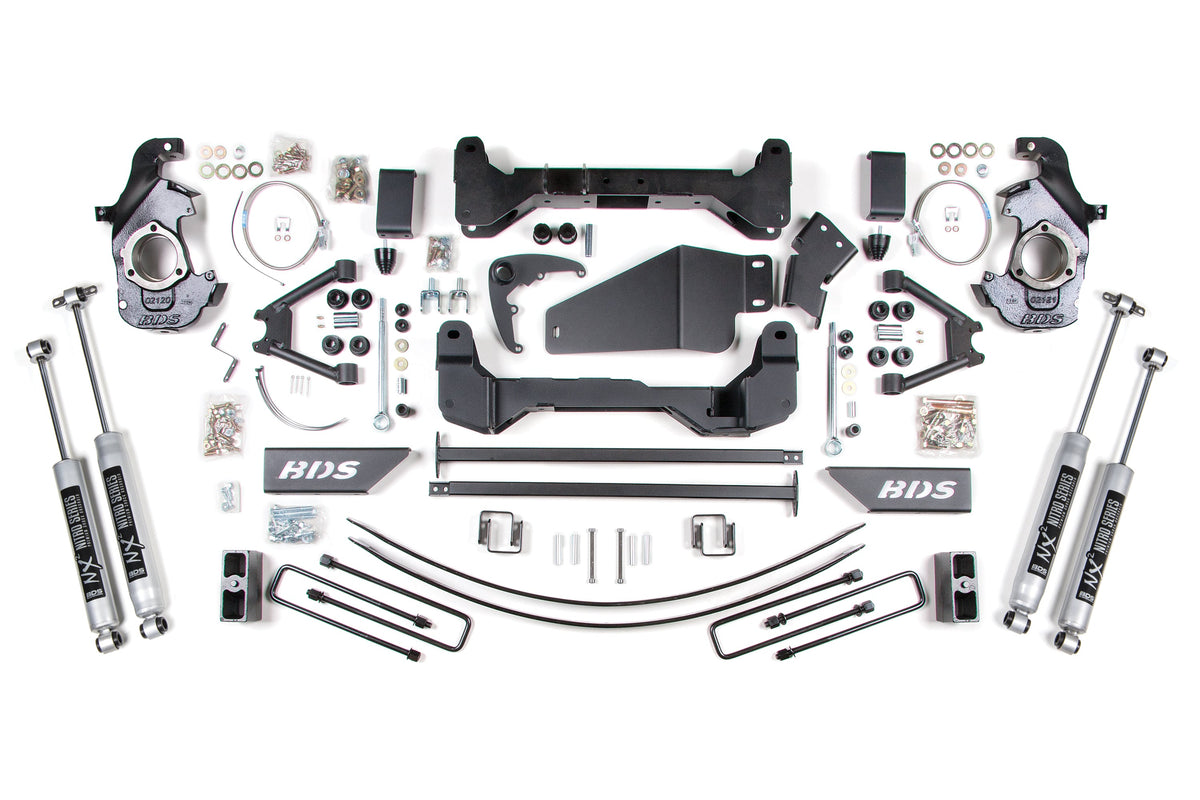

BDS Suspension 6 Inch Lift Kit Chevy/GMC Suburban, Tahoe, Yukon 1500 1992-1998

Engineered to improve stance, performance, and capability, the BDS 6-inch lift kit for the 1992-1998 Chevy and GMC Suburban, Tahoe, and Yukon 6 Lug SUVs is a must have upgrade. For maximum driveability, BDS designed this kit around heavy duty upper control arms and steering knuckles that offers zero track width change.

This kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front, the kit utilizes torsion bar drop brackets, heavy duty upper control arms, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.

Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers both replacement lift block / add-a-leaf combo and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

Features:

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles for long lasting durability
• High-strength replacement upper control arms provide durability and serviceability
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included

Fitment Notes (from BDS):

• Requires exhaust modification.
• Special tool (Kent Moore Tools Part J-36202-A) required to unload/load torsion bars.Not available through BDS.
• Requires frame bracket modification and differential mount modification.
• All models equipped with auto-trac may require a new front driveshaft.
• The auto-trac New Process 246 transfer case can be identified by the silver dollar sized plaque on the rear of the transfer case that reads NP246 inch. The dash mounted display will display the Auto 4WD symbol. NP243 is not auto-trac.
• Aftermarket wheels required. (See Tire and wheel info in the instructions)
• System will not work on some 88-95 vehicles equipped with spindle mounted front ABS sensor.
• Four door models require 121002 Torsion Bar Crossmember Kit.

Specifications:

• Lift Height: 6.0 Inch
• Front Lift Height: 6.0 Inch
• Rear Lift Height: 5.0 Inch
• Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
• Tire Size: 35 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 17 x 8 Wheel Diameter 2: 20 x 9 Back Spacing: 4.5/5.258 hrs

Options & Part Numbers:

Fits:

• 1992-1998 Chevrolet K1500 Suburban
• 1995-1998 Chevrolet Tahoe
• 1992-1998 GMC K1500 Suburban
• 1992-1998 GMC Yukon

Part #: BDS195H
