Take your dual rear wheel DRW Ford F350 Super Duty diesel truck to the next level with this 5-inch Radius Arm lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your dually Ford truck up right with clearance for up to 37 inch tires.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy duty BDS Radius Arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks. At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied.
In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of FOX 2.5 Performance Elite Shock.
Details:
Specifications:
- Lift Height: 5.0 Inch
- Front Lift Height: 5.0 Inch
- Rear Lift Height: 3.0 Inch
- Drive: 4WD
- Fuel Type: Diesel
- Lift Type: Radius Arm/Block
- Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
Options & Part Numbers:
| Option |
Part # |
Shocks Included |
What's in the Box |

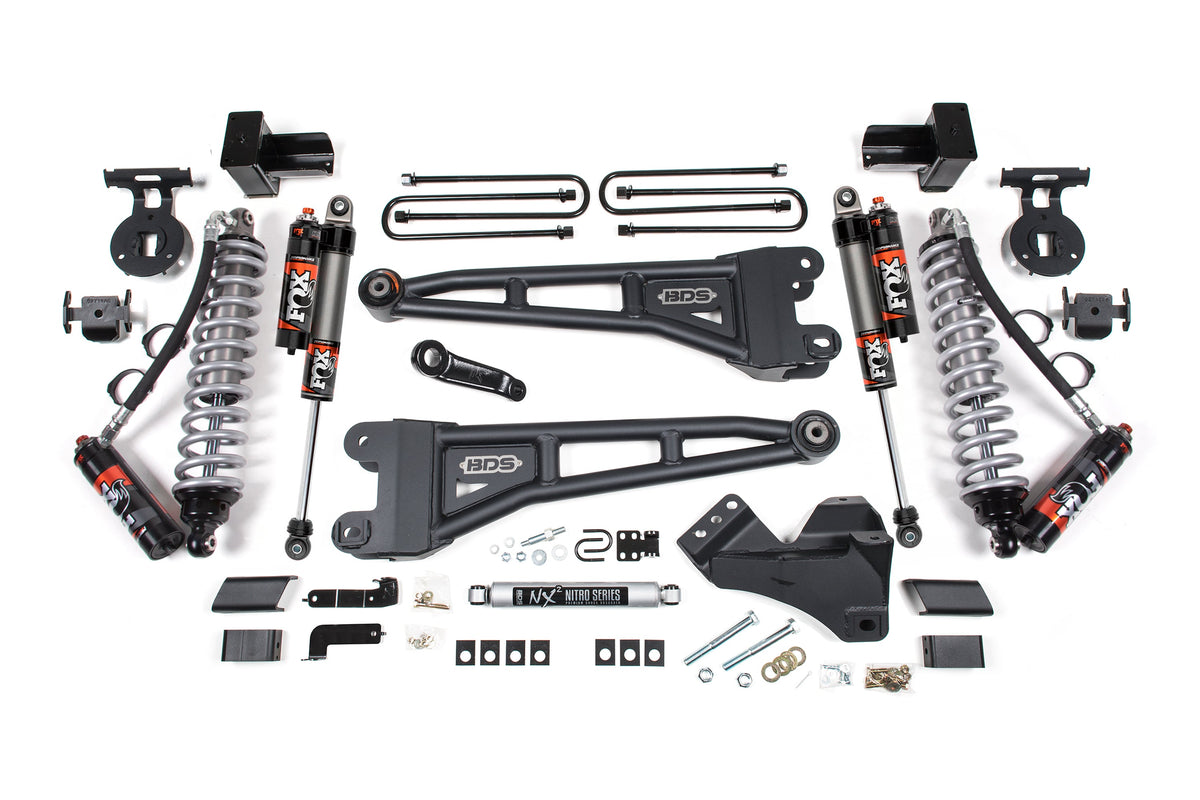

| FOX 2.5 Performance Elite |
BDS2261PES |
Yes |
BDS013317, BDS013414, BDS123263, BDS123613, BDS85431, FOX88326098, FOX88406427 |

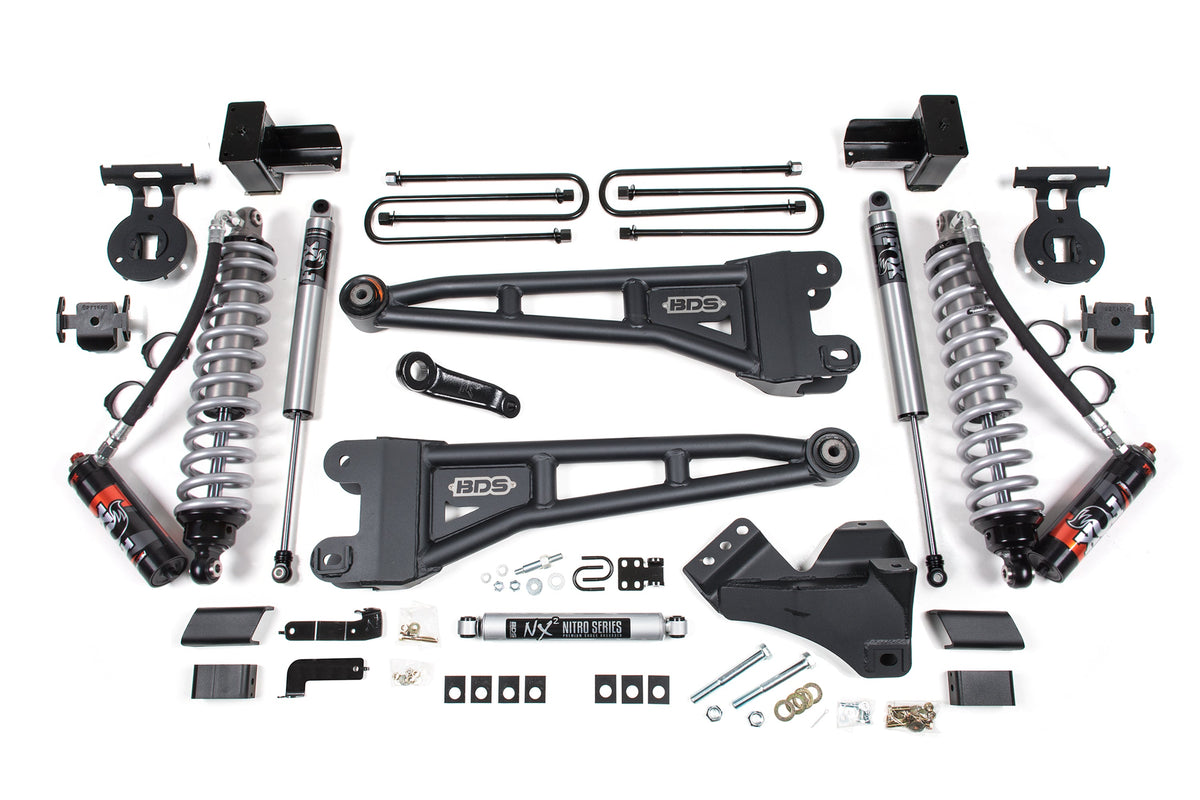

| FOX 2.5 Performance Series HTO |
BDS2261PPS |
Yes |
BDS013317, BDS013414, BDS123263, BDS123613, BDS85431, FOX88406427, FOX98724021 (x2) |
Fits:
- 2023-2025 Ford F-350 Super Duty
Part #: BDS2261PES, BDS2261PPS
