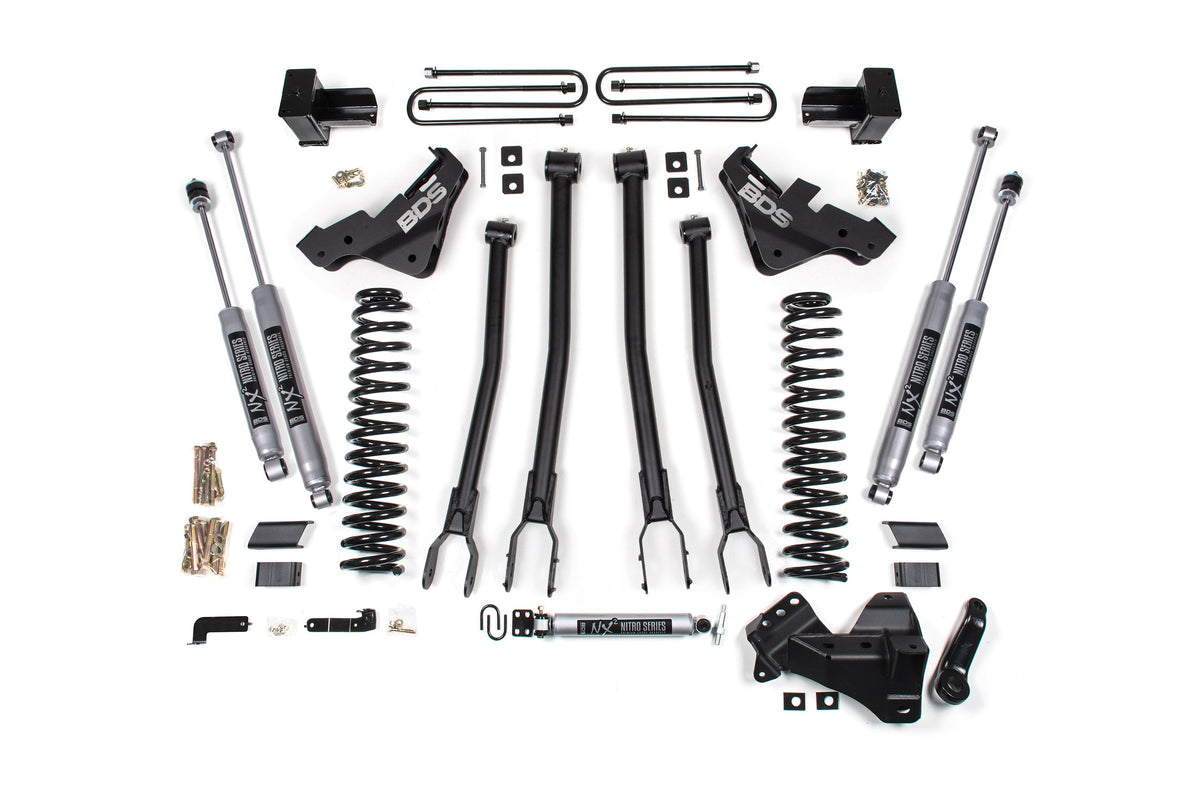

Take your dual rear wheel DRW Ford F350 Super Duty diesel truck to the next level with this 5-inch 4-Link lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your dually Ford truck up right with clearance for up to 37 inch tires.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arm conversion, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks.
At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied.
In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.
4-Link Conversion
Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
Details:
Specifications:
- Lift Height: 5.0 Inch
- Front Lift Height: 5.0 Inch
- Rear Lift Height: 2.0 Inch
- Drive: 4WD
- Fuel Type: Diesel
- Lift Type: 4-Link/Block
- Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
Options & Part Numbers:
| Option |
Part # |
Shocks Included |
What's in the Box |

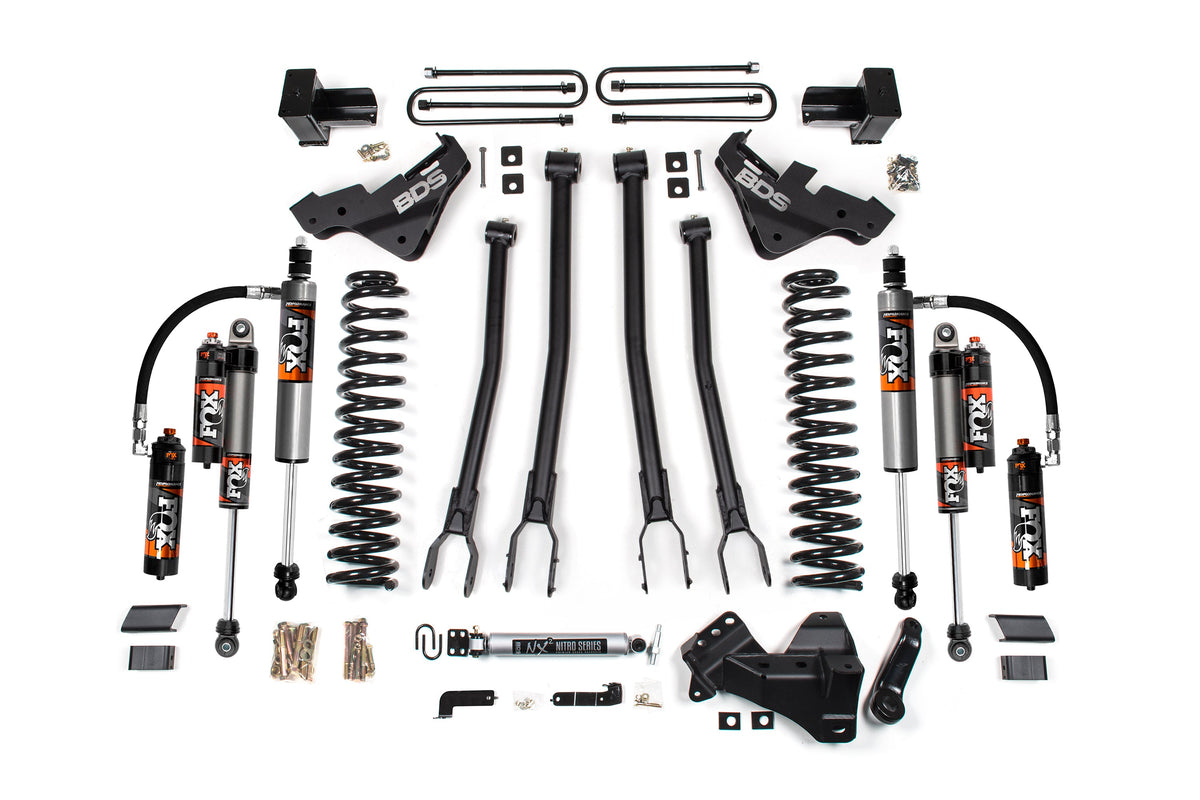

| FOX 2.5 Performance Elite |
BDS2250FPE |
Yes |
BDS013317, BDS013501, BDS013502, BDS013503, BDS033411, BDS85431, FOX88326097, FOX88326098 |

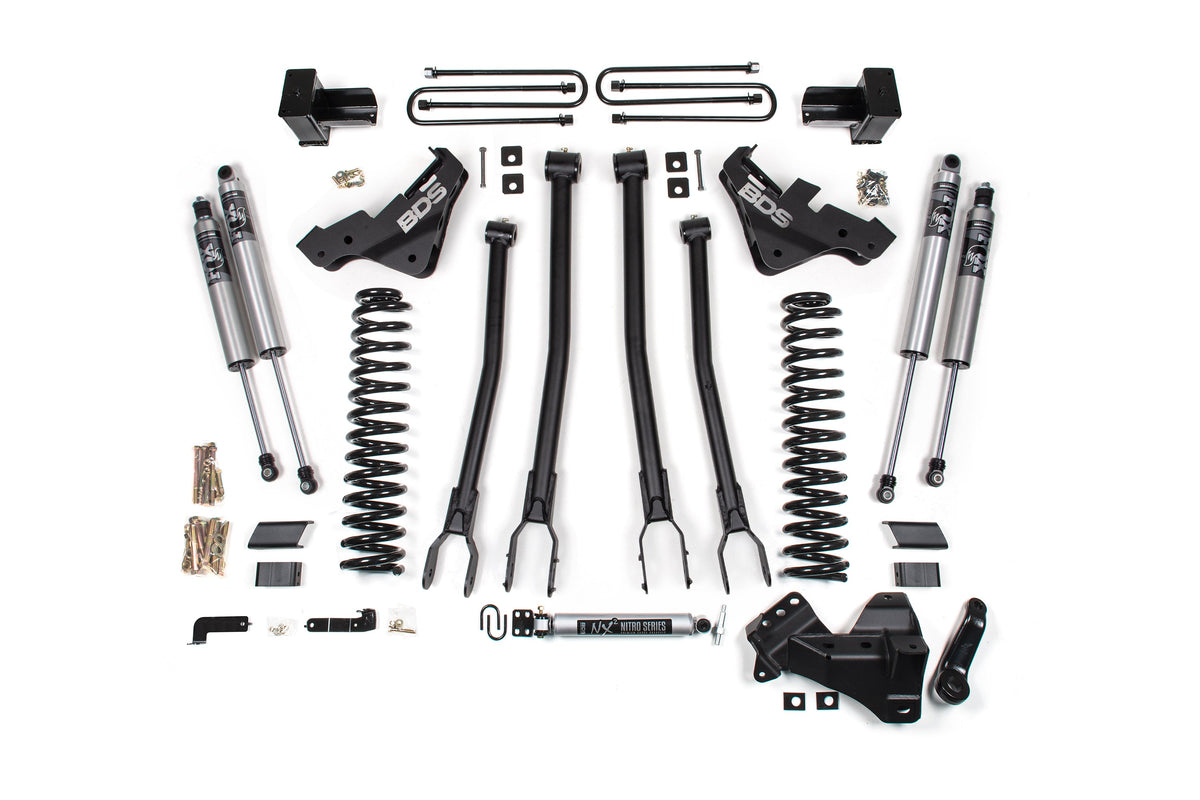

| FOX 2.5 Performance Series HTO |
BDS2250FPS |
Yes |
BDS013317, BDS013501, BDS013502, BDS013503, BDS033411, BDS85431, FOX98724020 (x2), FOX98724021 (x2) |

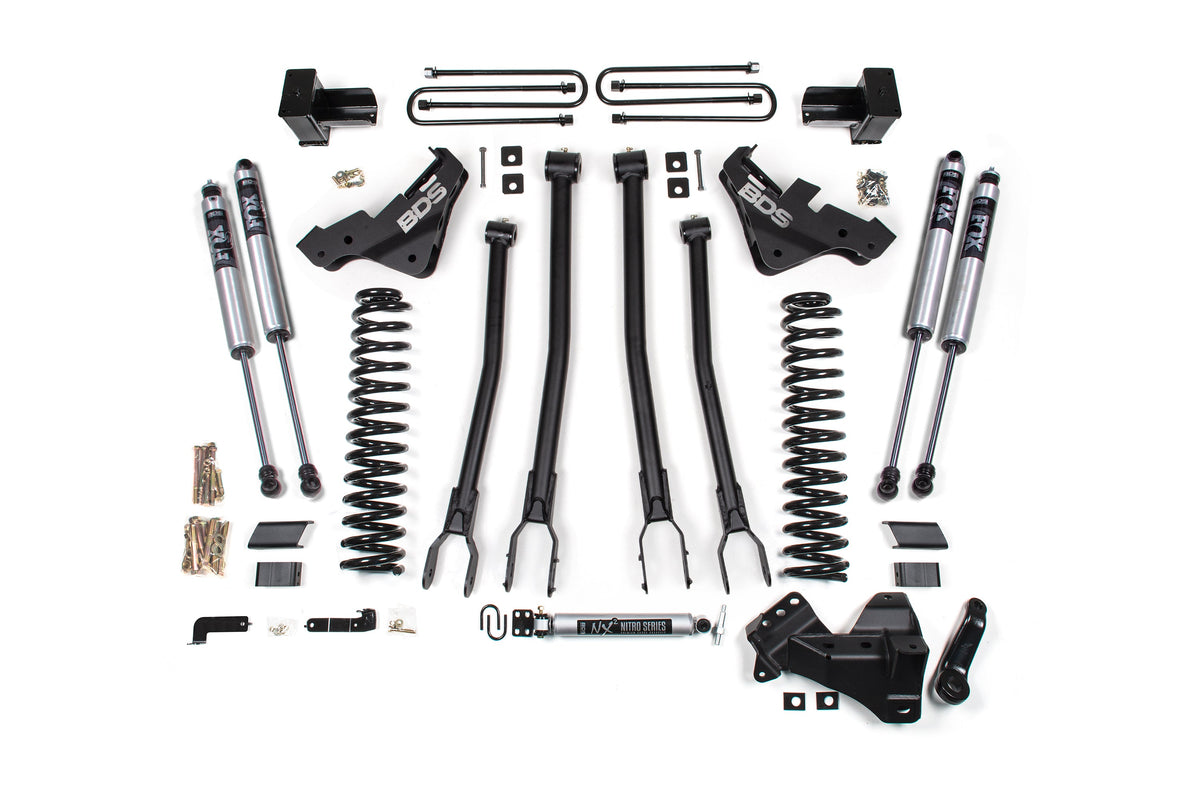

| FOX 2.0 Performance Series |
BDS2250FS |
Yes |
BDS013317, BDS013501, BDS013502, BDS013503, BDS033411, BDS85431, FOX98224700 (x2), FOX98224718 (x2) |
Fits:
- 2023-2025 Ford F-250 Super Duty
- 2023-2025 Ford F-350 Super Duty
Part #: BDS2250FPE, BDS2250FPS, BDS2250FS
