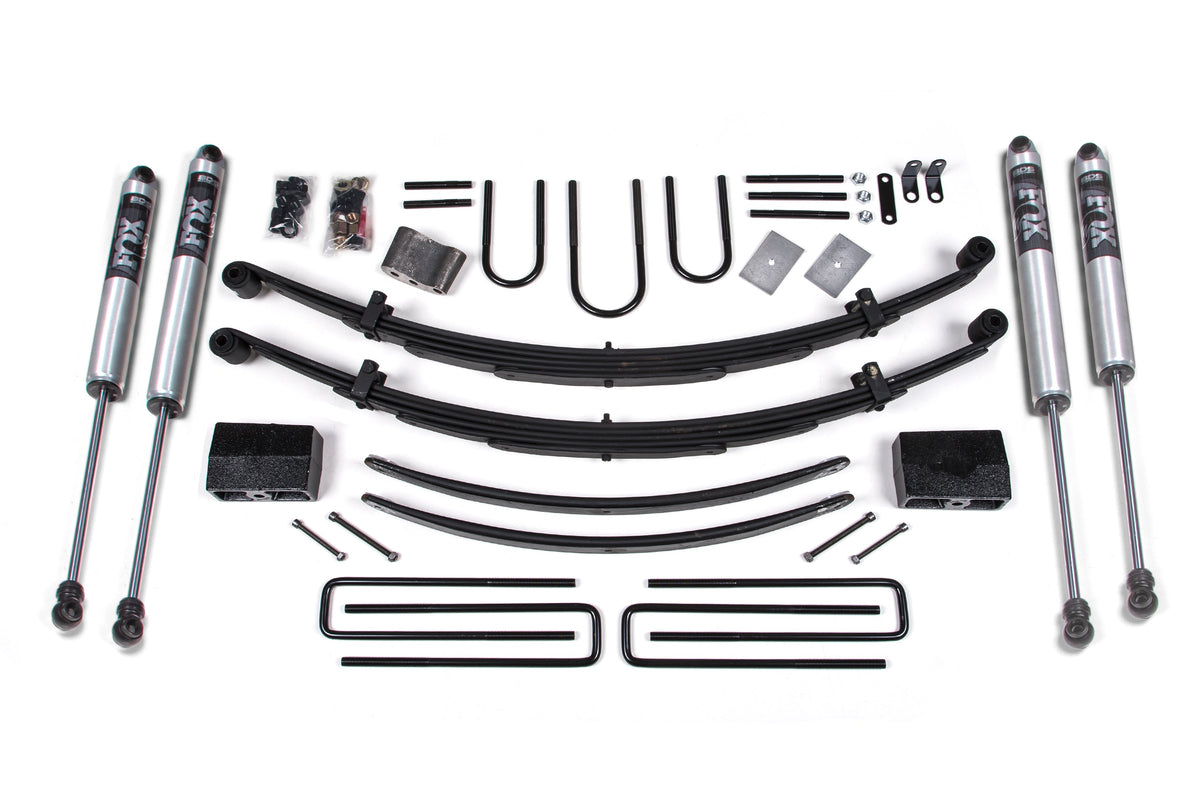

BDS Suspension 5 Inch Lift Kit Dodge W100/W200 1969-1973 4WD

Designed to improve stance, performance, and capability. BDS Suspension has designed this 5-inch lift kit for your 1969-1973 Dodge RAM 1500 and 2500 truck. This kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes Glide-Ride leaf springs, 3 inch steering block to correct steering linkage angles, and brake line brackets. In the rear this kit utilizes a high-strength lift blocks, add-a-leaf, and longer u-bolts.

The round out these kits with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.

Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

FOX 2.0 Performance Series

Features:

• Easy, 100 percent Bolt-on installation
• Glideride leaf springs to provide full lift height and increased capacity
• New steering arm maintains proper steering angles for improved handling
• Cast steel blocks and add-a-leaf provide level stance from front to rear

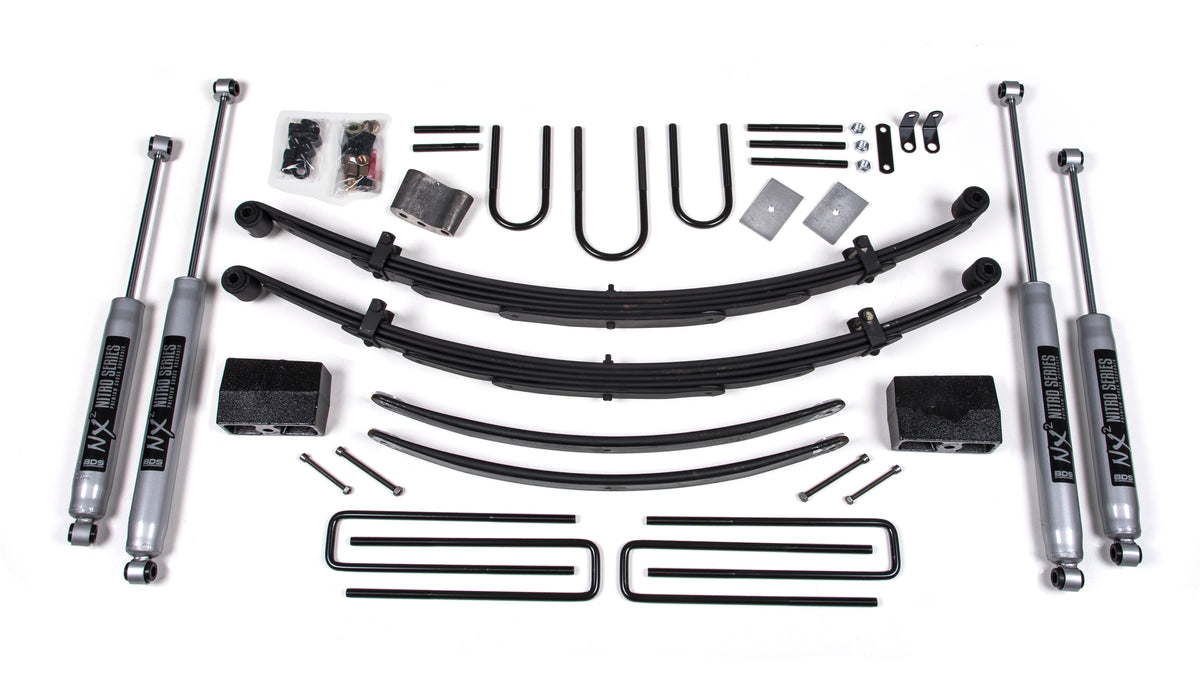

• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Fitment Notes (from BDS):

• On models with Saginaw or Corporate type front driveshaft, CV cluster may require dressing to prevent binding.
• Anti-Sway bar links will have to be sectioned and lengthened.
• Not for heavy duty 3/4 ton.
• I.D. of the bushing is smaller than the mounting pin and will require lubrication and extra effort for installation.
• #082501 steering block only fits Dana 44 with 3 bolt knuckle.

Specifications:

• Lift Height: 5.0 Inch
• Front Lift Height: 5.0 Inch
• Rear Lift Height: 5.0 Inch
• Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts

Options & Part Numbers:

Fits:

• 1969 Dodge W100 Pickup
• 1969-1973 Dodge W200 Pickup
• 1969 Dodge W300 Pickup

Part #: BDS200FS, BDS200H
