BDS Suspension 5 Inch Lift Kit Chevy Silverado or GMC Sierra 2500HD/3500HD 2020-2026 4WD
-
Free shipping on orders over $100
-
Secure payments
- Available

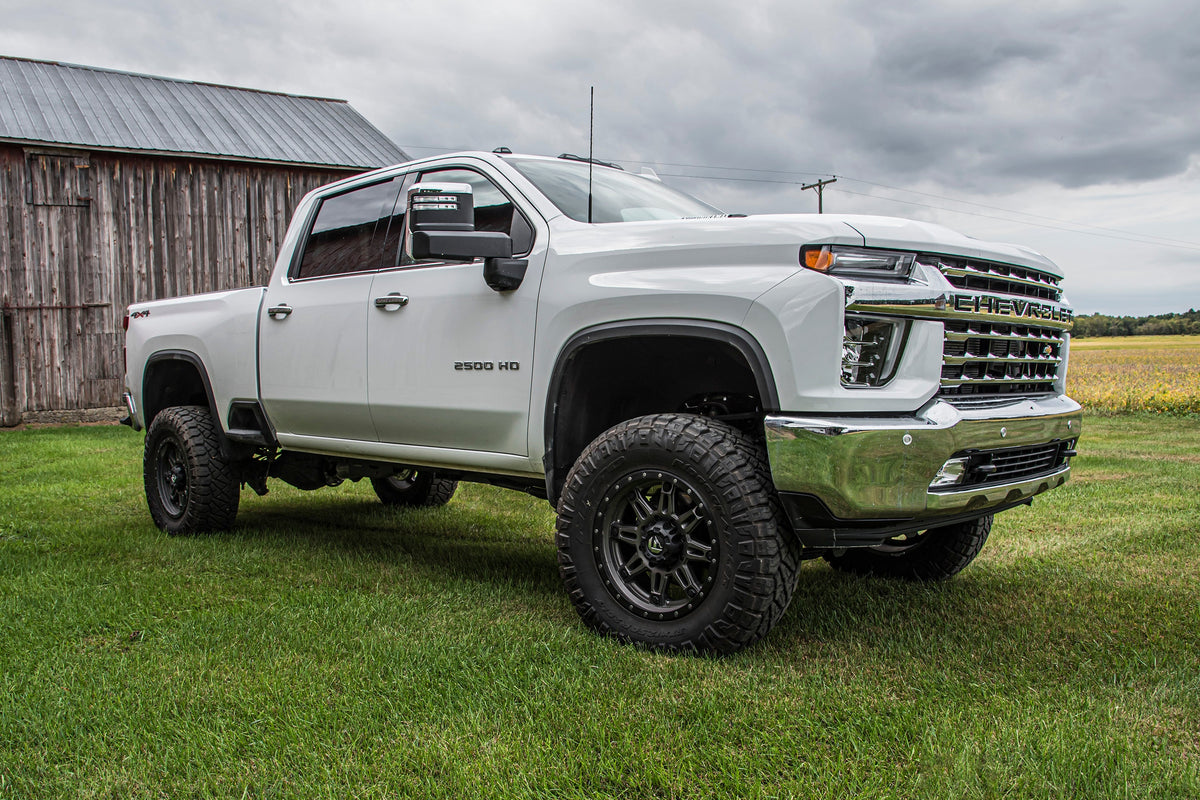

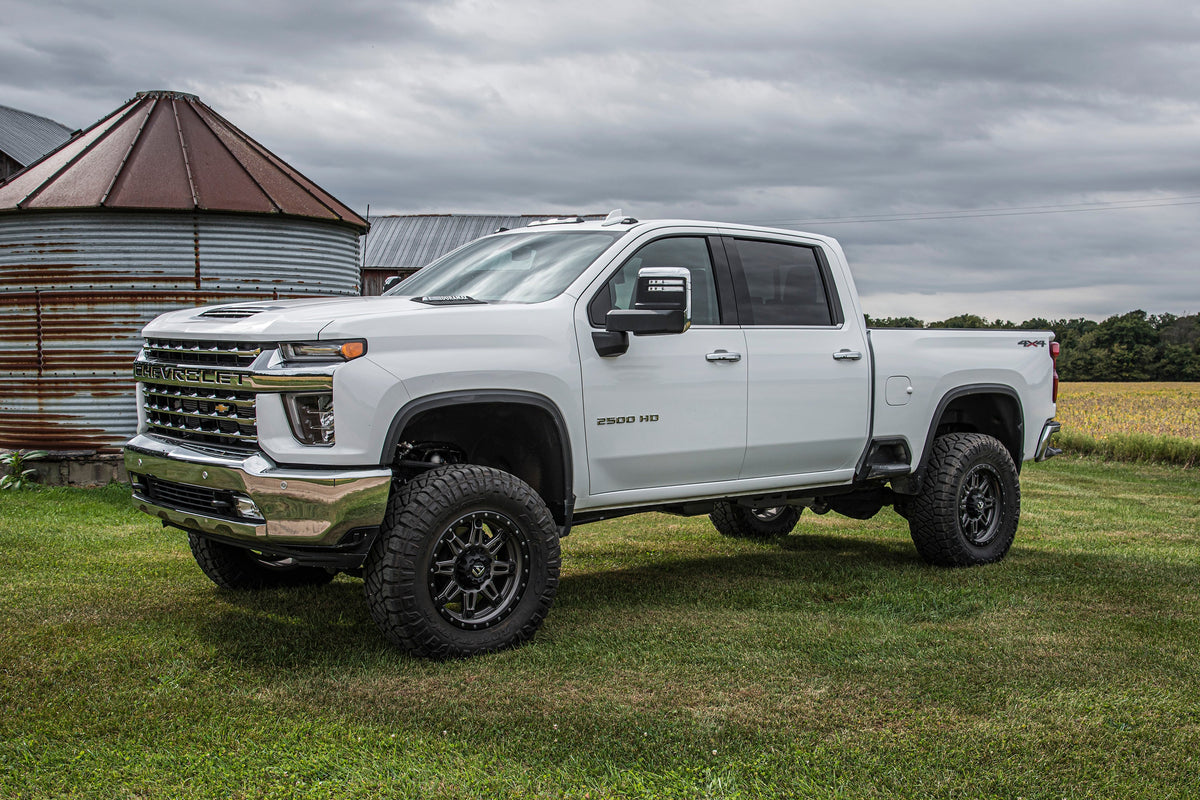

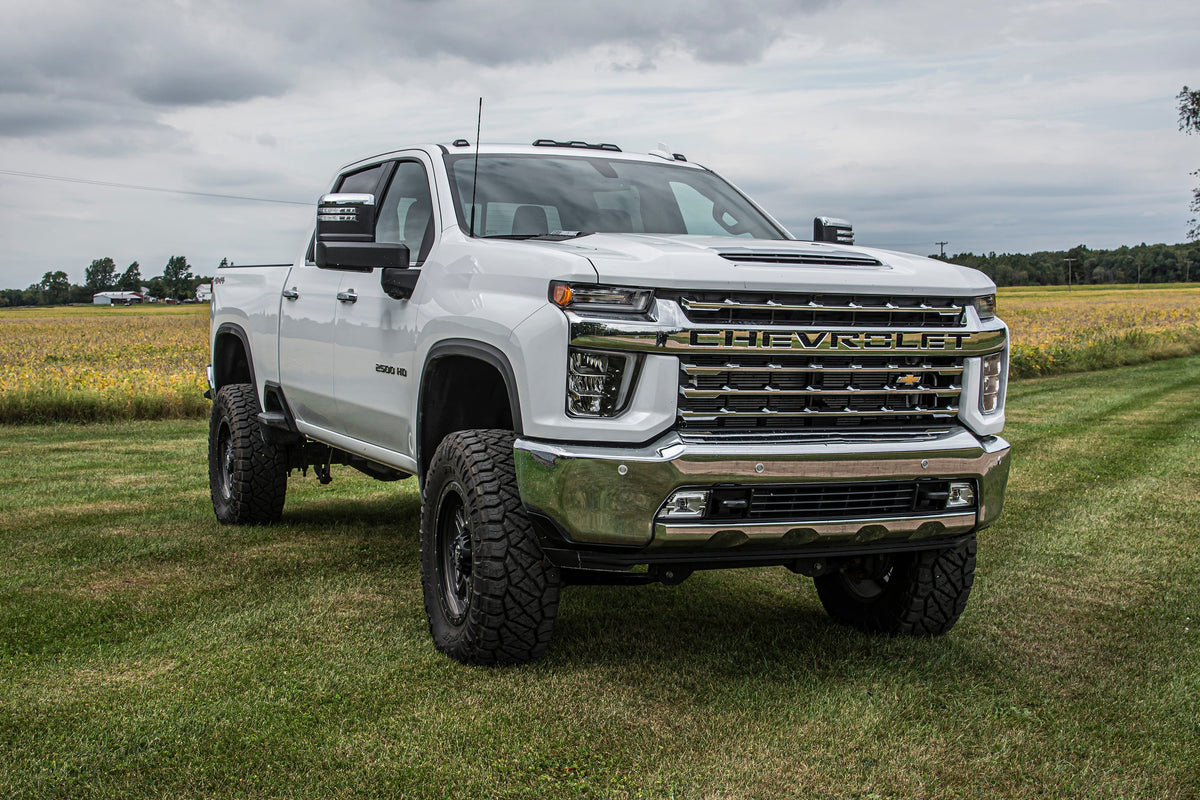

Take your 2020-2024 Chevy Silverado and GMC Sierra 2500 HD 4WD to the next level by installing this 5-inch lift kit by BDS Suspension. For maximum ground clearance, BDS designed a No Torsion Bar Drop System where the torsion bars are mounted directly to the top of the lower a-arm eliminating the need to drop the torsion bar cross-member.
Designed to improve the stance, performance, and capability this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.
Up front, the kit utilizes torsion bar relocation brackets, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.
Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, stainless steel brake lines, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear BDS offers replacement lift blocks and u-bolts to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also included, BDS supplies brake line and ABS line relocation brackets allow the use of factory brake lines. Lastly are a matching set of NX2 Nitro or FOX 2.0 Performance Series shocks.
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function.
Rear Lift Option 5 Inch Block Kit Without Overload
Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.
Shock Option
FOX 2.0 Performance Series
Features:
Fitment Notes (from BDS):
Specifications:
Options & Part Numbers:
| Option | Part # | Shocks Included | What's in the Box |
|---|---|---|---|

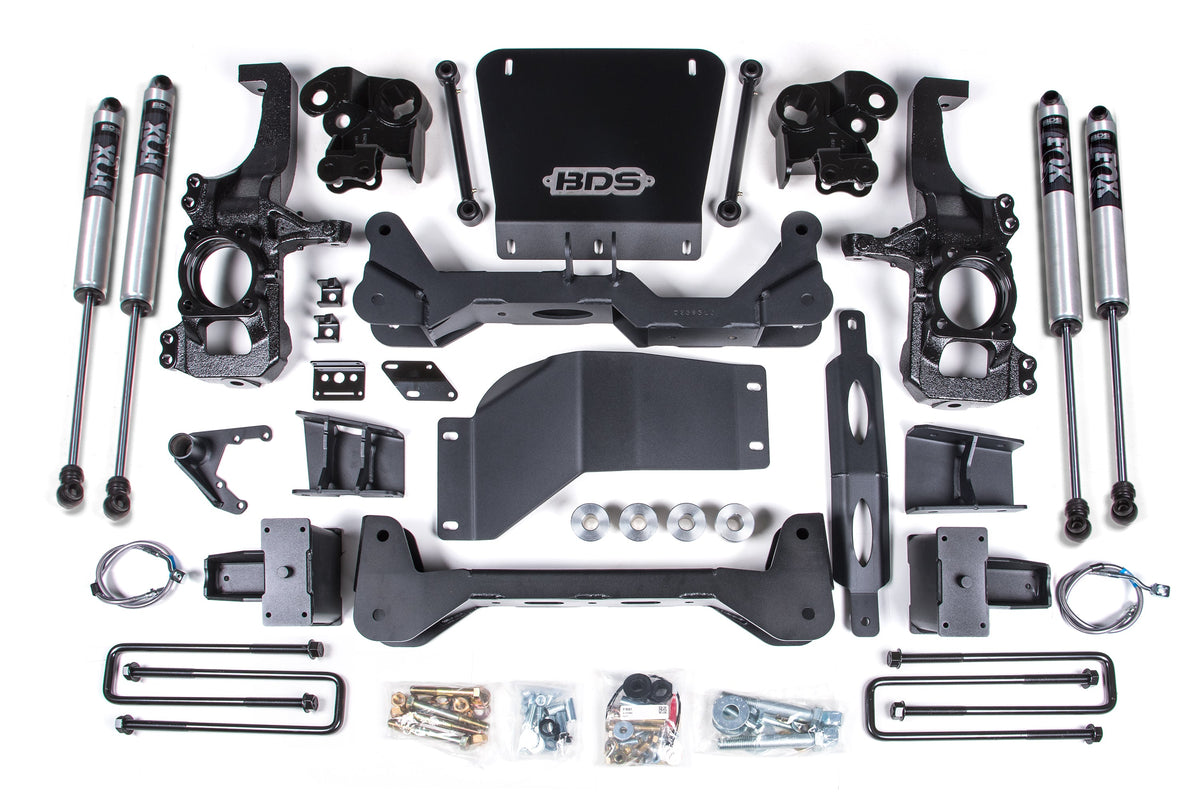

| Block Kit Without Factory Overload / FOX 2.0 Performance Series | BDS766FS | Yes | one BDS011416, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 inch Rear Box Kit - w/o Overloads one BDS021505, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 inch Box Kit one BDS021690, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 inch-6.5 inch Knuckle Box Kit - Drv one BDS021691, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 inch-6.5 inch Knuckle Box Kit - Pass one BDS021692, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 inch-6.5 inch Front Box Kit 1of2 one BDS021693, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 inch-6.5 inch Front Box Kit 2of2 one BDS121661, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 inch-6.5 inch Skid Plate Box Kit two FOX98224621, Fox 2.0 Shock 21.47 x 14.60 x 2 - EB1/EB1 two FOX98224769, Fox 2.0 Shock 31.02 x 18.95 x 2- EB1/EB1 |

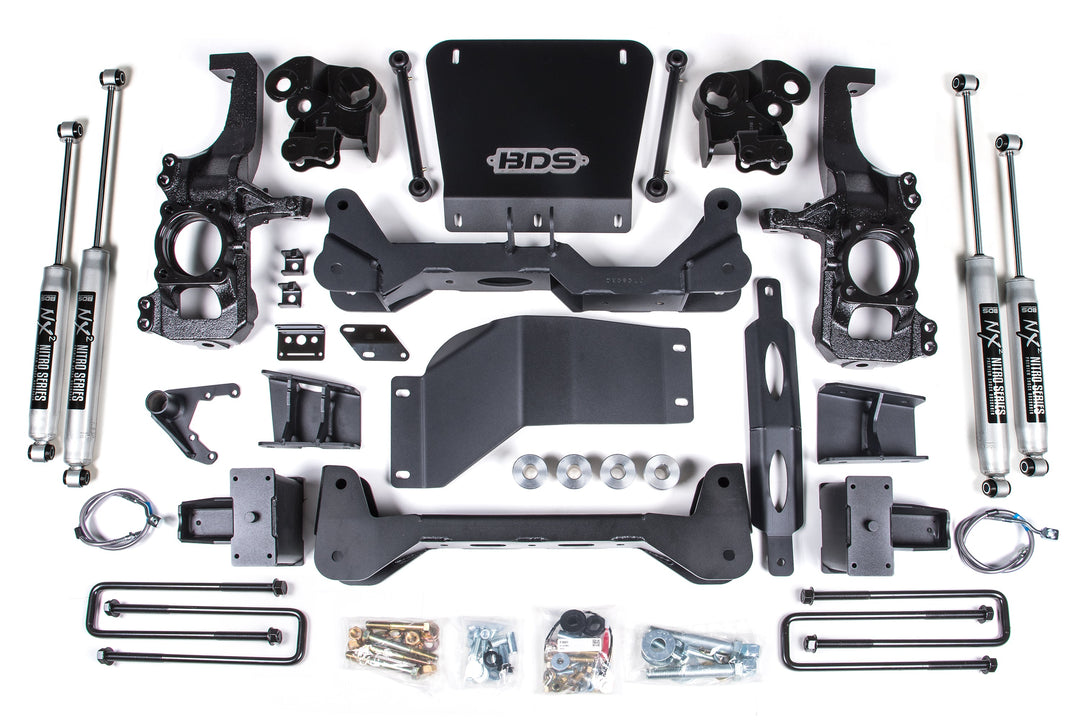

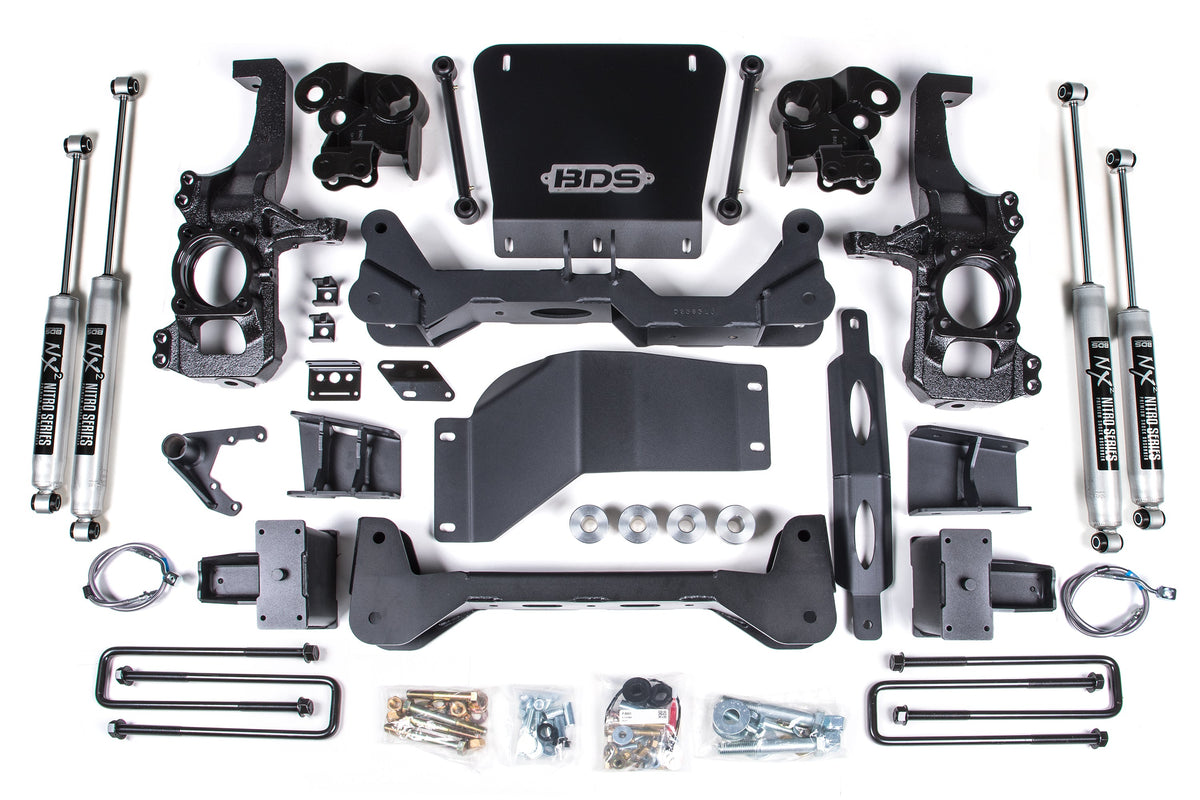

| Block Kit Without Factory Overload / NX2 Nitro Series | BDS766H | Yes | one BDS011416, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 inch Rear Box Kit - w/o Overloads one BDS021505, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 inch Box Kit one BDS021690, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 inch-6.5 inch Knuckle Box Kit - Drv one BDS021691, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 inch-6.5 inch Knuckle Box Kit - Pass one BDS021692, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 inch-6.5 inch Front Box Kit 1of2 one BDS021693, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 inch-6.5 inch Front Box Kit 2of2 one BDS121661, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 inch-6.5 inch Skid Plate Box Kit two BDS85621, Shock - 21.41 x 13.59 x 2-3/8 EB1 / EB1 two BDS85769, Shock- 30.95 x 18.15 x 2-3/8 - EB1/EB1 |
| Block Kit With Factory Overload / FOX 2.0 Performance Series | BDS767FS | Yes | one BDS011426, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 inch Rear Box Kit - w/ Overloads one BDS021505, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 inch Box Kit one BDS021690, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 inch-6.5 inch Knuckle Box Kit - Drv one BDS021691, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 inch-6.5 inch Knuckle Box Kit - Pass one BDS021692, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 inch-6.5 inch Front Box Kit 1of2 one BDS021693, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 inch-6.5 inch Front Box Kit 2of2 one BDS121661, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 inch-6.5 inch Skid Plate Box Kit two FOX98224621, Fox 2.0 Shock 21.47 x 14.60 x 2 - EB1/EB1 two FOX98224769, Fox 2.0 Shock 31.02 x 18.95 x 2- EB1/EB1 |
| Block Kit With Factory Overload / NX2 Nitro Series | BDS767H | Yes | one BDS011426, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 inch Rear Box Kit - w/ Overloads one BDS021505, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 inch Box Kit one BDS021690, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 inch-6.5 inch Knuckle Box Kit - Drv one BDS021691, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 inch-6.5 inch Knuckle Box Kit - Pass one BDS021692, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 inch-6.5 inch Front Box Kit 1of2 one BDS021693, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 inch-6.5 inch Front Box Kit 2of2 one BDS121661, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 inch-6.5 inch Skid Plate Box Kit two BDS85621, Shock - 21.41 x 13.59 x 2-3/8 EB1 / EB1 two BDS85769, Shock- 30.95 x 18.15 x 2-3/8 - EB1/EB1 |
Fits:
Part #: BDS766FS, BDS766H, BDS767FS, BDS767H
