BDS Suspension 5.5 Inch Lift Kit w/ Radius Arm Ram 3500 w/ Rear Air Ride 2019-2024 4WD Gas

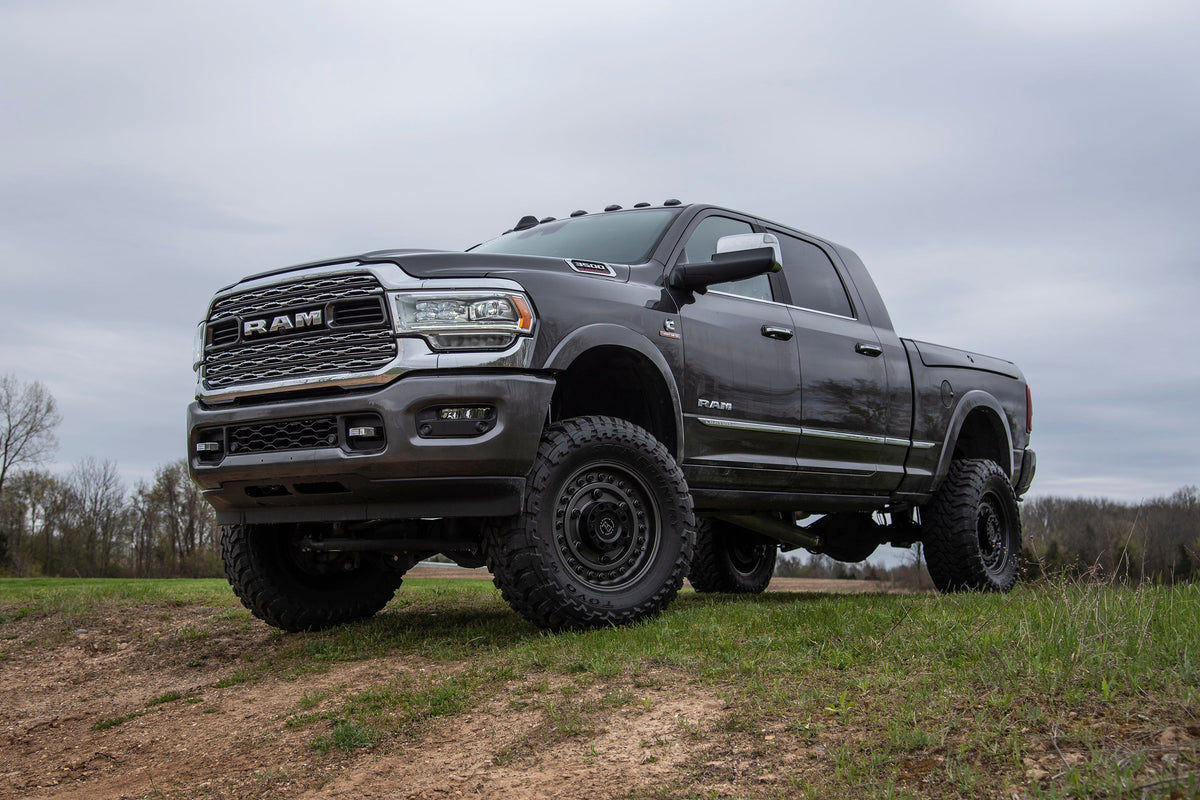

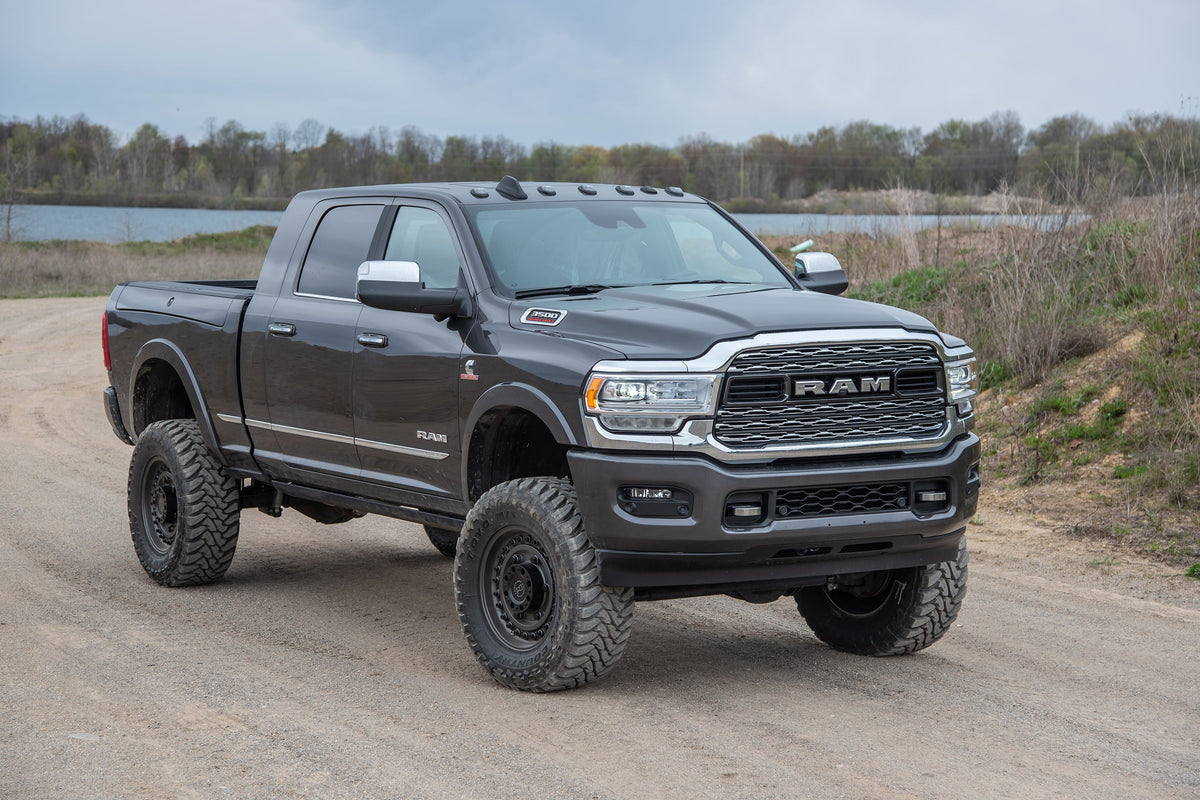

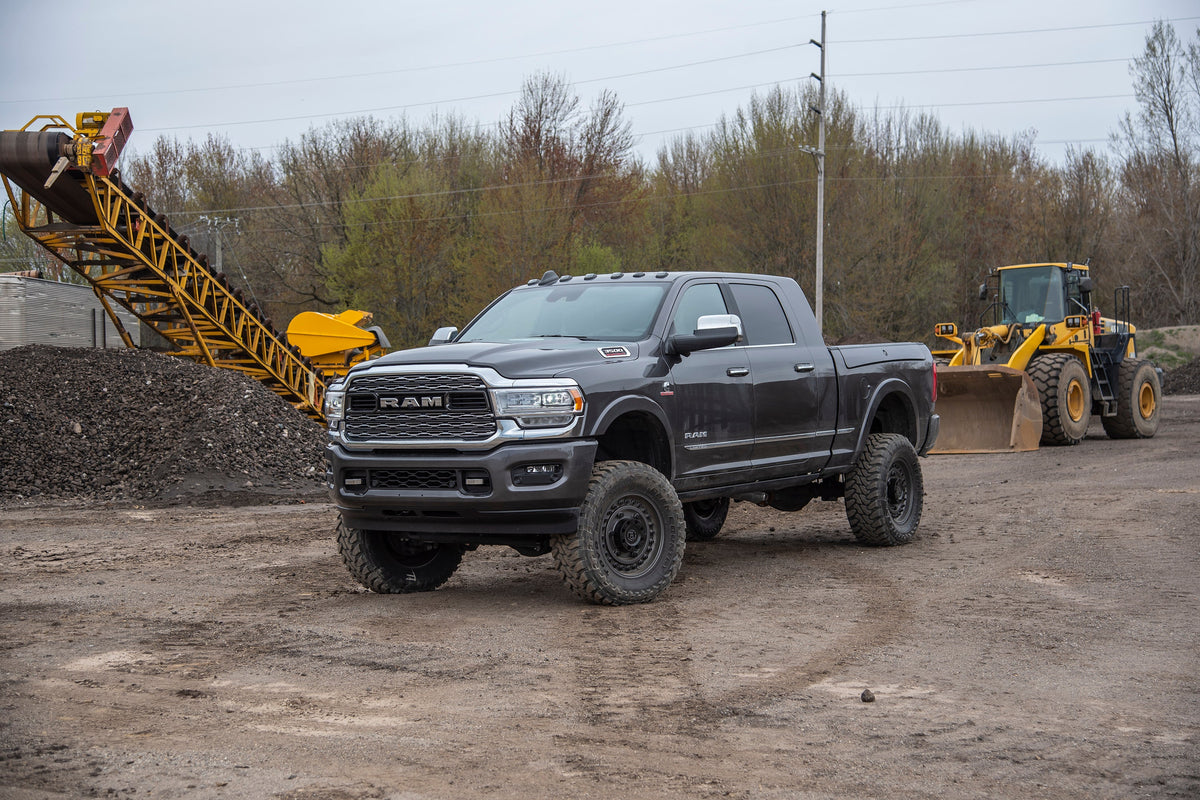

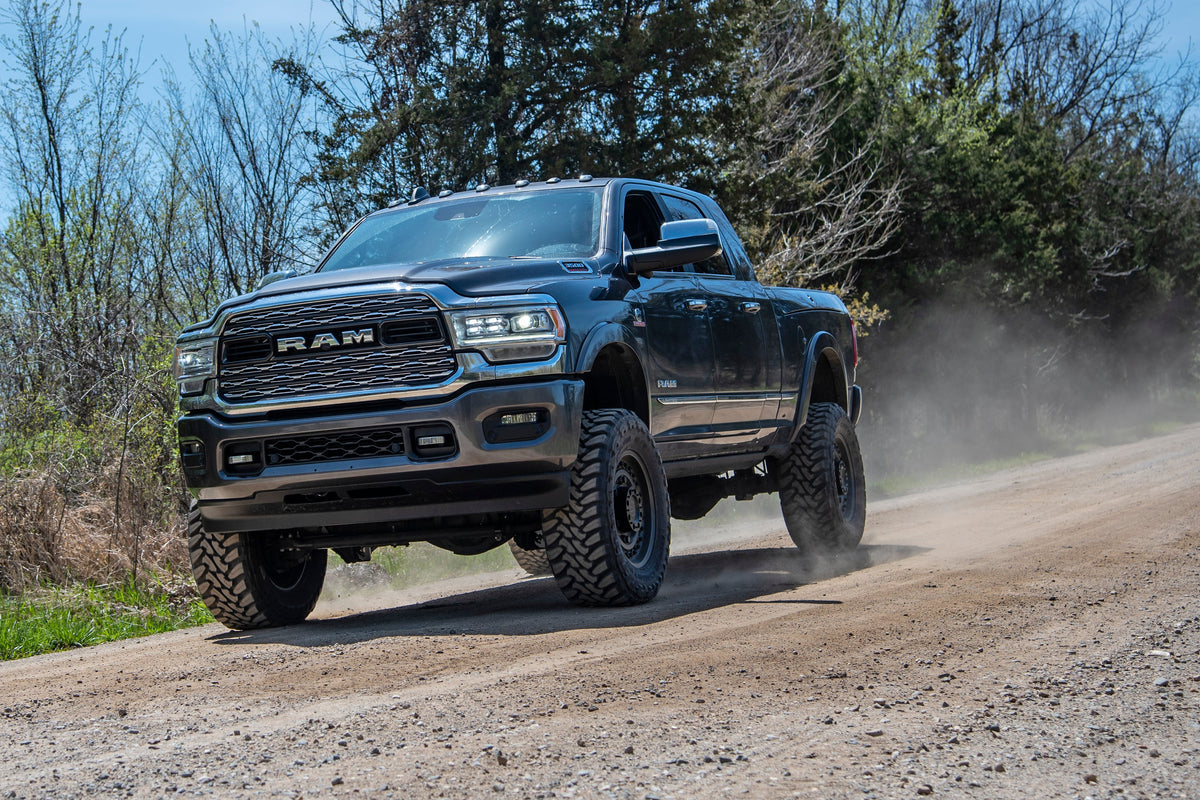

Raise your gas powered RAM 3500 with factory rear air bags truck to next heights with this 5.5-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

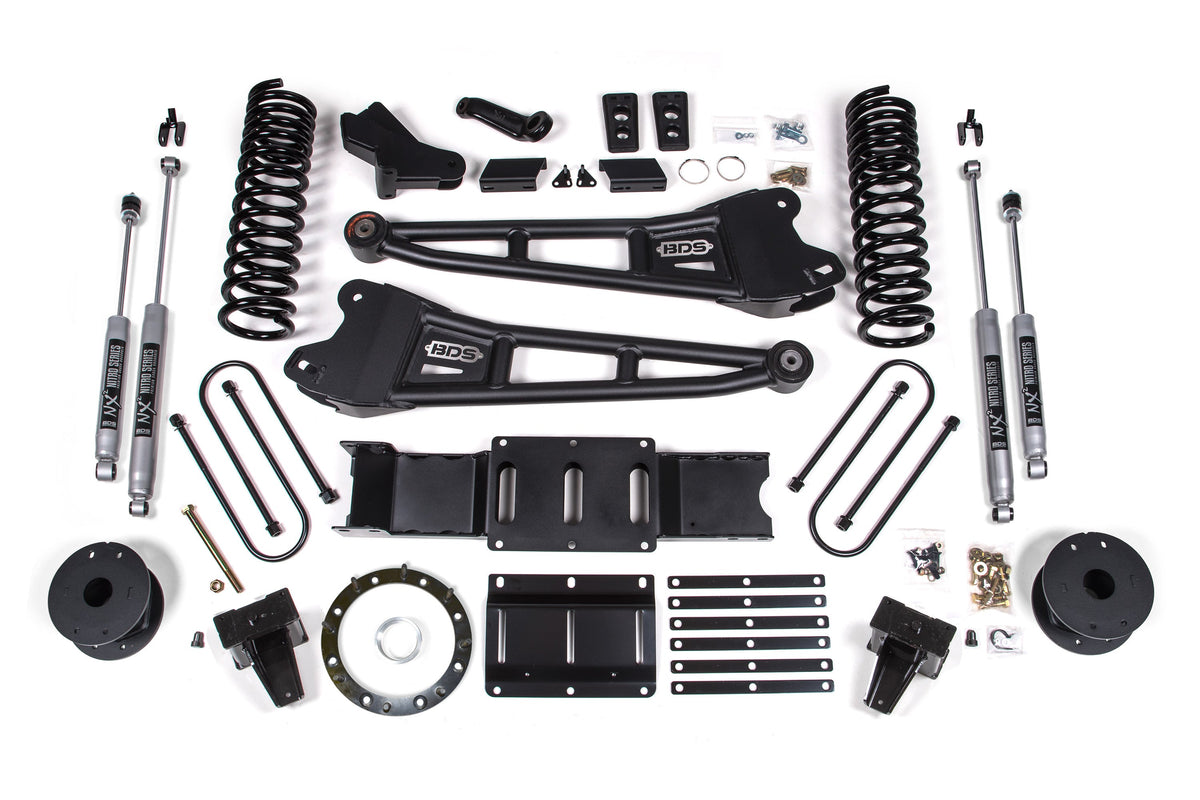

Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength steel lift block, heavy duty air bag spacer, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

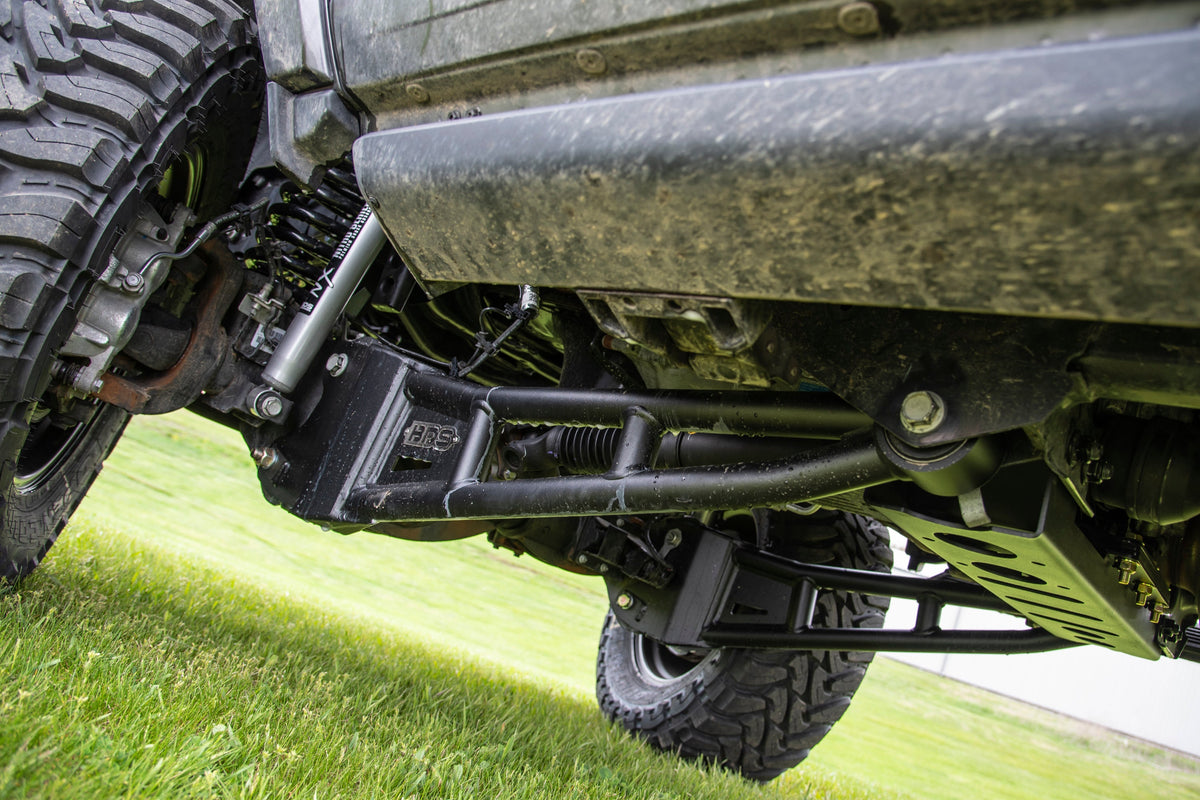

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

FOX 2.0 Performance Series

Features:

• Heavy duty tubular radius arms improve strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance
• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Fitment Notes (from BDS):

• For OE Rear Air Assist only
• A DEF tank relocation bracket(part# 122409) is required for this kit to work with Dually or Mega Cab Models with Aisin Transmissions (8-bolt).

Specifications:

• Lift Height: 5.5 Inch
• Front Lift Height: 5.5 Inch
• Rear Lift Height: 5.0 Inch
• Drive: 4WD
• Fuel Type: Gas
• Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
• Tire Size: 37 x 13.5 Tire Size 2: 37 x 13.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5.625/5.625

Options & Part Numbers:

Fits:

• 2019-2024 Ram 3500

Part #: BDS1726FS, BDS1726H
