BDS Suspension 5.5 Inch Lift Kit w/ 4-Link Ram 3500 2019-2024 4WD Gas

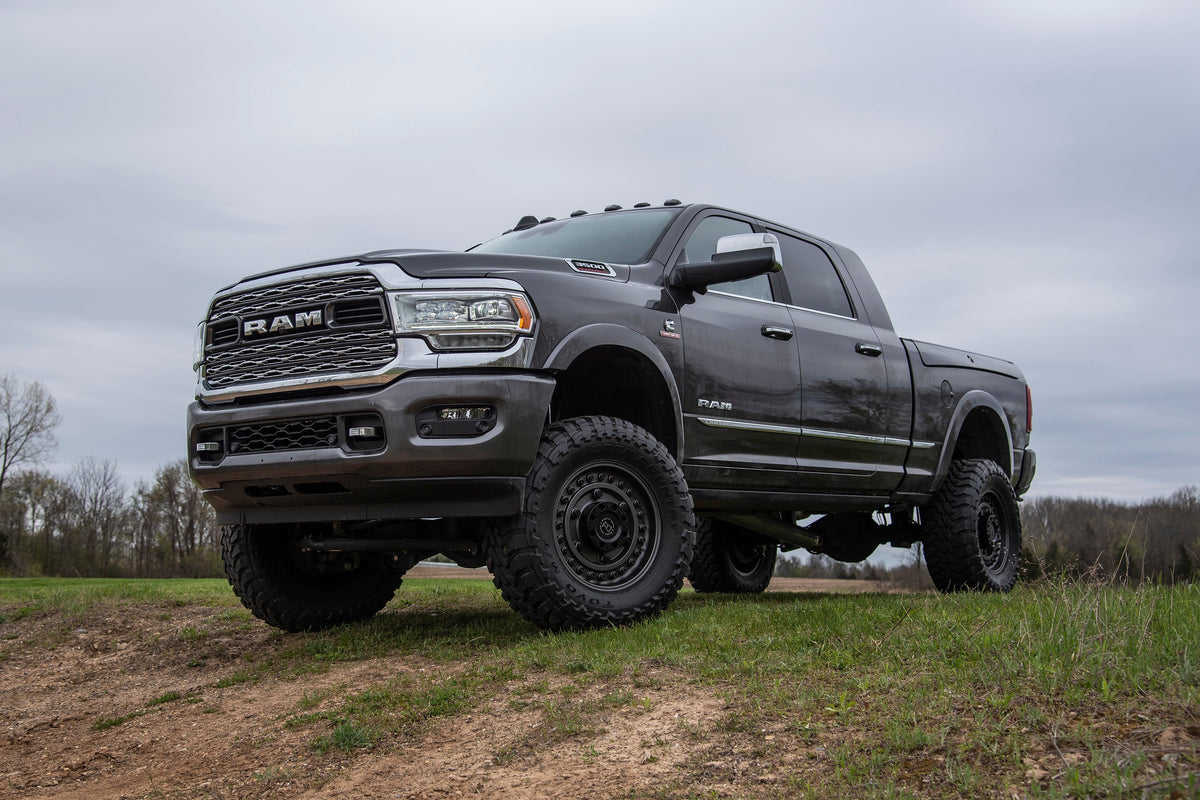

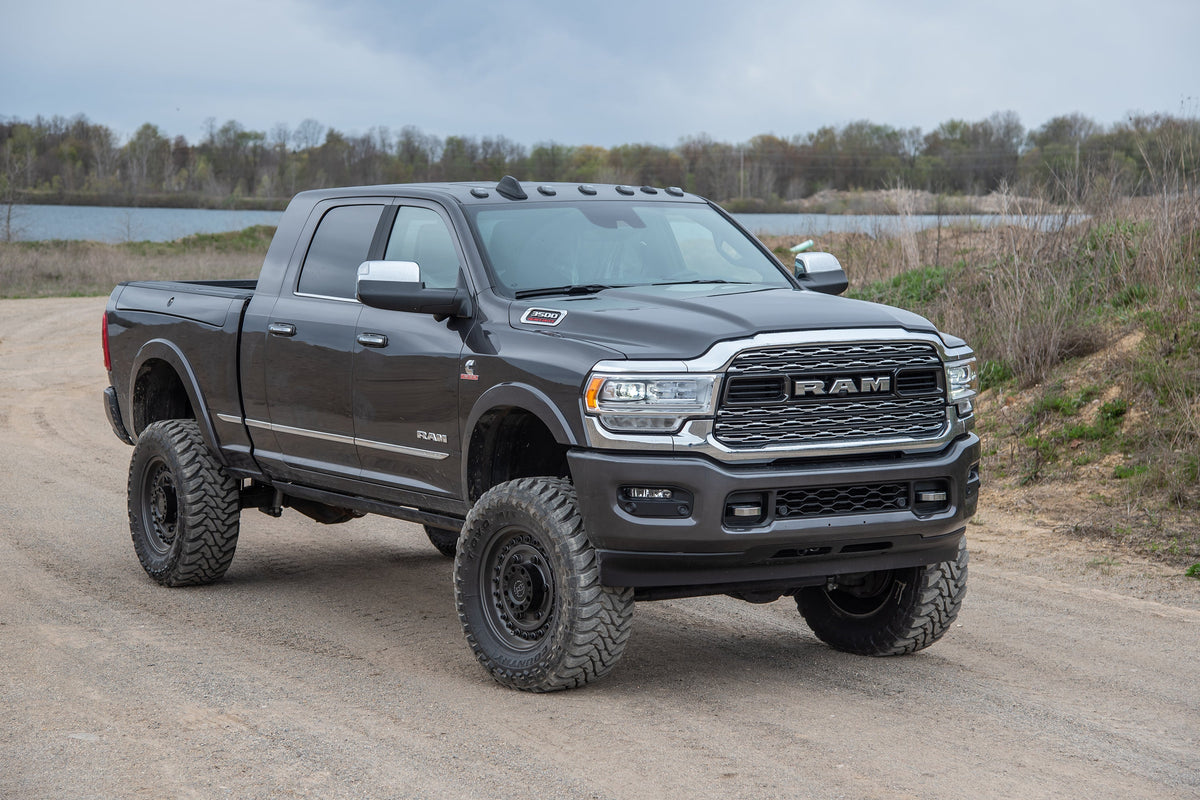

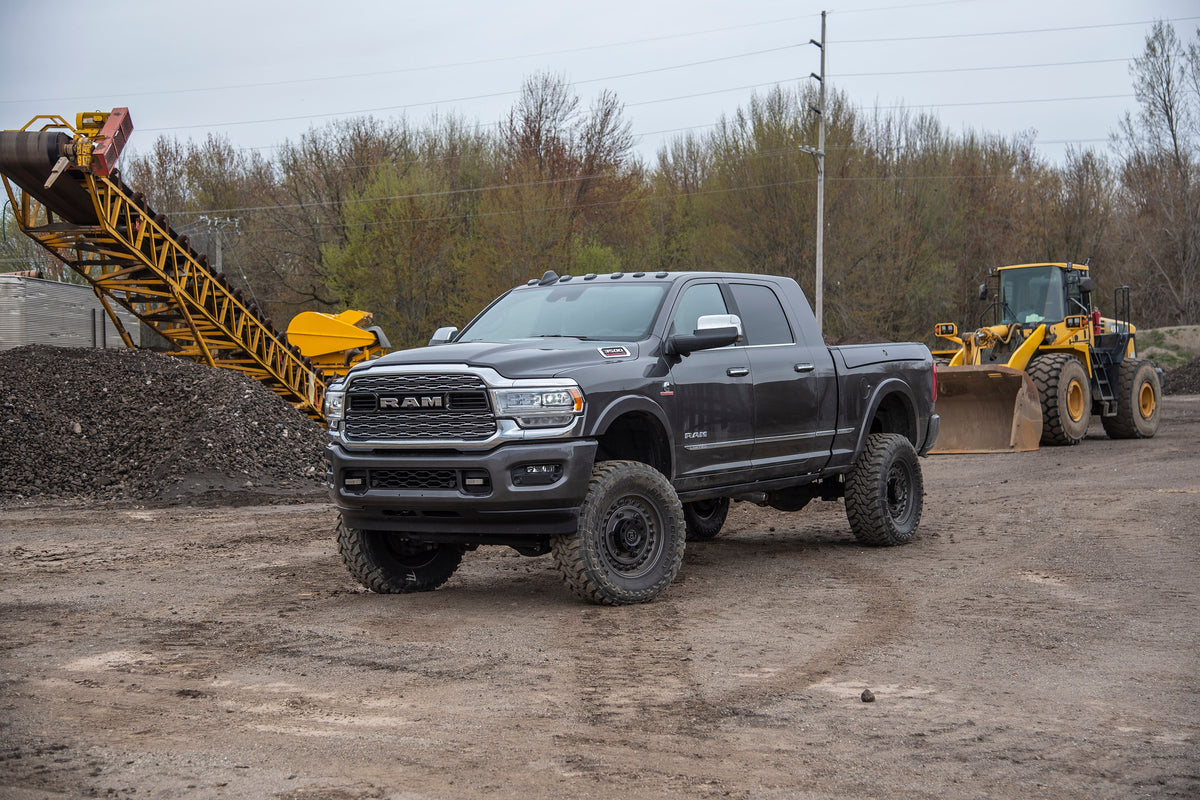

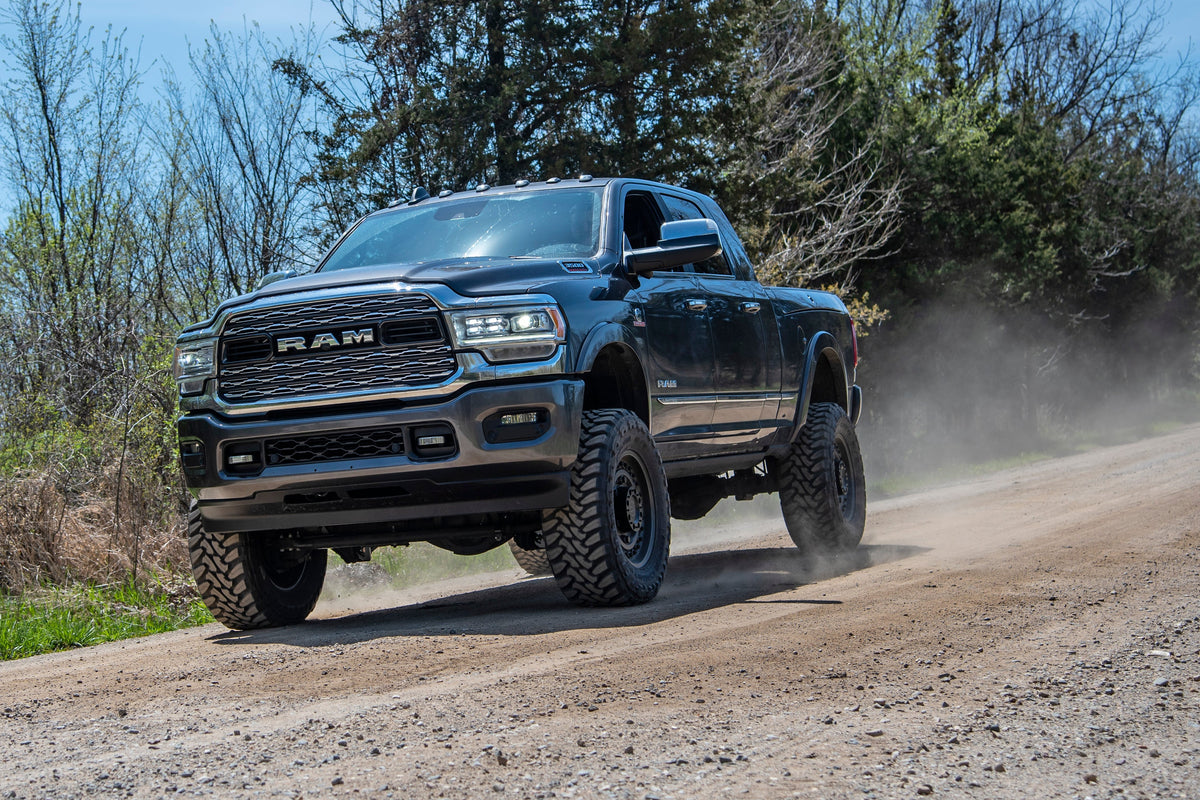

Raise your RAM 3500 gas powered truck to the next heights with this 5.5-inch lift kit with 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

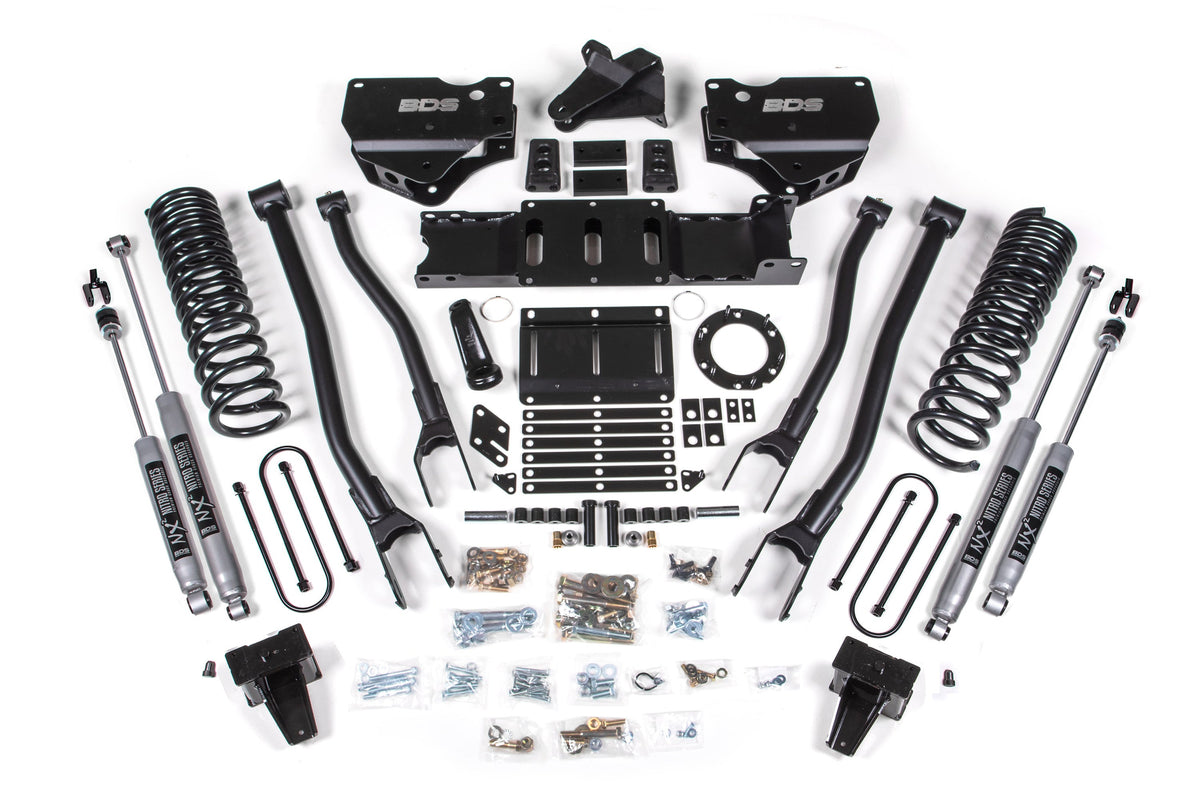

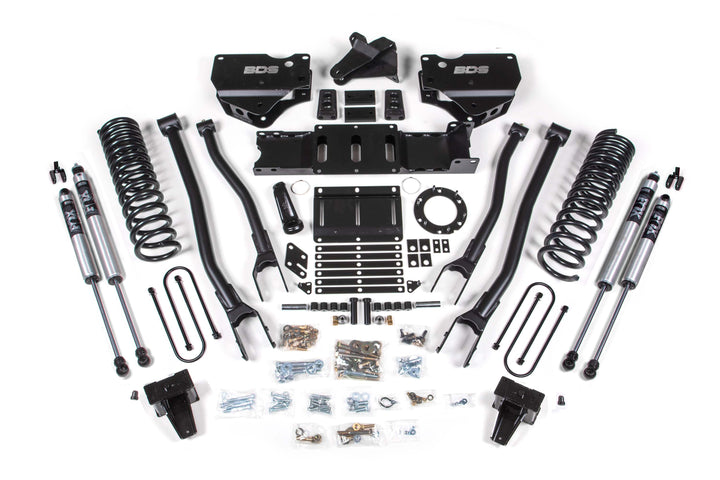

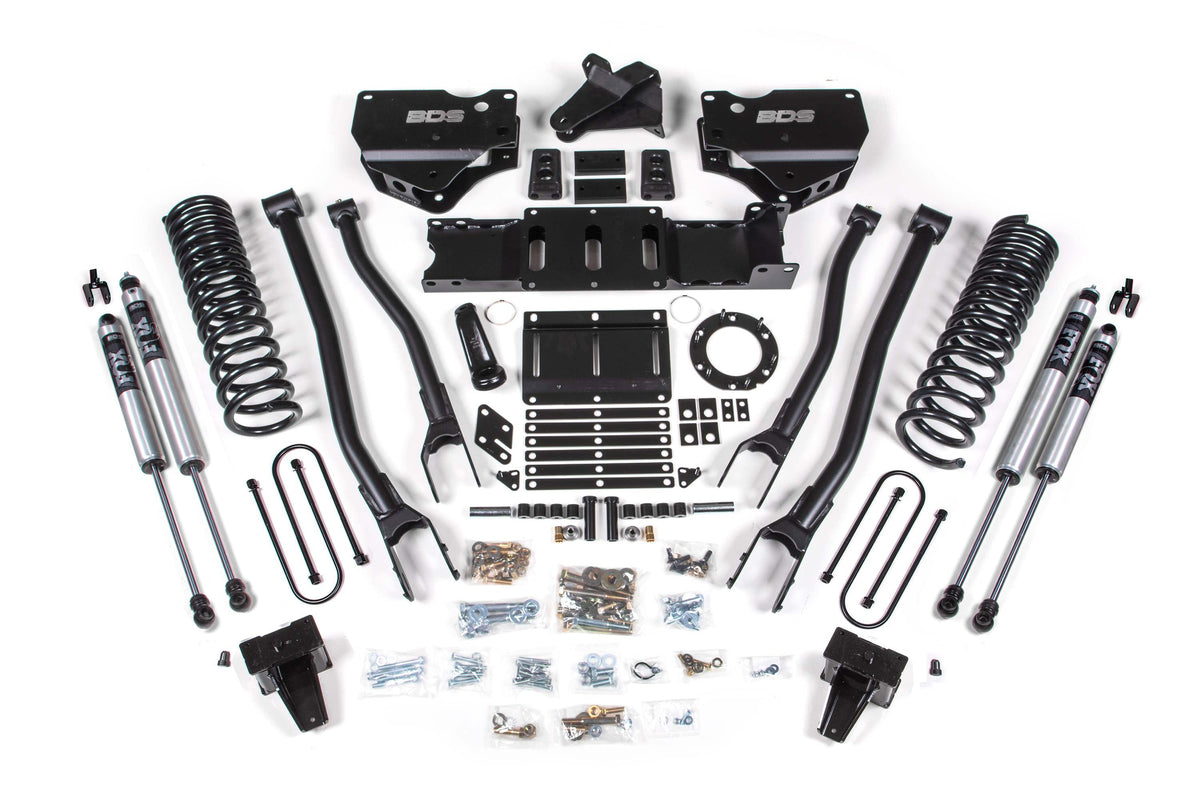

Up front the lift kit includes gas-specific Pro-Ride coil springs, 4-Link control arms and conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength steel lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

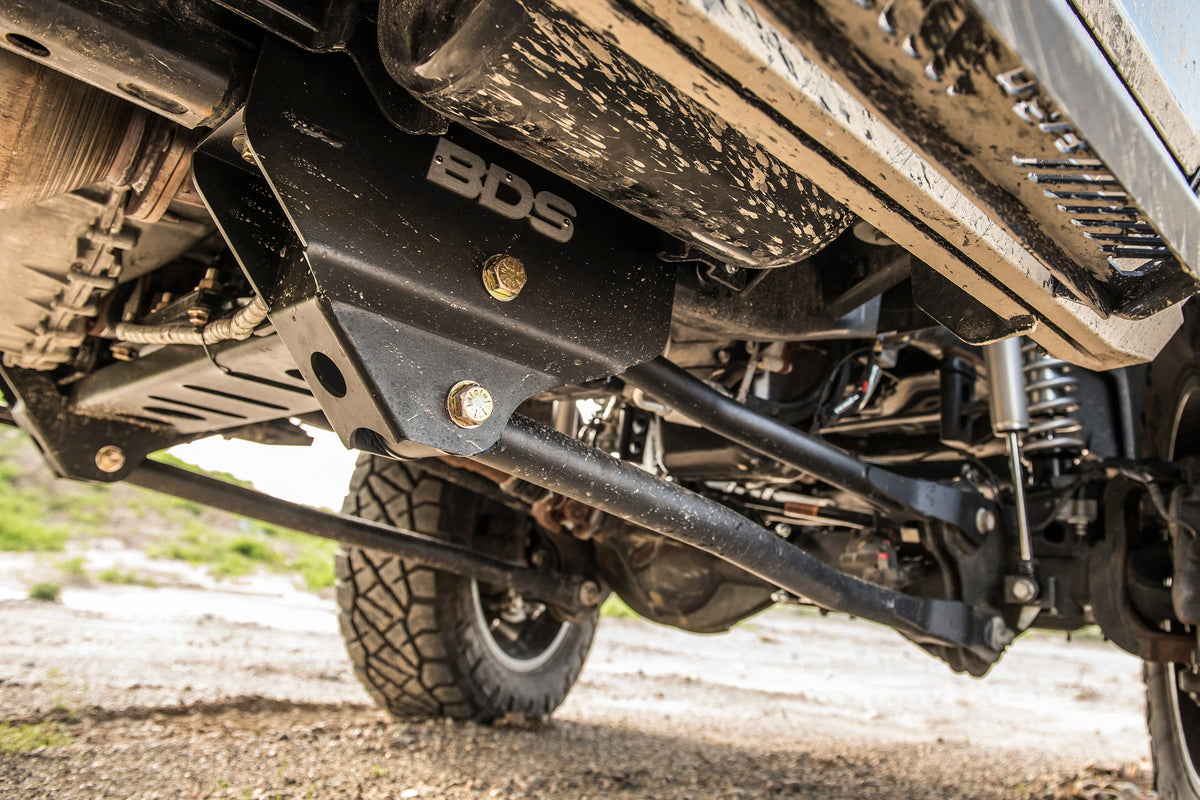

4-Link ConversionConvert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil SpringsA pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering CorrectionTo optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Features & Benefits

Recommended Tires & Wheels

Rear Lift OptionSelect rear box kit based on whether or not your RAM has factory Rear Overload Leaf.

Shock Option

FOX 2.5 Performance Elite Series

Features:

• Heavy duty 4-link improve strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
• (Trimming may be required)
• 37 x 12.5 with 20 x 9 and 5.625 in. Backspace
• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty
• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish
• Easy, 100 percent Bolt-on installation
• Maintains factory like ride quality
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Specifications:

• Lift Height: 5.5 Inch
• Front Lift Height: 5.5 Inch
• Rear Lift Height: 5.0 Inch
• Drive: 4WD
• Fuel Type: Gas
• Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
• Tire Size: 35 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5

Options & Part Numbers:

Fits:

• 2019-2024 Ram 3500

Part #: BDS1694FPE, BDS1694FS, BDS1694H, BDS1695FPE, BDS1695FS, BDS1695H
