BDS Suspension 5.5 Inch Lift Kit w/ 4-Link Ram 2500 2014-2018 4WD Gas
-
Free shipping on orders over $100
-
Secure payments
- Available
Built to outperform, BDS Suspension engineered a 5.5-inch lift kit with 4-Link conversion for your 2014-2018 RAM 2500 gas powered truck that will surely impress. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.
Up front the lift kit includes gas-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.
At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes progressive rate Pro-Ride coil springs, track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
4-Link Conversion
Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.
Pro-Ride Coil Springs
A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
FOX 2.5 Performance Elite Series
Features:
Fitment Notes (from BDS):
Specifications:
Options & Part Numbers:
| Option | Part # | Shocks Included | What's in the Box |
|---|---|---|---|

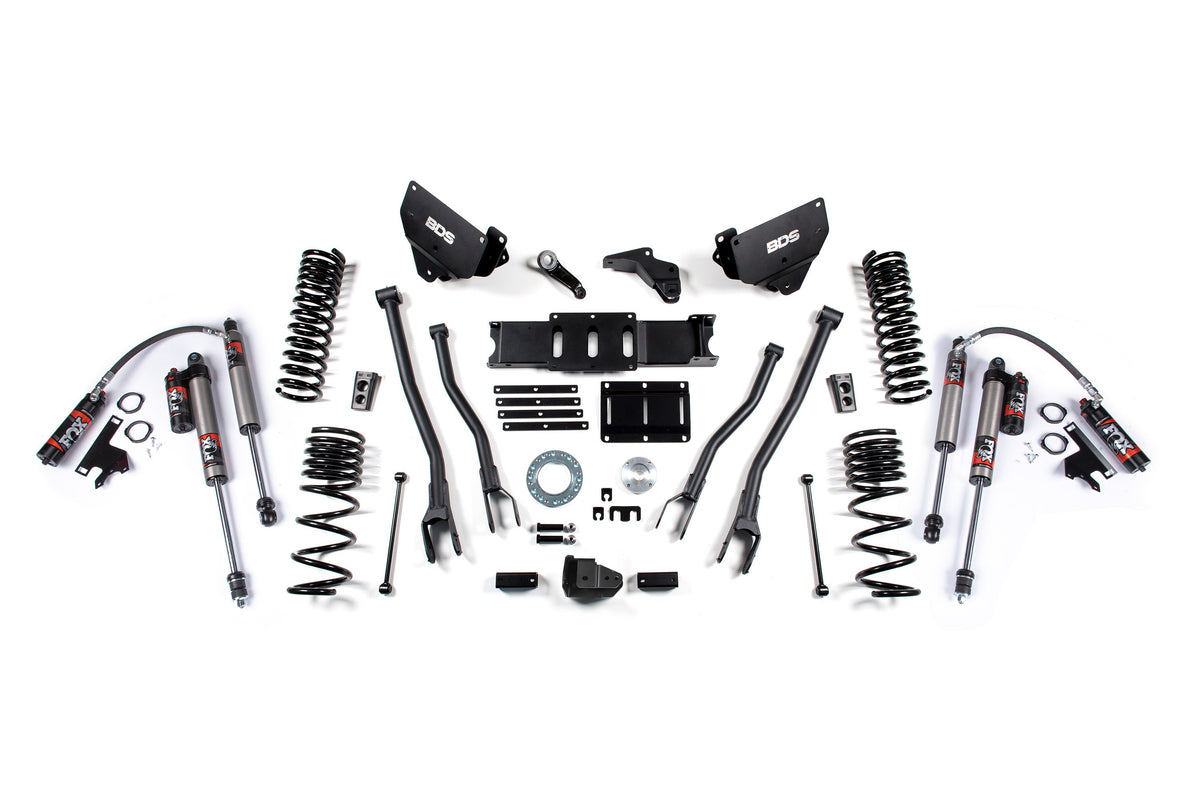

| FOX 2.5 Performance Elite | BDS1606FPE | Yes | one BDS012403, 2013-2018 Ram 3500 4-Link Box Kit (2of2) one BDS012458, 2014-2018 Ram 2500 4.5 inch Rear Coil Box Kit one BDS012604, 2013-2018 Ram 3500 6 inch 4-Link Box Kit (1of2) one BDS032401, 2013-2018 Ram 3500 / 2014-2018 2500 Ram - Front Coils 4 inch Diesel - 5.5 inch Gas one BDS122616, Ram T-Case Index - Gas - 6 Bolt one FOX88326064, Kit: 2014-2024 Ram 2500, Front, 2.5 Truck Fox Performance Elite Series, R/R, 6 inch Lift, Dual Speed Compression Adjust one FOX88326067, Kit: 2014-2023 Ram 2500, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 11.1 inch, 4-6 inch Lift, Dual Speed Compression Adjust |

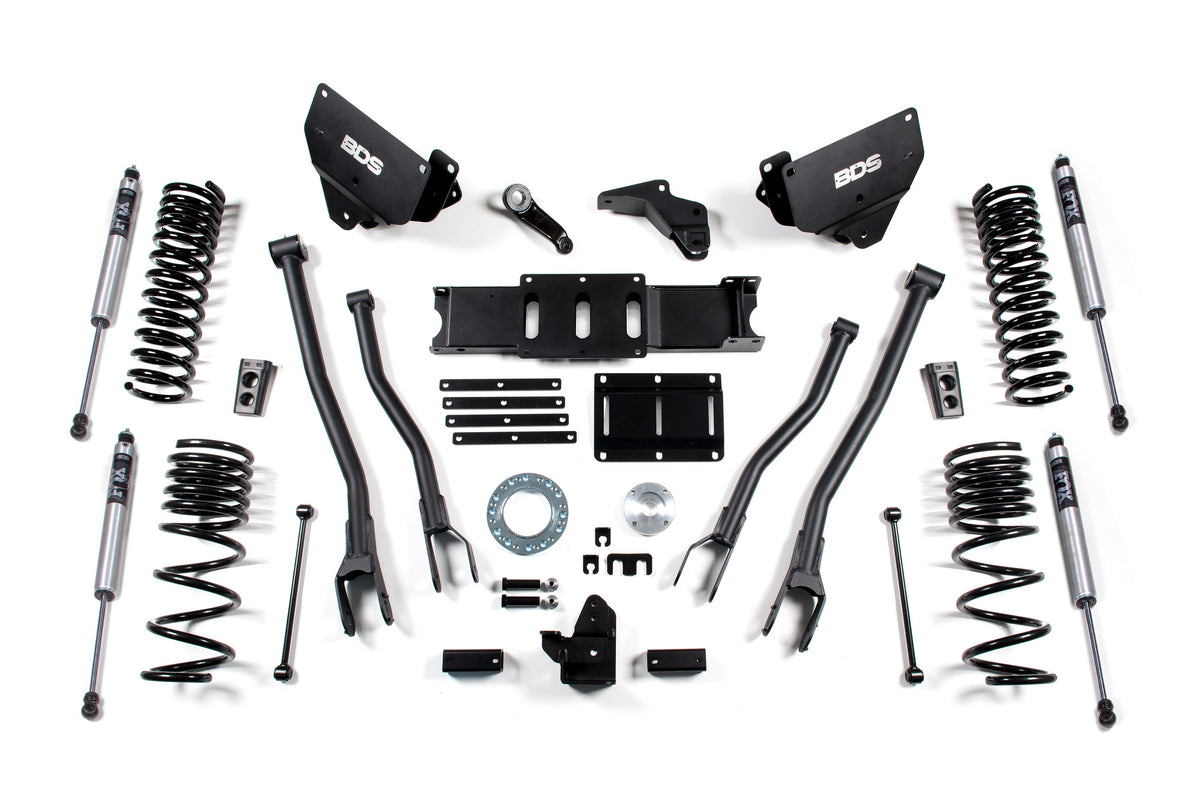

| FOX 2.0 Performance Series | BDS1606FS | Yes | one BDS012403, 2013-2018 Ram 3500 4-Link Box Kit (2of2) one BDS012458, 2014-2018 Ram 2500 4.5 inch Rear Coil Box Kit one BDS012604, 2013-2018 Ram 3500 6 inch 4-Link Box Kit (1of2) one BDS032401, 2013-2018 Ram 3500 / 2014-2018 2500 Ram - Front Coils 4 inch Diesel - 5.5 inch Gas one BDS122616, Ram T-Case Index - Gas - 6 Bolt two FOX98224752, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1 two FOX98224756, Fox 2.0 Shock - 27.95 x 17.35 x 2- Special/EB1 |

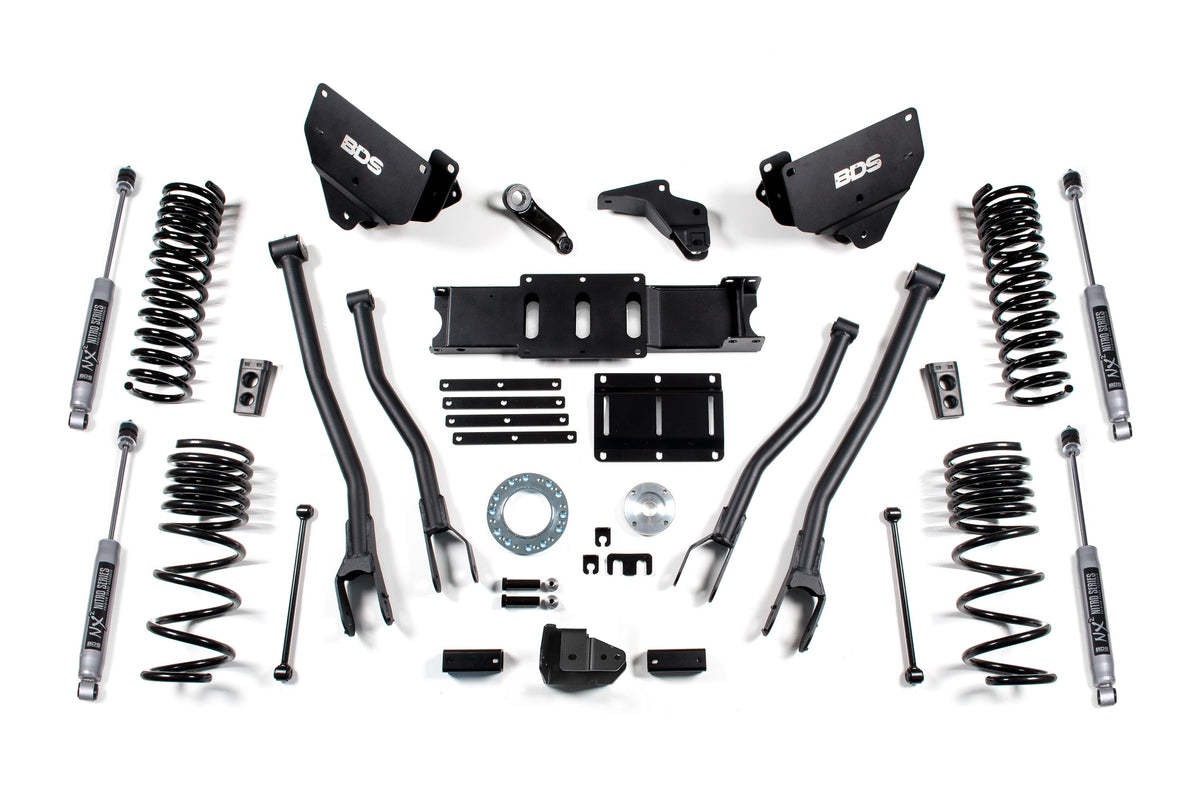

| NX2 Nitro Series | BDS1606H | Yes | one BDS012403, 2013-2018 Ram 3500 4-Link Box Kit (2of2) one BDS012458, 2014-2018 Ram 2500 4.5 inch Rear Coil Box Kit one BDS012604, 2013-2018 Ram 3500 6 inch 4-Link Box Kit (1of2) one BDS032401, 2013-2018 Ram 3500 / 2014-2018 2500 Ram - Front Coils 4 inch Diesel - 5.5 inch Gas one BDS122616, Ram T-Case Index - Gas - 6 Bolt two BDS85752, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2 two BDS85756, Shock- 27.9 x 16.6 x 2-3/8 - Special/EB1 |
Fits:
Part #: BDS1606FPE, BDS1606FS, BDS1606H
