BDS Suspension 5.5 Inch Lift Kit Ram 3500 w/ Rear Air Ride 2013-2018 4WD Gas
-
Free shipping on orders over $100
-
Secure payments
- Available

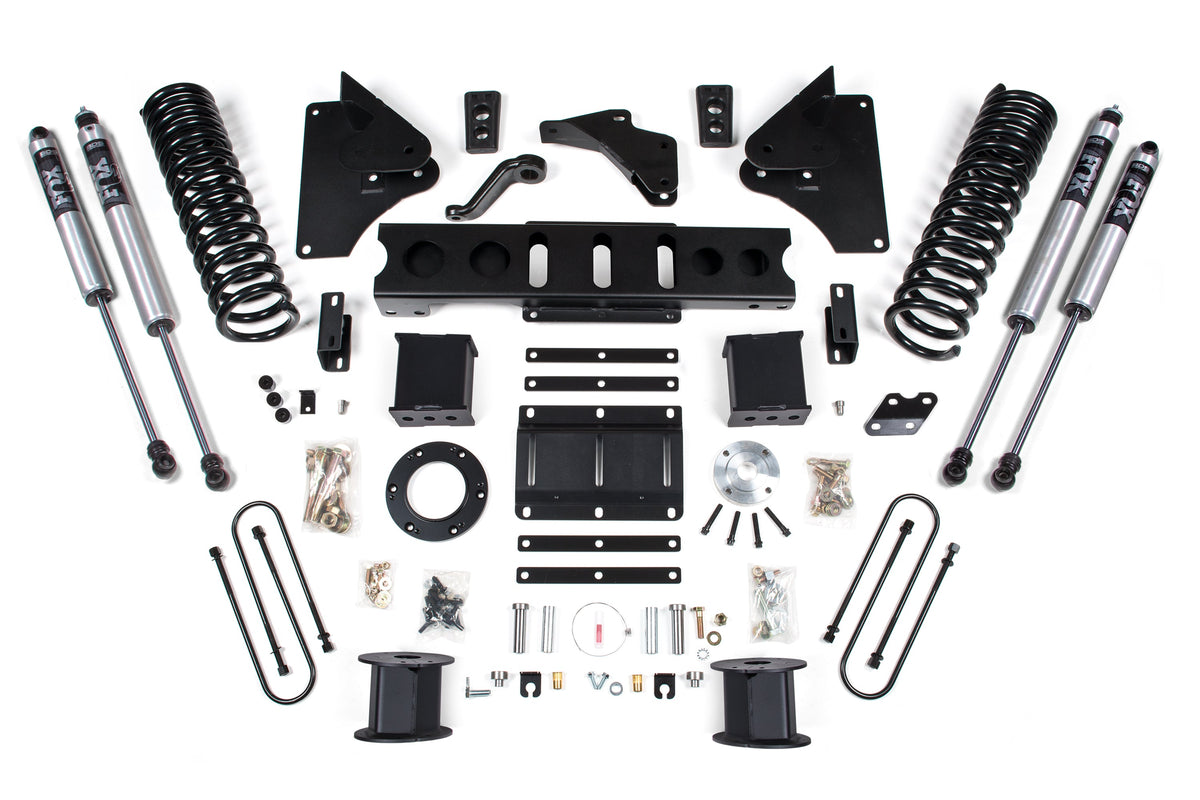

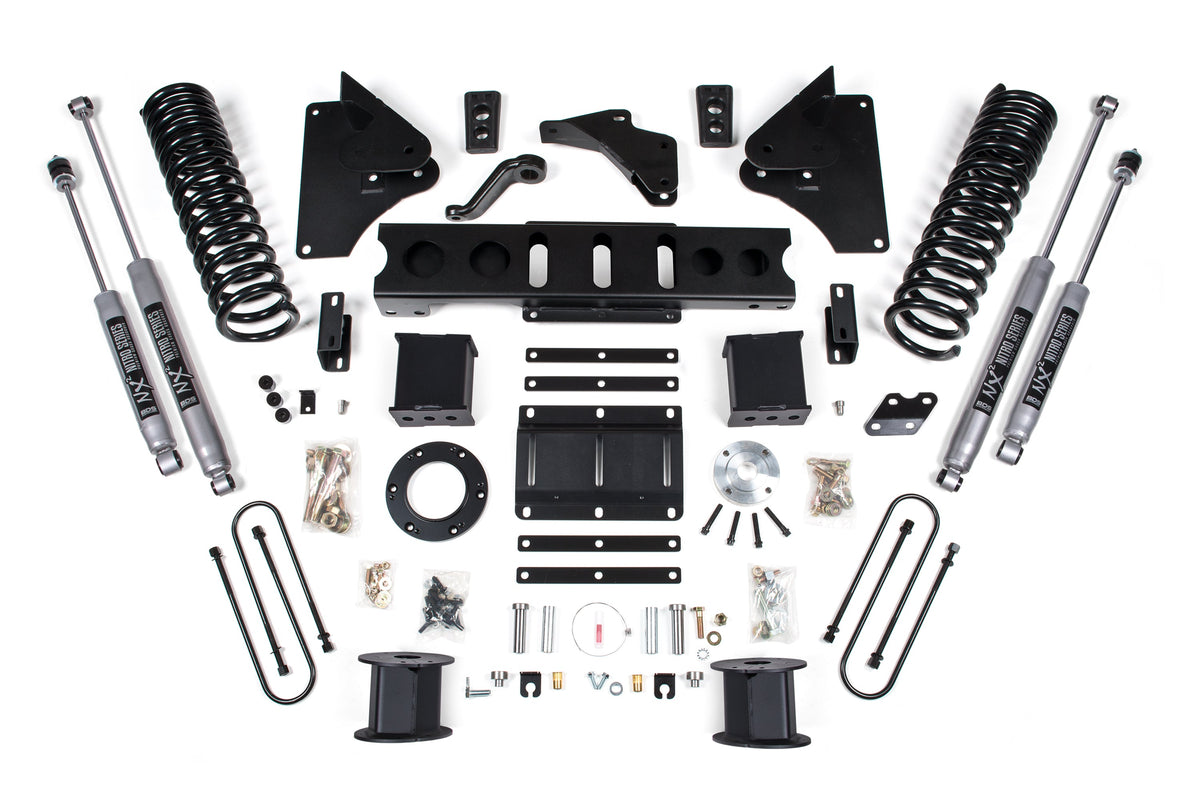

Improve the ride and style of your 2013-2018 RAM 3500 gas powered truck, equipped with rear air ride from the factory, with this 5.5-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.
Up front the lift kit includes gas-specific Pro-Ride coil springs, radius arms drop brackets, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.
In the rear this kit utilizes a high-strength fabricated lift block, heavy duty air bag spacers, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
Pro-Ride Coil Springs
A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
FOX 2.0 Performance Series
Features:
Fitment Notes (from BDS):
Specifications:
Options & Part Numbers:
| Option | Part # | Shocks Included | What's in the Box |
|---|---|---|---|
| FOX 2.0 Performance Series | BDS1651FS | Yes | one BDS012610, 2013 Ram 3500 6 inch Front Box Kit one BDS012618, 2013-2018 Ram 3500 Auto Level Air Suspension 6 inch Rear one BDS032401, 2013-2018 Ram 3500 / 2014-2018 2500 Ram - Front Coils 4 inch Diesel - 5.5 inch Gas one BDS122616, Ram T-Case Index - Gas - 6 Bolt two FOX98224752, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1 two FOX98224769, Fox 2.0 Shock 31.02 x 18.95 x 2- EB1/EB1 |
| NX2 Nitro Series | BDS1651H | Yes | one BDS012610, 2013 Ram 3500 6 inch Front Box Kit one BDS012618, 2013-2018 Ram 3500 Auto Level Air Suspension 6 inch Rear one BDS032401, 2013-2018 Ram 3500 / 2014-2018 2500 Ram - Front Coils 4 inch Diesel - 5.5 inch Gas one BDS122616, Ram T-Case Index - Gas - 6 Bolt two BDS85752, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2 two BDS85769, Shock- 30.95 x 18.15 x 2-3/8 - EB1/EB1 |
Fits:
Part #: BDS1651FS, BDS1651H
