BDS Suspension 4 Inch Lift Kit w/ Radius Arm Ford F100/F150 1980-1996 4WD
-
Free shipping on orders over $100
-
Secure payments
- Available

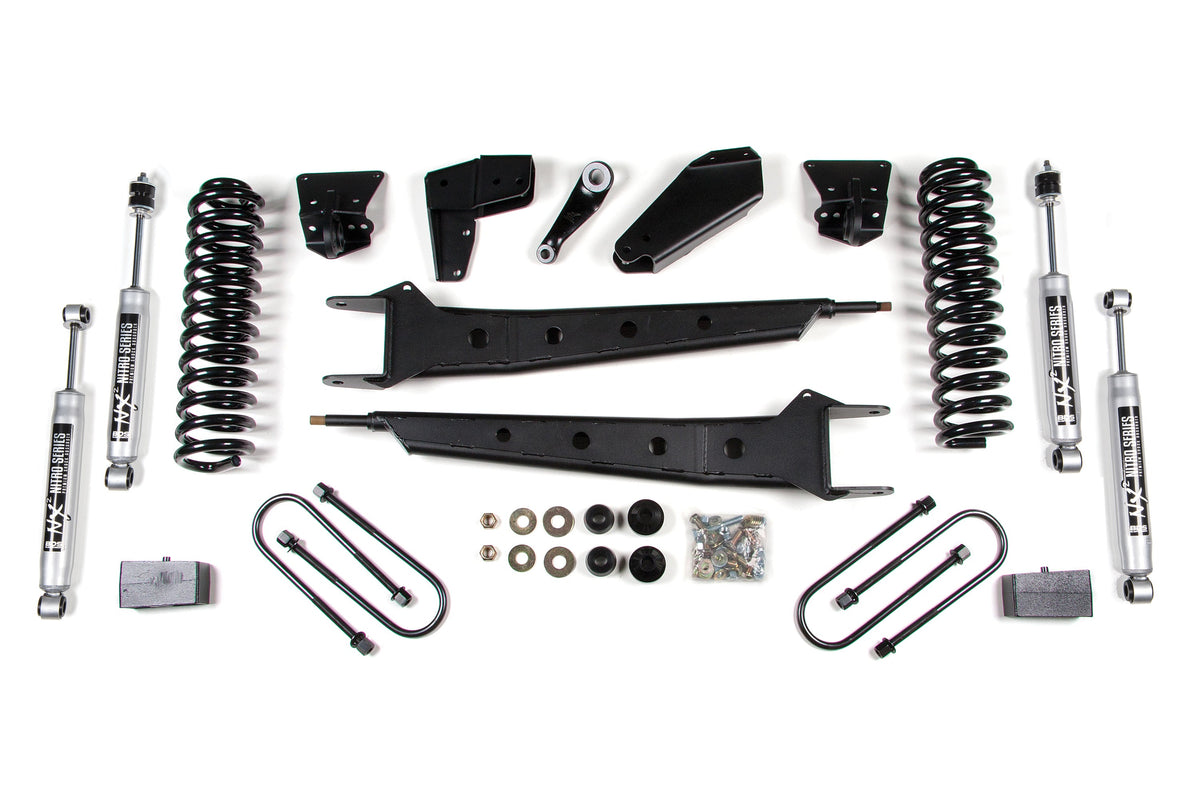

Built to outperform, take your Ford 1980-1983 F100 and 1980-1996 F150 4WD truck to the next level with a 4-inch suspension lift kit with extended radius arms by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.
Up front the lift kit includes Pro-Ride coil springs, axle pivot relocation brackets, extended radius arms, radius arm drop mounts, forged pitman arm for steering correction and precision tuned NX2 nitrogen charged shocks.
In the rear the base kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.
Pro-Ride Coil Springs
A pair of full-length, vehicle-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
Extended Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. The extended radius arm system will reduce caster change through wheel travel creating a more capable and controlled feeling in the steering wheel both on and off road.
Rear Lift Options Block Kit 2 Inch
Features:
Fitment Notes (from BDS):
Specifications:
Options & Part Numbers:
| Option | Part # | Shocks Included | What's in the Box |
|---|---|---|---|
| 2 Inch Block Kit | BDS502H | Yes | one BDS013003, 80-96 Ford F150 Ext Radius Arm Front Box one BDS033401, 80-96 Ford F150/Bronco 4in Coil Kit one BDS063209, Ford F150 2 Inch Block & U-bolt Kit two BDS85660, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1 two BDS85800, Shock- 20.40 x 12.65 x 2-3/8 - S1/EB1 |

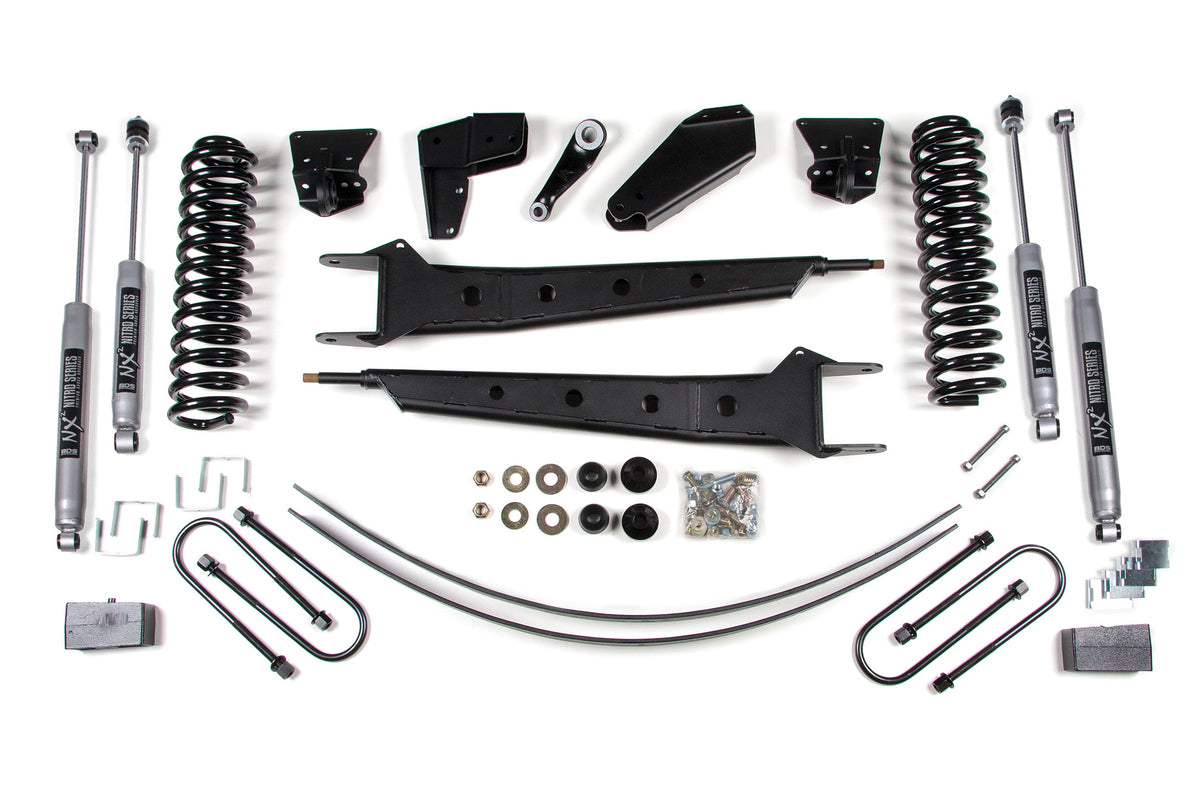

| Dual Add A Leaf_Kit | BDS504H | Yes | one BDS013003, 80-96 Ford F150 Ext Radius Arm Front Box one BDS033401, 80-96 Ford F150/Bronco 4in Coil Kit one BDS113209, Ford 3in wide Rear Dual Add-a-leaf two BDS85660, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1 two BDS85800, Shock- 20.40 x 12.65 x 2-3/8 - S1/EB1 four UBT4051, 9/16 x 3-1/4 x 10 Round U-bolt |
| 4 Inch Leaf Springs | BDS506H | Yes | two BDS003408, 73-96 Ford F150 4in Rear Spring 3in wide one BDS013003, 80-96 Ford F150 Ext Radius Arm Front Box one BDS033401, 80-96 Ford F150/Bronco 4in Coil Kit two BDS85660, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1 two BDS85800, Shock- 20.40 x 12.65 x 2-3/8 - S1/EB1 four UBT4051, 9/16 x 3-1/4 x 10 Round U-bolt |
| 2 Inch Leaf Springs | BDS529H | Yes | two BDS003208, 73-96 Ford F150 2 Inch Rear Spring 3in wide one BDS013003, 80-96 Ford F150 Ext Radius Arm Front Box one BDS033401, 80-96 Ford F150/Bronco 4in Coil Kit two BDS85660, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1 two BDS85800, Shock- 20.40 x 12.65 x 2-3/8 - S1/EB1 four UBT4051, 9/16 x 3-1/4 x 10 Round U-bolt |
Fits:
Part #: BDS502H, BDS504H, BDS506H, BDS529H
