BDS Suspension 4 Inch Lift Kit w/ 4-Link Ram 3500 w/ Rear Air Ride 2013-2018 4WD Diesel
-
Free shipping on orders over $100
-
Secure payments
- Available
Built to outperform, BDS Suspension engineered a 4-inch lift kit with 4-Link conversion for your 2013-2018 RAM 3500 diesel powered truck that will surely impress. Works on trucks with factory rear air ride option. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.
In the rear this kit utilizes a high-strength fabricated lift block, heavy duty air bag spacer, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
4-Link Conversion
Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
FOX 2.0 Performance Series
Features:
Fitment Notes (from BDS):
Specifications:
Options & Part Numbers:
| Option | Part # | Shocks Included | What's in the Box |
|---|---|---|---|

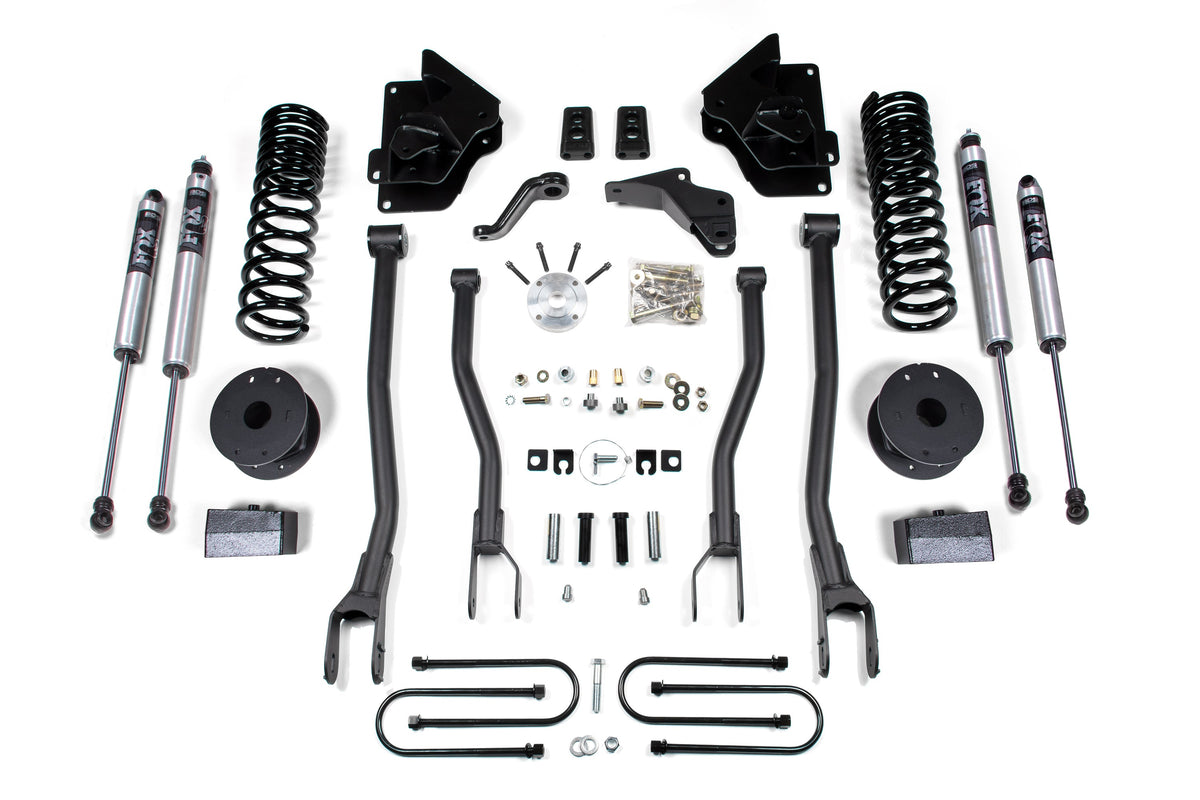

| FOX 2.0 Performance Series | BDS1644FS | Yes | one BDS012318, Ram 3500 Auto Level Air Suspension 3 inch Rear one BDS012403, 2013-2018 Ram 3500 4-Link Box Kit (2of2) one BDS012414, 2013-2018 Dodge Ram 2500/3500 4 inch 4-Link Box Kit (1of2) one BDS032401, 2013-2018 Ram 3500 / 2014-2018 2500 Ram - Front Coils 4 inch Diesel - 5.5 inch Gas two FOX98224752, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1 two FOX98224758, Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1 |

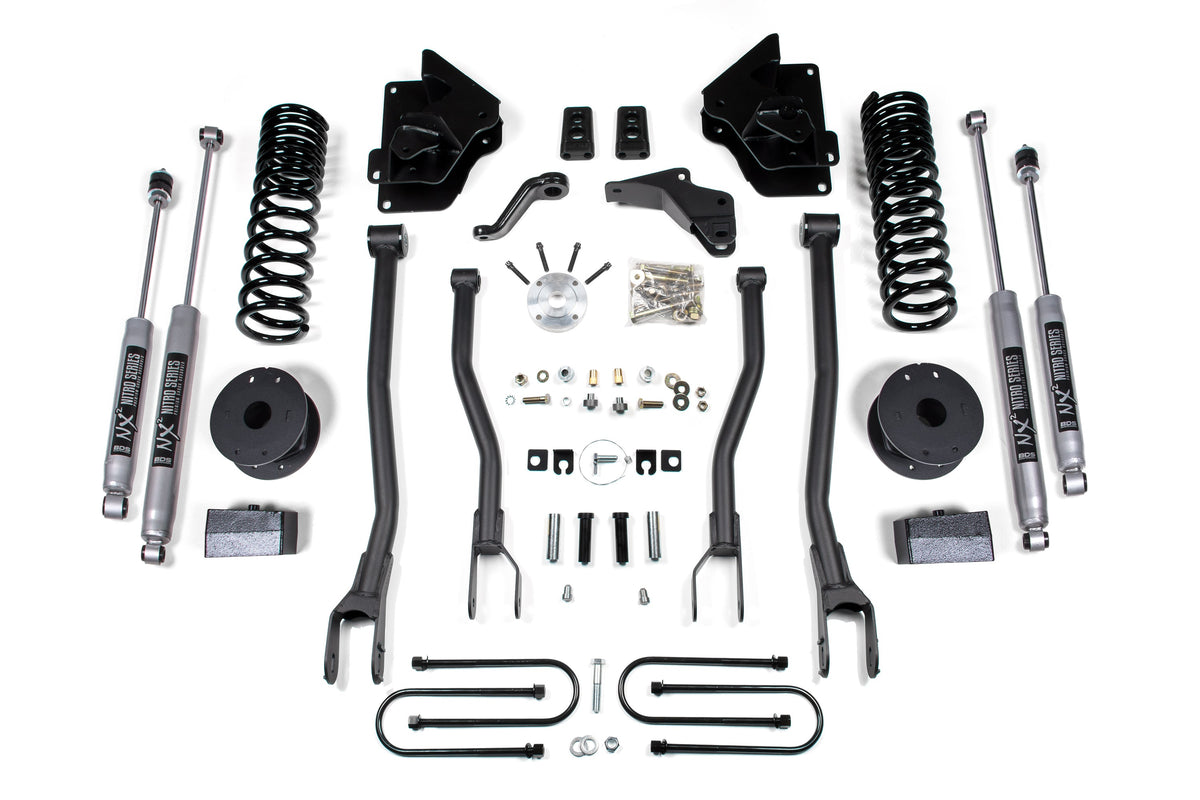

| NX2 Nitro Series | BDS1644H | Yes | one BDS012318, Ram 3500 Auto Level Air Suspension 3 inch Rear one BDS012403, 2013-2018 Ram 3500 4-Link Box Kit (2of2) one BDS012414, 2013-2018 Dodge Ram 2500/3500 4 inch 4-Link Box Kit (1of2) one BDS032401, 2013-2018 Ram 3500 / 2014-2018 2500 Ram - Front Coils 4 inch Diesel - 5.5 inch Gas two BDS85752, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2 two BDS85758, Shock- 27.90 x 16.55 x 2-3/8 - EB1/EB1 |
Fits:
Part #: BDS1644FS, BDS1644H
